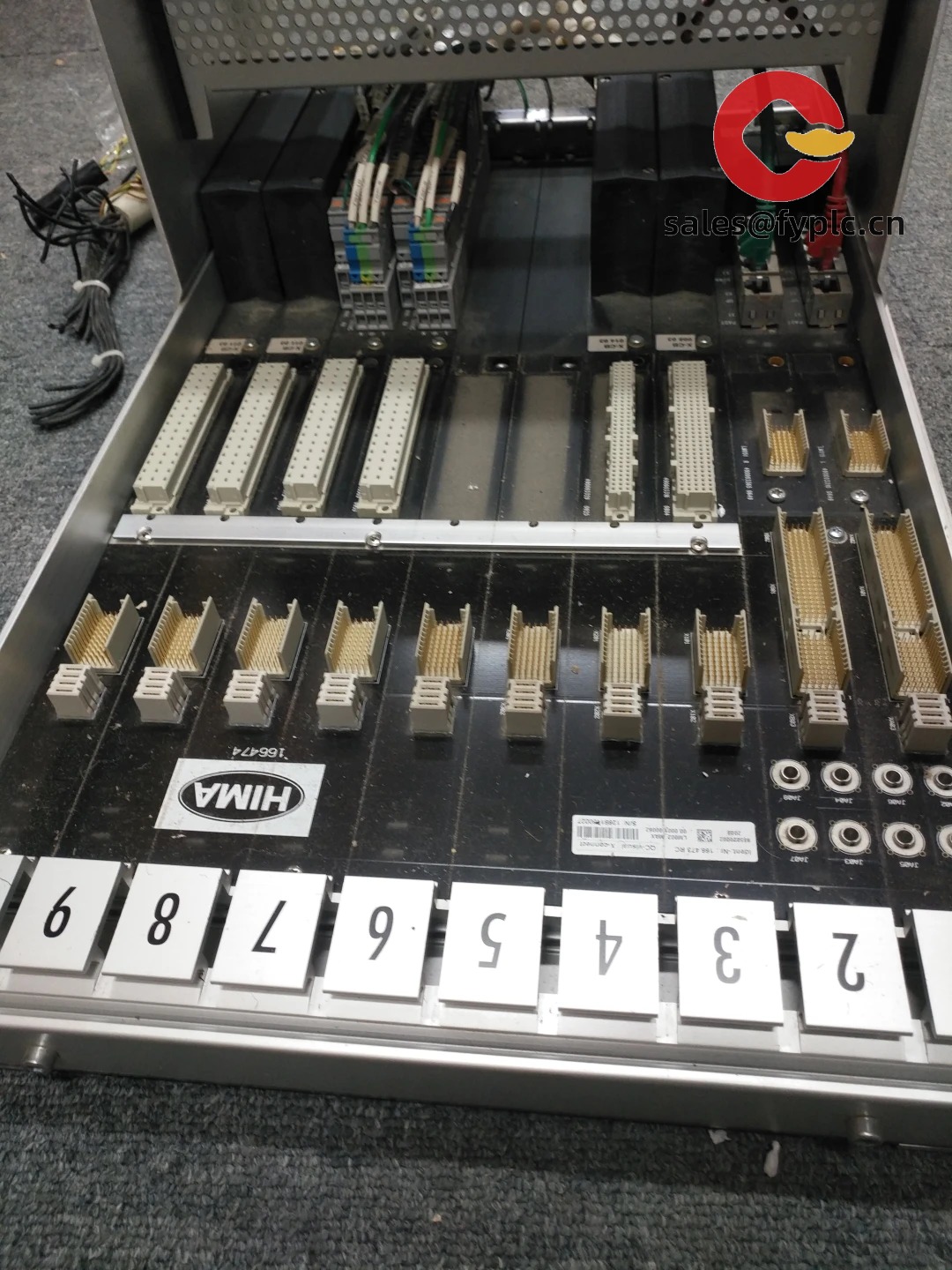

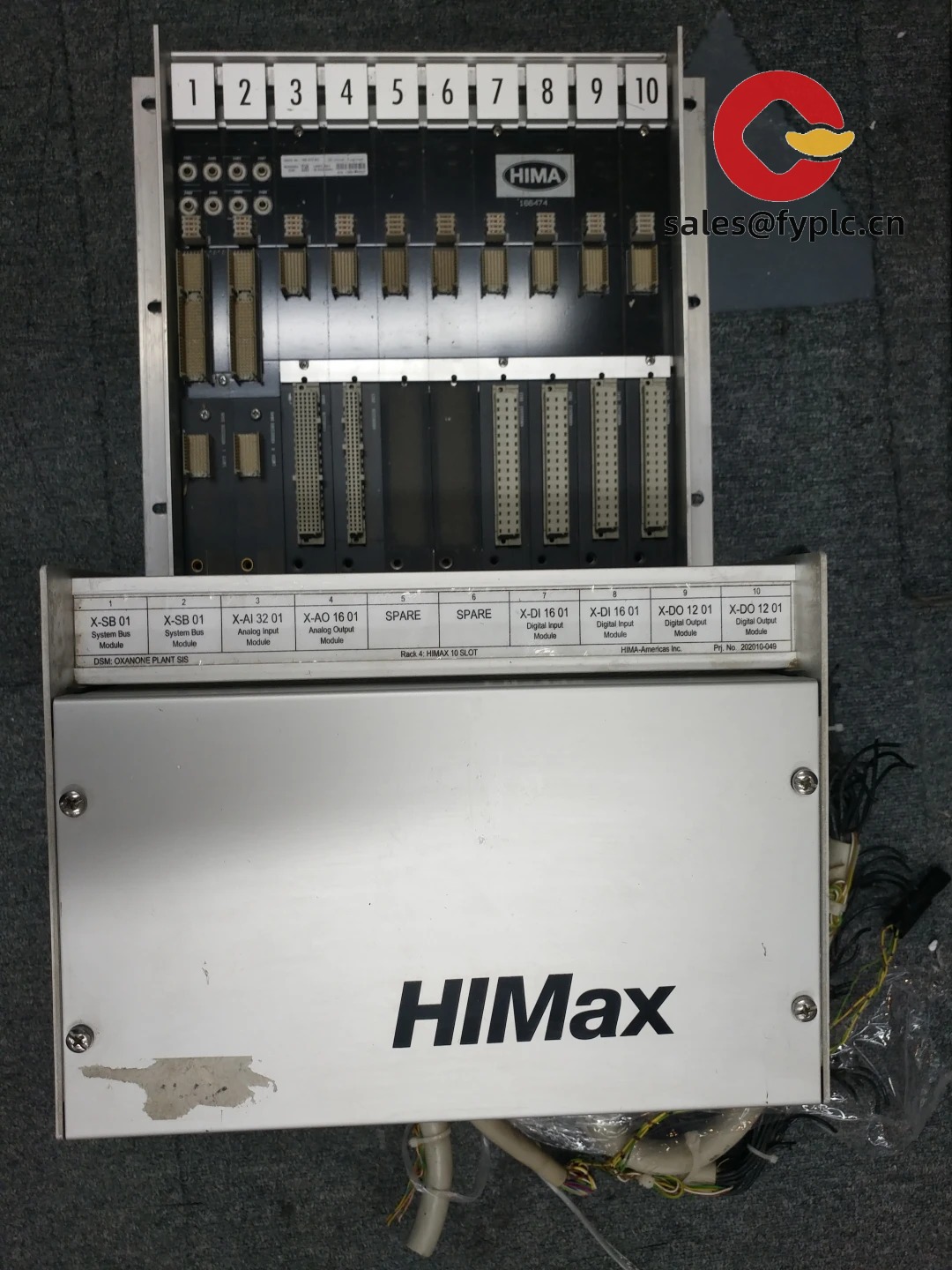

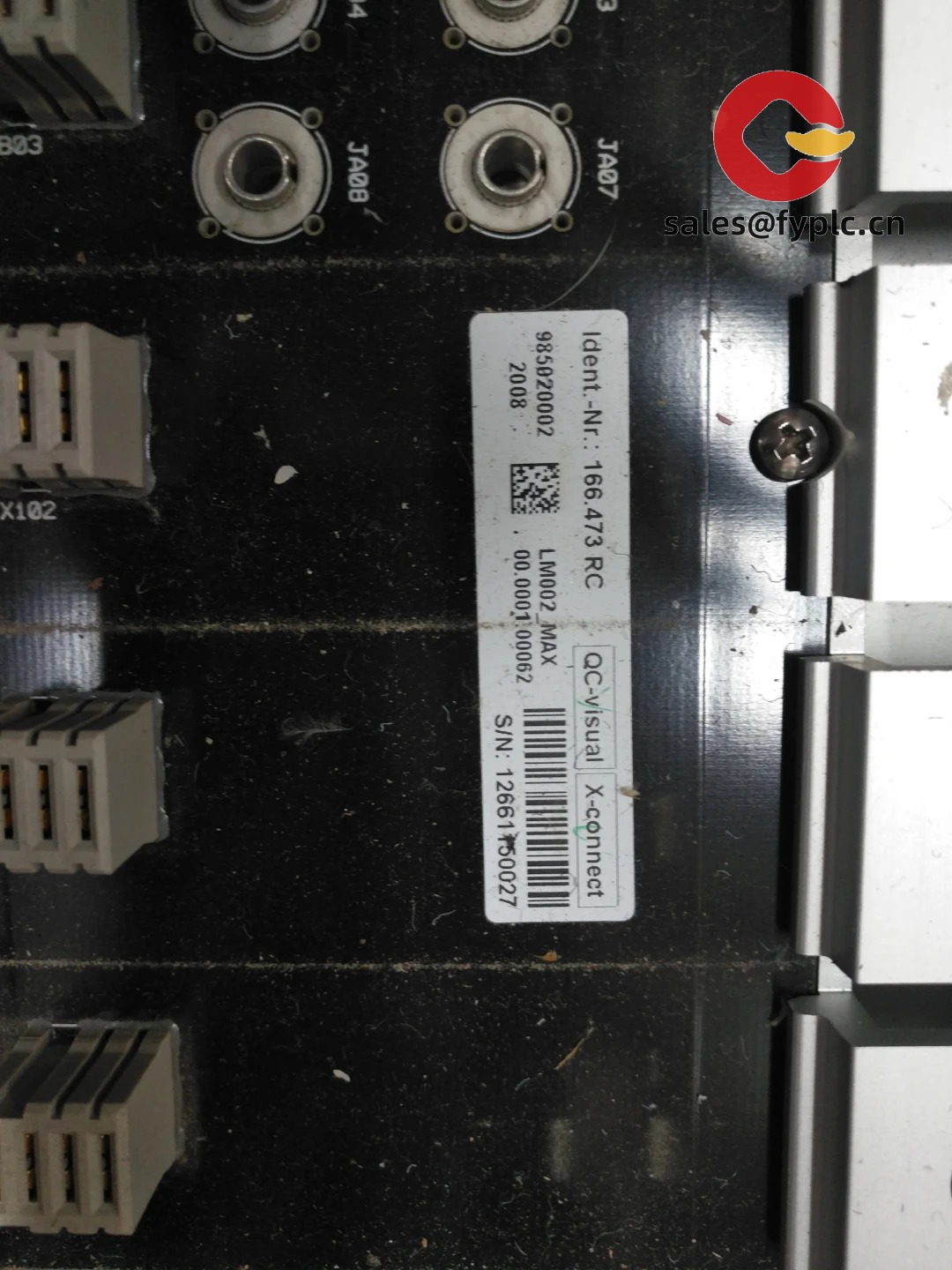

HIMI LM002-MAX-985020002 – Communication Expansion Module for HMI/PLC Connectivity

The HIMI LM002-MAX-985020002 is a compact communication/expansion module designed to extend the connectivity of MAX-series HIMI operator panels and PLC-based control cabinets. From my experience, it’s typically used to add robust serial links (like RS‑485/RS‑232) between an HMI and field instruments—VFDs, power meters, small RTUs—without reworking the main controller. You might notice that projects with multi-brand devices benefit the most; the module bridges protocol gaps and stabilizes long-distance bus runs in many cases.

Company’s Order Placement Process and Guarantees

• Warranty period: 365 days
• Delivery time: 1 week for in-stock; no more than one month at the latest
• Payment method: 50% advance payment; full payment before delivery
• Express delivery methods: FedEx, UPS, DHL

Key Features

• RS‑485/RS‑232 serial expansion – Adds industrial serial ports for drives, energy meters, barcode modules, and legacy PLC links.
• Optimized for HIMI MAX-series HMIs – Seamless fit for panel integration; wiring stays short and tidy inside the cabinet.
• 24 VDC cabinet-friendly power – Draws from the standard control power rail; no extra PSU needed in most cases.
• DIN-rail mounting – Quick install on EN 60715 rails; service-friendly when panels are tight.
• Industrial temperature range – Built for stable operation in typical control rooms and shop-floor enclosures.
• Noise-conscious design – Suits RS‑485 multi-drop wiring; works well with shielded twisted pair and proper termination.

Technical Specifications

One thing I appreciate is how easily it drops into existing panels—wiring RS‑485 trunk lines with proper termination typically solves distance and noise issues that HMIs alone struggle with.

Application Fields

• Packaging and labeling lines – connect scales, printers, and servo drives to a central HMI.
• HVAC and building automation – integrate chillers, VFDs, and energy meters over Modbus/RTU.
• Water and wastewater – stable RS‑485 multi-drop links to instruments and local RTUs.
• Machining and metalworking – bridge legacy CNC/PLC serial ports to modern operator panels.
• Power distribution panels – collect feeder data and breaker diagnostics to the HMI.

Advantages & Value

• Reliability – Purpose-built for industrial serial buses; in many cases, it reduces comm retries and bus collisions.
• Compatibility – Works smoothly with HIMI MAX-series HMIs and commonly used Modbus/RTU devices.
• Cost savings – Avoids replacing controllers just to add ports; faster commissioning than new CPU hardware.
• Short lead times – Stock is often available; helpful when retrofits are under time pressure.
• Technical support – Configuration guidance and wiring best practices keep start-up predictable.

Installation & Maintenance

• Panel environment – Install on DIN rail in a dry, clean IP20 cabinet with adequate ventilation; avoid heat sources.
• Power & grounding – 24 VDC regulated supply; common reference ground with the HMI/PLC; use ferrules and proper strain relief.
• RS‑485 wiring – Use shielded twisted pair (120 Ω), daisy-chain topology, bias/termination at the bus ends; keep stubs short.
• EMC practice – Separate signal and power cables; bond shields at one end to reduce ground loops.
• Routine checks – Inspect terminal tightness quarterly; confirm LEDs/status; back up configuration files after changes.
• Firmware/config – If firmware is provided for your batch, schedule updates during planned downtime and keep a rollback copy.

Quality & Certifications

• Typically compliant with CE and RoHS for industrial control equipment
• UL/CSA compliance may apply depending on region and batch
• Manufacturer’s warranty: 12 months (365 days)

Customer note: A maintenance manager from a bottling plant told us the module “cleaned up” a 900‑meter RS‑485 network where intermittent timeouts used to occur—no PLC changes, just proper termination and this add-on. Results like that seem to be common when the wiring rules are respected.
