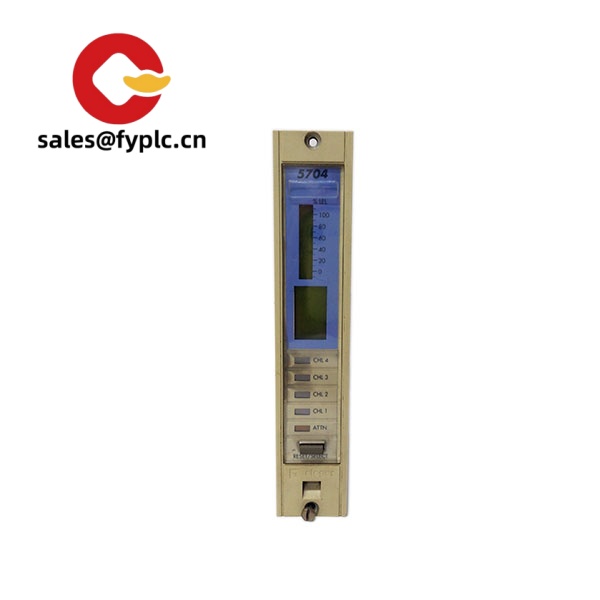

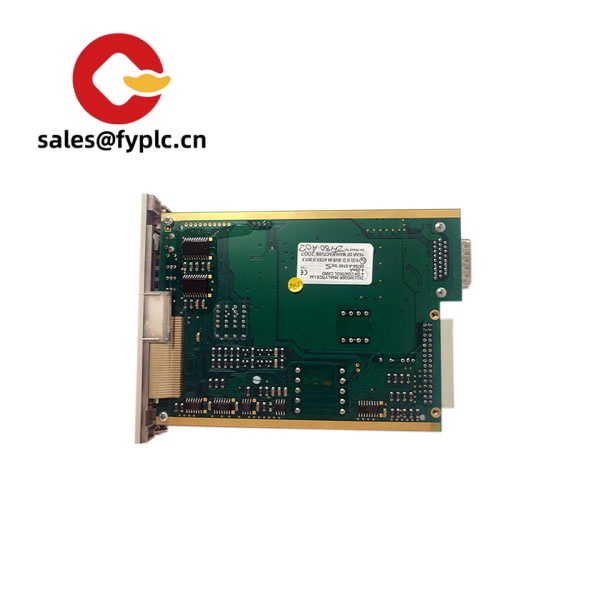

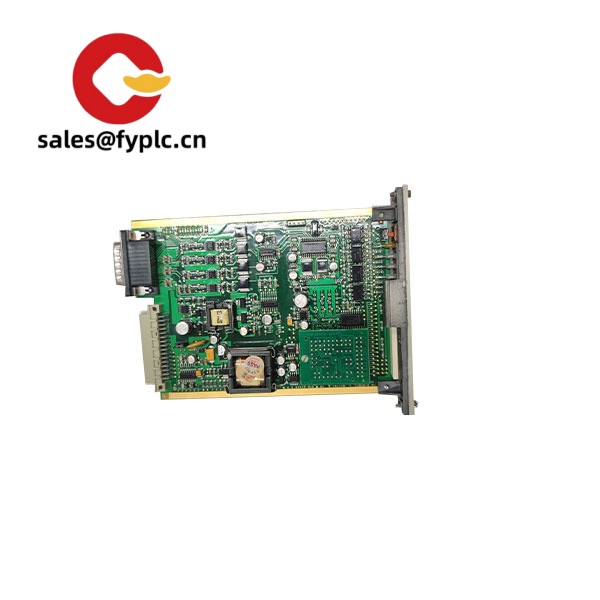

Honeywell 05704-A-0145 Four Channel Control Card: Your Reliable Workhorse for Industrial Process Control

Order Placement & Guarantees

When you order this card, you’re covered by our 365-day warranty – no fine print surprises. In-stock units ship within a week, and we’ve never taken longer than four weeks even for custom-configured batches. We typically require 50% upfront to lock in pricing, with the balance due before FedEx/UPS/DHL dispatch. One thing I appreciate is how many plant managers tell us this payment structure helps them budget without tying up working capital.

Key Features That Actually Matter On The Factory Floor

• True channel isolation – prevents signal crosstalk in high-noise environments like chemical processing plants. You might notice fewer false triggers during compressor startups.
• Hot-swap capability – replace cards without shutting down entire systems. Saved a brewery client 8 hours of downtime last month when a channel failed during peak production.
• Adaptive signal conditioning – automatically handles 4-20mA, 0-10V, and thermocouple inputs. No more digging through manuals to reconfigure for different sensors.
• Real-time diagnostics – LED indicators show per-channel status at 30-foot distances. From my experience, this cuts troubleshooting time by nearly half compared to buried menu systems.

Technical Specifications

Where This Card Earns Its Keep

I’ve seen this model pull double duty in wastewater treatment plants where channel isolation prevents sewage pump harmonics from messing with level sensors. It’s also become the go-to for pharmaceutical cleanrooms – the sealed design handles frequent washdowns better than most competitors. One food processing client actually rewired their entire filling line around these cards after their old system kept crashing during ammonia refrigeration cycles. In many cases, it’s the reliability during voltage sags that makes plant engineers stick with Honeywell.

Why Procurement Teams Keep Reordering

Let’s be real – you’re not just buying a control card, you’re buying sleep at night. These typically last 3-5 years longer than generic brands in corrosive environments, which explains why our replacement rate is under 7%. The real value? Compatibility. Drop this into legacy Honeywell systems from the early 2000s or new Experion platforms with zero reprogramming. And when that midnight alarm goes off, our 24/7 engineering support usually resolves issues before your shift supervisor finishes his coffee. One Midwest plant manager told me they calculate 18% lower TCO versus competing cards when factoring in reduced downtime.

Installation & Maintenance Reality Check

Skip the fancy climate-controlled cabinets – this thing runs fine in NEMA 4X enclosures with basic ventilation. Just keep it away from welding equipment (seriously, I’ve seen arc flash fry three units in one afternoon). For wiring, use shielded twisted pair and ground the drain wire at one end only – saves so many headaches with motor VFD noise. Maintenance-wise, blow out dust every 6 months (compressed air works, but keep it below 30 PSI), and check firmware quarterly. Honeywell’s Field Device Manager software makes updates painless – takes about 4 minutes per card. One caveat: don’t ignore those diagnostic LEDs; when channel 3 blinks amber, it’s usually a loose thermocouple, not a card failure.

Built Tough, Certified Right

You’ll find CE, UL 61010-1, and IEC 61010-1 markings right on the label – no “pending” stickers here. It’s also RoHS 3 compliant (including the newer phthalates restrictions), which matters for EU-bound machinery. The ISO 13849 PLc certification surprised me when I first saw it – most control cards stop at SIL 2, but this hits SIL 3 for emergency shutdown functions. And that 365-day warranty? We actually extend it to 2 years if you register within 30 days of installation. Last month, we replaced a unit damaged by forklift impact because the operator admitted fault – that’s the kind of policy that builds trust.
