Description

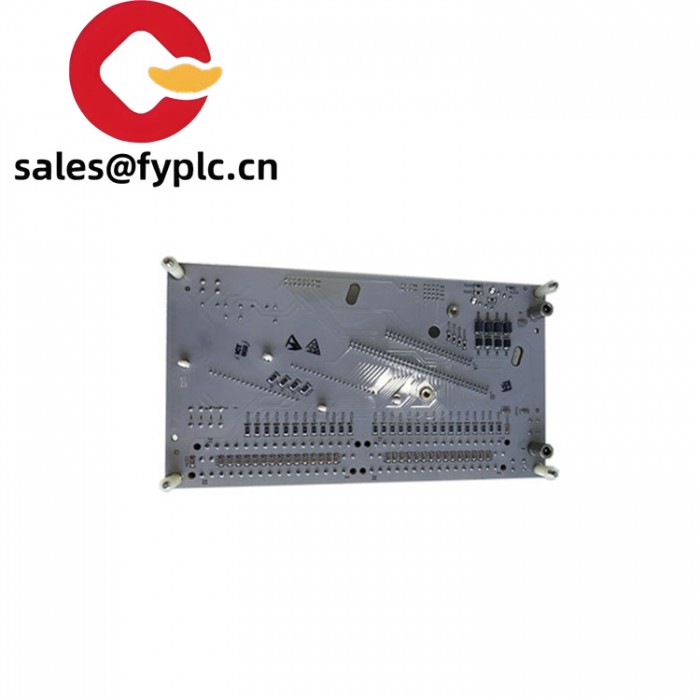

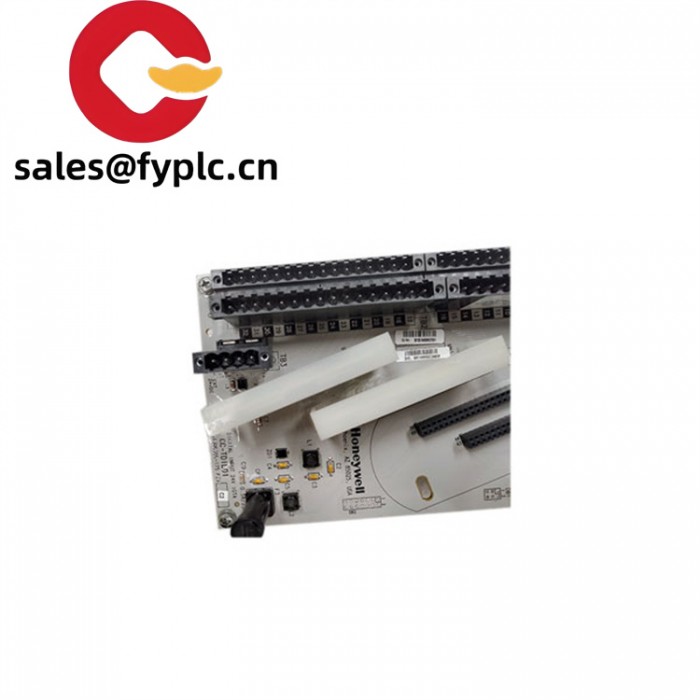

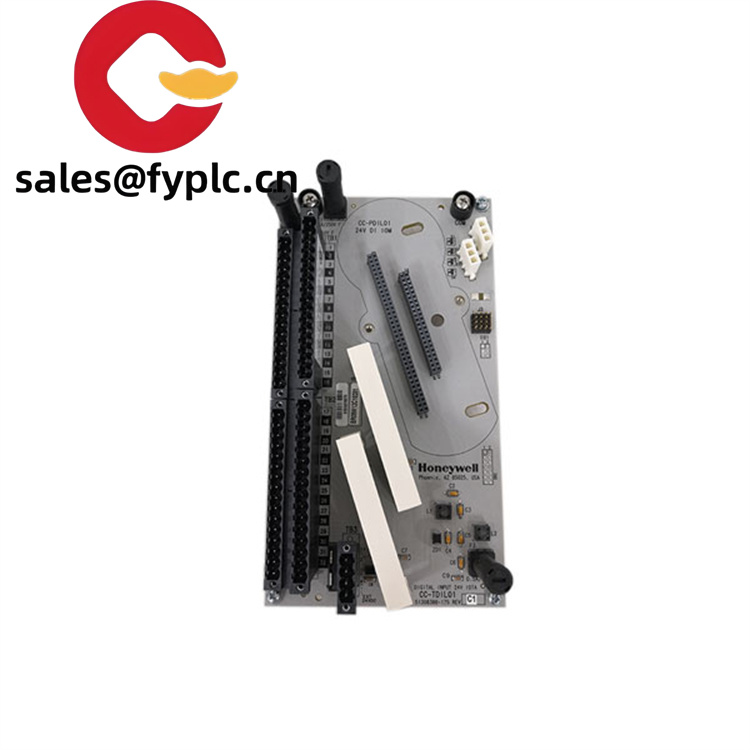

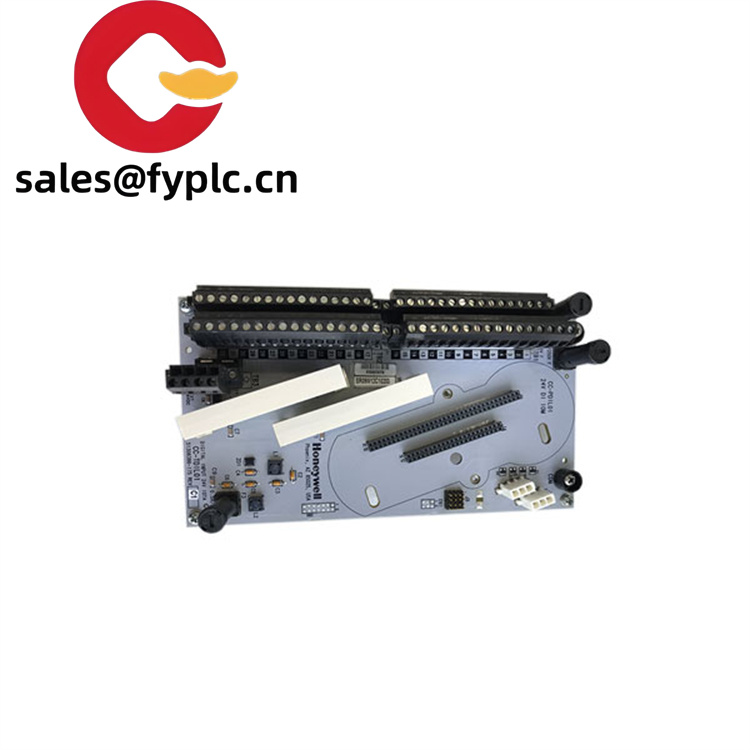

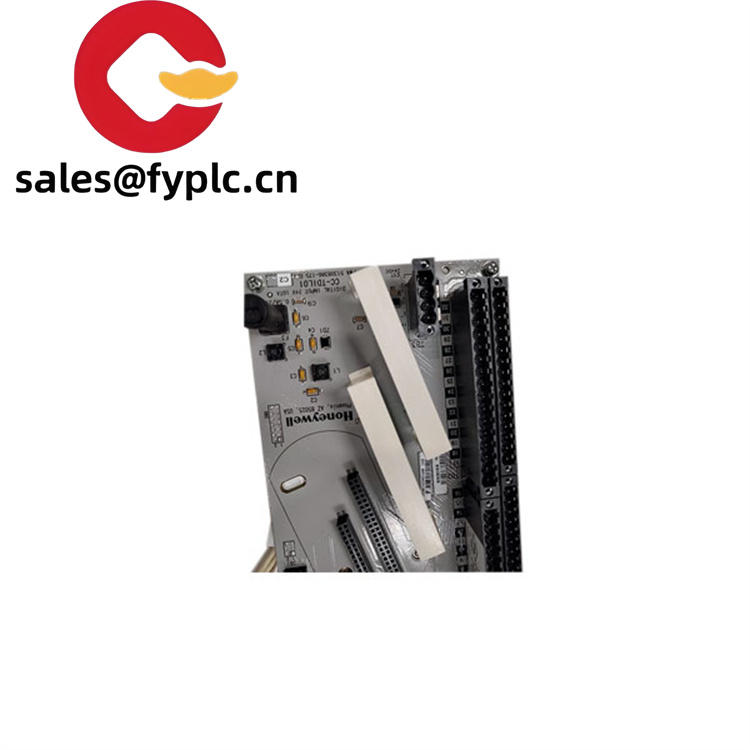

HONEYWELL CC-TDIL01 Digital Input Controller Module
CC-TDIL01
This module is highly adaptable and can be seamlessly integrated into different types of industrial control systems, including Distributed Control Systems (DCS) and Programmable Logic Controller (PLC) – based systems. Its versatility makes it an indispensable component for industries striving to achieve seamless automation, enhance process reliability, and optimize overall productivity. Whether it’s a high – speed production line in the automotive industry or a complex chemical process in the petrochemical sector, the Honeywell CC – TDIL01 ensures that digital signals are accurately processed and communicated, forming the basis for effective industrial control.
| Label |
Specification |
| Model Number |
CC – TDIL01 |
| Brand |
Honeywell |
| Type |
Digital Input Module |
| Input Voltage |
24 VDC |
| Operating Temp |
– 40 °C to 85 °C |
| Input Current |
0.190 A at 24 VDC |
| Heat Dissipation |
4.220 Watts |
| Communication Protocol |
Not specified in all sources, but likely designed to interface with common industrial communication systems for seamless data transfer |
| Mounting |
Details not specified in all sources, but designed for installation in industrial control cabinets, potentially with options for secure and space – efficient mounting |
| Weight |
Approximately 0.38 kg (transport weight 2 kg) |
| Certifications |
Built to meet industrial standards, though specific certifications not always detailed, indicating compliance with industry – recognized quality and safety requirements |
| Dimensions |
90mm x 30mm x 25mm |
| IP Rating |
IP67 |
| Input Channels |
Multiple (exact number varies in sources, but designed to handle digital input signals from various devices) |
| Input Type |
Compatible with dry contacts, NPN and PNP input types |
CC-TDIL01
The Honeywell CC – TDIL01 has been engineered with a host of functional strengths that set it apart in the industrial automation landscape. Its ability to handle a diverse range of digital input signal types, including dry contacts, NPN, and PNP inputs, is a testament to its versatility. This means it can interface with an extensive variety of digital devices, regardless of their specific output characteristics. In an industrial environment where there may be a mix of different sensor and switch technologies, the CC – TDIL01 can easily integrate with all of them, ensuring compatibility and seamless operation.
In terms of performance, the module offers high – precision signal processing. It can accurately detect and convert digital signals, providing the control system with reliable and error – free data. This is crucial for making informed decisions in real – time. The CC – TDIL01 also features a robust design. Constructed with high – quality components and a sturdy structure, it can endure the harsh conditions prevalent in industrial settings. This includes exposure to electrical noise, vibrations, and temperature fluctuations. Its IP67 rating further attests to its durability, as it can resist dust and water ingress, making it suitable for use in both indoor and outdoor industrial applications.
CC-TDIL01
Operators benefit from its built – in diagnostic functions. These functions enable quick and easy identification of any issues with the module or the connected devices. For instance, if there is a problem with a sensor’s signal, the diagnostic system can precisely pinpoint the location of the fault. This reduces downtime and maintenance costs significantly. The module also has a compact design, which not only saves valuable space in control cabinets but also makes installation and integration into existing systems a breeze.
