Description

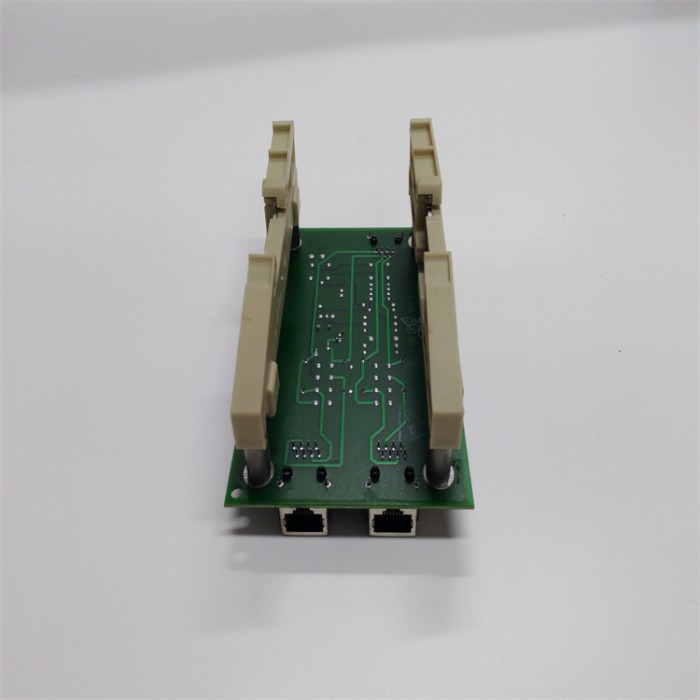

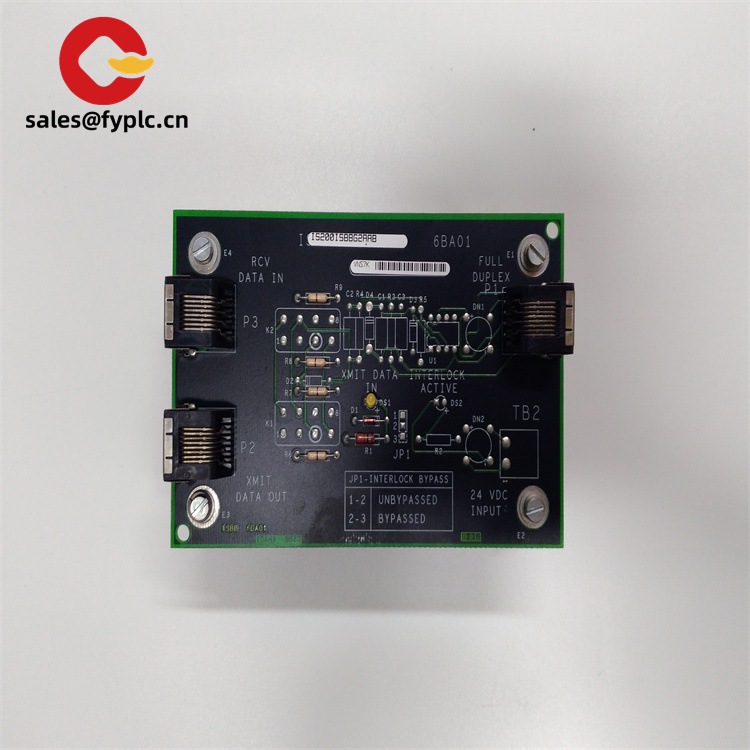

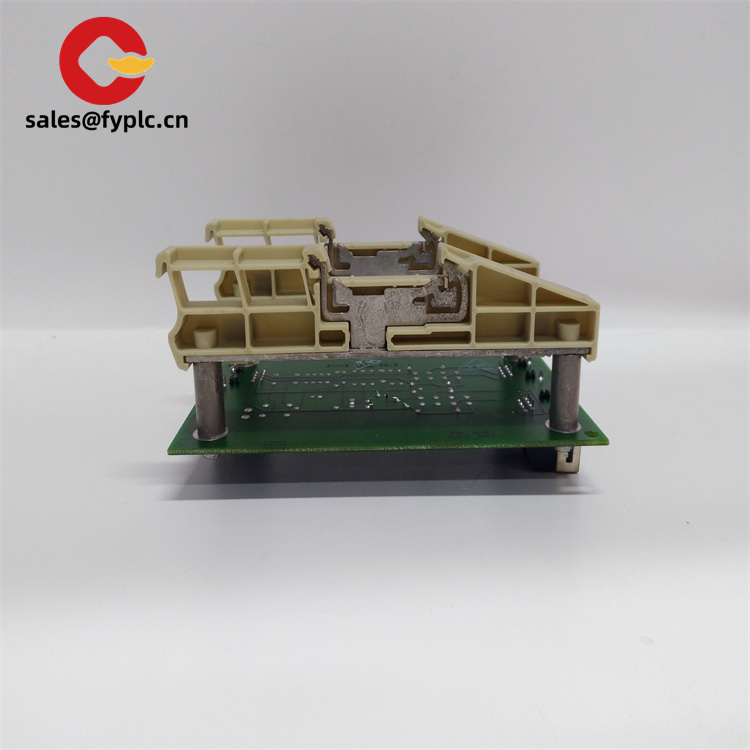

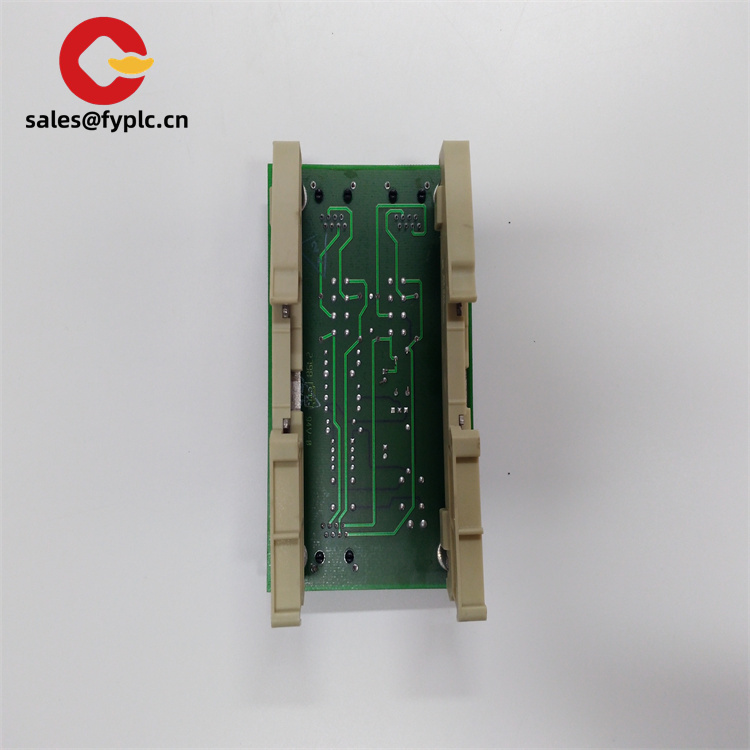

GE IS200ISBBG2AAB Synchronous Bus bypass Board: The high-reliability power management hub of the EX2100 excitation control system

In the field of industrial automation, especially in the control systems of gas turbines and steam turbines, stable power management and redundant switching capabilities are the keys to ensuring the continuous operation of the equipment. The GE IS200ISBBG2AAB, as the core component of the GE EX2100 series excitation control system, is specially designed for turbine control scenarios and undertakes the core tasks of synchronous bus bypass, redundant power supply switching and system stability enhancement. The following is a detailed analysis of its technical characteristics and application value:

I. Core Functions and Technical Parameters
1. Functional positioning
InSync Bus Bypass As a key module of the EX2100 excitation control system, the IS200ISBBG2AAB is responsible for real-time monitoring of the main power supply (24V DC) status. When power supply abnormalities (such as voltage fluctuations and interruptions) are detected, it seamlessly switches to the backup power supply within 10ms to ensure that the system control signal is not interrupted.
Signal conditioning and redundancy management: Redundant control of the excitation contactor is achieved through four-channel relay output, and the power status signal is exchanged in real time with the main controller (EMIO board) through the backplane bus (such as IS200EBKP).
System compatibility: Compatible with the Mark VI turbine control system, it supports collaborative operation with the IS200EROCH1ABB (communication expansion module) and the IS200ERIOH1AAA (excitation I/O module) to form a complete excitation control solution.

2. Technical Specifications
Parameter index
Input voltage :24V DC (±10%)
Output channels :4 relay outputs (125V DC contacts)
Communication protocol: Modbus RTU (relaying via EMIO board)
Redundancy support: Dual power supply redundancy switching (automatic selection of primary/backup power supply)
Operating temperature: -40°C to 85°C (wide temperature range design)
Protection grade: IP65 (dustproof and splash-proof)
Dimensions: 11 cm × 6 cm × 6.7 cm (Compact design)
Certification: CE, UL 508, IEC 61131-2 compliant

Ii. Design Highlights and Industrial Value
1. High-reliability architecture
Electromagnetic compatibility (EMC) : The IS200ISBBG2AAB integrates passive EMI filters, effectively suppressing high-frequency noise interference and ensuring stable operation in strong electromagnetic environments such as petrochemical plants and steel mills.
Self-diagnosis mechanism for faults: The on-board LED indicator light provides real-time feedback on power status, relay drive status and communication faults. It supports hot-swadd-on maintenance and can complete module replacement within 5 minutes, significantly reducing downtime.
2. Precise control and energy efficiency optimization
Dynamic power management: When the main power supply is normal, the module only consumes 0.5W of standby power consumption. After switching to the backup power supply, the output current (1A continuous load) is automatically adjusted to ensure the system power consumption is minimized.
Fast response mechanism: The power switching logic is implemented using FPGA hardware logic, with a response time of less than 10ms, meeting the millisecond-level control requirements of critical scenarios such as turbine emergency shutdown (ETS).
3. Flexible configuration and compatibility
Multi-scenario adaptation: The IS200ISBBG2AAB is suitable for independent excitation control of a single turbine (simplex mode), and can also support multi-turbine redundant clusters through backplane expansion (such as synchronous control of multiple steam turbines in a combined cycle power station).
System integration capability: Deeply compatible with the GE Mark VI/VIe control system, and remote monitoring and parameter configuration can be achieved through the IEEE 802.3:10Base-T Ethernet interface.
