Description
Product Overview
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

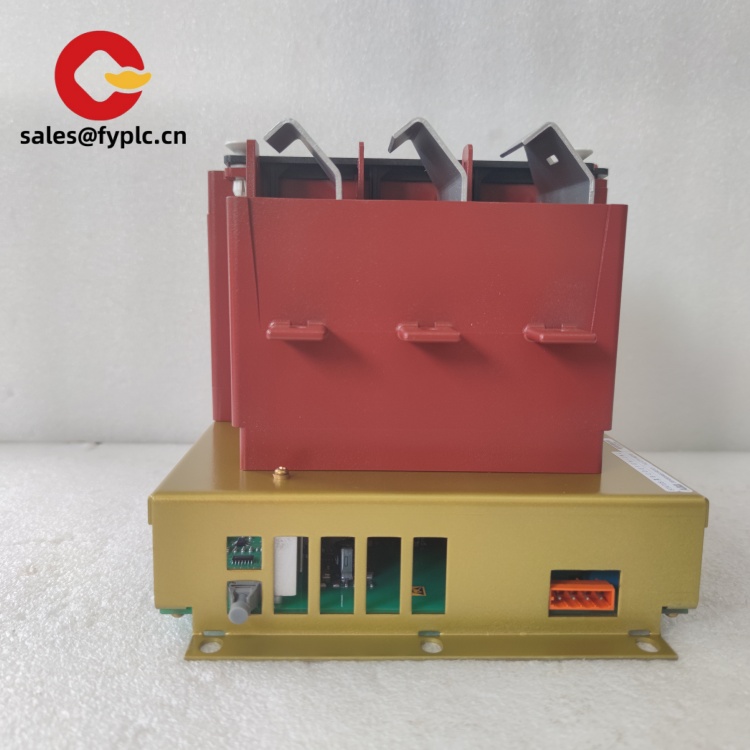

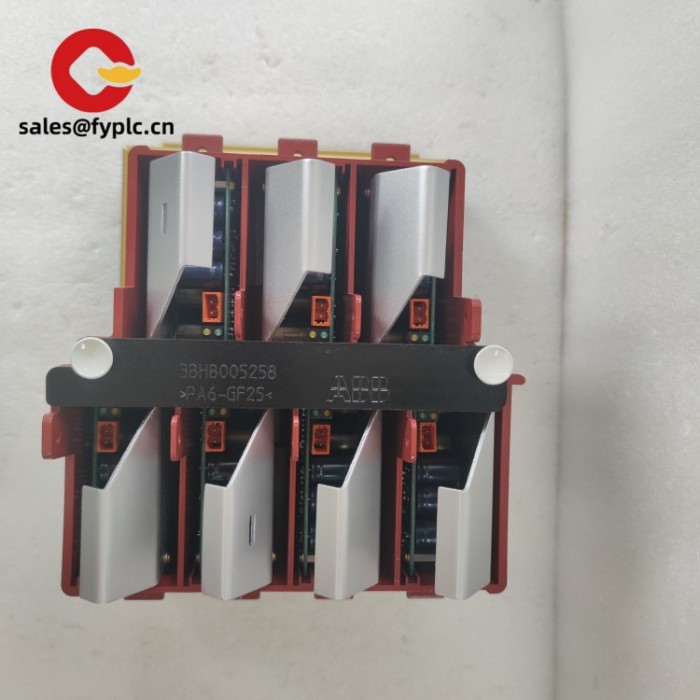

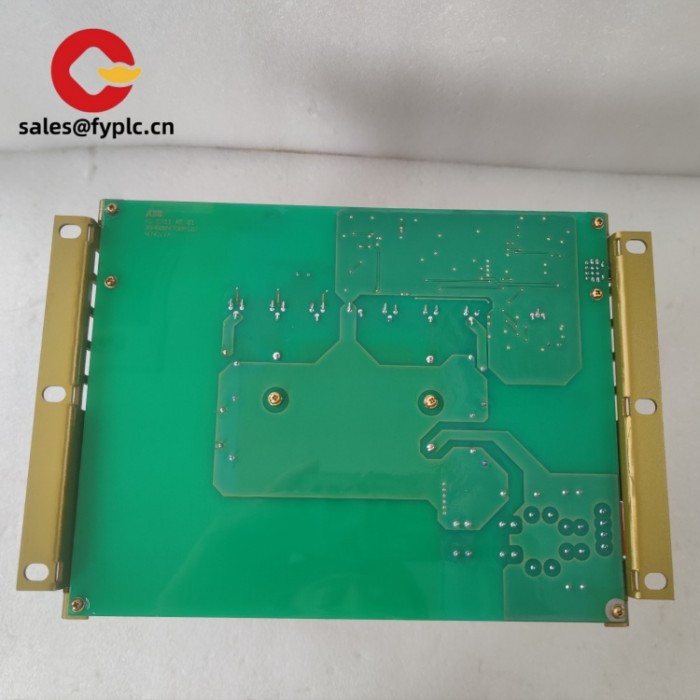

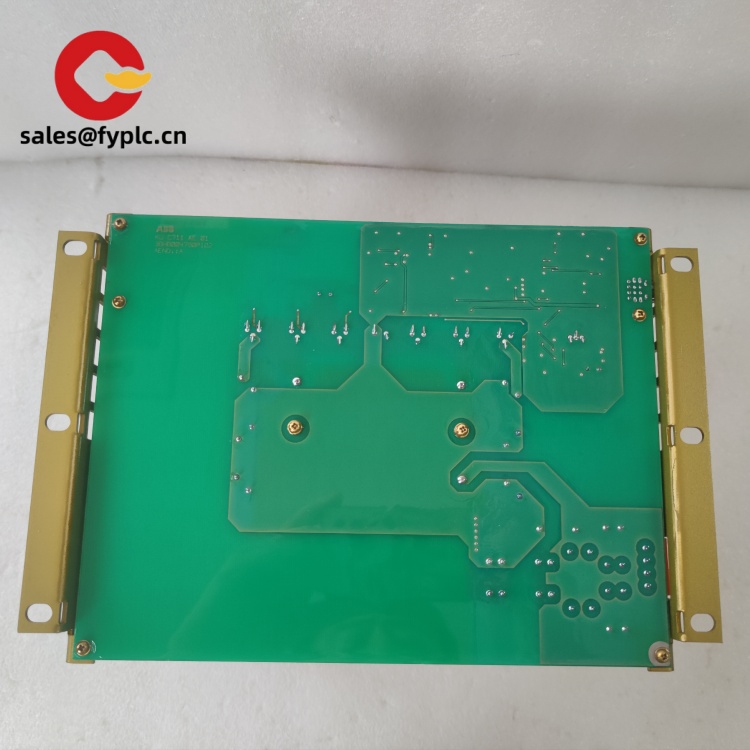

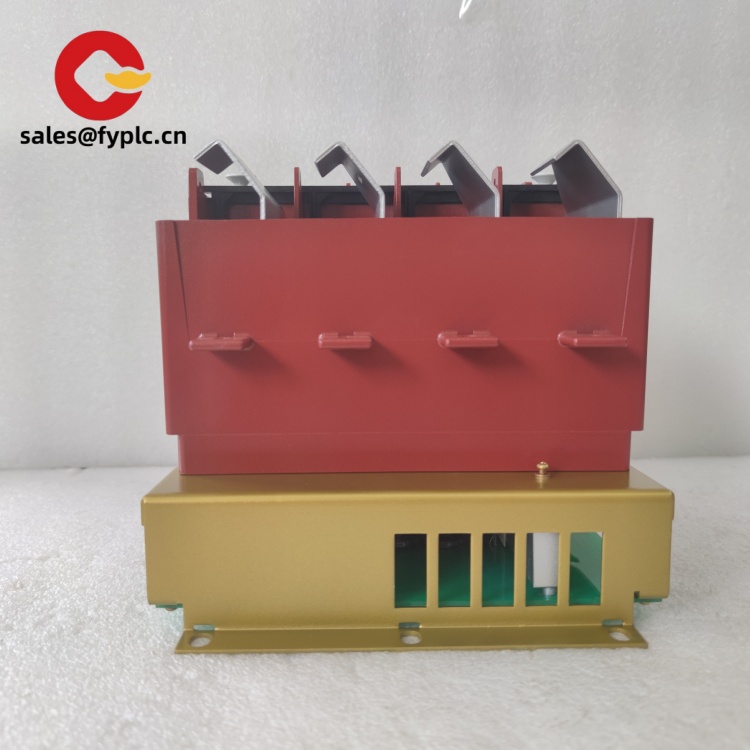

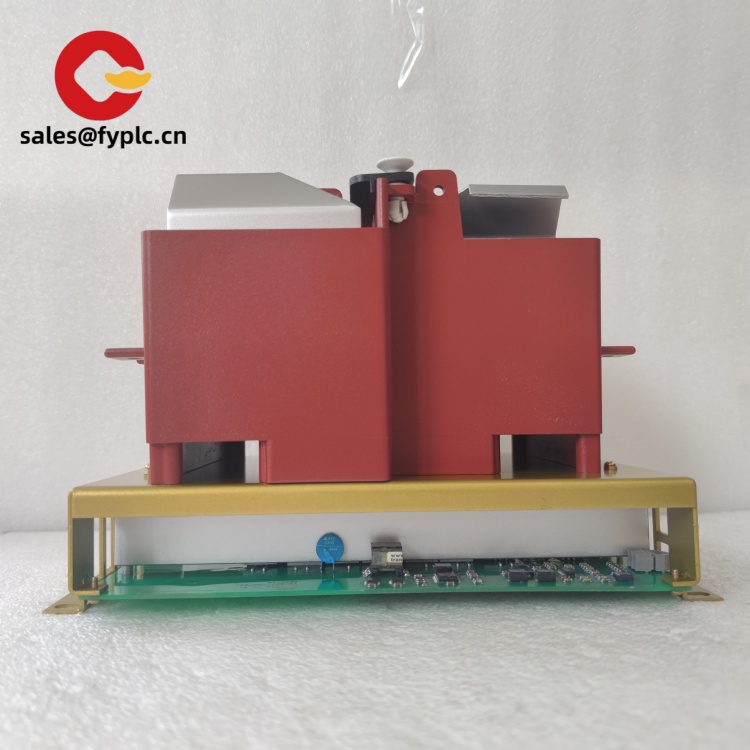

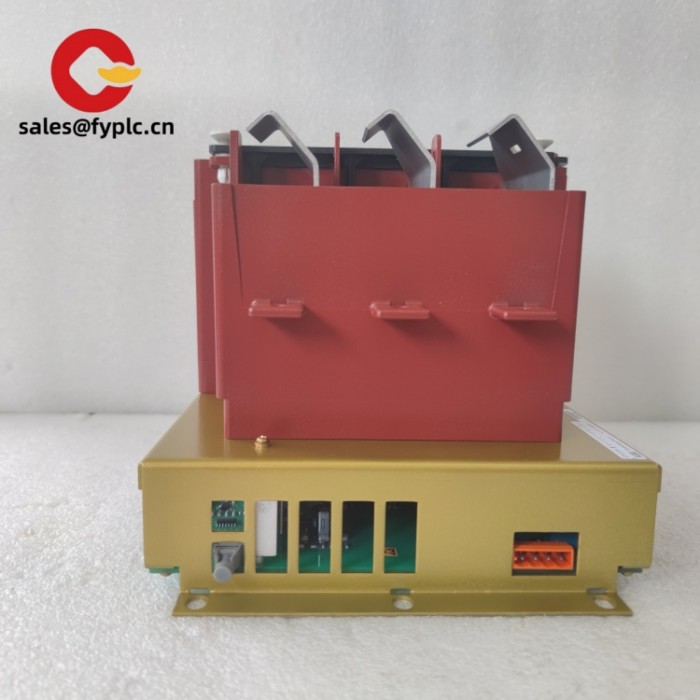

| Product Model | ABB 3BHB004661R0101 KUC711AE101 |
| Manufacturer | ABB |
| Product Type | Gate Unit Power Supply |
| Input Voltage | 85-264 VAC |
| Output Voltage | 24 VDC |
| Output Current | Up to 100 A |
| Power | 240W |
| Dimensions | 233mm × 102mm × 41mm |
| Weight | 1.2kg |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Protection Class | IP20 |
| Protection Features | Overvoltage, undervoltage, short circuit, and thermal overload protection |
| Certification | CE, UL, CSA |
Features and Advantages
-
High Reliability: Designed with high-quality components and advanced protection mechanisms to ensure stable operation in demanding industrial environments.
-
Wide Input Voltage Range: Compatible with global power grids, supporting input voltages from 100V to 240V AC.
-
High Power Output: Provides up to 100A output current, making it suitable for high-power applications.
-
Advanced Protection: Features overvoltage, undervoltage, short circuit, and thermal overload protection to safeguard both the module and connected equipment.
-
Compact Design: Its small footprint allows for easy integration into tight spaces within industrial control systems.
-
User-Friendly Indicators: Equipped with LED indicators for status and fault conditions, simplifying monitoring and troubleshooting.
Application Fields
-
Power Generation: Ensures stable power supply for excitation systems in power plants, enhancing grid stability and efficiency.
-
Oil & Gas: Provides reliable power for control systems in oil refineries and gas processing plants.
-
Chemical Processing: Supports precise control of chemical production processes by delivering stable power to critical components.
-
Manufacturing: Used in automated production lines to power control devices and sensors, ensuring smooth and efficient manufacturing operations.
-
Renewable Energy: Supports integration of renewable energy sources into the grid by providing stable power supply for control systems.
-
ABB KUC720AE01 3BHB003431R0001: A complementary module that enhances the functionality of the ABB 3BHB004661R0101 KUC711AE101, offering extended control capabilities for complex automation systems.
-
ABB UFC911B106 3BHE037864R0106: A servo controller that can be integrated with the power supply module for precise motion control applications.
-
ABB PCD231B 3HHE025541R0101 I/O Module: An I/O module that can be used alongside the power supply to expand system input/output capabilities.
-
ABB IGCT 5SHY4045L000: A high-power thyristor module that can be powered by the ABB 3BHB004661R0101 KUC711AE101 for industrial power conversion applications.
-
ABB CP6415 1SAP541510R0001 Control Panel: A control panel that can be integrated with the power supply module for human-machine interface (HMI) applications in automation systems.
Installation and Maintenance
Maintenance Suggestions: Regularly inspect the module’s connections for tightness and corrosion, especially in high-humidity environments. Use the LED indicators to monitor the module’s status and quickly identify any potential issues. Clean the module’s surface with a dry cloth to remove dust and debris, ensuring proper heat dissipation. Perform routine checks of the module’s output voltage using a multimeter to ensure it remains within the specified 24V DC range. In case of overheat alarms, check the cooling system and ensure adequate ventilation around the module.
Product Assurance
Our company provides a one-year quality warranty for the ABB 3BHB004661R0101 KUC711AE101, covering non-man-made hardware defects. During the warranty period, if the product exhibits performance abnormalities or functional failures, we will offer replacement services. Additionally, for discontinued or urgently required models, we leverage our global supply network to swiftly meet customers’ procurement needs for rare spare parts, supporting the continuous and stable operation of industrial systems. We are committed to delivering exceptional quality and reliable after-sales support to ensure your satisfaction.E-mail :sales@fyplc.cn
