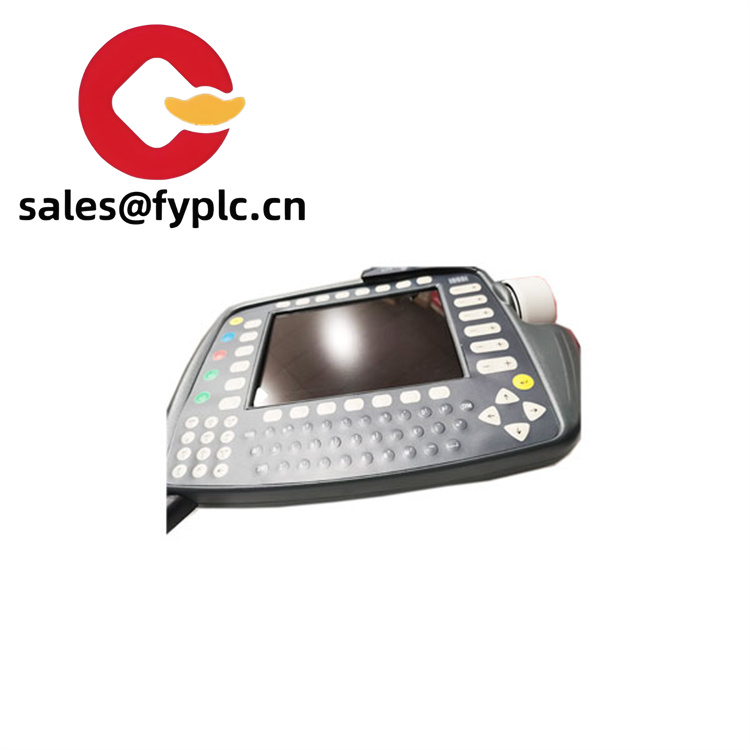

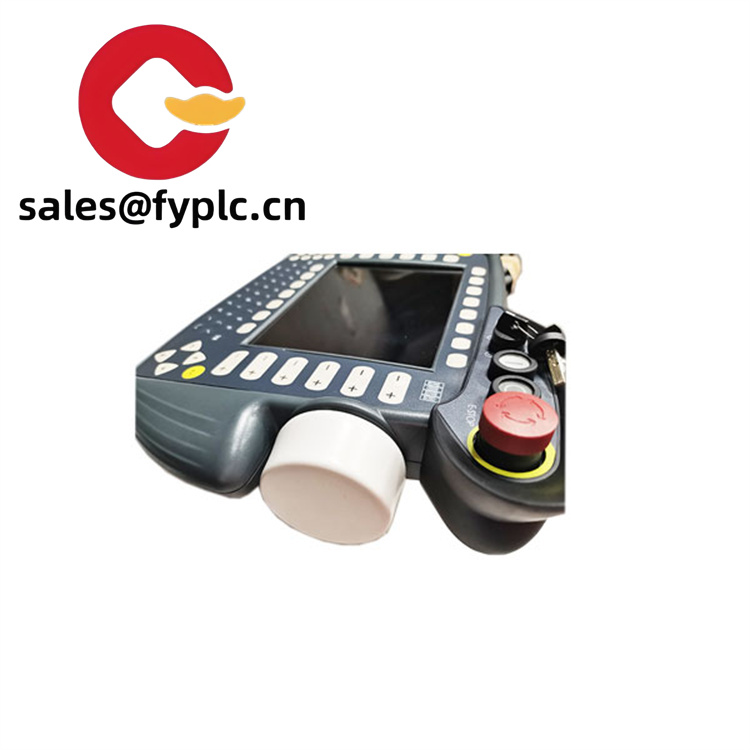

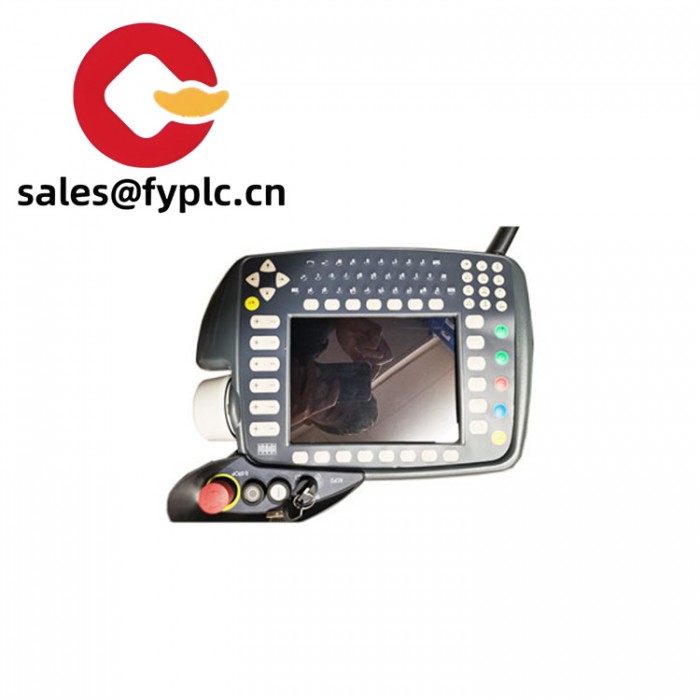

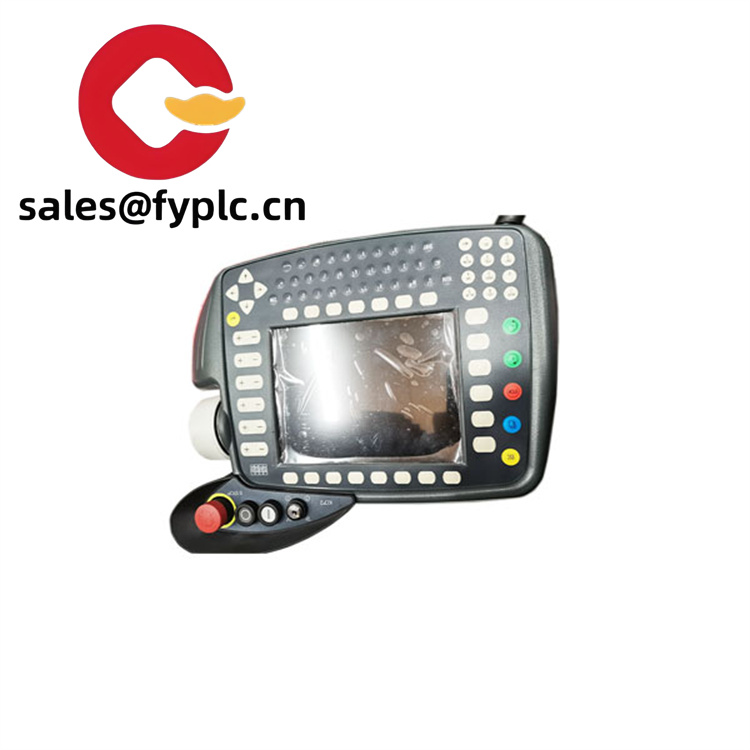

KUKA 00-130-547 Teaching pendant display control module

00-130-547

The KUKA 00 – 130 – 547 is a highly – regarded KCP2 teach pendant, an essential human – machine interface developed by KUKA Robotics. Its primary purpose is to serve as a control panel for KUKA’s KR C2 and KR C3 robot cabinets. With this teach pendant, operators can program, control, and teach operations within industrial robot systems. In a manufacturing plant where KUKA robots are deployed for tasks like assembly, material handling, or welding, the 00 – 130 – 547 becomes the central point of interaction. It enables operators to precisely define the movements and actions of the robots, ensuring that production processes are carried out with utmost accuracy and repeatability. This makes it an indispensable part of industrial control systems, facilitating the smooth operation of automated production lines.

Label	Specification
Model Number	00 – 130 – 547
Brand	KUKA
Type	Teach Pendant (Human – Machine Interface)
Operating Voltage	220 V
Output Frequency	50 kHz
Certification	KCP2 – specific certifications
Series	KCP2
Material Number	00 – 130 – 547
Display	8 – inch graphic color display (640 x 480 VGA resolution)
Input Devices	Membrane keyboard, 6D mouse
Emergency Controls	Emergency stop controls, shutdown/start drives, mode selector, and dead – man switch
Connectivity	Ethernet connection for archiving on PC, din socket for connecting an MF II keyboard
Dimensions	Height: 5 cm / 1.9 in, Width: 21 cm / 8.2 in, Length: 26 cm / 10.2 in
Weight	4 kg / 8.8 lbs
Compatibility	Designed to work with KUKA’s KRC4 and other compatible robot controllers

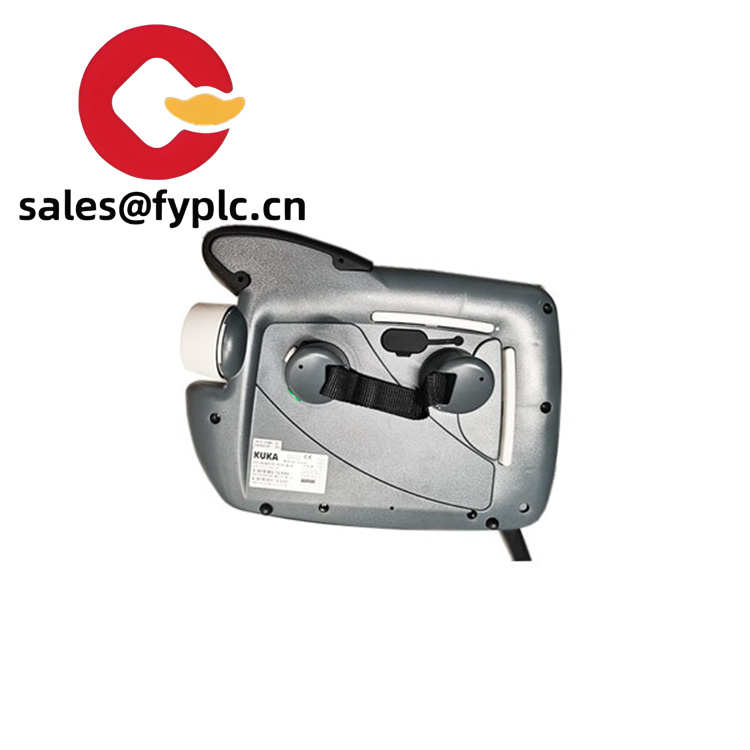

00-130-547-3

The 00 – 130 – 547 is engineered with several features that make it a top – choice in real – world industrial applications. Its high – resolution 8 – inch graphic color display offers crystal – clear visualization of system status, operation modes, diagnostic data, and real – time feedback. This allows operators to quickly assess the situation and make informed decisions. For example, in a high – speed production environment, the clear display enables operators to spot any anomalies in the robot’s operation at a glance, reducing downtime.
​

00-130-547

The intuitive user interface is another strength. With an ergonomic design, it simplifies complex operations. The membrane keyboard and 6D mouse allow for direct manipulation of robot movements and coordinates through intuitive gesture – based commands.
