Description

IS200DSPXH1DBD Technical Specifications
Manufacturer General Electric
Series Mark VI Speedtronic
Functional Description Digital Signal Processor Control Board
Functional Part Number IS200DSPXH1DBD
Functional Abbreviation DSPX
Revision Total 3 Revisions
Backwards-Compatibility: First two revisions
Assembly Type: Normal Assembly



The IS200DSPXH1DBD is a digital signal processor control board designed by General Electric (GE) for its Mark VI Speedtronic series. It is mainly used in the control systems of turbine systems in the gas and steam industries, and is also commonly used in energy systems, industrial automation and other fields. The following is its detailed introduction:

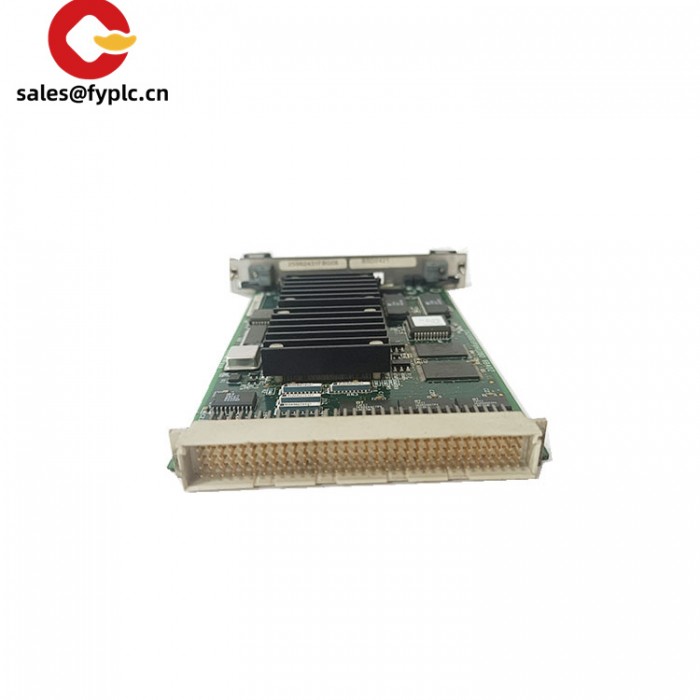

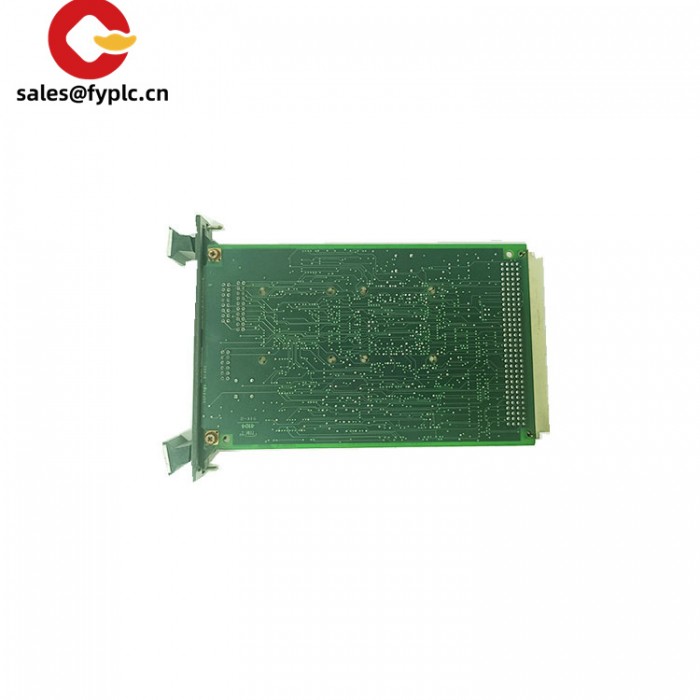

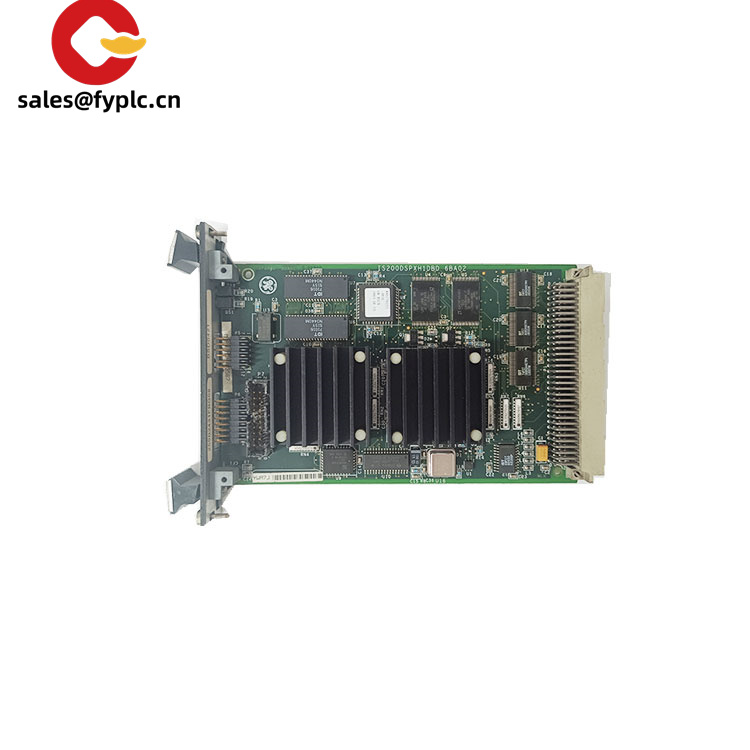

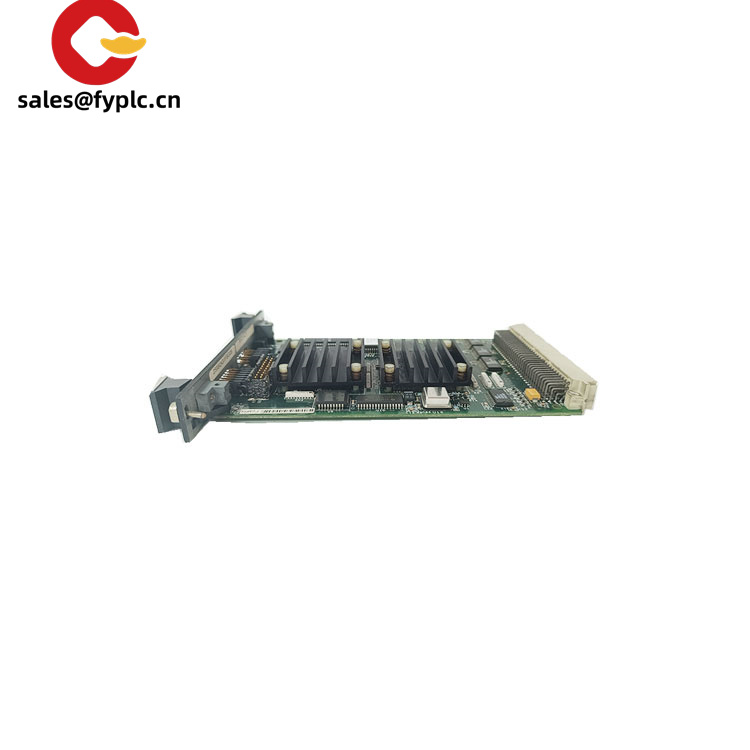

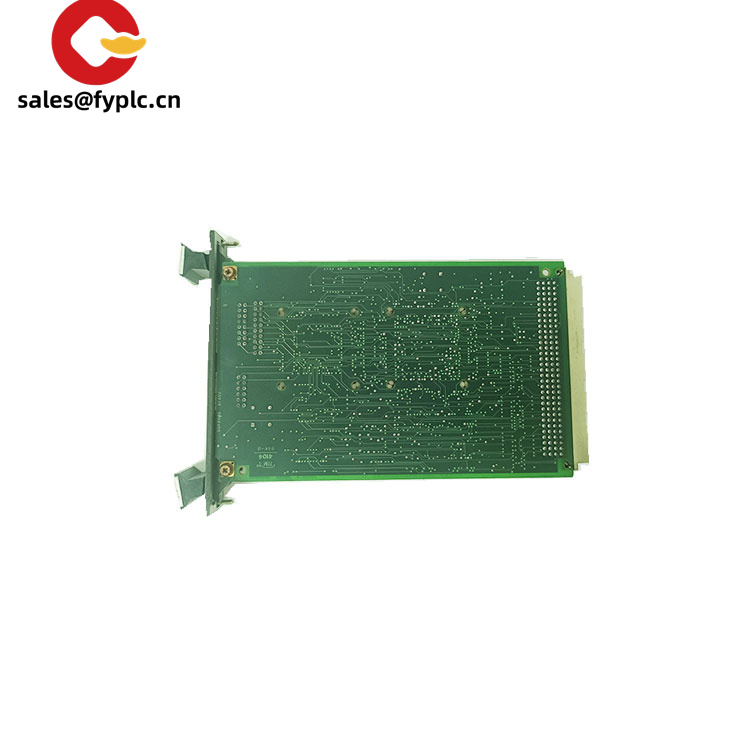

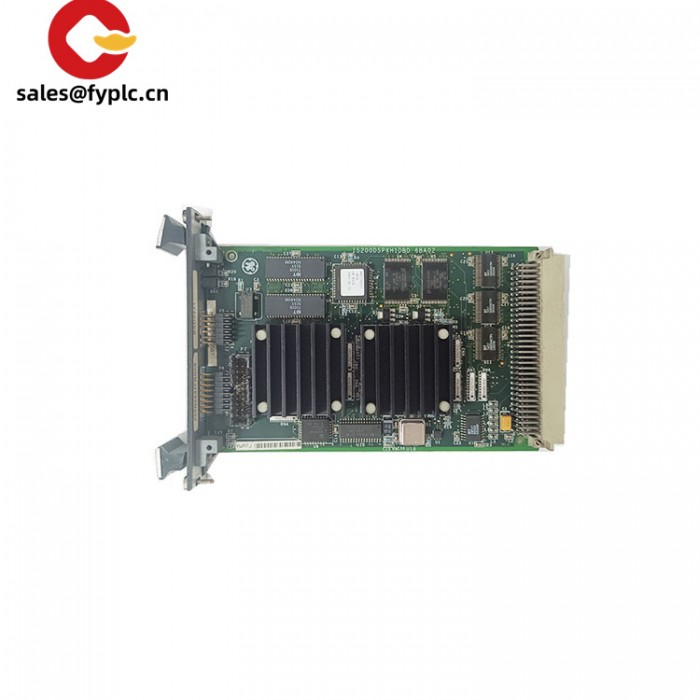

Hardware design: It is a small rectangular board with a front panel. The board is designed with a digital signal processor, which is connected to a application-specific integrated circuit (ASIC) capable of performing custom logic functions and is loaded with on-board firmware stored in flash memory. There are multiple input/output connectors on the board. The front panel has two such connectors, and there are also two embedded LED indicator lights (one green and one red) for alarm notifications. In addition, there is a right-angle backplane connector with multiple functions, including data bus, address bus, control output signal, keyboard interface, tool interface and VCO input, etc.
Technical specifications: The input voltage is generally 24V DC, the output voltage is 5V DC, and the power consumption is approximately 10W. The operating temperature range is from -40 °C to 85°C, and the humidity range is 5% to 95% (non-condensing). The dimensions are approximately 152mm x 121mm x 53mm and the weight is about 900 grams.

Functional features: As a digital signal processor control board, it can process digital signals from sensors, actuators and other industrial equipment, and perform real-time calculation and processing through a powerful DSP engine. With the help of ASIC, custom logic functions can be achieved, which is suitable for the implementation of complex control algorithms such as speed control, excitation control and protection functions. It also has functions such as signal processing, logic control, data acquisition and analysis. It can handle signal filtering, amplification and conversion, execute complex control algorithms, and collect and process operation data such as generator voltage, current and frequency.
Application field: In the energy system, it is used in the control systems of gas turbines and steam turbines; In terms of industrial automation, it can be used in factory automation, process control and monitoring systems; In the power industry, the excitation control system used in power plants; It is also widely used in other industrial applications, such as compressor, pump and fan control systems.

When using the IS200DSPXH1DBD, since it is an electrostatically sensitive board, it is recommended to always use the grounding strip when handling the board or board components, and the board can only be disassembled or replaced when the rack is powered off. The installation also needs to be carried out by qualified personnel at the correct rack position

For example, the product number of IS200DSPXH1DBD itself begins with an instance of the IS200 series dual-function label, which was specially designed by General Electric to assert the normal Mark VI series assembly version of the IS200DSPXH1DBD equipment above its typical domestic original GE manufacturing location. Some other important IS200DSPXH1DBD board hardware details exposed in this way include the IS200DSPXH1DBD device:



DSPX is the abbreviation of functional products

Group 1: Mark VI Series grouping

Conformal PCB coating styles

Triple the revised total amount
