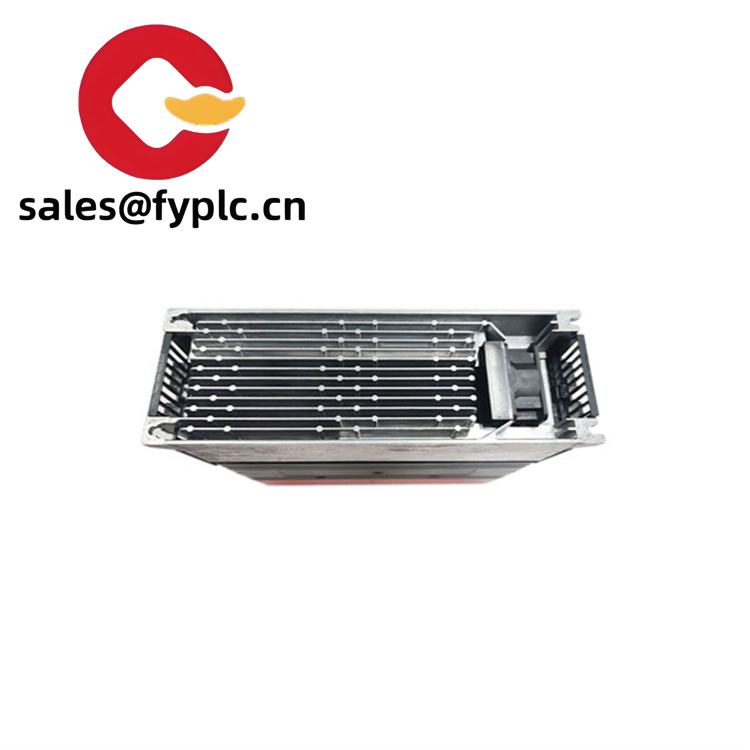

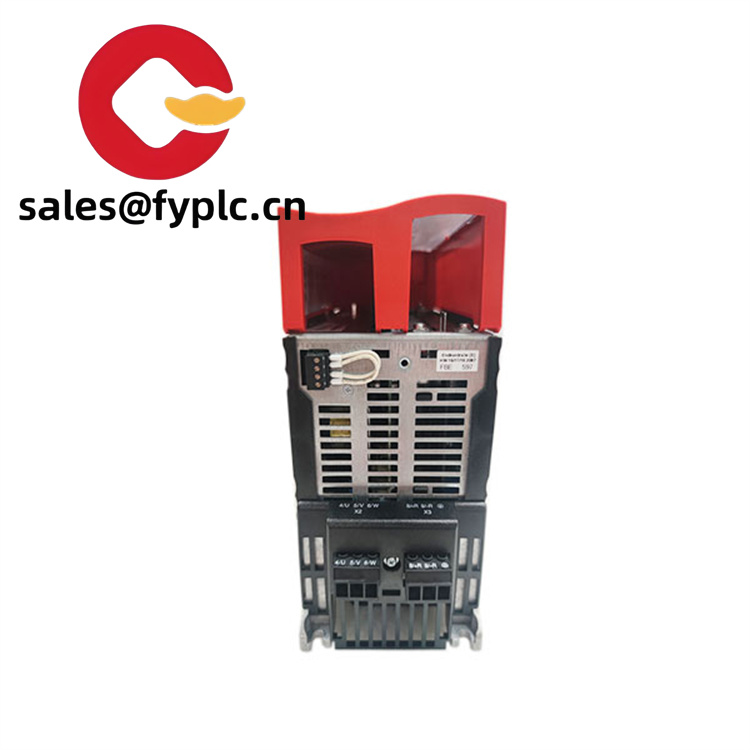

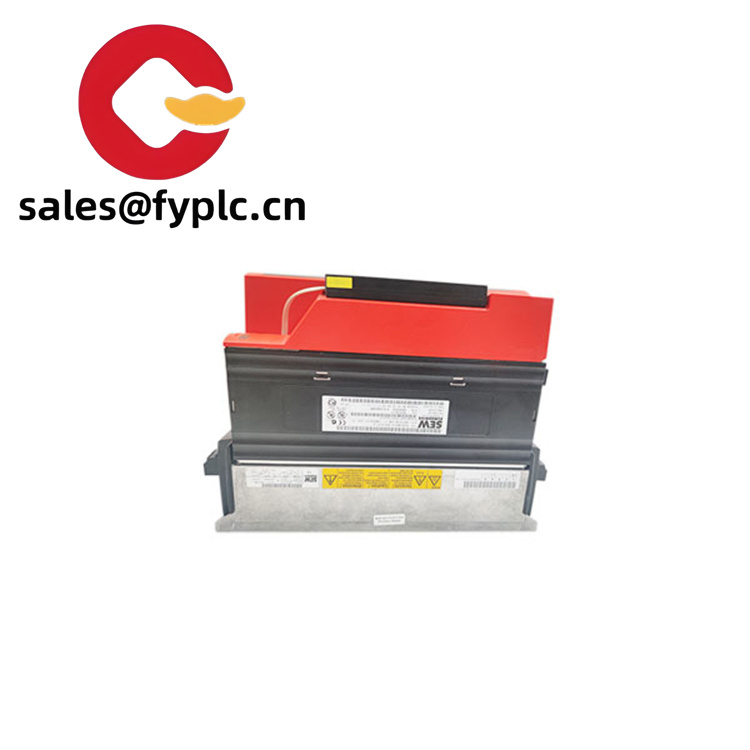

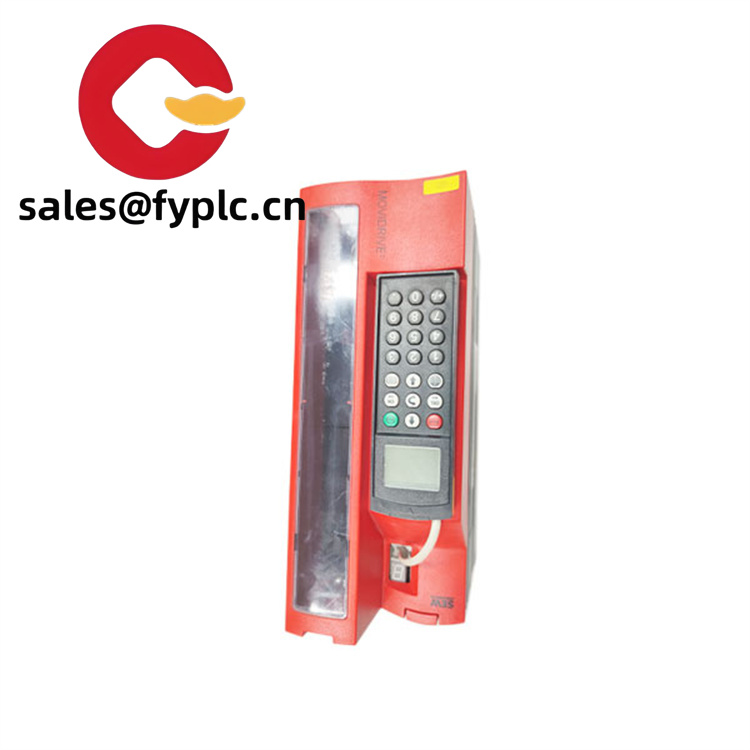

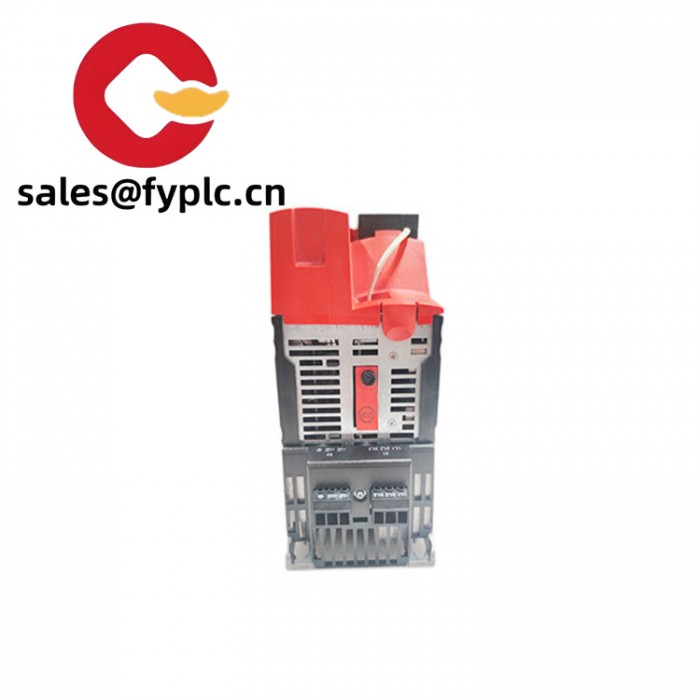

MDX61B0015-5A3-4-0T servo amplifier
MDX61B0015-5A3-4-0T
The MDX61B0015-5A3-4-0T is a compact yet powerful inverter drive from SEW Eurodrive’s Movidrive B series, designed for precise motor control in industrial applications. Below is a detailed analysis of its technical specifications, functional advantages, and practical applications, addressing key considerations for system integration and maintenance.
For more information, please click on the following link:
| Label | Specification |
|---|---|
| Model Number | MDX61B0015-5A3-4-0T |
| Brand | SEW Eurodrive |
| Type | Three-phase inverter drive (Movidrive B series) |
| Input Voltage | 3×380–500V AC, 50/60 Hz |
| Output Power | 1.5 kW (continuous), 2.8 kVA |
| Output Current | 4 A (continuous), 8 A (peak) |
| Maximum Speed | 6000 rpm (depending on motor compatibility) |
| Encoder Interface | Hiperface (supports single-turn absolute feedback) |
| Communication | PROFINET (via DFE32B option card), CANopen, Modbus RTU |
| Safety Features | Safe Torque Off (STO) per EN 61800-5-2 (PL d/SIL 2) |
| Cooling | Forced-air cooling (internal fan) |
| Mounting | Din rail or panel-mountable |
| Weight | 3.5 kg |
| Certifications | CE, UL, cUL |
MDX61B0015-5A3-4-0T
The MDX61B0015-5A3-4-0T supports both asynchronous and synchronous motors, delivering vector control with ±0.1% speed accuracy . Its built-in Hiperface encoder interface enables seamless integration with high-resolution motors (e.g., SEW’s CMP series), achieving sub-micron positioning in applications like semiconductor wafer handling. For example, in a solar panel manufacturing line, this drive ensures precise alignment of robotic arms with ±0.02 mm repeatability .
MDX61B0015-5A3-4-0T
Energy Efficiency & Reliability
- Dynamic Braking: Integrates a braking resistor for regenerative energy management, cutting energy consumption by up to 20% in high-duty-cycle applications like conveyor systems.
- Rugged Construction: IP20-rated housing with conformal coating protects against dust and humidity, ensuring operation in harsh environments (e.g., food processing plants) .
- Thermal Management: Temperature-controlled fan reduces noise and extends component lifespan under prolonged high loads.
