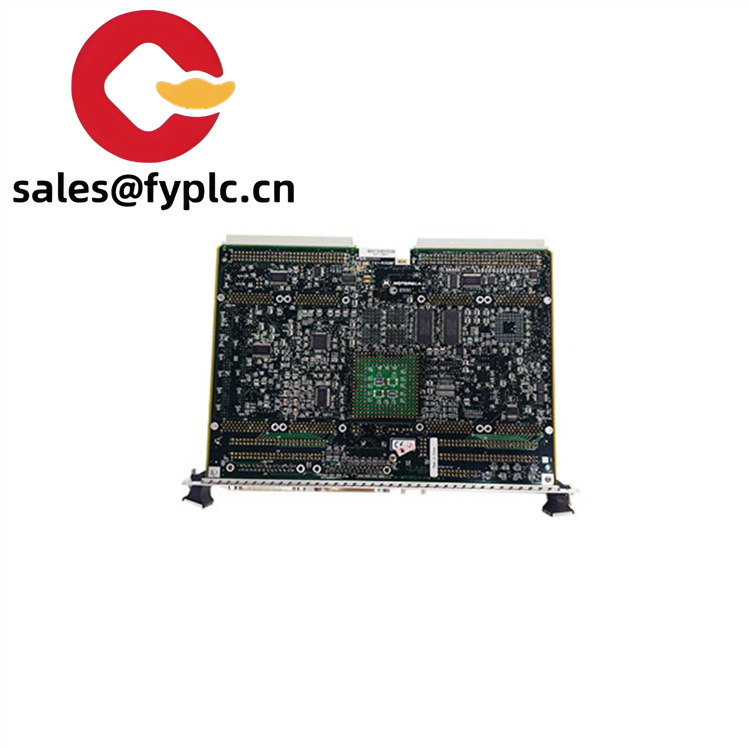

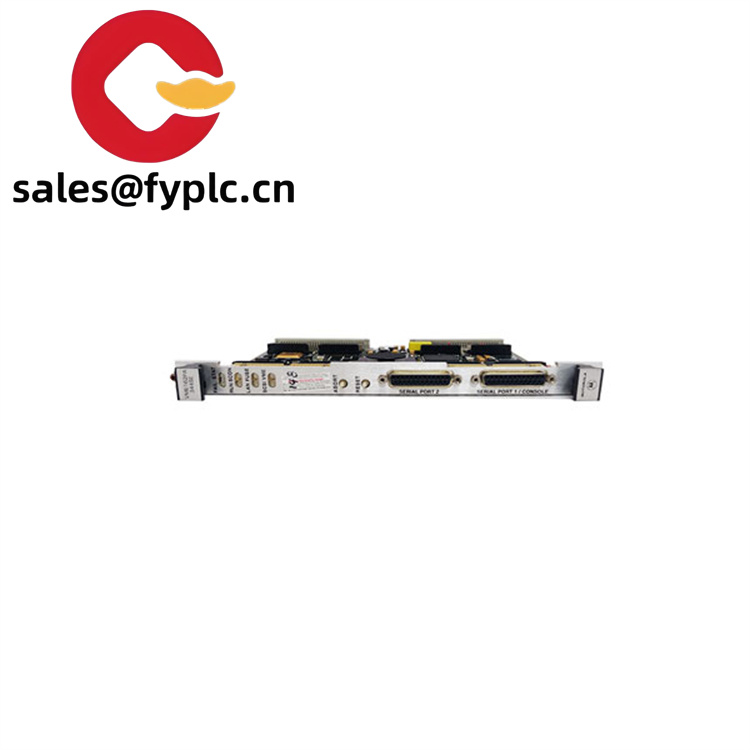

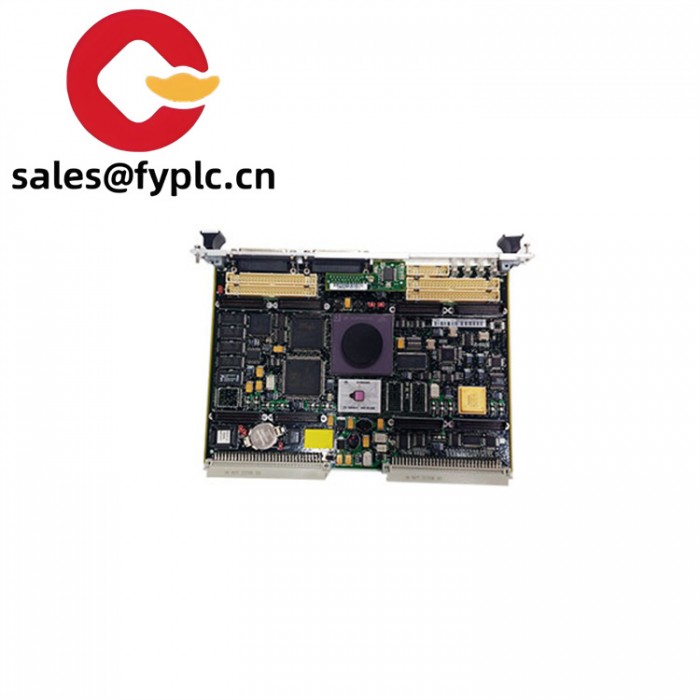

MOTOROLA VME162PA-344SE Unit CPU Input/Output Module

Brand model:     MOTOROLA
Product Name: VME162PA-344SE
Warranty:            1 year
Size:                    233 mm x 160 mm (6U form factor, 10HP width)
Weight:              1.2 kg
Status:                 New/Used

Categories:
contact qrcode

Need help?
Email: sales@fyplc.cn
Tel/WhatsApp: +86 173 5088 0093

Description

MOTOROLA VME162PA-344SE Unit CPU Input/Output Module

VME162PA-344SE

VME162PA-344SE

At its core, the MOTOROLA VME162PA-344SE leverages the robust VMEbus architecture—a decades-proven standard in mission-critical computing—to interface with a wide range of I/O modules, communication cards, and storage devices. Its processing capabilities are tailored for tasks that demand both speed and stability, such as real-time data acquisition, system monitoring, and adaptive control logic. Whether deployed in military command systems, industrial robotics, or energy distribution networks, the VME162PA-344SE ensures consistent performance even when exposed to the harsh conditions that define its operational landscape.
Label
Specification
Model Number
MOTOROLA VME162PA-344SE
Brand
Motorola
Type
Rugged VMEbus Processor Module
Processor
PowerPC G4 400 MHz (industrial-grade, radiation-hardened variant)
Memory
256 MB SDRAM (expandable to 1 GB via daughter card)
Operating Temperature
-40°C to +70°C (extended range with optional thermal management)
Communication
VME64x backplane, Gigabit Ethernet, 2x RS-232/485 serial ports
Mounting
6U VMEbus crate (compatible with standard 19-inch racks)
Weight
1.2 kg (ruggedized enclosure with aluminum alloy chassis)
Certifications
MIL-STD-810G (shock/vibration), MIL-STD-461F (EMI/EMC), CE, UL 508
Dimensions
233 mm x 160 mm (6U form factor, 10HP width)

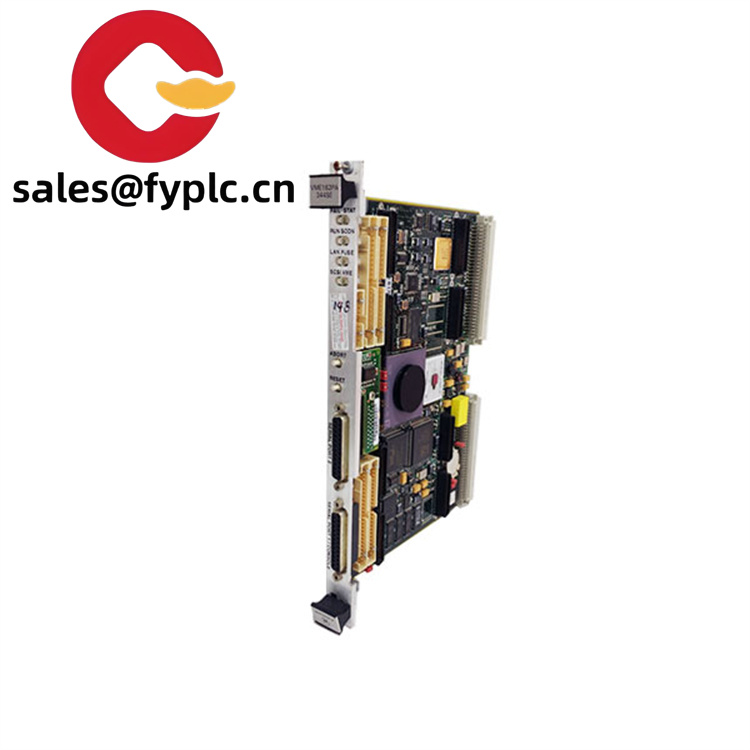

VME162PA-344SE-3
The MOTOROLA VME162PA-344SE distinguishes itself through a combination of rugged engineering and intelligent design that addresses the unique challenges of harsh environments. Its aluminum alloy chassis and conformal coating protect internal components from dust, moisture, and chemical exposure—critical for offshore or desert installations where environmental contaminants are prevalent. The module’s PowerPC G4 processor, selected for its balance of performance and low power consumption, handles complex control algorithms without generating excessive heat, reducing reliance on active cooling in space-constrained enclosures.

VME147-001 – A 16-channel digital I/O module that pairs with the VME162PA-344SE for discrete signal monitoring in industrial control loops.
  • VME310-100 – A redundant power supply module designed to maintain consistent voltage to VMEbus systems, including the VME162PA-344SE.
  • VME231-201 – A fiber optic communication module that extends the VME162PA-344SE’s connectivity in high-EMI environments.
  • VME167-500 – A 2.5-inch SATA storage module for local data logging, ideal for pairing with the VME162PA-344SE in remote installations.
  • VME64x Backplane 10-slot – A ruggedized chassis backplane that supports the VME162PA-344SE and up to 9 additional VME modules.
  • VME188-002 – A forced-air cooling unit that enhances thermal management for the VME162PA-344SE in high-temperature environments.
