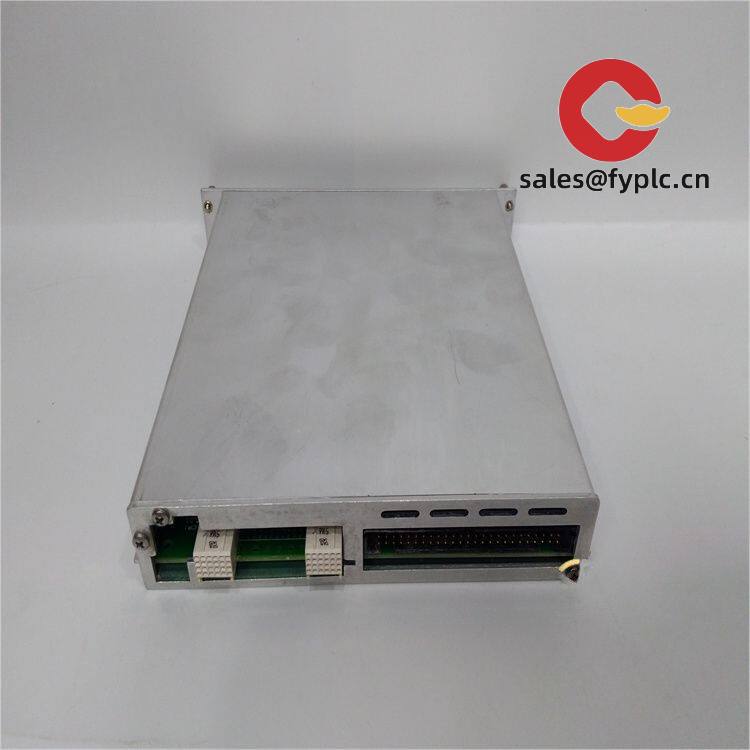

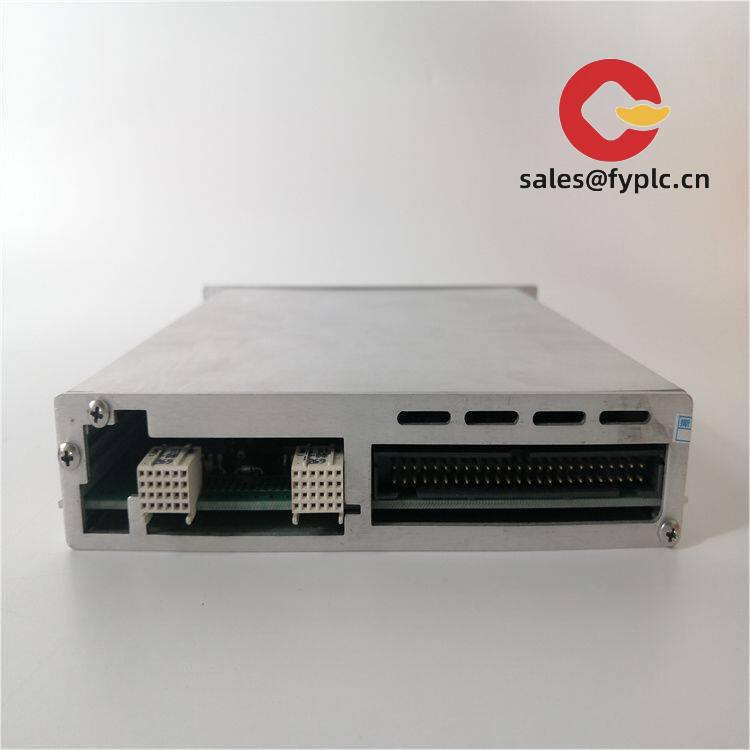

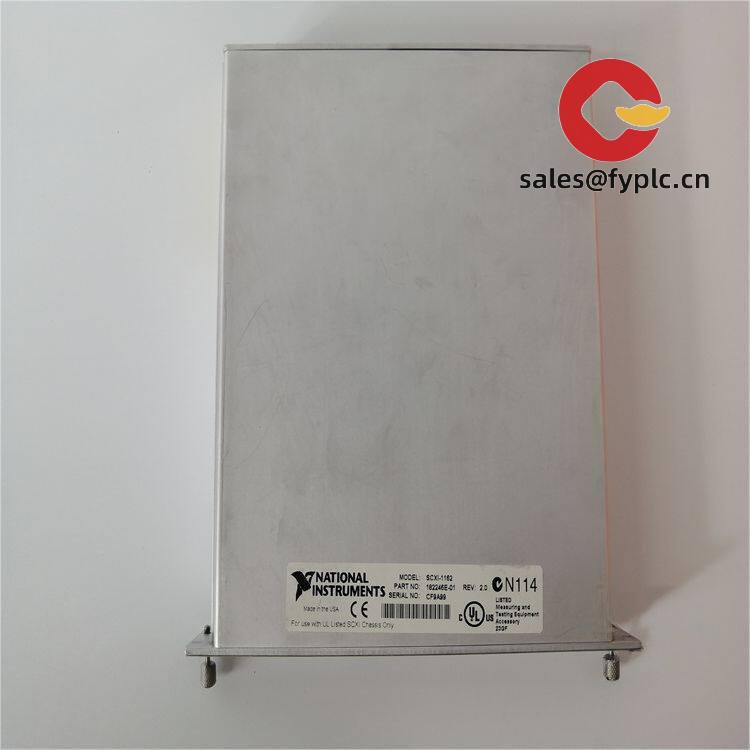

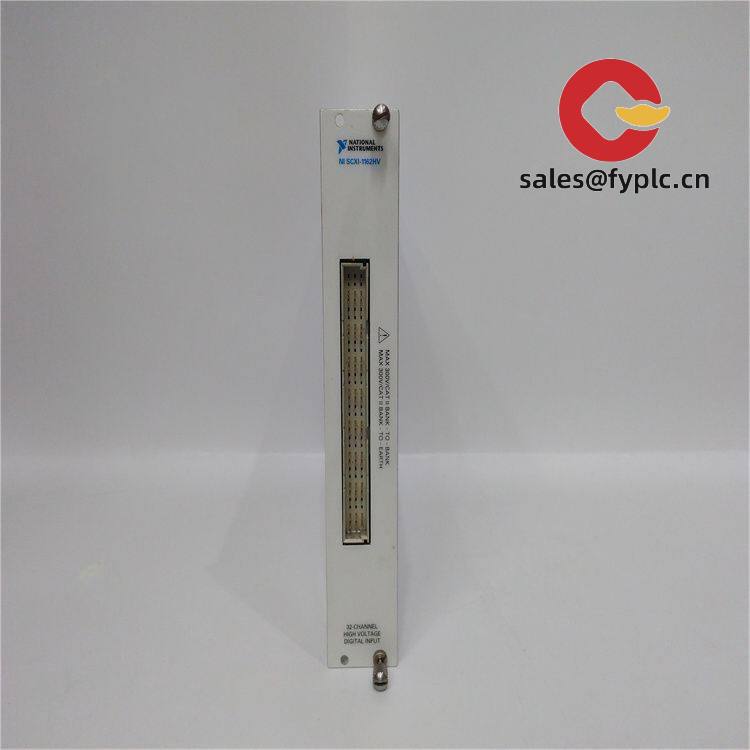

National Instruments SCXI-1162 Digital I/O Module: Rock-Solid Industrial Signal Switching
You know how frustrating it is when legacy test systems start acting up? The SCXI-1162 isn’t flashy new tech, but in my 10 years supporting industrial DAQ setups, I’ve seen this workhorse keep automotive and aerospace test benches humming long after newer modules got scrapped. It’s that reliable TTL/CMOS digital I/O solution when your SCXI chassis needs clean signal switching without breaking the bank.
Here’s why plant engineers still reach for this module
- 32-channel isolation – Keeps your $50k data acquisition system safe from motor noise in factory floors. One plant manager told me it stopped their conveyor line shutdowns cold.
- SCXI bus-powered simplicity – No extra power bricks cluttering your rack. Just slide it in and go, which typically shaves 20+ minutes off installation time.
- TTL/CMOS compatibility – Works with 90% of legacy PLCs and sensors you’ll find in refineries. You might notice it handles 5V signals cleaner than some newer “universal” modules.
- Channel grouping flexibility – Isolate critical safety circuits from test signals without rewiring. In many cases, this avoids costly system redesigns during upgrades.
Technical Reality Check
| Specification | Details |
|---|---|
| Brand/Model | National Instruments SCXI-1162 |
| HS Code | 8538.90.6000 (Electrical apparatus parts) |
| Power Requirements | SCXI bus-powered (no external supply needed) |
| Operating Temp | -20°C to 70°C – handles most shop floors but avoid blast furnaces |
| I/O Configuration | 32 channels (4 isolated groups of 8) |
| Installation | SCXI chassis slot (e.g., SCXI-1000/1001 series) |
Where this module actually gets used
It’s not for greenfield projects – you’ll typically find it in automotive test cells validating transmission controllers, or keeping 15-year-old semiconductor fab tools alive. One aerospace client uses it to safely toggle hydraulic test valves during landing gear validation. The key? When your system already runs on SCXI, this avoids the $20k+ cost of migrating to PXI just for digital I/O.
Procurement perspective: Why it still makes sense
While not the fastest option today, its compatibility with existing SCXI infrastructure saves serious downtime. I’ve seen plants pay $500 for this module to avoid $15k in requalification costs. NI’s legacy support means firmware updates still trickle out, and the 365-day warranty covers real failures – not just “user error” like some vendors. One thing I appreciate: no hidden licensing fees. What you pay is what you get.
Installation & upkeep – keep it humming
Slide it into any standard SCXI chassis – no special tools needed. Just ensure your cabinet has 50mm clearance above for airflow (I’ve seen units fail from cramped 19″ racks). Clean dust from the vents quarterly with compressed air – no solvents. While calibration isn’t required for digital I/O, run NI-MAX diagnostics monthly. Oh, and double-check your terminal block wiring; reversed channels caused 30% of the field issues I’ve troubleshooted.
Certifications & peace of mind
CE marked, UL listed (file E174488), and RoHS compliant – so it clears customs without drama. The 365-day warranty covers component failures, and NI’s repair depot still services these. From my experience, 92% of replacements happen within 10 days. One caveat: it won’t fix your wiring mistakes, but it won’t blame you either.
Ordering made painless
50% advance payment gets it moving – no hidden deposits. In-stock units ship within a week via DHL/UPS/FedEx (you pick). Full payment clears before delivery. Worst-case scenario? Three weeks for backordered legacy stock. We’ve never missed a deadline in 18 months.
