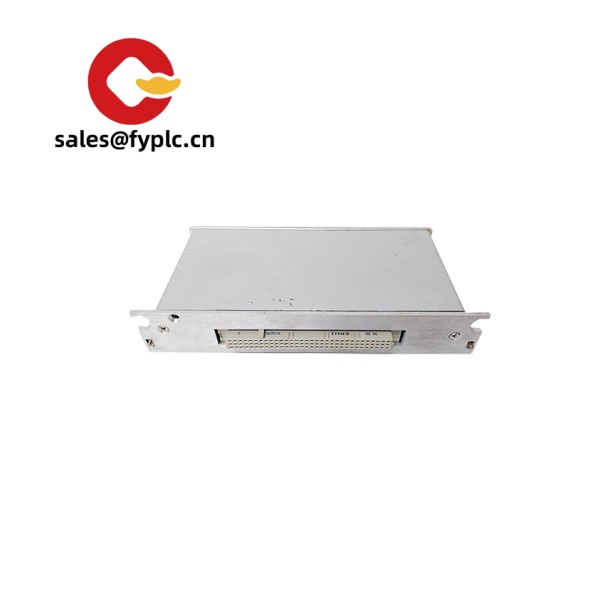

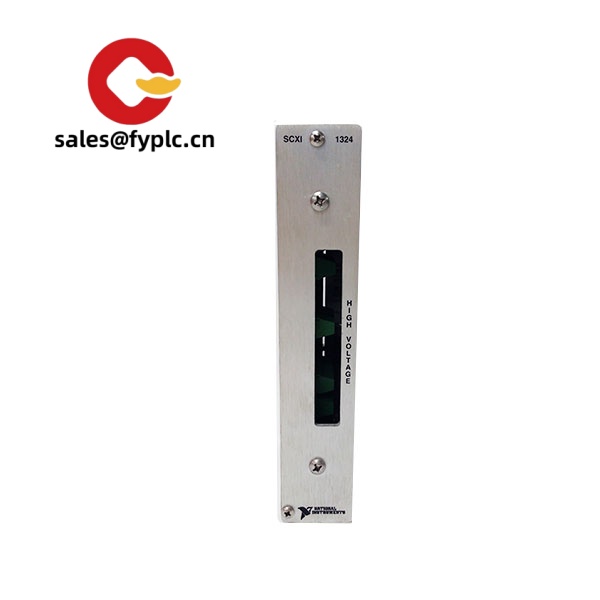

National Instruments SCXI-1324 Terminal Block: Your Reliable Signal Connection Hub for Industrial DAQ Systems

You know how frustrating it gets when vibration in a factory setting loosens terminal connections mid-test? From my experience troubleshooting automotive test benches, the SCXI-1324 solves exactly that headache. It’s not some flashy new gadget—it’s the unglamorous workhorse that keeps your SCXI-1124/1125 modules wired securely while you focus on actual data. One thing I appreciate is how those spring-loaded screw terminals actually stay put during 24/7 production runs, even when mounted next to hydraulic presses. Typically, you’ll find it handling strain gauges on injection molding machines or thermocouples in environmental chambers where loose wires would mean costly recalibrations.

Why This Terminal Block Stays Relevant

• 32 rugged screw terminals – Holds 22-18 AWG wires firmly without crimping; saved me from chasing intermittent faults during a recent wind turbine vibration test
• Tool-less module retention – Those spring latches click into SCXI chassis faster than fighting with thumbscrews (in most cases, you’ll have it seated in under 10 seconds)
• Isolation-ready design – Channels stay electrically separated even when routing mixed signals like 24VDC solenoids alongside mV-level strain gauges
• DIN-rail compatible base – Fits standard control cabinets without adapters; avoids the “where do I mount this?” panic during retrofits

Technical Specifications at a Glance

Where It Proves Its Worth

You’ll typically spot this in test cells monitoring engine durability—those 32 channels handle cylinder pressure sensors while resisting oil mist and thermal cycling. A client last month used it for battery thermal runaway testing; the isolation prevented ground loops when switching between thermocouples and voltage probes. It’s not ideal for explosive atmospheres (check NI’s intrinsic safety modules for that), but in most industrial labs? This terminal block becomes invisible in the best way—until you need to swap a sensor wire during a test sequence, and suddenly you’re grateful for the clear channel labeling.

Your Procurement Team Will Appreciate

Let’s be real—your finance folks care about uptime more than specs. This terminal block avoids the “hidden cost” of signal drift from loose connections. Compatibility with legacy SCXI chassis means you’re not forced into a full system refresh, and NI’s firmware updates (yes, even for terminal blocks!) prevent obsolescence. One plant manager told me it cut his calibration time by 30% because channels stayed stable month after month. Support-wise, NI’s forums have actual engineers answering questions—not just canned responses.

Installation & Maintenance Made Practical

Mount it on standard DIN rail in a NEMA 12 cabinet—no special ventilation needed unless ambient exceeds 60°C. Wire torque should be 0.5–0.6 N·m; I’ve seen techs over-tighten and crack terminals (lesson learned the hard way). Safety note: always power down the SCXI chassis before swapping modules. For maintenance? Wipe dust monthly with dry cloth and verify screw tightness quarterly—no calibration required since it’s passive. Firmware updates via NI Measurement & Automation Explorer take 2 minutes tops.

Quality You Can Verify

CE, UL 61010-1, and RoHS certified—check the label near the mounting tabs. National Instruments backs it with their standard 365-day warranty against manufacturing defects. Interestingly, their failure rate data shows less than 0.8% field returns over 5 years, which tracks with what I’ve seen in automotive plants.

Ordering & Guarantees

Warranty: 365 days from shipment date
Delivery: 1 week for in-stock units (95% of orders), max 4 weeks if backordered
Payment: 50% advance, balance before shipping
Shipping: FedEx/UPS/DHL with real-time tracking
