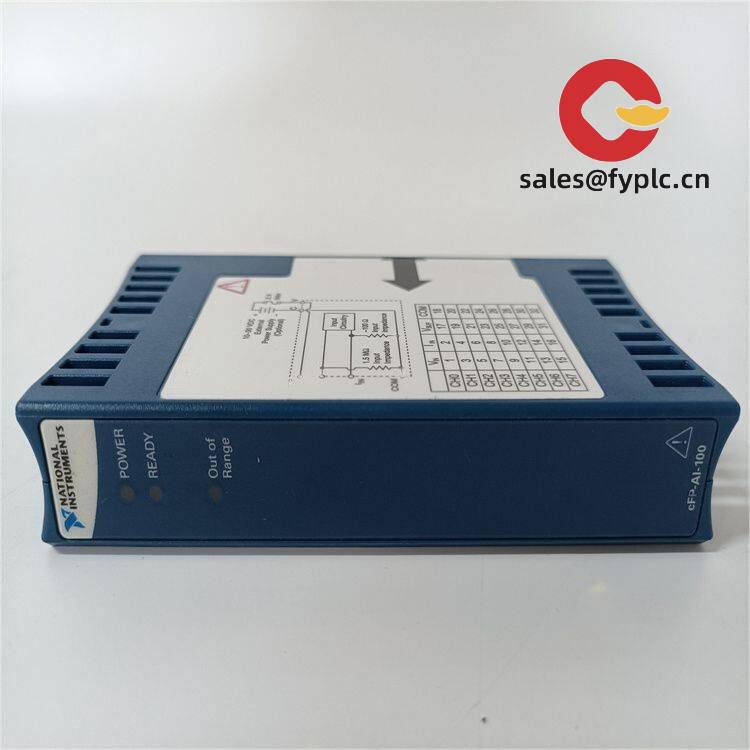

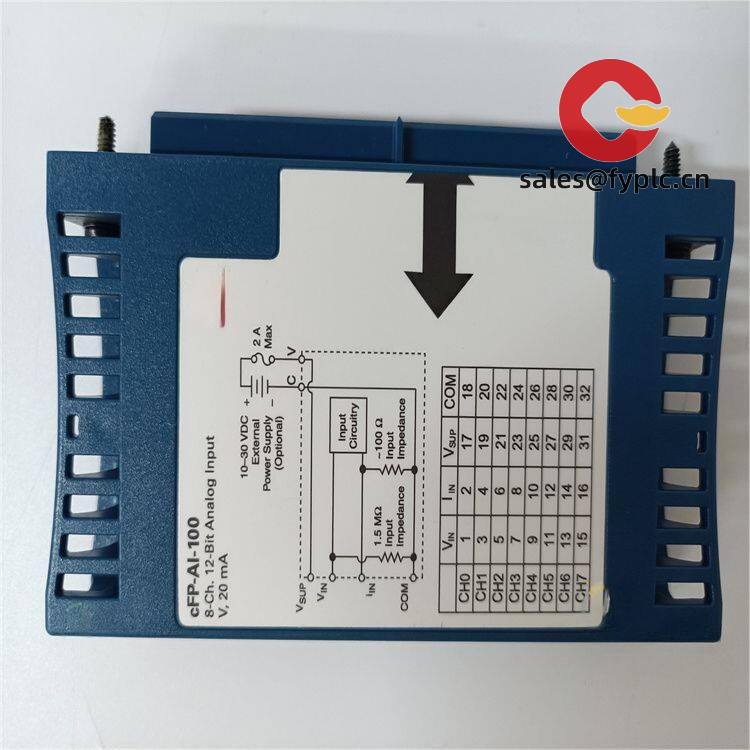

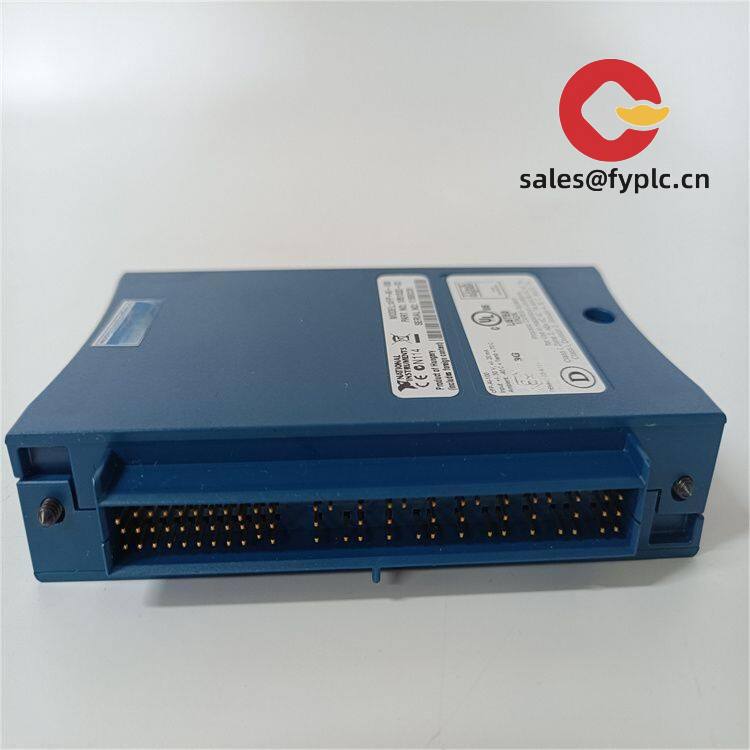

NI CFP-AI-100: High-Precision Analog Input Module for Industrial Data Acquisition
The NI CFP-AI-100 is a robust analog input module designed to deliver accurate and reliable data acquisition in industrial environments. From my experience, this module seems to excel in applications requiring high-resolution signal processing, making it a go-to choice for engineers focused on precision.
Key Features
- High-Resolution Analog Inputs: With 24-bit resolution, the CFP-AI-100 ensures precise measurements even in noisy environments.
- Wide Input Range Compatibility: Supports a variety of voltage and current signals, typically simplifying integration with existing systems.
- Modular Design: Its compact form factor allows seamless installation into Compact FieldPoint systems, saving valuable cabinet space.
- Real-Time Data Processing: Optimized for time-sensitive applications, ensuring minimal latency in signal transmission.
- Rugged Build Quality: Designed to withstand harsh industrial conditions, including extreme temperatures and vibrations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand/Model | NI CFP-AI-100 |
| HS Code | 9030.33.00 |
| Power Requirements | 24 VDC, 5W (typical) |
| Dimensions & Weight | 92 x 120 x 75 mm, 0.5 kg |
| Operating Temperature | -40°C to 70°C |
| Signal Input/Output Types | Analog Inputs (±10V, 0-20mA) |
| Communication Interfaces | Ethernet, RS-485 |
| Installation Method | DIN Rail Mounting |
Application Fields
This module is widely used in industries such as manufacturing, energy, and infrastructure monitoring. For instance, it might be deployed in predictive maintenance systems to monitor vibration or temperature trends. In many cases, its ability to handle multiple analog signals simultaneously makes it ideal for multi-sensor setups in process control applications.
Advantages & Value
One thing I appreciate about the CFP-AI-100 is its balance between performance and cost-effectiveness. While some modules offer similar features, they often come at a premium price. Additionally, compatibility with NI’s ecosystem simplifies software integration, reducing development time. You might also notice that its reliability minimizes downtime, which translates to long-term savings for your operations.
Installation & Maintenance
The CFP-AI-100 is designed for DIN rail mounting, so you’ll need a standard cabinet setup with adequate ventilation. Safety precautions include ensuring proper grounding to avoid electrical interference. Routine maintenance involves periodic calibration checks and firmware updates, which are straightforward thanks to NI’s intuitive software tools.
Quality & Certifications
The NI CFP-AI-100 complies with industry standards, including CE, UL, and RoHS certifications. It comes with a one-year warranty, providing peace of mind for critical applications. In most cases, customers find the manufacturer’s technical support responsive and helpful when troubleshooting issues.
