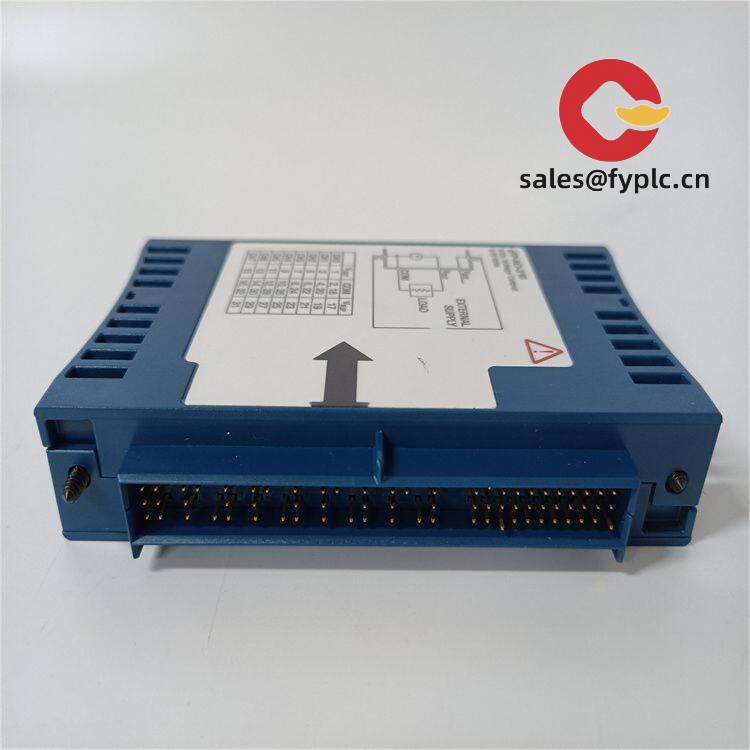

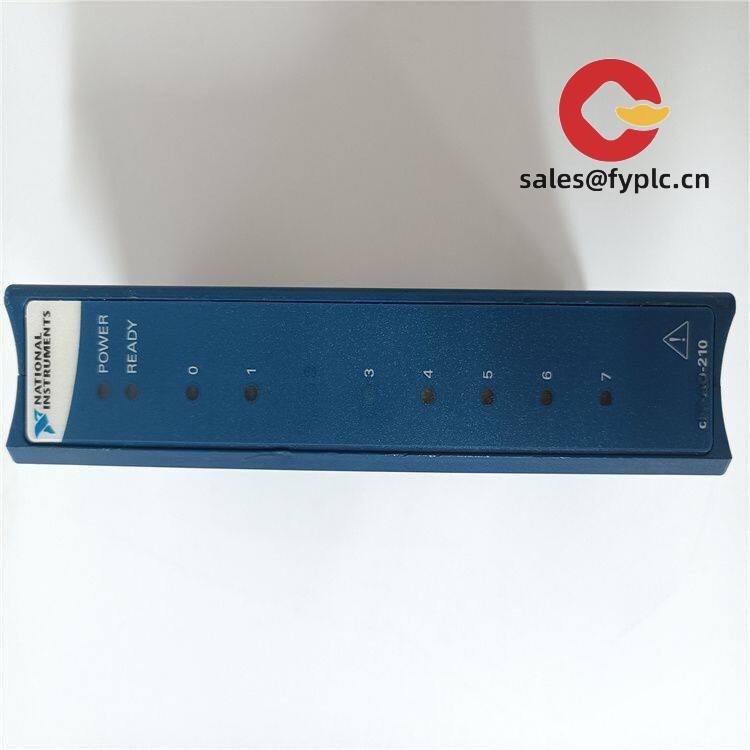

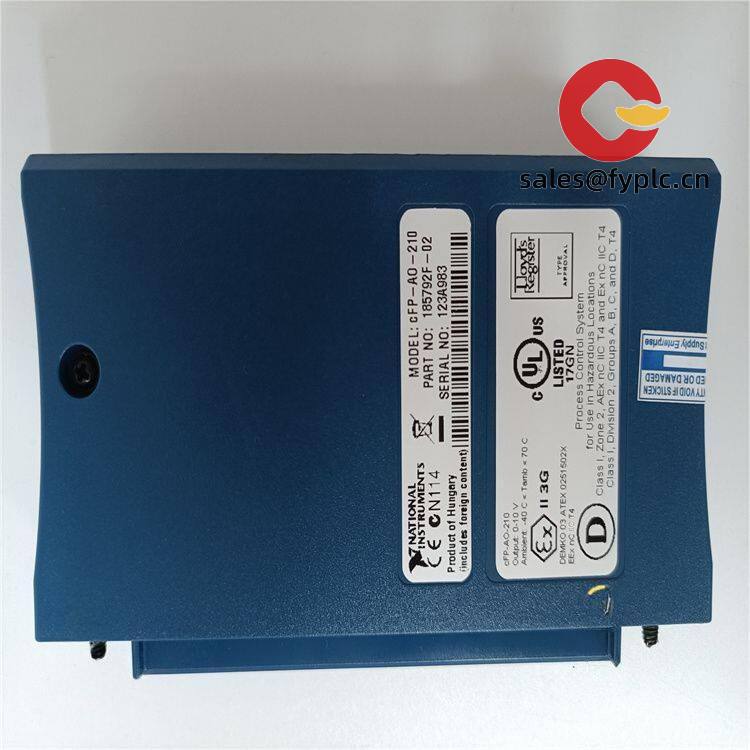

NI CFP-AO-210: High-Precision Analog Output Module for Industrial Automation
If you’re looking for a reliable analog output module to integrate into your Compact FieldPoint system, the NI CFP-AO-210 seems to be an excellent choice. This module is designed to deliver high-precision voltage or current outputs, making it ideal for applications where accuracy and stability are critical.
Key Features
- High-Precision Outputs: The NI CFP-AO-210 provides two channels of analog output with 16-bit resolution, ensuring precise control over industrial processes.
- Versatile Signal Types: You can configure the module to output either voltage (±10 V) or current (0–20 mA), giving you flexibility depending on your application needs.
- Rugged Design: Built to withstand harsh industrial environments, this module typically operates reliably in temperatures ranging from -40°C to 70°C.
- Easy Integration: Compatible with Compact FieldPoint systems, it simplifies setup and reduces the need for additional hardware.
Technical Specifications
| Specification | Details |
|---|---|
| Brand/Model | NI CFP-AO-210 |
| HS Code | 85389099 |
| Power Requirements | 24 VDC nominal |
| Dimensions & Weight | 12.5 x 9.5 x 6 cm, 0.5 kg |
| Operating Temperature | -40°C to 70°C |
| Signal Input/Output Types | Voltage (±10 V), Current (0–20 mA) |
| Communication Interfaces | Ethernet, RS-485 |
| Installation Method | DIN rail mounting |
Application Fields
The NI CFP-AO-210 finds its place in industries that demand precision and reliability. For example, it’s widely used in manufacturing automation for controlling actuators or valves. One thing I appreciate is how well it performs in environmental monitoring systems, where it helps regulate equipment based on real-time data. From my experience, customers also use it in test and measurement setups where consistent signal output is crucial.
Advantages & Value
When considering procurement options, the NI CFP-AO-210 stands out due to its robust build and compatibility with existing Compact FieldPoint systems. In many cases, this translates into significant cost savings since there’s no need for extensive rewiring or new infrastructure. Additionally, National Instruments offers strong technical support, which ensures minimal downtime during implementation or troubleshooting.
Installation & Maintenance
Installing the NI CFP-AO-210 is straightforward—it mounts easily onto standard DIN rails and connects via screw terminals. Ensure proper ventilation around the unit to prevent overheating, especially in enclosed cabinets. Routine maintenance involves periodic calibration checks and firmware updates, which are simple to perform using NI software tools. Safety precautions include disconnecting power before handling and verifying all connections prior to operation.
Quality & Certifications
This module comes with certifications such as CE, UL, and RoHS compliance, ensuring it meets global safety and environmental standards. The manufacturer provides a one-year warranty, covering defects in materials and workmanship under normal use conditions.
