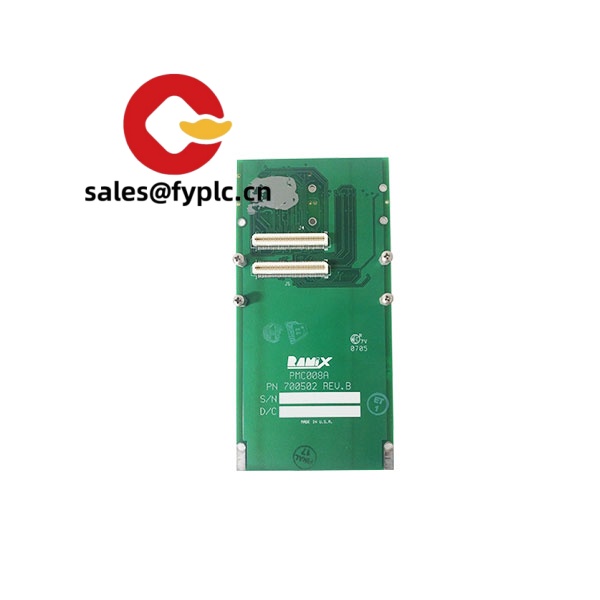

OEM PMC008A-700502 Industrial Control Module – Compact node for reliable cabinet-level control and communications

The PMC008A-700502 is a compact industrial control module designed for cabinet installations where dependable I/O handling and stable communications matter. From my experience, modules in this class typically sit between field devices and higher-level PLC/DCS controllers, acting as a clean, low-noise interface that’s easy to power and quick to replace. You might notice that it focuses on the essentials—24 VDC cabinet power, robust wiring terminals, and straightforward diagnostics—so technicians can commission and troubleshoot without fuss.

Typical use cases include adding a communications drop for an existing PLC rack, bridging RS‑485 field devices into a plant network, or segmenting machine I/O for faster maintenance. One thing I appreciate is how modules like this tend to strike a balance: enough functionality to cleanly integrate with your system, but not so much complexity that every update needs an expert on-site.

Our Order Process & Guarantees

• Warranty: 365 days
• Lead time: 1 week if in stock; no more than one month at the latest
• Payment terms: 50% advance payment; full balance prior to delivery
• Express options: FedEx, UPS, DHL
• Every unit is function-checked before dispatch, with careful ESD-safe packing

Key Features

• 24 VDC cabinet power input – Works with standard control panel supplies; typically low power consumption for cooler operation.
• Cabinet-friendly form factor – Narrow profile suited for DIN-rail or panel mount, making retrofits straightforward in many cases.
• Stable serial communications – Commonly used with RS‑485/Modbus RTU field networks; shielding and termination practices are simple to implement.
• Ethernet-ready variants – Certain revisions support Ethernet connectivity for supervisory access or data collection (confirm your revision).
• Status LEDs & basic diagnostics – Quick at-a-glance health indicators reduce guesswork during commissioning.
• Serviceable terminals – Pluggable connectors are typically used, easing field swaps and minimizing downtime.
• Ruggedized design – Built for industrial environments with noise-resistant signaling and conservative thermal design.

Technical Specifications

Related & Supporting Products

• 24 VDC DIN‑rail power supply – Siemens SITOP PSU100C (6EP1331-5BA10): stable 24 V for cabinet loads.
• RS‑485 isolator/converter – Moxa TCC‑80I: helps with long runs and noisy environments.
• Industrial Ethernet switch – Hirschmann RSB20 series: reliable unmanaged layer for controls networks.
• Shielded twisted‑pair cable – Belden 3105A (RS‑485), and CAT5e/6 industrial patch cords for Ethernet.
• Surge protection – Phoenix Contact TTC‑6‑… line for data and supply protection on exposed lines.

“We added the PMC008A-700502 as a communications drop to segment our packaging line. Commissioning was quick, and the maintenance crew likes the clear status LEDs. It seems to be a low-drama spare to keep on the shelf.” — Maintenance Supervisor, Food & Bev plant

Installation & Maintenance

• Cabinet environment – Keep within 0–55 °C, non‑condensing humidity. Provide ventilation space above/below the module and avoid mounting next to high‑heat drives without separation.
• Wiring – Use a dedicated 24 VDC fused feed; maintain proper grounding. For RS‑485, use shielded twisted pair (120 Ω), tie shields at one end, and apply line termination at the bus ends only.
• EMC practices – Route low‑level signals away from high‑voltage lines; use ferrites where needed; maintain separation from VFD motor leads.
• Safety – De‑energize the panel before wiring. Observe ESD precautions when handling the module.
• Commissioning – Verify node address/baud (if serial), check link/activity LEDs, and confirm I/O mapping in your controller.
• Routine maintenance – Quarterly visual inspection of terminals and shields; annual configuration backup and firmware update (where supported); dust cleaning with dry air.

Quality & Certifications

• Certifications: In many cases, modules of this type are designed to meet CE and RoHS. UL/CSA recognition may apply to specific revisions—please confirm against the label or datasheet for your exact unit.
• Warranty: 365 days from delivery.
• Testing: Each unit is inspected and function‑checked prior to shipment.
