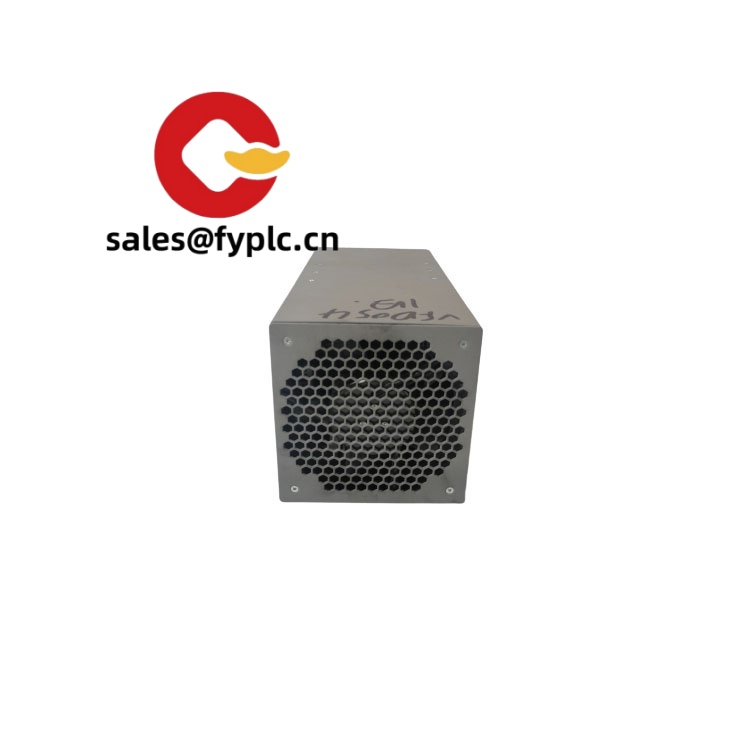

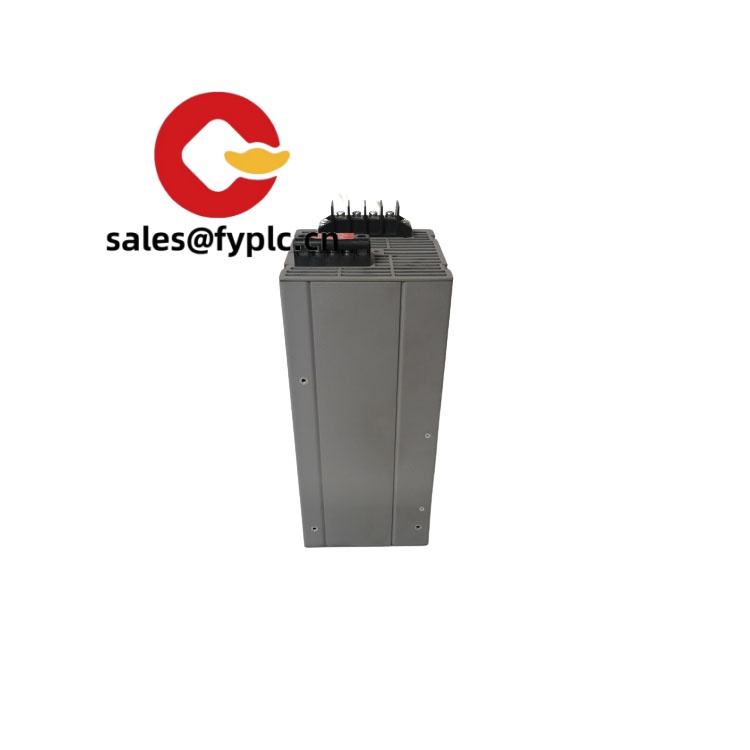

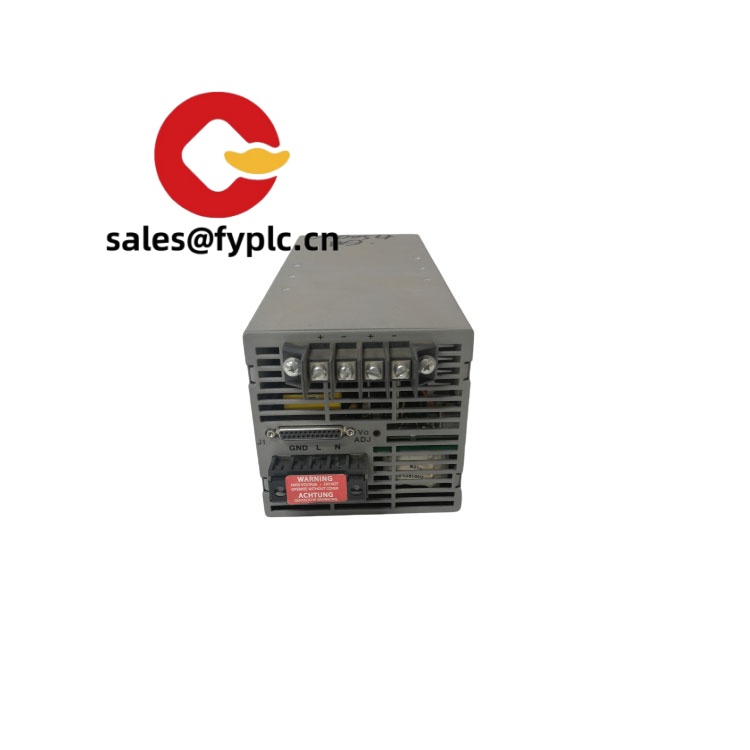

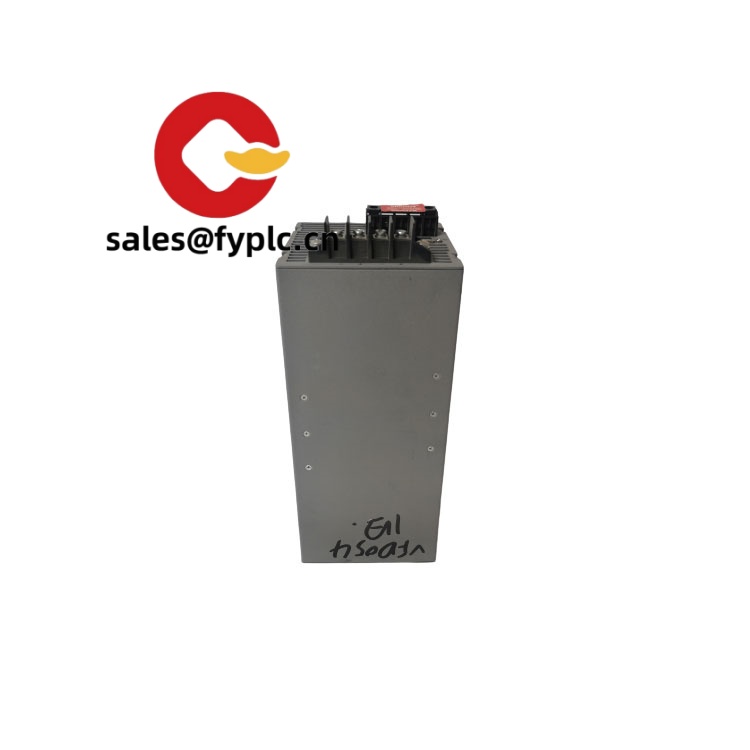

PIONEER MAGNETICS PM3328B-6-1-3-E – High‑reliability AC‑DC Power Supply for Industrial and Telecom Loads

The PIONEER MAGNETICS PM3328B-6-1-3-E is part of the PM3328 series, known for dependable, high-density AC‑DC conversion in demanding environments. From my experience, this family is often used in 24/28/48 V bus systems for industrial automation, telecom/edge cabinets, and test stands where uptime and stable output matter more than flashy specs. You might notice that the PM3328 units are designed to sit comfortably in a ventilated rack or cabinet, deliver tightly regulated DC, and provide the usual control pins (remote sense, inhibit, power-good) that maintenance teams expect for system integration.

Order Placement Process & Guarantees

• Warranty: 365 days
• Delivery: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express options: FedEx, UPS, DHL
• Pre‑shipment checks: Visual inspection, basic functional power‑up, and packing verification included

Key Features

• High‑density AC‑DC conversion – Designed to deliver a single, factory‑configured DC output for industrial or telecom buses, with tight regulation for downstream loads.
• Wide‑range AC input (typical) – Supports global mains with 47–63 Hz input; many PM3328 builds include power factor correction for cleaner draw on the line.
• Robust protections – Over‑voltage, over‑current/short‑circuit, and thermal protections are standard in this family to protect both the supply and your load.
• Remote sense & control pins – Remote sense to compensate cable drops, power‑good (DC OK) status, and remote inhibit/enable simplify system integration.
• Forced‑air cooling – Typically front‑to‑back airflow with integrated fans, suitable for cabinets that run continuous duty.
• Serviceable design – In many cases, fan modules and filters are straightforward to access, which helps with field maintenance.

Technical Specifications

Notes: The PM3328 series is built‑to‑order in multiple option codes; the “B‑6‑1‑3‑E” suffix denotes a specific factory configuration. Values below reflect typical PM3328 family characteristics to guide engineering fit. If you need the exact output setpoint and pinout for this code, we can verify against the unit label or the original build record before shipping.

Related or Supporting Products

• PIONEER MAGNETICS PM3328B-6-1-3 – Same family without the “E” option; typically a close drop‑in depending on output setpoint.
• PIONEER MAGNETICS PM3328B-6-1-5-E – Variant in the same series; option code often reflects output voltage/current or signaling differences.
• PIONEER MAGNETICS PM3329 series – Similar power class with different mechanics; chosen when depth or airflow constraints are tighter.
• Rack kits and AC line filters – If you’re installing several PM3328 units in one cabinet, we can match compatible rack hardware and mains EMI filters.

Installation & Maintenance

• Cabinet environment – Use a ventilated enclosure with front‑to‑back airflow. Keep ≥ 25 mm clearance at air inlets/outlets. Avoid recirculation near door gaskets.
• Wiring – Use appropriately rated copper conductors; size DC cabling for voltage drop at full load. Tighten terminals to the manufacturer’s torque values and bond earth first.
• Remote sense – Twist and route sense leads away from high‑current paths; connect after the main DC bus is verified stable to avoid overshoot events.
• Safety – De‑energize and wait for bulk capacitors to discharge before servicing. Confirm output is fully off (measure < 1 V) prior to touching DC terminals.
• Routine maintenance – Every 6–12 months, clean dust from fan intakes, check fan operation, re‑torque terminals, and verify DC OK signaling. Replace worn fans proactively in high‑duty sites.
• Spares strategy – For critical racks, keeping one PM3328 spare on the shelf typically reduces outage risk and speeds MTTR.

Quality & Certifications

• Certifications typically available on PM3328 family: CE marking and UL/cUL recognition
• RoHS: Many builds are RoHS compliant; legacy variants exist — we can confirm by serial
• Manufacturing quality system: ISO 9001 (manufacturer)
• Warranty: 365 days (advance replacement or repair, depending on stock)

Typical Use Cases & Feedback

Customers using PM3328 supplies in fiber access cabinets and process control skids often point out the stable regulation during brownouts and the straightforward pinout for DC OK and inhibit. One thing I appreciate is the predictable thermal behavior — under steady 60–80% load, the fan curve seems to be quiet enough for indoor telecom rooms while keeping a comfortable margin to OTP. In many cases, swapping a like‑for‑like PM3328 variant requires no firmware changes upstream, just a quick check of remote sense polarity and you’re ready to go.
