Description

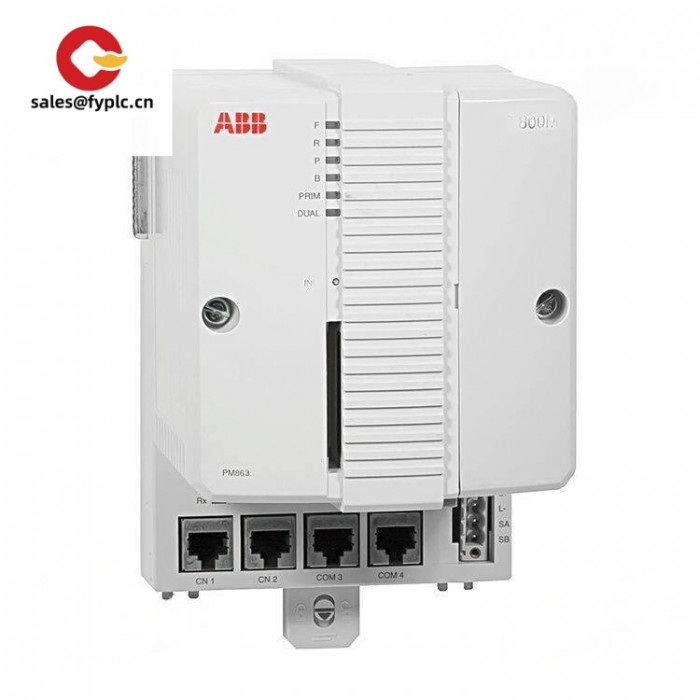

PM863K01 3BSE088381R1 is a high-performance controller unit produced by ABB, belonging to the AC800M control system series.

Here are the detailed product information:

Performance Parameters

1. Processor Type: MPC866

2. Clock Frequency: 96MHz

3. Memory: 32MB, with 22.184MB RAM available for applications and 18MB Flash PROM for firmware storage

4. Performance: 1000 Boolean operations take 0.17ms

5. Cycle Time: The cycle time for each application is 10ms, with 32 types of cycle times for each controller

Power Supply Parameters

Power Supply Voltage: 24VDC (19.2-30VDC)

Power Supply Current: Typical value 210mA, Maximum 360mA

Power Consumption: 5.1W (Maximum 8.6W)

Redundant Power Status Input: Supported

Backup Battery: Built-in 3.6V lithium battery

Other Parameters:

CPU Redundancy: Supported. In the event of a CPU failure, the backup CPU can take over immediately, with a maximum switchover time of 10 ms.

High Integrity: Supported. SIL3 certification can be achieved by adding the SM812 module and SIL-certified software.

EMC Certification: Fully certified for EMC.

Event Queue: Each OPC client can have up to 3,000 events in the controller’s event queue.

Dimensions: Net Depth / Length: 135 mm, Net Height: 186 mm, Net Width: 119 mm.Weight: Approximately 1.2 kg.

Application ScenariosWidely used in industrial automation systems that require high reliability and safety, such as in the power, petrochemical, steel, and transportation industries.
