Description

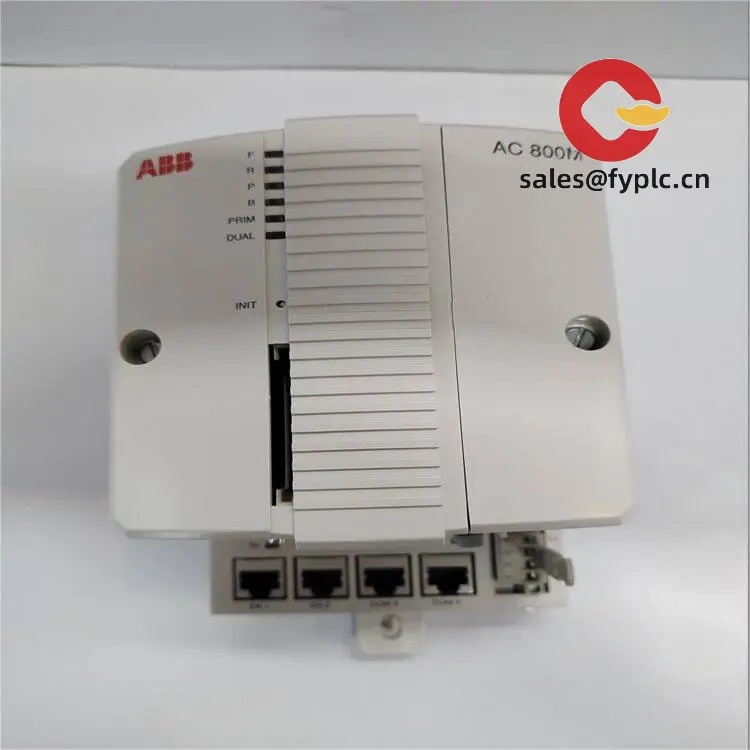

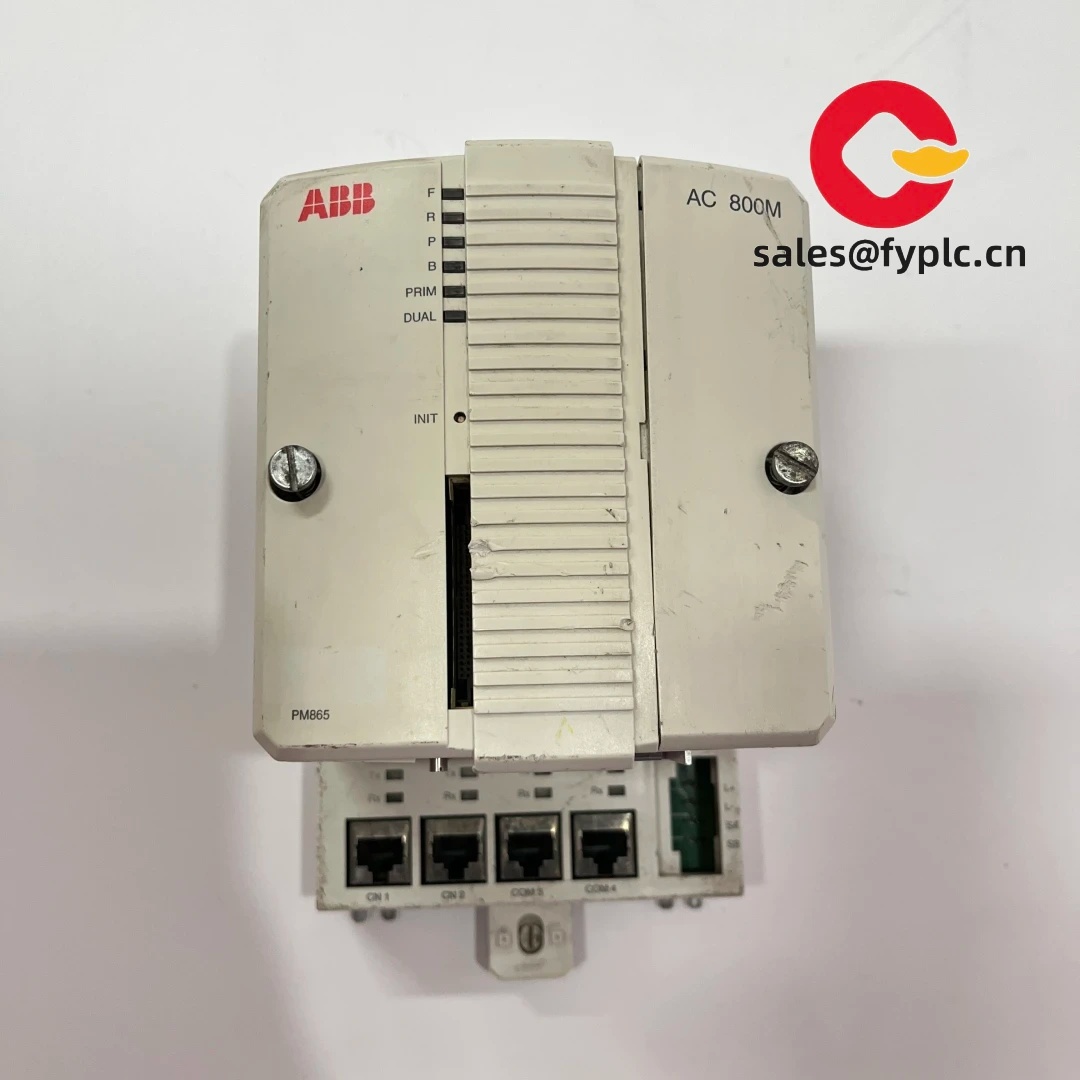

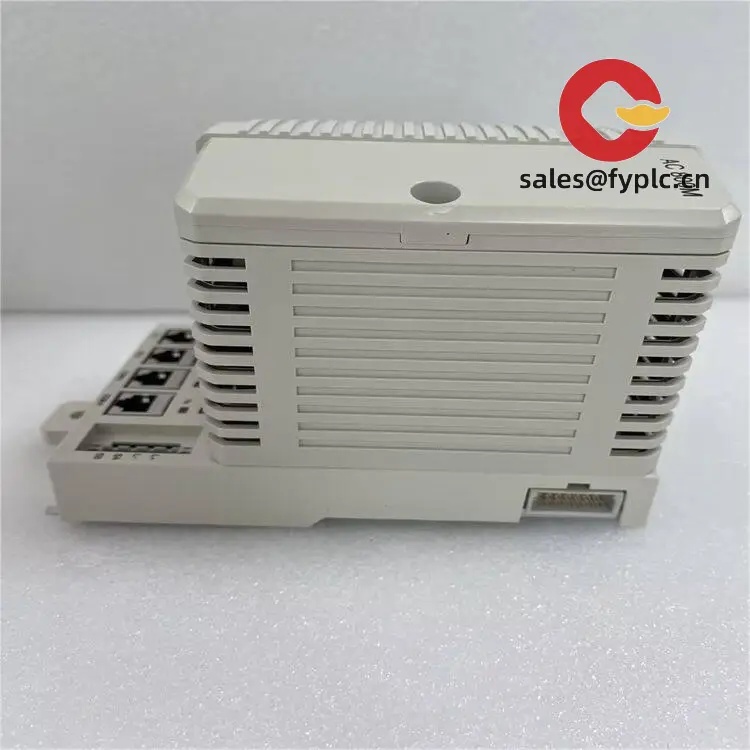

The PM865 3BSE030193R1 is a high-performance CPU module launched by ABB, belonging to the AC 800M series control system. As the core control unit in industrial automation scenarios, it combines powerful computing capabilities, high reliability, and flexible expandability. The following is its complete product information:

Functional Features

1. High-Performance Computing and Real-Time Control: The multi-core processor architecture provides powerful data processing and computing capabilities, running a real-time operating system to ensure immediate response to control tasks, meeting the demands of stringent real-time control applications, and executing complex control logic precisely.

2. High Reliability and Redundancy Assurance: Supports CPU redundancy design with primary/backup dual processor units, capable of switching to the backup unit within 10ms without disruption in case of failure, ensuring continuous and stable system operation; industrial-grade protective design, electromagnetic interference-resistant (EMC certified), capable of long-term reliable operation in harsh environments such as high temperature and high humidity.

3. Multi-Functional Control and Flexible Configuration: Supports various control strategies including continuous control, logic control, batch control, and sequential control; compatible with different memory sizes and storage options, suitable for applications ranging from small automation systems to large complex systems.

4. Strong Compatibility and Expandability: Specifically designed for the AC 800M platform, seamlessly integrates S800 I/O high-integrity modules; supports multiple programming languages including Step 7 Ladder Diagram, IEC 61131-3 Structured Text (ST), and Function Block Diagram (FBD), adapting to different programming habits, and allows increasing I/O points and functional interfaces through expansion modules.

5. Integrated Safety Features and Ease of Maintenance: Supports safety-relevant control tasks such as safety interlocks and emergency stops, suitable for high-safety requirement scenarios; modular structure simplifies installation, disassembly, and troubleshooting, with LED status indicators for quick on-site diagnostics, and supports configuration and debugging via 800xA Control Builder software.

Widely used in various industrial automation and infrastructure scenarios, particularly suitable for fields with high demands on reliability, real-time performance, and safety:

1. Process Industry: Production process control in chemical, petrochemical, and pharmaceutical plants, monitoring and adjusting parameters such as temperature, pressure, flow, and liquid level;

2. Power and Energy: Control and monitoring of power plants and renewable energy facilities (such as wind and photovoltaic), ensuring stable and efficient power production;

3. Manufacturing: Production line control, robot coordination, conveyor control, etc., in discrete manufacturing, automotive production, machinery automation, and material processing industries;

4. Infrastructure and Building Automation: Control of water treatment plants, transportation systems, data centers, commercial building HVAC systems, lighting systems, and security systems;5. Other Fields: Packaging machinery, marine engineering, and other scenarios that require precise control and high reliability.
