Description

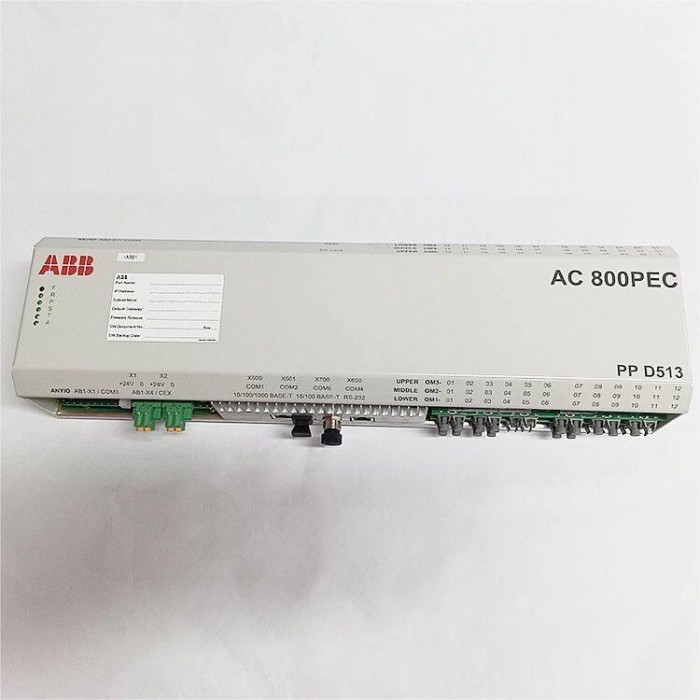

PPD513A0E-110110 3BHE039724R0E41 is a process control and signal processing module produced by ABB, mainly used in industrial automation control systems (such as ABB’s AC 800M/DCS system). The following is all the product information:

1. Basic InformationBrand: ABBModel: PPD513A0E-110110 (Order Number: 3BHE039724R0E41)Product Category: Analog Input / Signal Processing Module in the Field of Industrial AutomationCore Function: Used to collect analog signals from on-site industrial equipment (such as temperature, pressure, flow, etc.), perform signal conversion and filtering, and transmit them to the main controller, enabling real-time monitoring and control of process parameters.

2. Core Electrical Parameters1. Signal Input SpecificationsSupported Input Types: Standard industrial analog signals, including 4-20mA DC current signals and 0-10V DC voltage signals (compatible with common sensor output signals).Number of Input Channels: 8 independent analog input channels (electrically isolated between channels to prevent signal interference).Input Accuracy: ±0.1% FS (full-scale accuracy to ensure precise signal acquisition).Sampling Rate: 100Hz per channel (high-speed sampling to meet dynamic process monitoring requirements).

2. Power ParametersSupply Voltage: 24V DC (Industrial standard DC power, compatible with most control cabinet power supplies).Power Consumption: Typical value 5W (Low power design, reducing total system energy consumption).

3. Output and CommunicationSignal Output: Communicates with the main controller (such as AC 800M PLC) via the backplane bus, with no external independent output interface.Communication Protocol: Compatible with ABB proprietary bus protocol (seamlessly interfacing with modules and controllers of the same series)

3. Functional Features1. High Anti-Interference CapabilityChannels use optoelectronic isolation (isolation voltage ≥ 2500V AC) to withstand electromagnetic interference (EMI) and ground loop interference in industrial environments, ensuring stable signals.Built-in digital filtering algorithms can filter high-frequency noise on-site, improving the signal-to-noise ratio of collected signals.2. Diagnostic and Protection FunctionsReal-time Diagnostics: Supports channel fault diagnosis (such as disconnection or signal overrange) and sends fault codes to the controller for quick troubleshooting.Overvoltage Protection: Input ports have overvoltage protection (maximum 30V DC) to prevent module damage due to incorrect on-site wiring.Flexible AdaptabilityCustomizable Signal Range: Each input range can be configured via programming software (e.g., ABB Control Builder M) to accommodate sensors of different specifications.Temperature Compensation: Built-in temperature compensation circuitry maintains sampling accuracy under a wide temperature range, reducing the impact of ambient temperature on measurements.

4. Mechanical and Environmental ParametersInstallation Method: DIN rail mounting (compatible with standard 35mm DIN rail), suitable for the rack layout of ABB AC 800M series control cabinets.Dimensions: Width 45mm × Height 120mm × Depth 180mm (compact design, saves control cabinet space).Protection Rating: IP20 (suitable for indoor control cabinet installation, dust-proof, prevents finger contact).Operating EnvironmentOperating Temperature: -25℃ ~ +60℃ (suitable for high and low temperature conditions in industrial sites).Relative Humidity: 5% ~ 95% (non-condensing, prevents moisture-induced circuit failures).Vibration Level: ≤50Hz, acceleration ≤5m/s² (meets industrial equipment vibration tolerance standards).

5. Application ScenariosProcess Industry: Fields such as petrochemical, chemical, and coal chemical industries, used for collecting analog signals like reactor temperature, pipeline pressure, and medium flow.Energy Industry: Auxiliary control systems for thermal and hydroelectric power generation (e.g., boiler water level, steam pressure monitoring), as well as parameter collection for new energy sources (photovoltaic, wind power) combiner boxes.Manufacturing Industry: Equipment status monitoring on production lines in metallurgy and building materials (cement, glass), such as motor winding temperature and hydraulic system pressure.Water Treatment: Collection and transmission of water quality indicators (e.g., turbidity, pH value) in tap water plants and wastewater treatment plants.
