Description

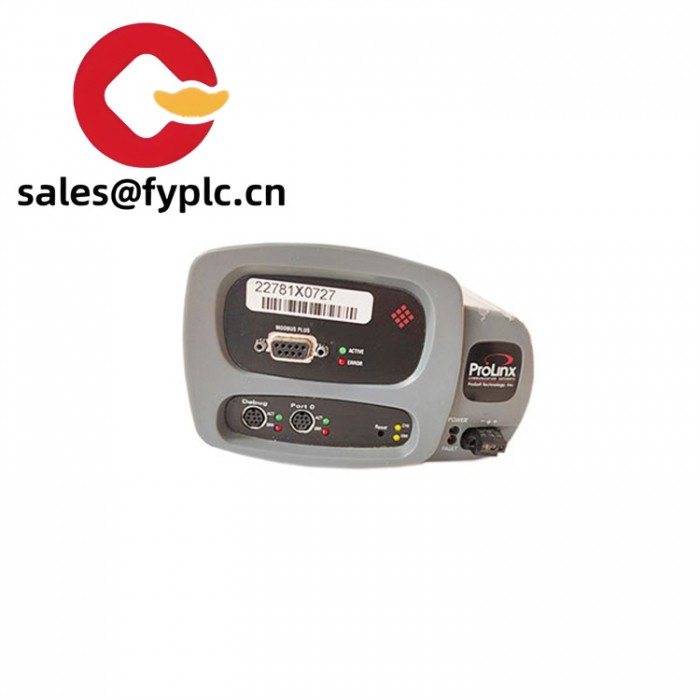

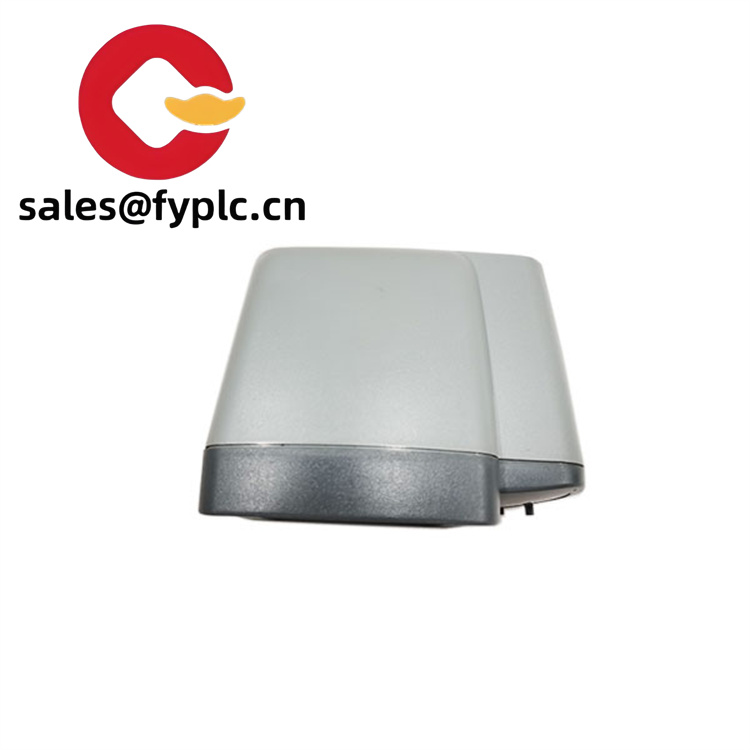

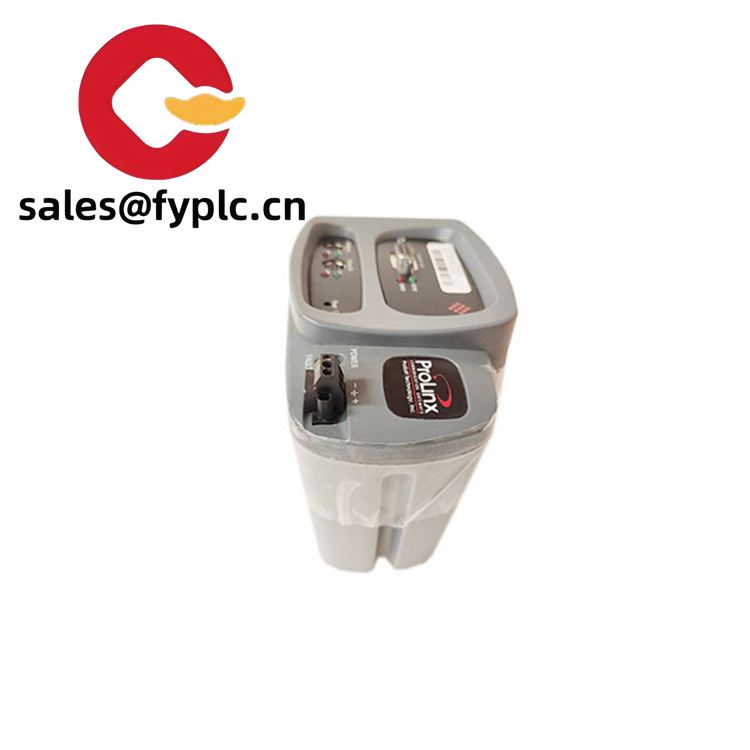

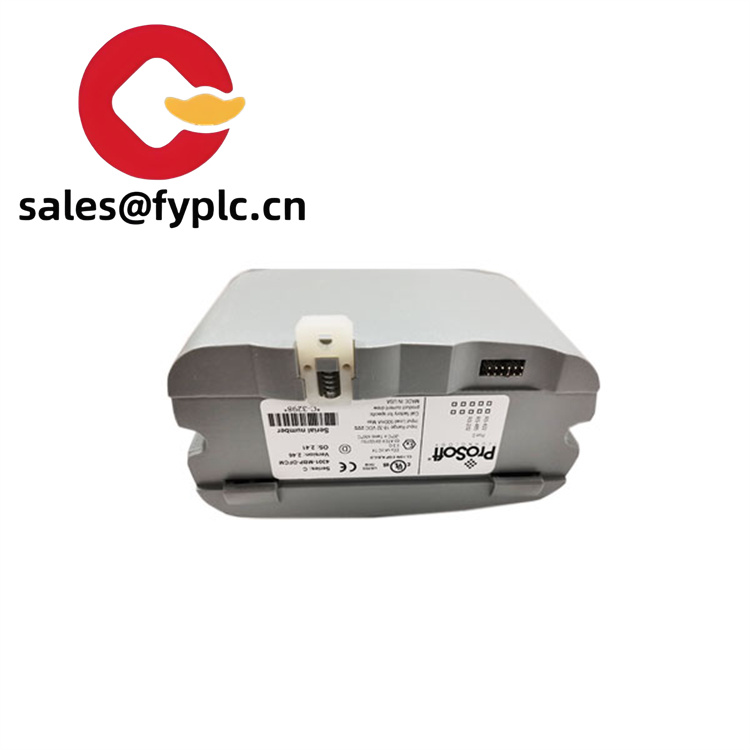

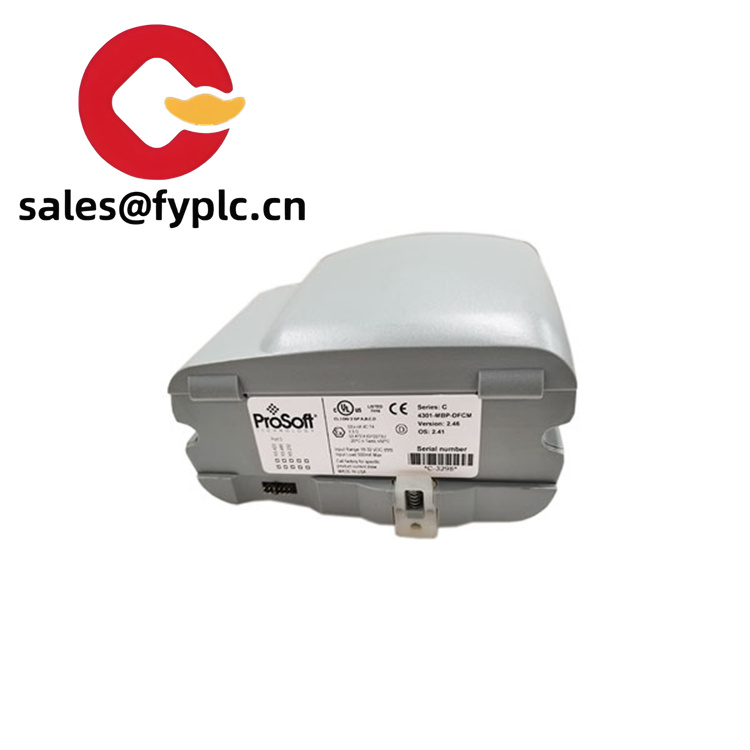

PROSOFT 4301-MBP-DFCM redundant processor module

4301-MBP-DFCM

Whether deployed in automotive manufacturing plants, food processing facilities, or material handling operations, the PROSOFT 4301-MBP-DFCM plays a vital role in keeping industrial processes running smoothly. It acts as a translator, ensuring that data from sensors, actuators, and controllers on one network can be understood and acted upon by devices on the other. By bridging these two networks, the PROSOFT 4301-MBP-DFCM helps industrial operators avoid the costs and complexities of replacing entire systems, instead enabling them to integrate new and existing equipment effectively.

Label	Specification
Model Number	4301-MBP-DFCM
Brand	PROSOFT
Type	Modbus Plus to DeviceNet Gateway
Input Voltage	24 VDC ±10%
Operating Temp	-20°C to 60°C (-4°F to 140°F)
Communication Method	RS-485 (Modbus Plus), CANopen (DeviceNet)
Mounting	DIN Rail (35mm)
Weight	Approx. 250g (8.8oz)
Certifications	UL 508, CE, ATEX (Ex ii 3G EEx nA IIC T4)
Dimensions	120mm x 75mm x 50mm (4.72″ x 2.95″ x 1.97″)
IP Rating	IP20 (when mounted in enclosure)
Protocols Supported	Modbus Plus, DeviceNet

4301-MBP-DFCM

The PROSOFT 4301-MBP-DFCM has been crafted with industrial durability and performance in mind. One of its standout features is its high data throughput, capable of handling up to 128 DeviceNet nodes and 2048 Modbus Plus registers, ensuring that even in busy industrial environments, data transfer remains efficient and uninterrupted. This level of capacity makes it suitable for large-scale operations where numerous devices need to communicate simultaneously.

Compatible and Related Models​

• 4301-MBP-SCAN – A similar gateway from PROSOFT, designed for Modbus Plus to SLC 500 communication, ideal for setups with Allen-Bradley controllers.​

• MVI56-MCM – A Modbus Communication Module that pairs well with the PROSOFT 4301-MBP-DFCM in larger Rockwell Automation systems.​

• 1606-PS24 – A 24VDC power supply from Allen-Bradley, perfectly matched to power the PROSOFT 4301-MBP-DFCM in industrial enclosures.​

• 5130-DNBT – A DeviceNet Bridge from Allen-Bradley, enhancing network expansion when used alongside the PROSOFT 4301-MBP-DFCM.​

• MVI71-MCM – A Modbus Master/Slave Interface that complements the PROSOFT 4301-MBP-DFCM in legacy Modbus RTU environments.​

• 855T-DN16 – A DeviceNet I/O Block from Allen-Bradley, directly compatible with the PROSOFT 4301-MBP-DFCM for sensor integration.​

• 4301-DN-MBP – The reverse-function gateway from PROSOFT, facilitating DeviceNet to Modbus Plus communication for bidirectional setups.
