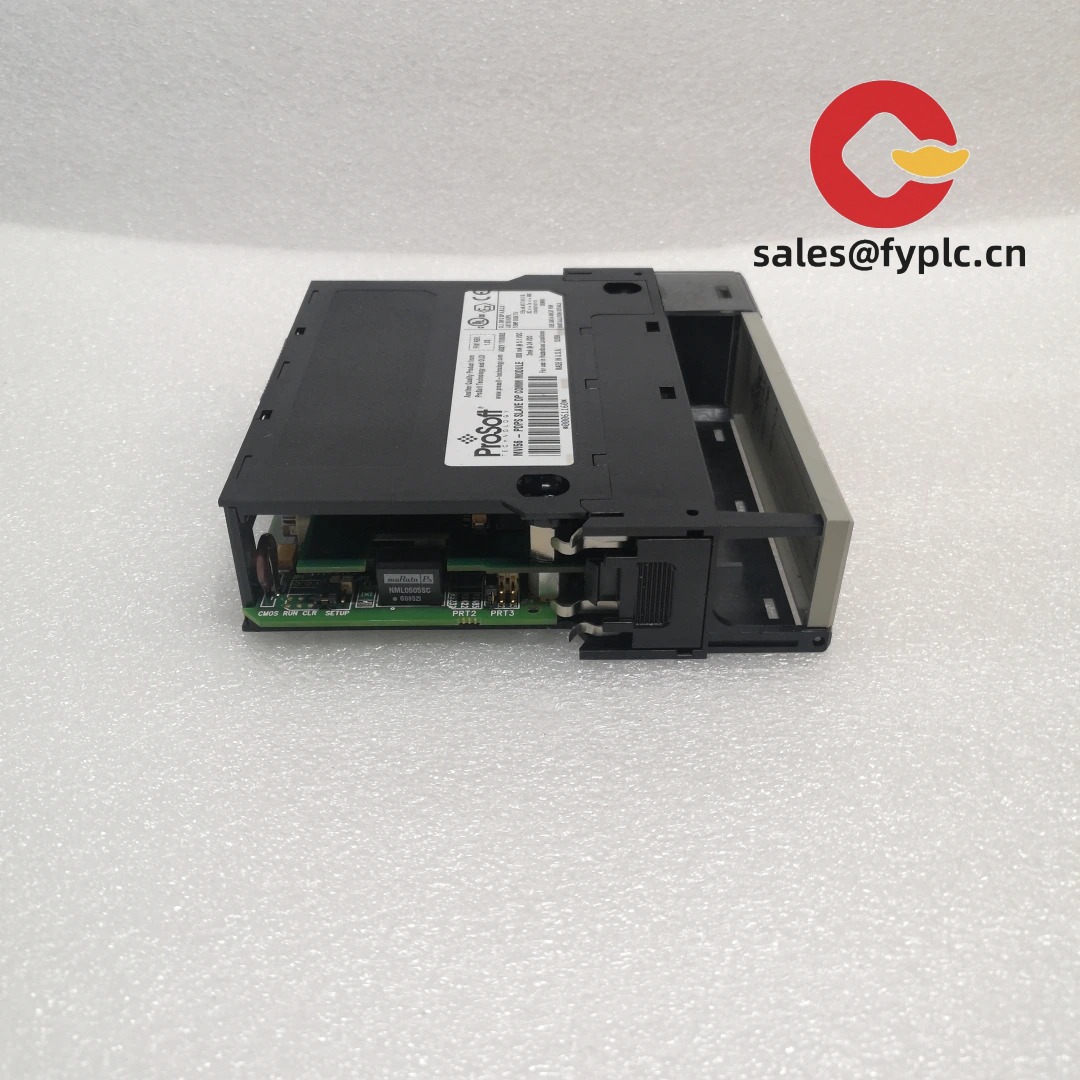

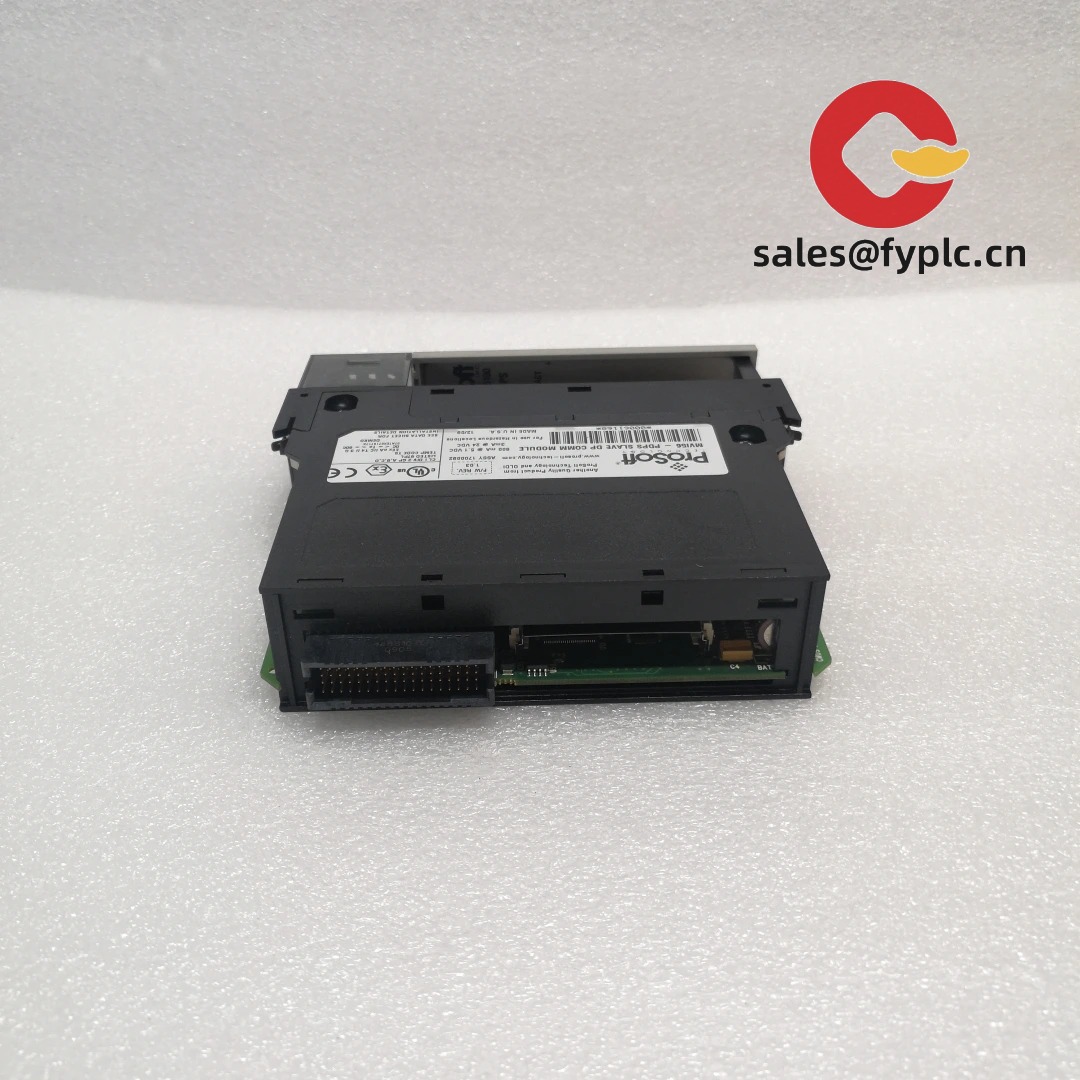

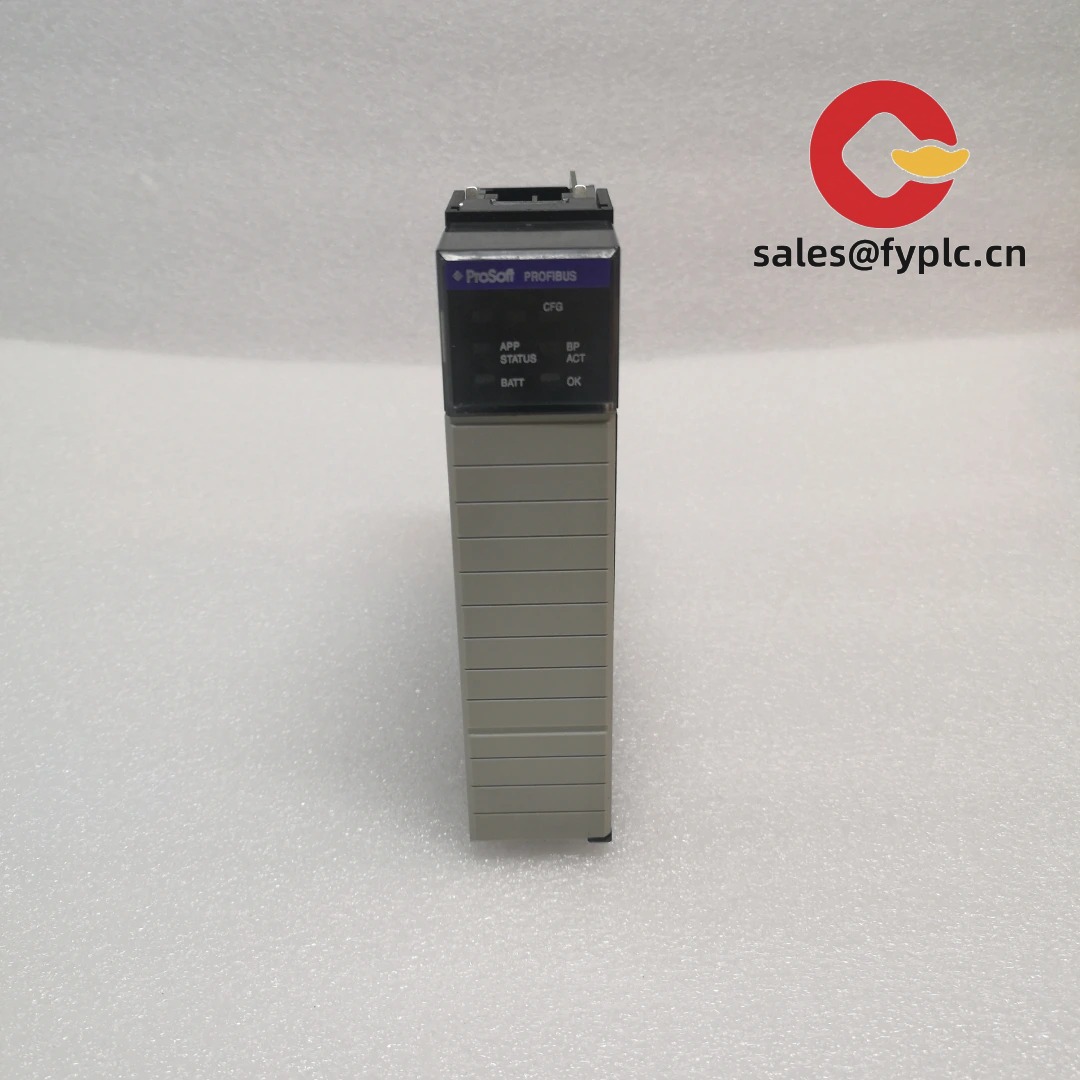

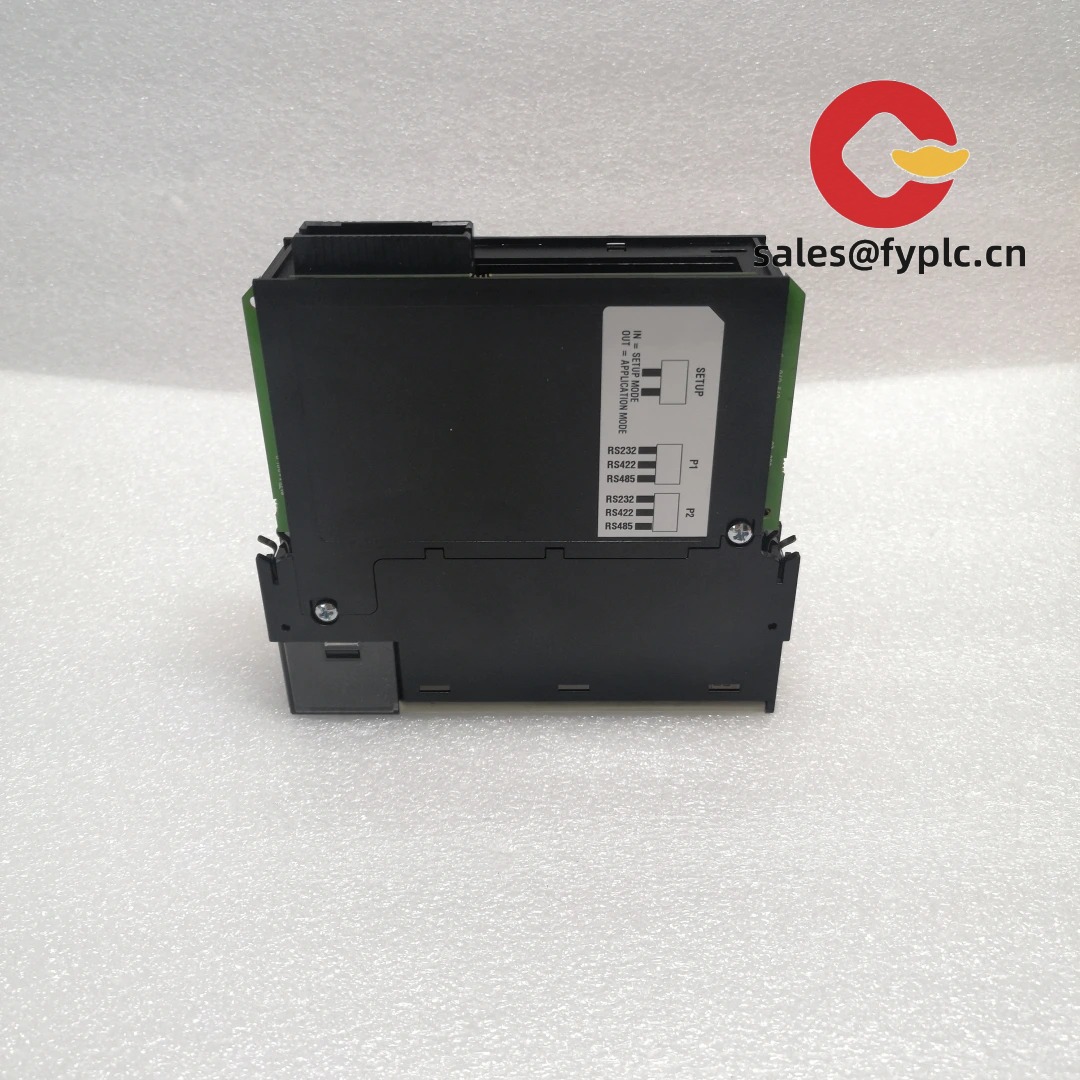

PROSOFT-MVI56-PDPS: Your Rock-Solid DeviceNet Bridge for ControlLogix Systems

If you’re wrestling with DeviceNet integration in Rockwell environments, this little module might save your sanity. From my experience troubleshooting factory floors, the PROSOFT-MVI56-PDPS consistently bridges that gap where ControlLogix needs to talk to legacy drives or sensors without breaking your budget. One thing I appreciate is how it slots directly into ControlLogix backplanes – no extra power supplies or DIN rails needed. You’ll probably find it handles real-time diagnostics better than most competitors, especially when tracking those pesky intermittent network faults.

Key Features That Actually Matter

• Backplane-powered operation – Draws 5V directly from ControlLogix chassis, eliminating external power bricks. Typically shaves 30 minutes off installation time during retrofits.
• Real-time network diagnostics – Shows live device status and error counters in Studio 5000. In many cases, this cuts troubleshooting time by half when DeviceNet nodes drop offline unexpectedly.
• Flexible I/O mapping – Configures up to 128 bytes of input/output data without custom programming. Seems particularly useful for conveyor systems where sensor counts change frequently.
• Firmware upgradability – Field updates via USB port (included cable). One client told me this saved them replacing 17 modules after a network protocol tweak last year.

Technical Specs You Can Actually Use

Where It Shines (And Where It Doesn’t)

You’ll typically see this pulling double duty in automotive assembly lines – think welding robots needing real-time feedback from DeviceNet pressure sensors. A food processing client recently used it to sync packaging machines with legacy conveyors, avoiding $18k in replacement costs. But be warned: it’s not for high-speed motion control. If your DeviceNet network exceeds 500 meters (which it shouldn’t – signal degradation gets nasty), consider adding repeaters. From what I’ve seen, it struggles in steel mills with extreme EMI unless you use shielded conduit.

Why Procurement Teams Keep Ordering It

• Compatibility certainty – Works out-of-box with Rockwell Studio 5000 v32+. No more “will it play nice?” headaches during system upgrades.
• 365-day warranty – Industry-leading coverage that covers firmware glitches (unlike some brands that void warranties for field updates).
• Cost predictability – At 50% advance payment with full payment on shipment, it avoids surprise budget hits. Most clients get it in 5-7 days if we have stock.
• ABB’s hidden perk – Free access to their technical support portal for configuration help. Saved one plant manager 11 hours of downtime last month.

Installation & Maintenance Reality Check

Mount it in standard 1756-A7LX/A4LX cabinets with at least 50mm clearance on both sides – I’ve seen overheating issues when crammed next to power supplies. DeviceNet cables must use twisted pair with shielding (Belden 3105A or equivalent), and keep runs under 500 meters. For maintenance? Check termination resistors quarterly – loose ones cause 70% of “mysterious” dropouts. Firmware updates every 18 months seem sufficient; one plant skipped this and got bit by a security patch last year. Oh, and blow out dust every 6 months – that aluminum heatsink traps grime.

Certifications & Guarantees

CE, UL 61010-1, and RoHS compliant – no customs headaches for EU shipments. The 365-day warranty covers component failures but excludes damage from incorrect DeviceNet termination (a common rookie mistake). Delivery typically happens within one week if in stock, though monsoon season in Southeast Asia sometimes pushes it to 10 days. Payment’s simple: 50% upfront via wire transfer, balance when we hand it to FedEx/UPS/DHL. No credit card fees, no hidden charges.
