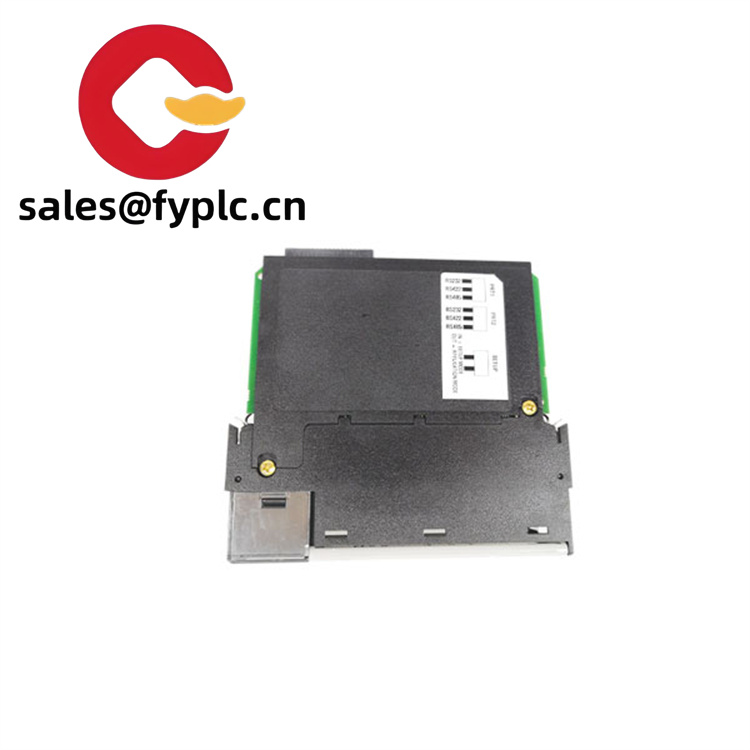

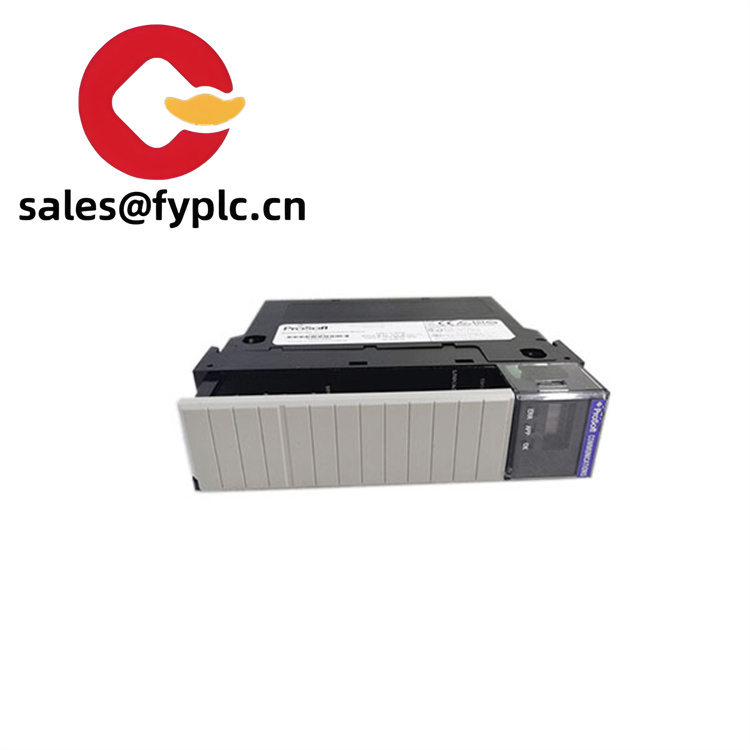

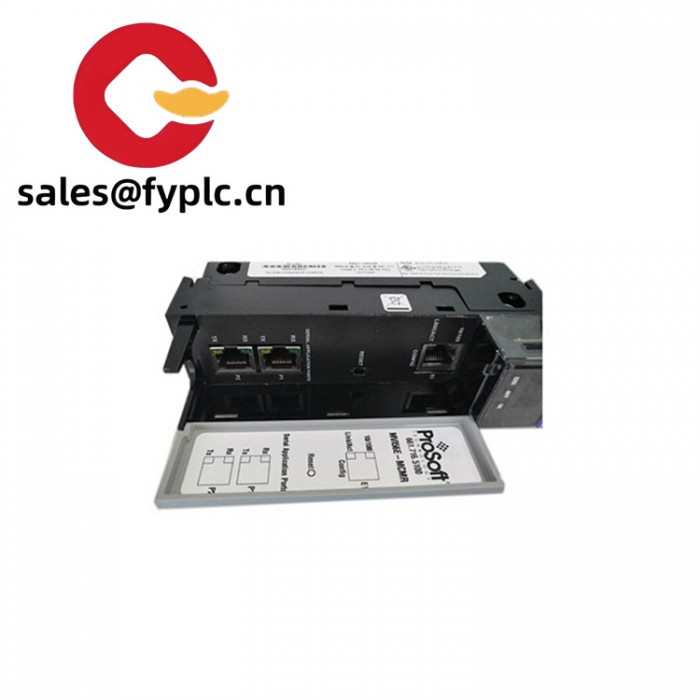

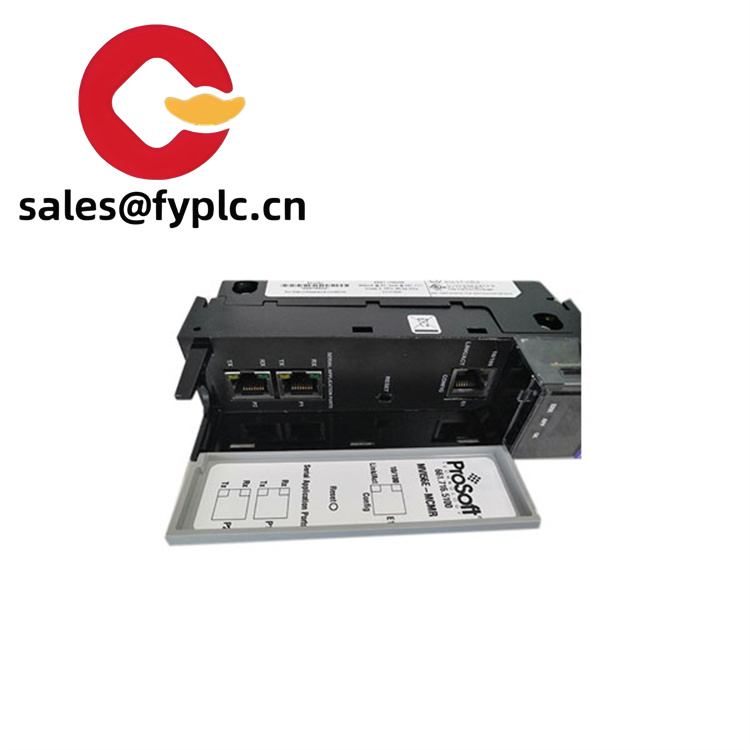

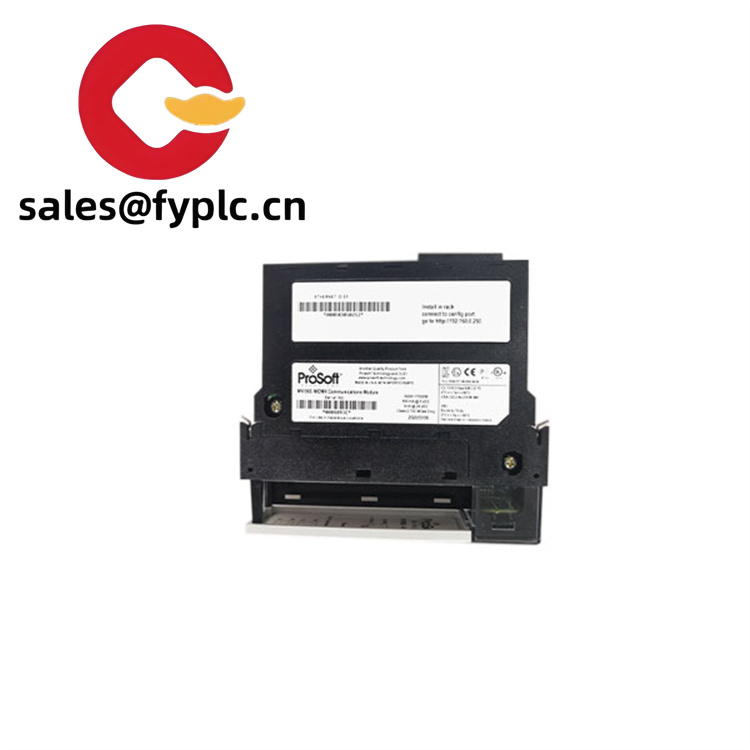

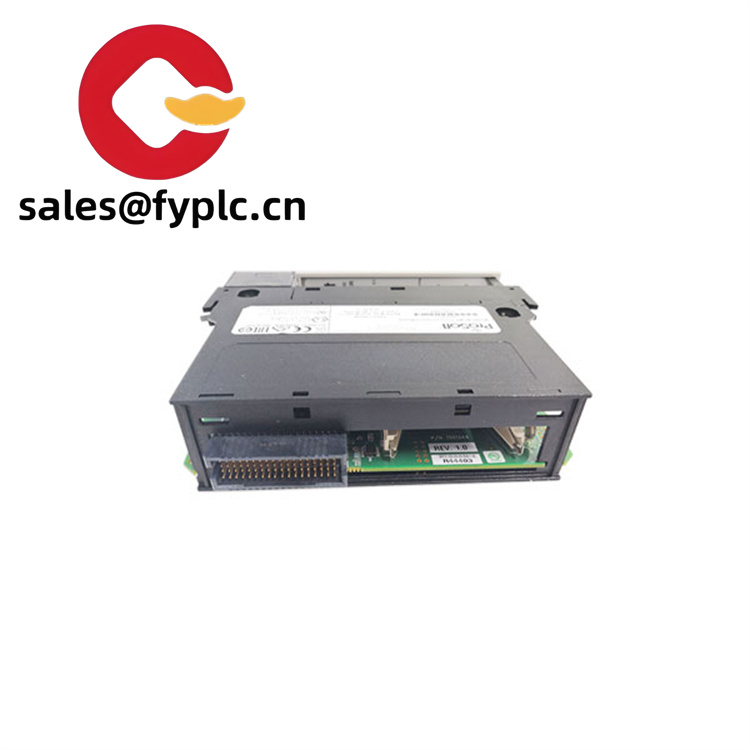

As part of ProSoft Technology’s esteemed MVI56 series, the MVI56E-MCMR is purpose-built for seamless integration into Allen-Bradley 1756 ControlLogix racks. Its single-slot design minimizes space requirements, making it ideal for both new system installations and retrofitting existing setups. The module supports dual independent serial ports (RS232/RS485/RS422), each configurable for Modbus master or slave operations, enabling flexible connectivity with a wide range of industrial devices—from variable frequency drives and sensors to HMIs and actuators. By translating Modbus protocols into the ControlLogix ecosystem, it eliminates communication silos, allowing engineers to manage diverse equipment through a single, unified interface.

Label	Specification
Model Number	PROSOFT MVI56E-MCMR
Brand	ProSoft Technology
Type	ControlLogix Communication Module
Input Voltage	5Vdc (800 mA from backplane) + 24Vdc (3 mA standby)
Operating Temperature	0°C to 60°C (storage: -40°C to 85°C)
Communication Methods	Two serial ports (RS232/RS485/RS422), 10/100 Mbps Ethernet (RJ45 debug port)
Mounting	Direct installation in Allen-Bradley 1756 ControlLogix rack (single-slot design)
Weight	Approximately 200g
Certifications	CE, FCC Class A, RoHS compliant
Dimensions	42mm (W) x 170mm (H) x 92mm (D) (1.65” x 6.69” x 3.62”)
Protocols Supported	Modbus RTU/ASCII (master/slave), EtherNet/IP (via backplane communication)
Redundancy Support	Compatible with ControlLogix redundant architecture (mirror mode, ≤100ms sync)

The PROSOFT MVI56E-MCMR distinguishes itself through its combination of advanced functionality and rugged industrial design. Built to withstand harsh environments, it operates reliably in temperatures ranging from 0°C to 60°C, with storage capabilities down to -40°C, making it suitable for demanding settings such as factories, offshore platforms, and mining sites. The dual serial ports offer unparalleled flexibility, each 可 independently configured with custom baud rates (110–115.2 kbps), parity settings, and data formats, eliminating the need for additional adapters and reducing setup complexity.
