Description

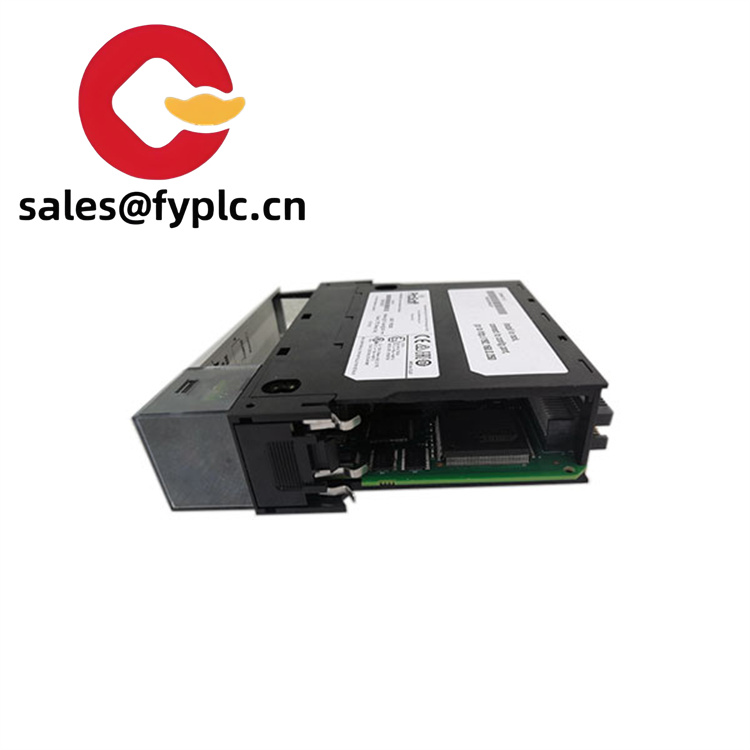

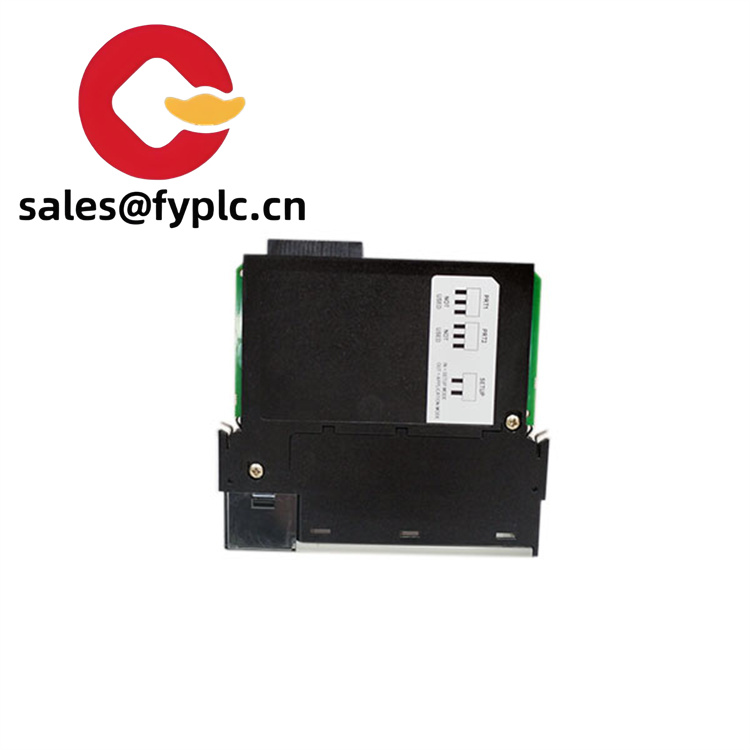

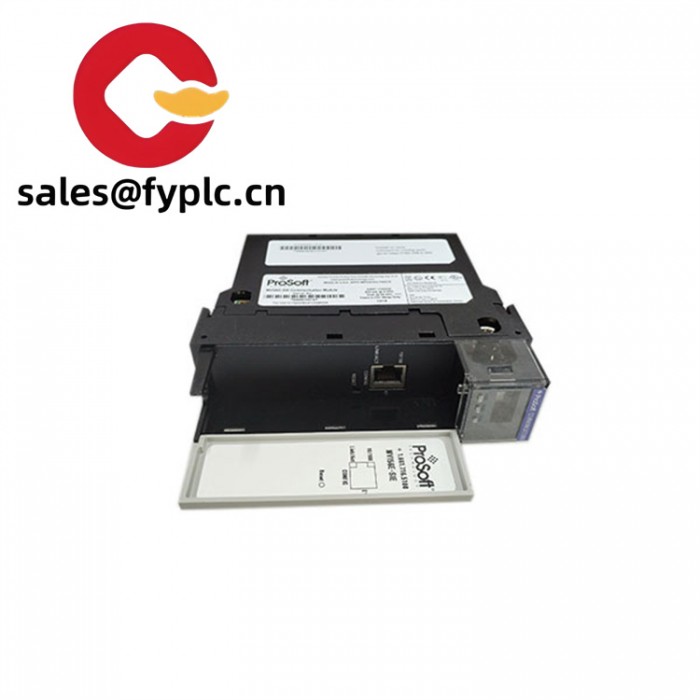

PROSOFT MVI56E-SIE Ethernet Communication Module Display Screen
MVI56E-SIE
The MVI56E-SIE is engineered to handle both cyclic and acyclic data exchange, supporting real-time control commands and non-periodic parameter adjustments. Its 10/100 Mbps Ethernet port with auto-crossover detection ensures reliable communication, while the ProSoft Configuration Builder (PCB) provides a graphical interface for intuitive setup and diagnostics. With 5000 user-definable 16-bit registers for data mapping and CIP Connect compatibility, the module simplifies network management and remote diagnostics, even across multi-segmented Ethernet/IP networks.
| Label |
Specification |
| Model Number |
MVI56E-SIE |
| Brand |
ProSoft Technology (Rockwell Automation) |
| Type |
Siemens Industrial Ethernet Client Module for ControlLogix |
| Input Voltage |
Backplane-powered: 5 VDC (800 mA) + 24 VDC (3 mA auxiliary) |
| Operating Temperature |
0°C to 60°C (operation); -40°C to 85°C (storage) |
| Communication Method |
10/100 Mbps Ethernet (RJ45), Siemens S7 protocol |
| Mounting |
Single-slot 1756 ，fits ControlLogix local/remote racks |
| Weight |
0.5 kg (compact design for rack integration) |
| Certifications |
RoHS, CE, IECEx (hazardous area compliance) |
| Dimensions |
263×58×28 mm (standard ControlLogix form factor) |
| Protocols Supported |
Siemens Industrial Ethernet, CIP Connect for Ethernet routing |
| Data Throughput |
High-speed cyclic data transfer with scheduled I/O updates |
MVI56E-SIE
The MVI56E-SIE stands out for its plug-and-play simplicity and robust performance. Its 4-character alphanumeric LED display provides real-time status updates, while the ProSoft Discovery Service (PDS) simplifies network discovery and IP address assignment. By leveraging scheduled I/O data transfer, it achieves faster update rates compared to traditional mailbox communication, critical for applications like robotics and precision manufacturing where latency is intolerable.
MVI56E-SIE
Durability is a cornerstone of its design. The module withstands 5g vibration (10–150 Hz) and 30g operational shocks, ensuring stability in harsh environments like chemical plants or power generation facilities. Its industrial-grade CF card stores configuration data, enabling rapid field replacement without reconfiguring the entire network. For engineers, the Sample Ladder Logic and Add-On Instructions (AOIs) reduce development time by providing pre-built code for data exchange with ControlLogix processors.
