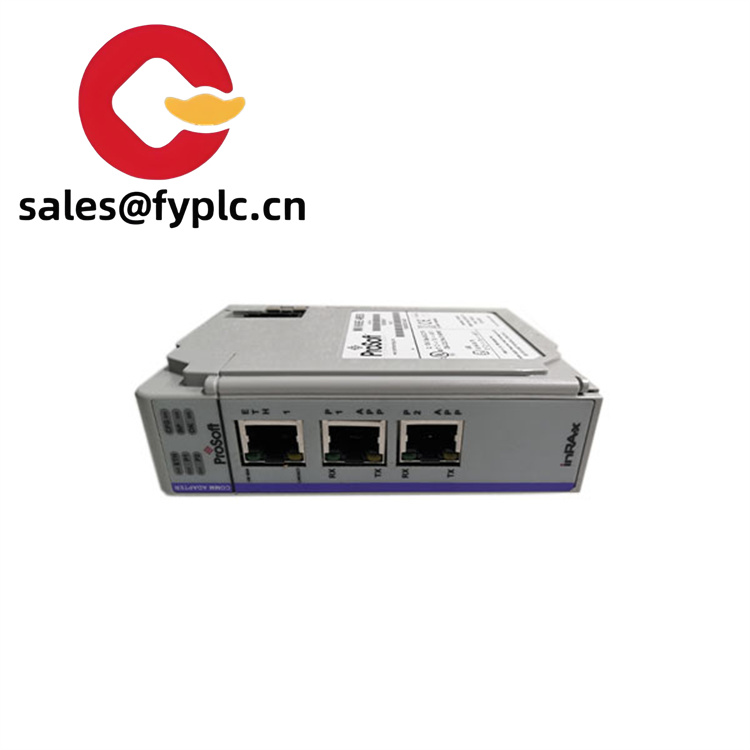

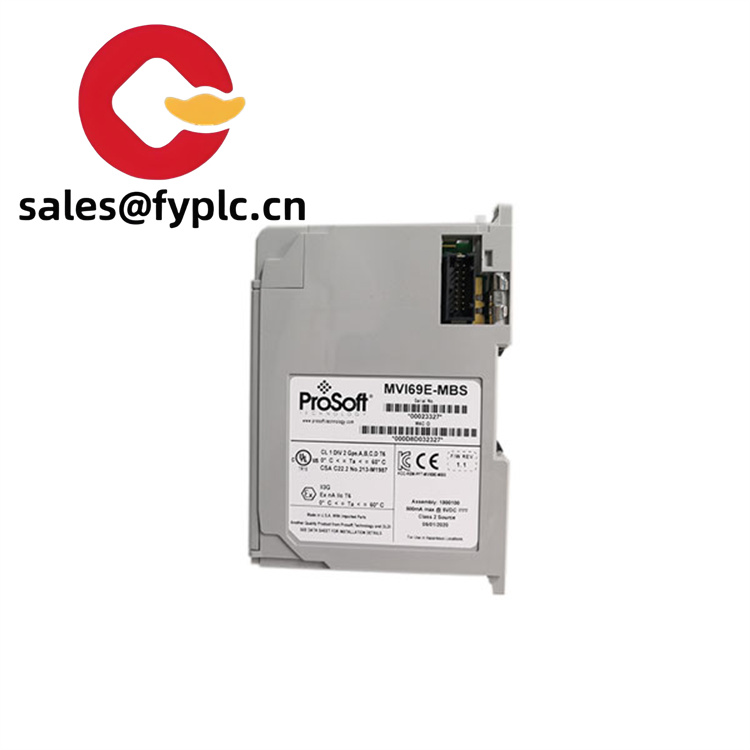

PROSOFT MVI69E-MBS Communication Module Serial Enhanced Module
MVI69E-MBS
The PROSOFT MVI69E-MBS is a Modbus serial enhanced communication module designed exclusively for Rockwell Automation’s CompactLogix platform. Its primary role is to enable bidirectional communication between Modbus RTU/ASCII devices (such as sensors, drives, and PLCs) and the CompactLogix controller, acting as a vital bridge in hybrid automation setups. With two configurable serial ports (RS-232/422/485), it supports both Modbus master and slave modes, allowing simultaneous connectivity to up to 250 Modbus commands per port.
| Label | Specification |
|---|---|
| Model Number | PROSOFT MVI69E-MBS (3BHE022293R0101) |
| Brand | ProSoft Technology |
| Type | Modbus Serial Enhanced Communication Module |
| Input Voltage | 5V DC (500 mA max) |
| Operating Temperature | 0°C to 60°C |
| Communication Methods | Modbus RTU/ASCII (RS-232/422/485) |
| Mounting | 1769 CompactLogix Single-Slot Module |
| Weight | 1.3 kg (approx.) |
| Certifications | CE, RoHS, UL Class 1 Div 2, ATEX |
| Dimensions | 236 mm (W) x 226 mm (H) x 35 mm (D) |
| IP Rating | N/A (conformal coating option available) |
| Data Transfer Rate | 110–115 kbps |
| Memory | 60/120/240 16-bit integers |
The MVI69E-MBS is engineered to tackle complex industrial communication challenges with precision. Its dual serial ports allow independent configuration as Modbus master or slave, supporting up to 10,000 words of data transfer and Enron/Daniel-style floating-point implementations. This flexibility is critical in applications like water treatment plants, where the module can simultaneously act as a master to control pumps and a slave to report status to a SCADA system.
