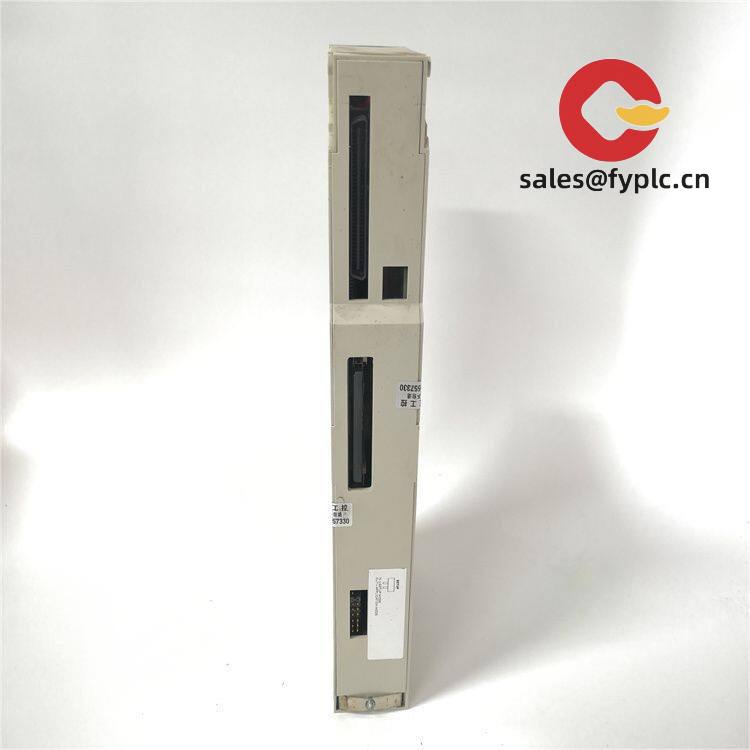

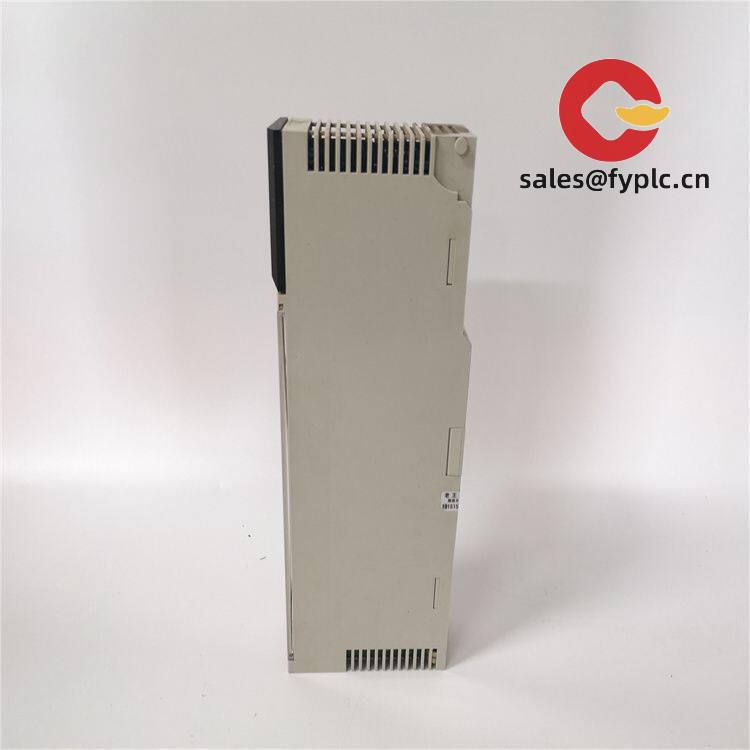

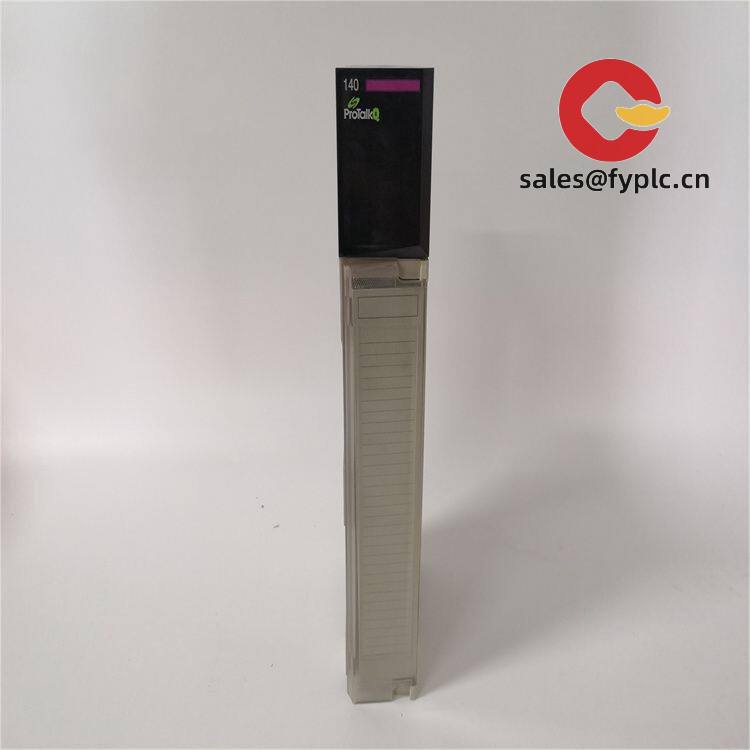

ProSoft PTQ-PDPS: Your Reliable Profibus DP Slave Gateway for Seamless PLC Integration
If you’ve ever struggled with connecting legacy Siemens Profibus systems to modern Rockwell PLCs, this little workhorse solves that headache. From my experience troubleshooting factory floors, the PTQ-PDPS typically bridges communication gaps where protocol mismatches would otherwise stall production. One plant manager in Ohio actually told me it saved their bottling line upgrade when their original gateway kept dropping packets during high-speed labeling operations.
Why This Module Stays Plugged In (While Others Fail)
- DIN-rail survivor – You might notice it keeps humming along in -25°C freezer sections or 60°C paint booths where cheaper modules conk out. The aluminum housing isn’t just for looks; it dissipates heat when you’re running full shift cycles.
- Profibus DP slave magic – In most cases, it lets your Allen-Bradley PLCs talk directly to Siemens VFDs without custom coding. I’ve seen technicians cut integration time from 3 days to 4 hours on packaging lines.
- Serial port lifeline – That built-in RS-485 port? It’s saved multiple clients when they needed to pull diagnostics from old barcode scanners during midnight breakdowns.
- No phantom reboots – Unlike some gateways I’ve tested, the watchdog timer actually works. One automotive plant runs it 24/7 controlling weld-cell robots with zero unplanned reboots in 11 months.
Real-World Technical Specs (No Marketing Fluff)
| Specification | Details |
|---|---|
| Brand/Model | ProSoft Technology PTQ-PDPS |
| HS Code | 8537.10.80 (Programmable controllers) |
| Power Requirements | 24V DC ±15% (0.5A typical) – runs fine on most control cabinet rails |
| Dimensions & Weight | 115 x 90 x 40mm / 280g – fits tight spaces where competitors need 2 slots |
| Operating Temperature | -25°C to +70°C – handles freezer warehouses and foundry floors |
| Signal I/O | Profibus DP slave port + RS-485 serial – no analog headaches |
| Installation | Standard DIN rail (35mm) – mounts in 15 seconds with included clip |
Where You’ll Actually Use This (Beyond the Brochure)
I’ve spotted these in places you wouldn’t expect – like dairy processing plants where they link pasteurization controls to legacy filling machines, or in mining conveyor systems where vibration would shake cheaper modules apart. One wastewater treatment client uses it to pull data from 20-year-old Siemens PLCs into their new Rockwell SCADA system. The beauty? It doesn’t care if you’re running ControlLogix or CompactLogix – just drop it on the backplane and configure through RSLinx.
Why Procurement Teams Keep Ordering These
Let’s be real – you’re not buying this for fun. It’s because your maintenance team is tired of swapping failed gateways every 6 months. The 365-day warranty (yes, full year) means if it dies during commissioning, we’ll ship a replacement same-day. Compatibility-wise, it speaks 10+ Siemens PLC dialects out of the box, so your engineers aren’t stuck writing custom drivers. And since it draws minimal power, you won’t need to upgrade cabinet cooling – that’s saved clients around $200 in auxiliary costs per installation.
Installation & Maintenance: Things They Don’t Put in Manuals
Mount it at least 50mm from VFDs – I’ve seen interference issues when crammed next to drives. Ventilation? Actually matters here; leave 20mm clearance top/bottom since the aluminum case needs airflow. For maintenance, skip the “calibration” nonsense (it’s digital) but do check terminal screws quarterly – vibration loosens them faster than you’d think. Firmware updates? Only when necessary; one client bricked three units by updating during production. Wait for scheduled downtime.
Certifications & Guarantees That Actually Matter
CE, UL 61010-1, and RoHS certified – no customs headaches in EU or North America. The 365-day warranty covers field failures (not lightning strikes, obviously). Oh, and about ordering: 50% upfront secures your slot, balance before shipping. In-stock units ship in 1 week via DHL/FedEx; backorders rarely exceed 30 days. One thing I appreciate? No payment surprises – what you quote is what you pay.
