Redundant structure of analog output card for Triconex 3805E/3806E control system

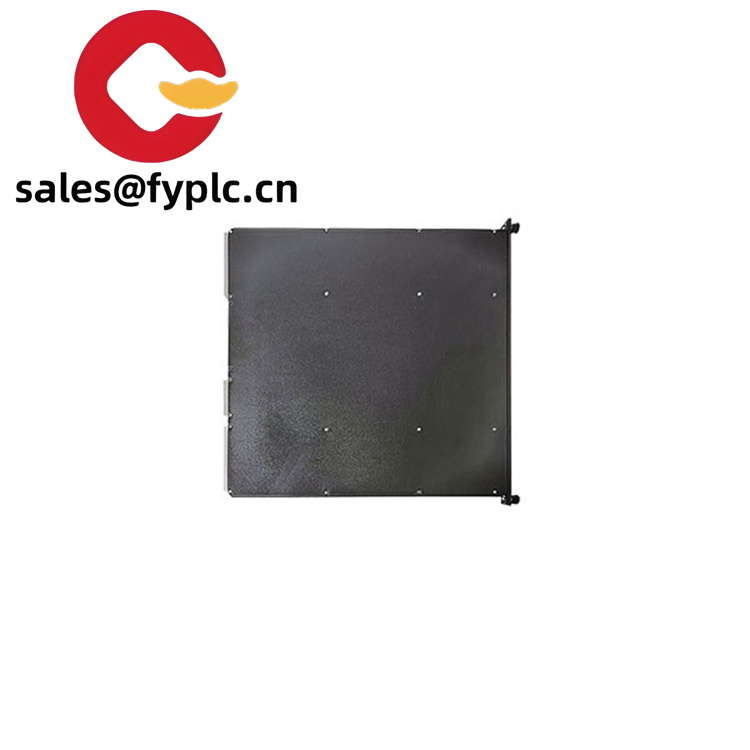

3806E

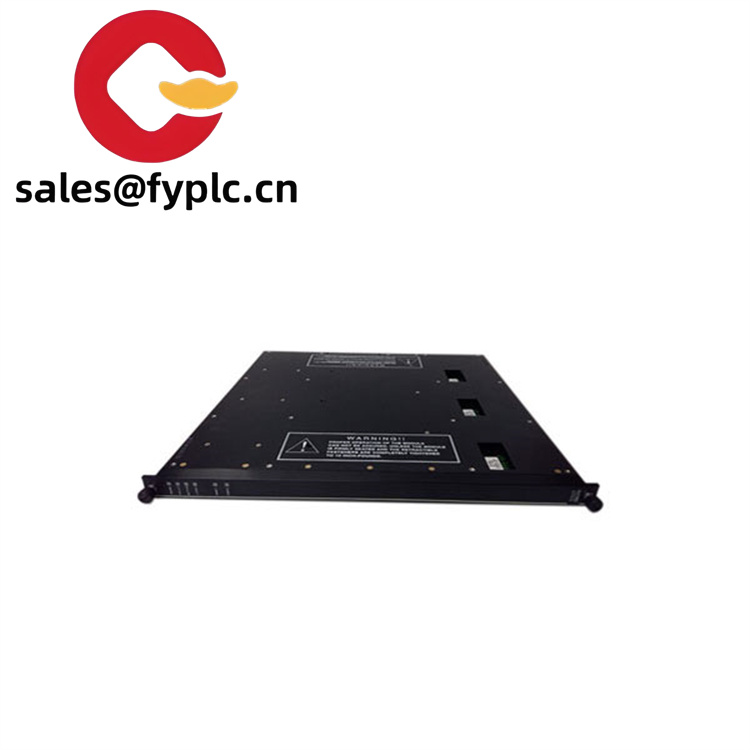

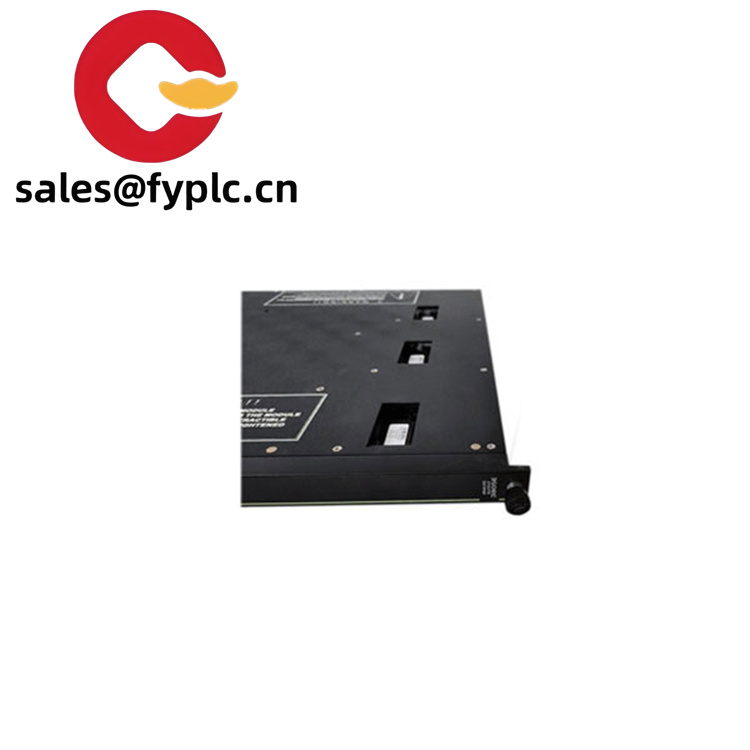

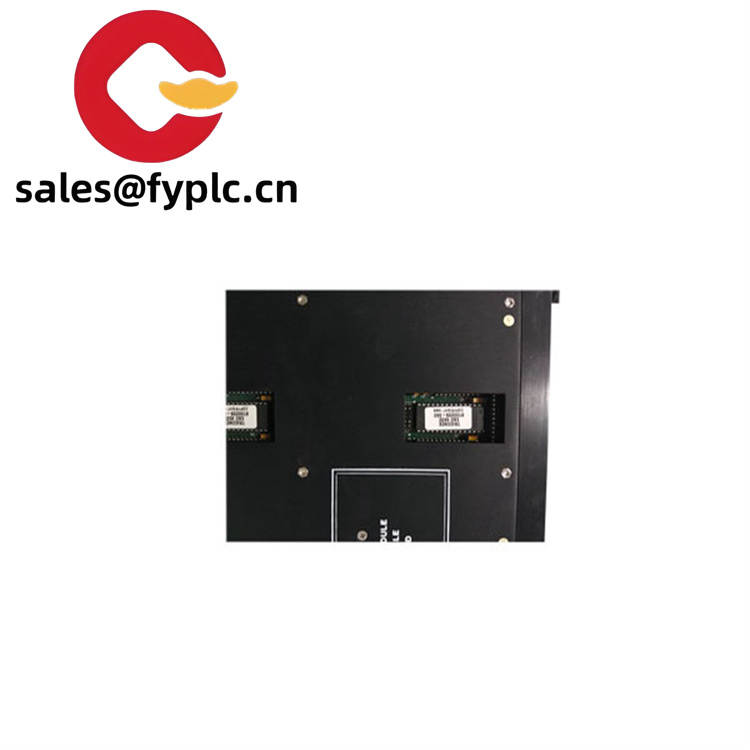

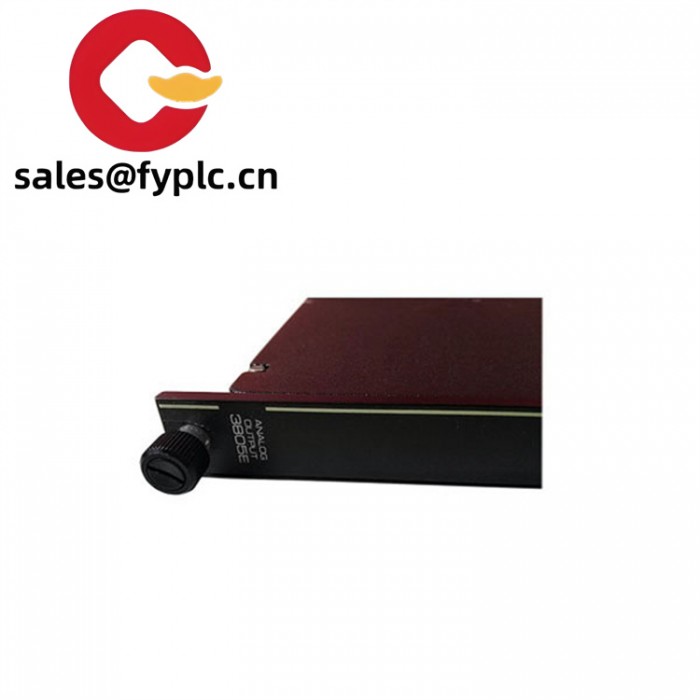

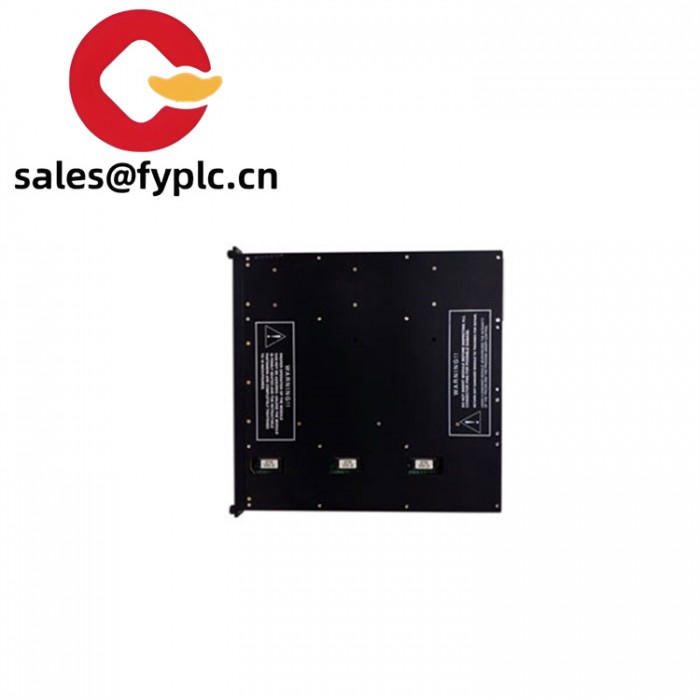

The Triconex 3805E is a high-reliability analog output module designed for safety-critical industrial control systems, part of Triconex’s Safety Instrumented System (SIS). Engineered to deliver precise analog signals to field devices (e.g., valves, actuators, transmitters), it ensures fault-tolerant output control in industries such as oil & gas, chemical processing, and power generation. Below is a detailed overview:
| Label |
Specification |
| Model Number |
3805E |
| Brand |
Triconex |
| Type |
Analog Output Module |
| Output Channels |
16 channels (configurable for current/voltage outputs) |
| Output Range |
– Current: 4–20 mA, 0–20 mA
– Voltage: 0–5 VDC, 1–5 VDC, ±5 VDC |
| Resolution |
16 bits (high-precision signal generation) |
| Accuracy |
±0.1% of full-scale (depends on output range) |
| Redundancy |
Triple Modular Redundancy (TMR) with self-diagnostic capabilities |
| Isolation |
Galvanic isolation (typically 500 VDC) between channels and backplane |
| Power Supply |
24 VDC (nominal, with surge protection) |
| Operating Temperature |
-20°C to +70°C |
| Communication |
Integrates with Triconex backplane via high-speed serial bus |
| Certifications |
Compliant with IEC 61508 (SIL 3), IEEE, and EMC/EMI standards |
3805E
-
Triple Modular Redundancy (TMR)
The module uses three independent signal paths to generate and validate output signals. This architecture detects and mitigates single-point faults (e.g., circuit failures, data corruption) by voting on data from the three channels, ensuring reliable control actions in critical systems.
-
High Precision and Stability
- 16-bit resolution ensures accurate conversion of digital control signals to analog outputs, enabling precise regulation of field devices (e.g., modulating valves).
- Advanced signal conditioning minimizes drift and noise, maintaining output stability even in electrically noisy environments.
-
Fault Detection and Fail-Safe Mechanisms
- Continuous self-tests monitor for faults such as open circuits, short circuits, or out-of-range outputs.
- Faults trigger diagnostics reported to the control system, allowing rapid troubleshooting.
- Fail-safe outputs can be configured to default to pre-defined states (e.g., 4 mA, 20 mA, or 0 VDC) in the event of a module or system failure, ensuring safety in process control.
-
Flexible Configuration
- Supports multiple output types (current/voltage) and ranges, compatible with a wide array of actuators and indicators.
- Configurable via Triconex software (e.g., Tricon Expert) for scaling, alarm thresholds, and diagnostic sensitivity.
- Channel-to-channel isolation prevents cross-talk, enhancing reliability in multi-channel applications.
-
Industrial-Grade Design
- Hot-swappable: Can be replaced without powering down the system, reducing downtime during maintenance.
- Rugged construction withstands vibration, humidity, and extreme temperatures, suitable for harsh industrial environments.
- EMI/RFI immunity ensures robust performance in facilities with high electromagnetic interference.
-
3805E
-
