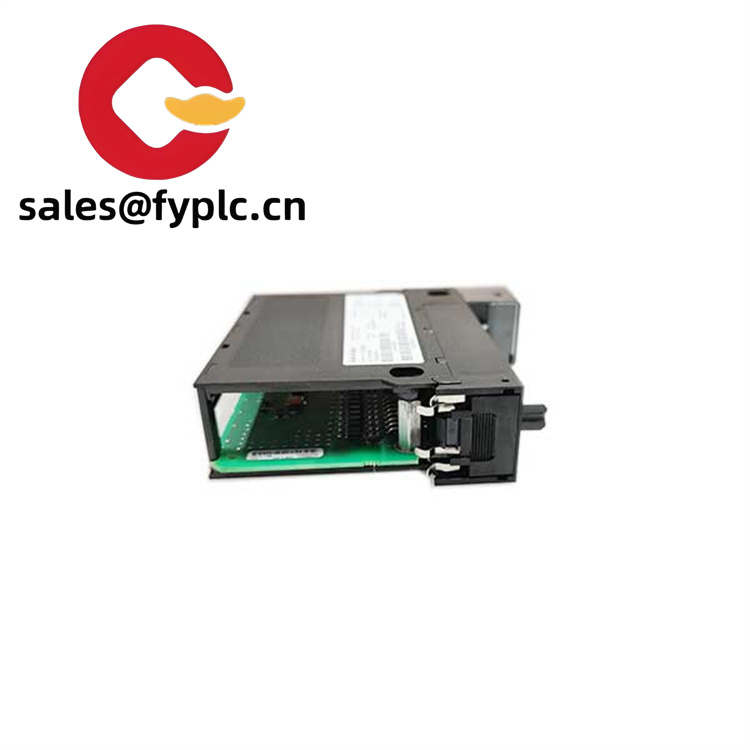

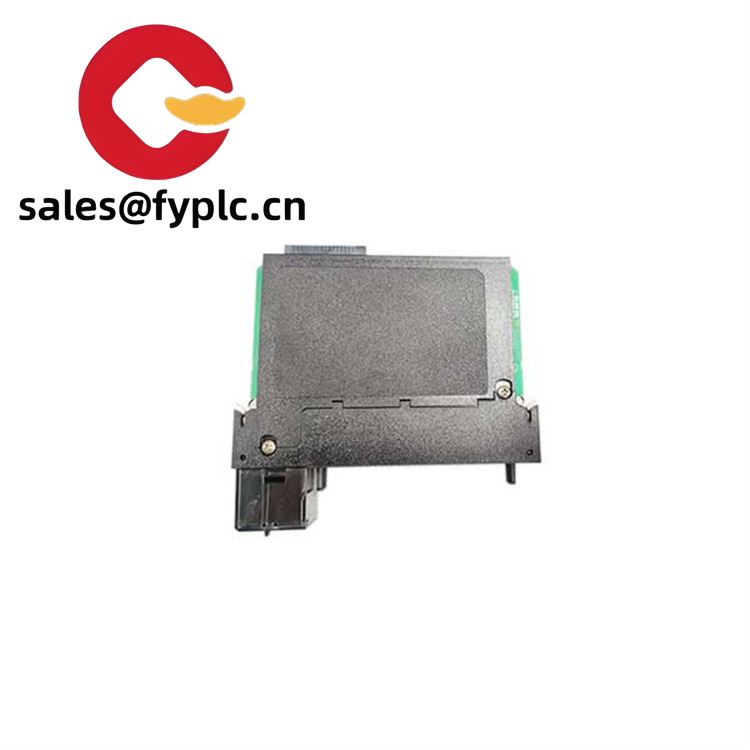

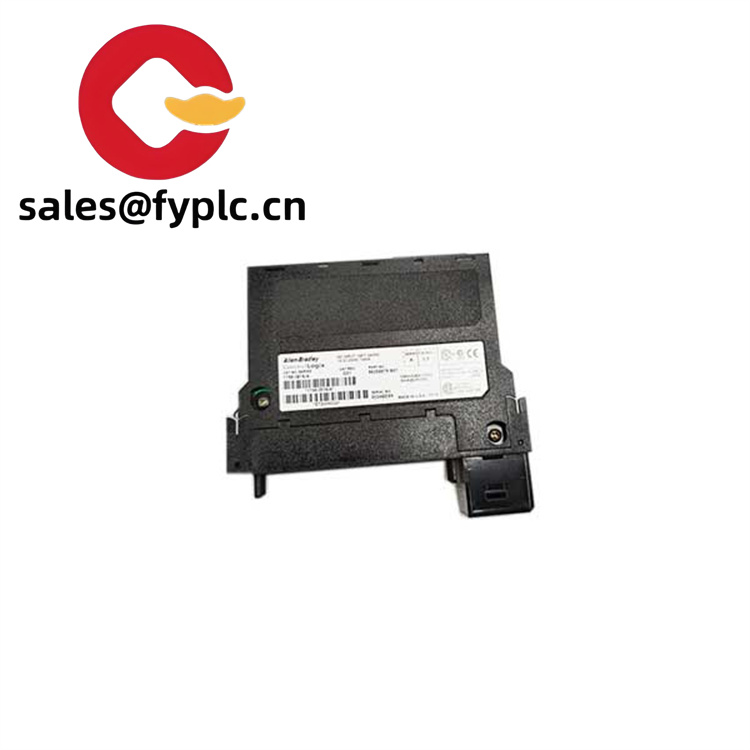

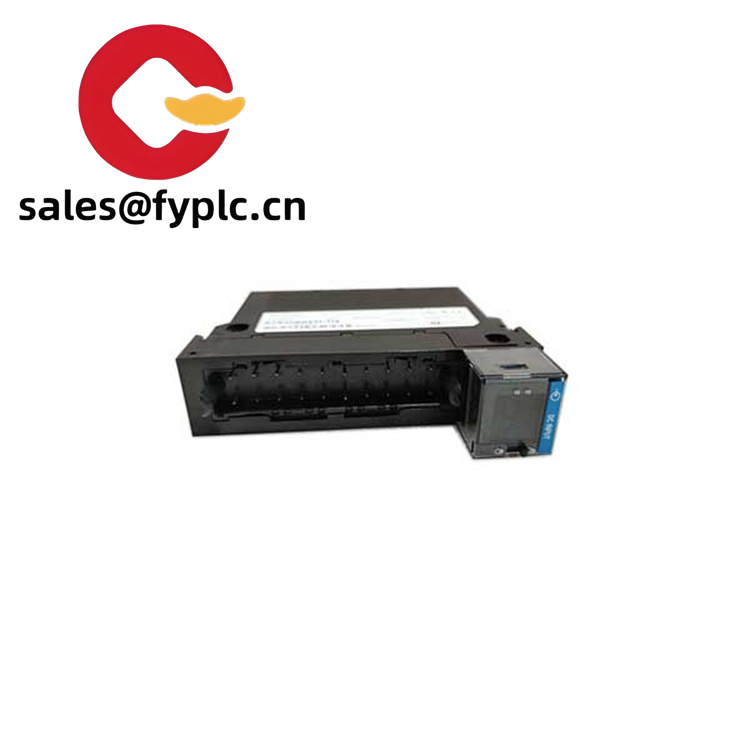

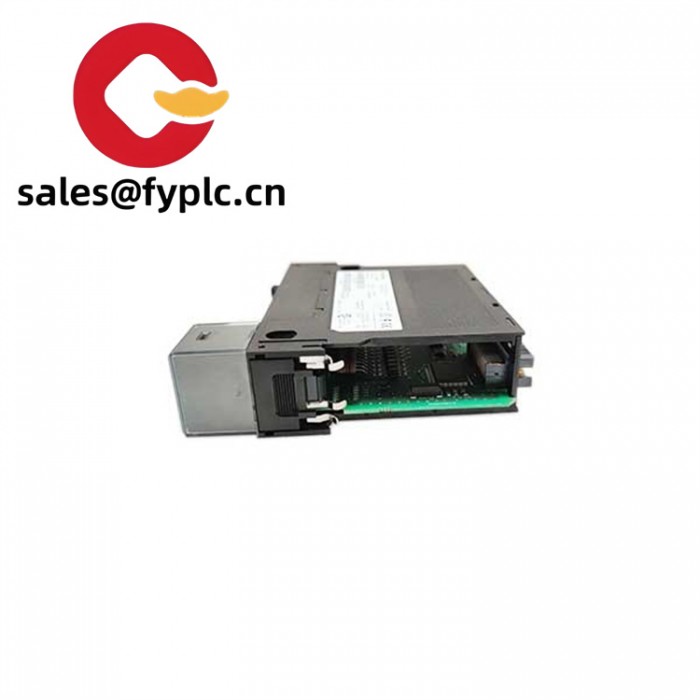

ROCKWELL 1756-IB16 Control System Programmable Module
1756-IB16
The Allen Bradley 1756 – IB16 is engineered with a clear – cut purpose: to accurately and reliably capture digital input signals in industrial settings. It serves as the eyes and ears of the Controllogix system, gathering information from various external devices. In industrial control systems, having precise and timely input data is fundamental. Whether it’s detecting the on – off status of a machine, sensing the position of a conveyor belt, or monitoring the state of a sensor, the 1756 – IB16 steps in to ensure that the control system receives the right information at the right moment.
| Label | Specification |
|---|---|
| Model Number | 1756 – IB16 |
| Brand | Allen Bradley (Rockwell Automation) |
| Type | Digital DC Input Module |
| Input Voltage | Nominal: 24 VDC; Category: 12/24 VDC sink; Range: 10 – 31.2 VDC |
| Operating Temp | 0 to 60 °C (32 to 140 °F) |
| Communication Method | Communicates via the Inter Module Bus (IMB) within the Controllogix system for seamless data transfer |
| Mounting | DIN Rail for easy and standard installation |
| Weight | Compact design for easy handling, though exact weight not specified in common sources |
| Certifications | Meets industry – standard certifications, assuring its quality and safety for industrial use |
| Dimensions | Not precisely specified in common sources, but designed to fit neatly into control panels as a single – slot module |
| IP Rating | Not applicable as it’s usually installed within an enclosure in a control panel |
| Protocols Supported | Depends on the Controllogix system it is integrated with |
1756-IB16
The Allen Bradley 1756 – IB16 is widely deployed across diverse industries. In manufacturing plants, it plays a crucial role in controlling the operation of various machinery. For instance, in an electronics manufacturing facility, the 1756 – IB16 can be used to detect the presence of components on a conveyor belt, triggering the next stage of the assembly process. This helps to optimize production efficiency and maintain product quality.
1756-IB16
- 1756 – IB16D– A digital DC input module with diagnostic capabilities, which can be beneficial for applications where quick fault detection is crucial, unlike the standard 1756 – IB16.
- 1756 – IA16– An analog input module from the same Controllogix family, which can be used in tandem with the 1756 – IB16 in systems that require both analog and digital input capabilities.
- 1756 – L61– A Controllogix controller that the 1756 – IB16 is compatible with, and together they form a powerful control solution for industrial processes.
- 1756 – IZ16– A thermocouple input module, useful for applications where temperature sensing is essential, and the 1756 – IB16 can be used to complement the temperature – related control by handling other digital input signals.
- 1756 – MM1– A memory module that can enhance the functionality of the Controllogix system when used in combination with the 1756 – IB16, allowing for more complex control algorithms to be implemented.
- 1756 – IN16– A digital DC input module with different input characteristics, providing an alternative option depending on the specific requirements of the application, such as different input voltage ranges or isolation features.
