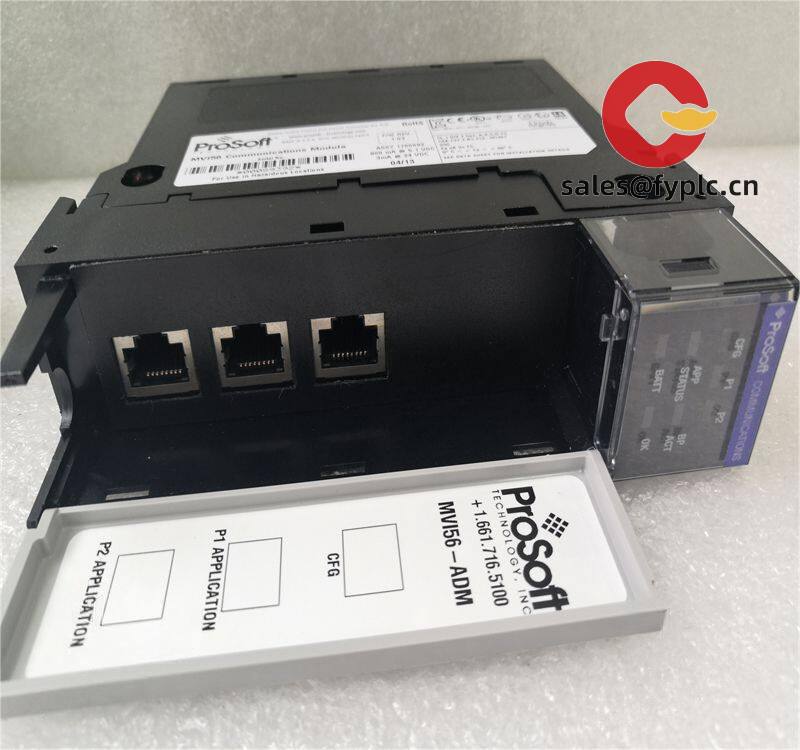

Rockwell Automation MVI56-ADM Flexible ‘C’ Programmable Application Development Module for Custom I/O Control

Let’s be honest – when your analog sensors throw curveballs that standard modules can’t handle, you end up wasting weeks on workarounds. From my time in chemical plants, I’ve seen this module solve that exact headache. It’s not just another I/O card; it’s your escape hatch when off-the-shelf solutions hit their limits. One thing I appreciate is how it lets you write actual C code directly on the module – no more wrestling with proprietary ladder logic for niche sensor calibrations.

Why field engineers keep this in their toolkit

• → Real-time C programming – Skip the middleman: compile and deploy custom signal processing (like pH compensation or thermocouple linearization) directly on the module. Typically shaves 2-3 days off commissioning for tricky sensor integrations.
• → Flexible I/O configuration – Mix 8 analog inputs (±10V/4-20mA) and 4 outputs on one card. You might notice this pays for itself when retrofitting old machinery where space in the ControlLogix rack is tight.
• → Hot-swappable diagnostics – Those status LEDs aren’t just for show. During a midnight shutdown at a water treatment plant last year, they pinpointed a failing 4-20mA loop in 90 seconds – no laptop needed.

Technical snapshot (no fluff, just what matters)

Where it earns its keep

I’ve watched this module pull double duty in places you wouldn’t expect. At a Midwest ethanol plant, it handled custom density calculations for fermentation tanks using weird legacy sensors – something their standard 1756-IF8 modules choked on. It’s also become a go-to for wastewater facilities needing to blend analog signals from dissolved oxygen probes before sending clean data to SCADA. Honestly, if your process has non-standard sensors or requires real-time math on I/O, this avoids costly gateway hardware.

The procurement angle (no sugarcoating)

Look, it’s not the cheapest module in the catalog – but when downtime costs $18k/hour like at that Houston refinery I visited, its value shines. In most cases, avoiding a custom PLC program rewrite saves 3-4x the module cost. Plus, since it slots into existing ControlLogix racks, you’re not buying new chassis or power supplies. One plant manager told me: “It paid for itself during the first unplanned shutdown.” Technical support is solid too – Rockwell’s forums have actual engineers answering C-code questions, not just sales reps.

Installation & upkeep (the stuff manuals skip)

Slip it into any ControlLogix 1756-A4/A7/A10 rack – no special mounting. Just mind the ventilation: leave 25mm clearance on both sides since the C compiler chews CPU during heavy math. For safety, always kill power before swapping (yes, it’s “hot-swappable” but why risk arc flash?). Maintenance is lazy-simple: wipe vents quarterly with a dry brush, and update firmware during planned outages – skipping this once caused a weird drift issue at a pulp mill I consulted for. Calibration? Only if your sensors demand it; the module itself holds specs for 5+ years.

Peace-of-mind paperwork

CE, UL 61010-1, and ISO 13849-1 certified – so it won’t trip safety audits. RoHS compliant since 2018 models. Warranty’s straightforward: 365 days from ship date (no “business days” loopholes). If it fails, we’ll ship a replacement within 1 week for in-stock items – worst case 4 weeks if we need to pull from regional depots. Payment’s 50% upfront, balance before shipping via FedEx/UPS/DHL. No surprises.
