Description

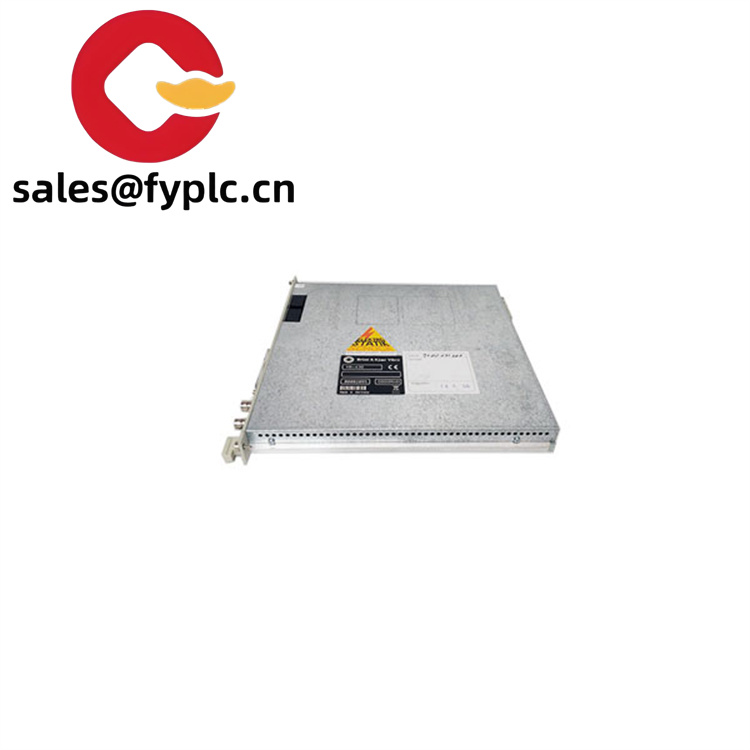

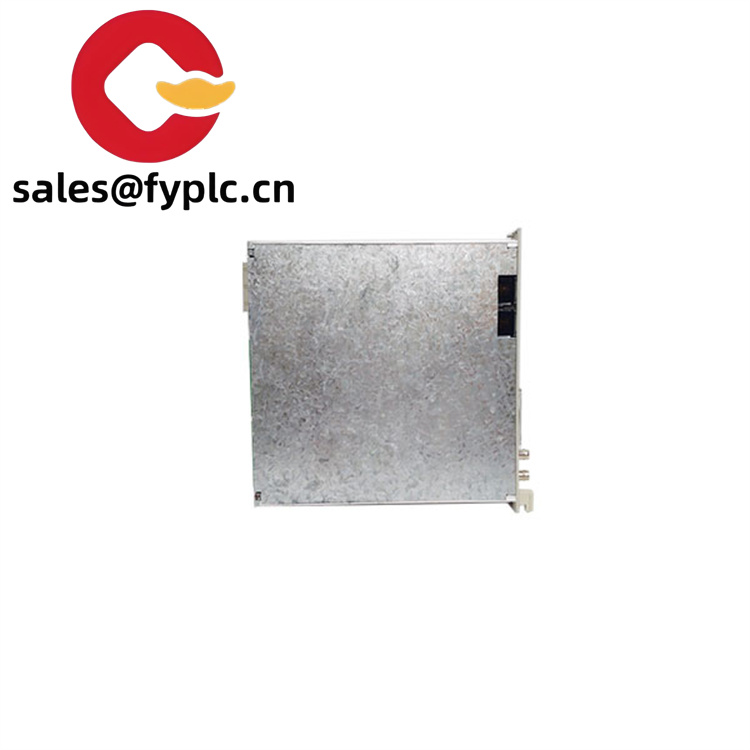

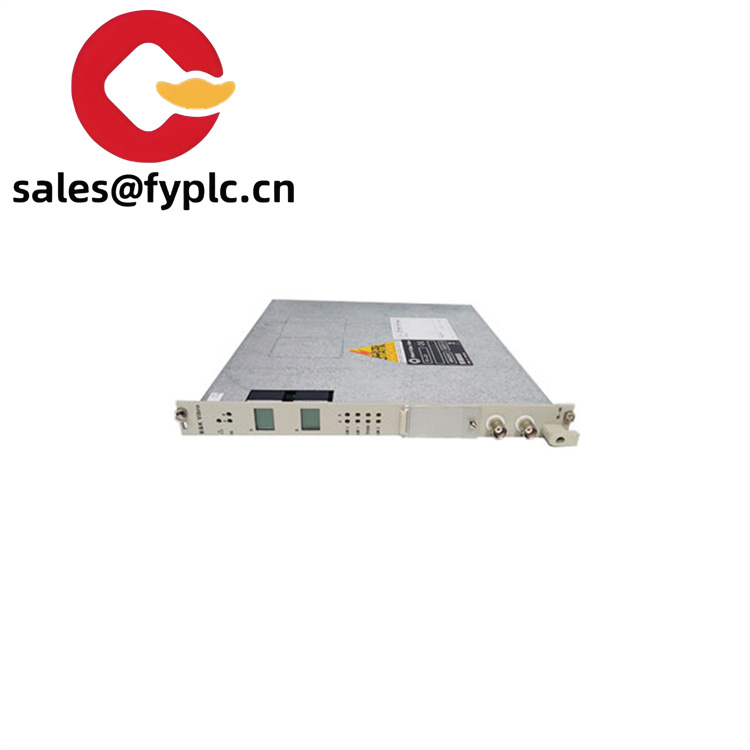

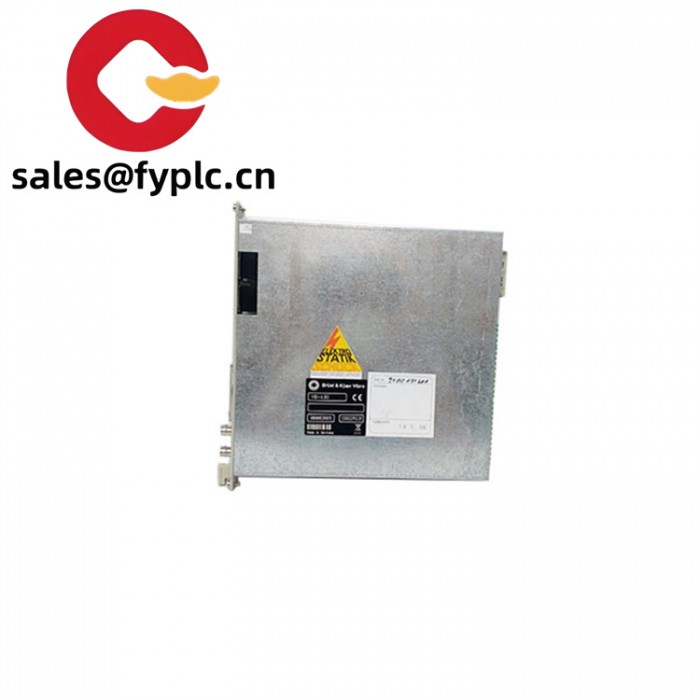

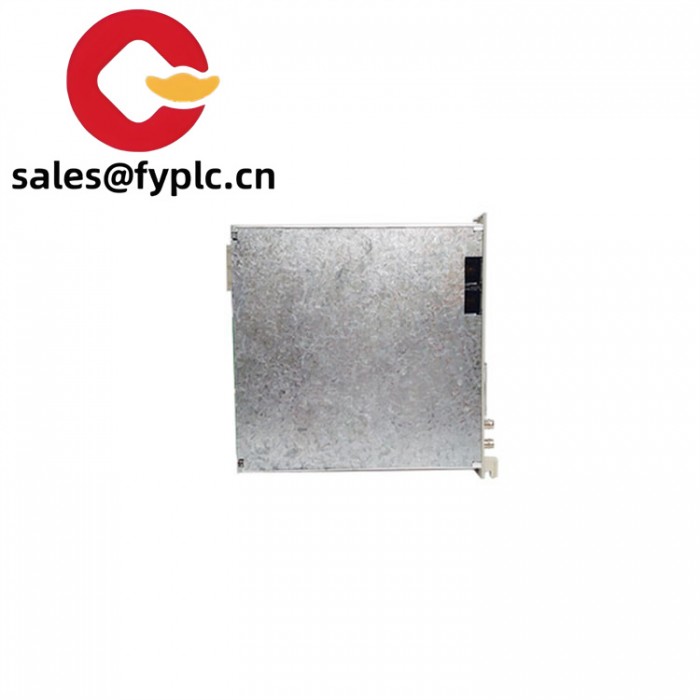

SCHENCK VB-430 Vibration Bridge Acquisition Module Weighing Module
VB-430
At its core, the SCHENCK VB-430 combines advanced sensor technology with intuitive data processing to measure vibration amplitudes, frequencies, and waveforms with exceptional accuracy. Unlike basic monitoring tools, it doesn’t just alert operators to problems—it contextualizes data, distinguishing between normal operational vibrations and patterns that signal potential mechanical issues. This capability makes the VB-430 a cornerstone of modern reliability-centered maintenance (RCM) programs, integrating seamlessly with SCADA systems and enterprise asset management software to create a holistic view of machinery health.
|
Label
|
Specification
|
|
Model Number
|
SCHENCK VB-430
|
|
Brand
|
Schenck
|
|
Type
|
Online Vibration Monitoring System
|
|
Measurement Range
|
0.1–100 mm/s (velocity), 0.01–100 g (acceleration)
|
|
Frequency Range
|
0.5 Hz–10 kHz (covers low-speed to high-frequency machinery)
|
|
Output Signals
|
4–20 mA analog, Ethernet/IP, Modbus TCP/IP
|
|
Operating Temperature
|
-20°C to +70°C (sensor), 0°C to +50°C (controller)
|
|
Mounting
|
Threaded sensor probes (M10 x 1), DIN rail-mounted controller
|
|
Weight
|
0.3 kg (sensor), 1.2 kg (controller unit)
|
|
Certifications
|
ATEX Zone 2, IECEx, CE, ISO 10816-3 compliant
|
|
Dimensions
|
Sensor: 85 mm x 28 mm; Controller: 145 mm x 90 mm x 60 mm
|
|
Power Supply
|
24 V DC ±10%
|
The SCHENCK VB-430 stands out for its ability to adapt to diverse machinery types without sacrificing precision. Its dual-channel design allows simultaneous monitoring of two measurement points—ideal for large equipment like motors or pumps where vibration patterns can vary across components. The system’s adaptive filtering technology minimizes interference from ambient noise, ensuring reliable readings even in harsh industrial environments with high electromagnetic interference or temperature fluctuations.
Compatible and Related Models
- SCHENCK VB-220 – A compact, single-channel variant ideal for smaller machinery like pumps or fans.
- SCHENCK VIBROCONTROL 600 – A portable vibration analyzer that pairs with the VB-430 for on-demand diagnostics.
- SCHENCK VS-060 – A high-temperature sensor probe (up to 180°C) for monitoring furnace fans and heat-treated equipment.
- SCHENCK DMS-1000 – A data management software platform that centralizes readings from multiple VB-430 systems.
- SCHENCK BALANCEBOX – A dynamic balancing tool that works with the VB-430 to correct rotor imbalance issues.
- SCHENCK VB-850 – A multi-channel system for complex machinery with dozens of monitoring points, compatible with VB-430 sensor networks.
