Description

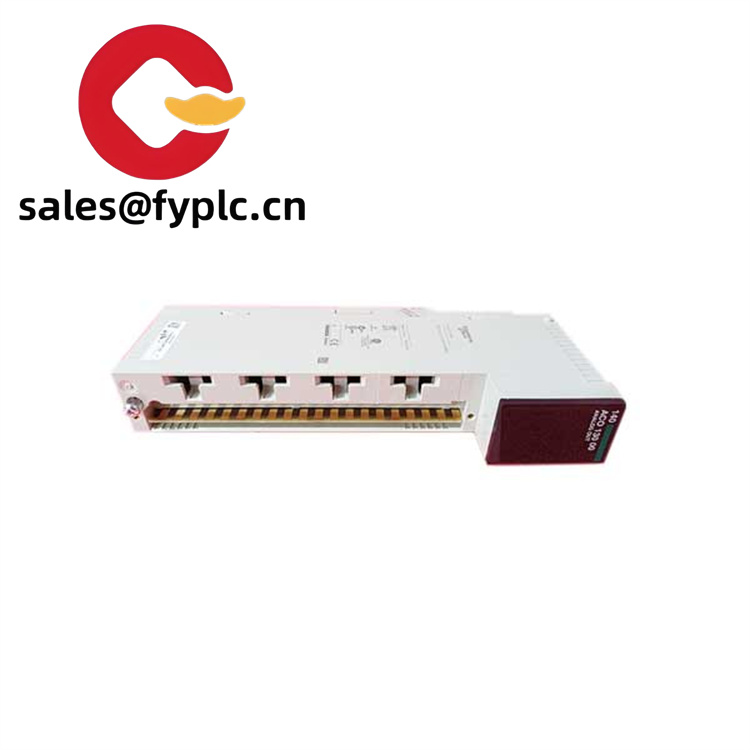

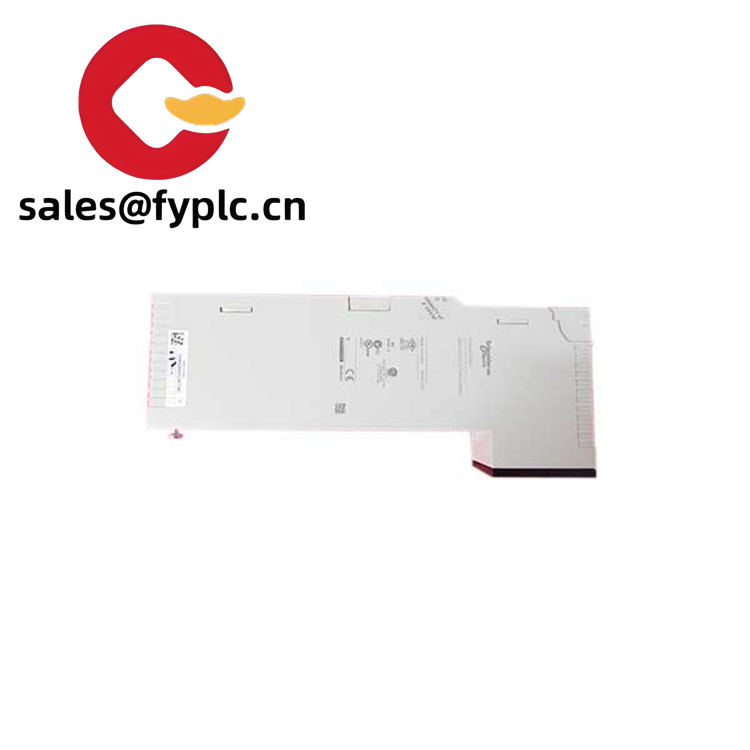

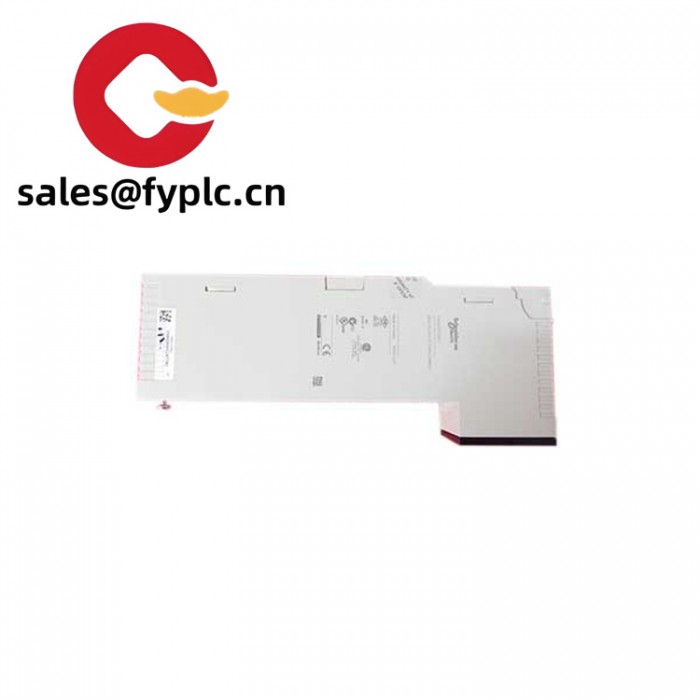

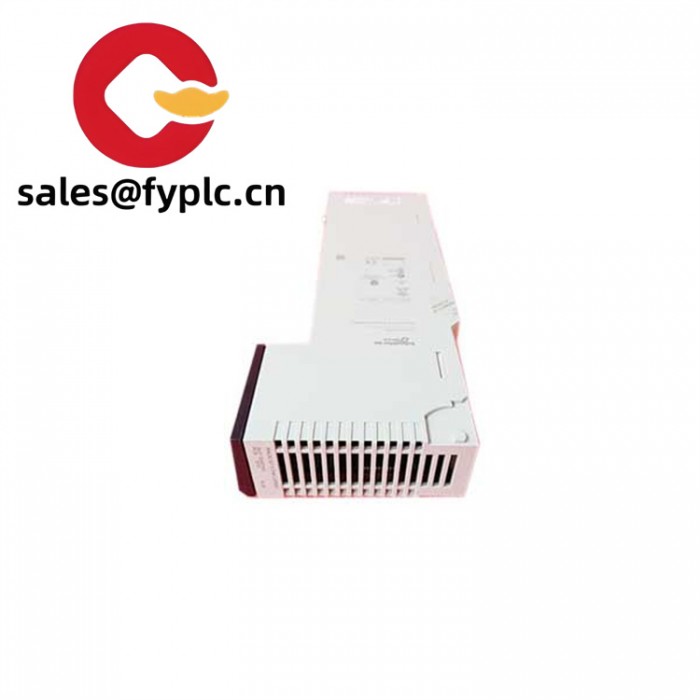

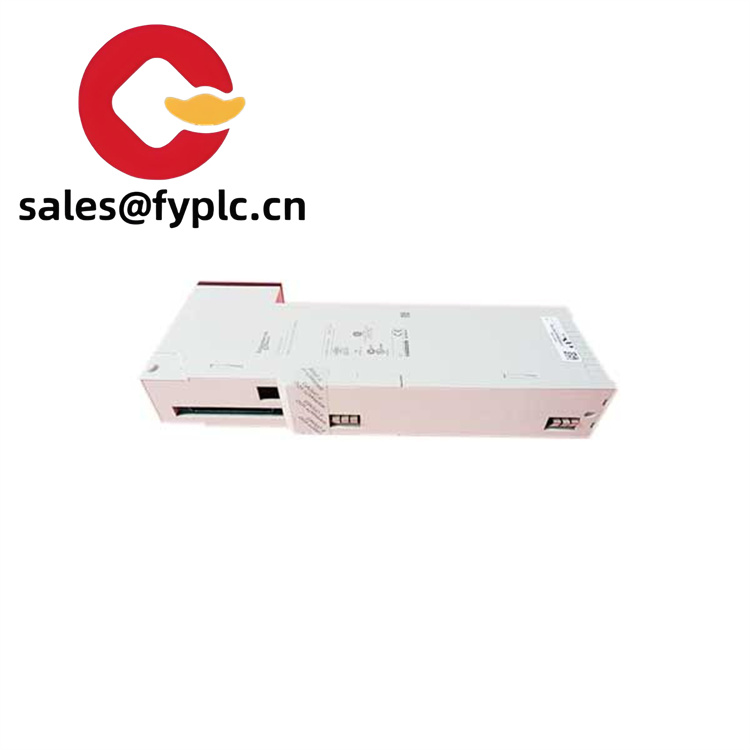

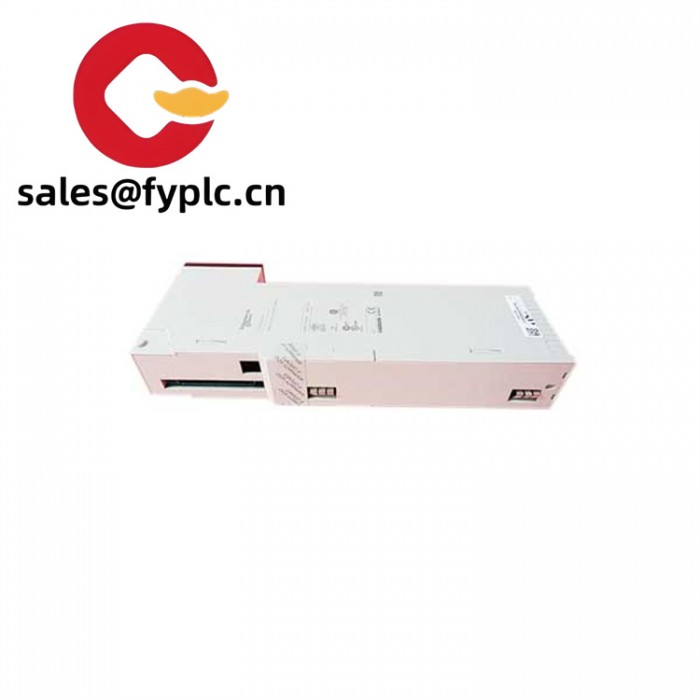

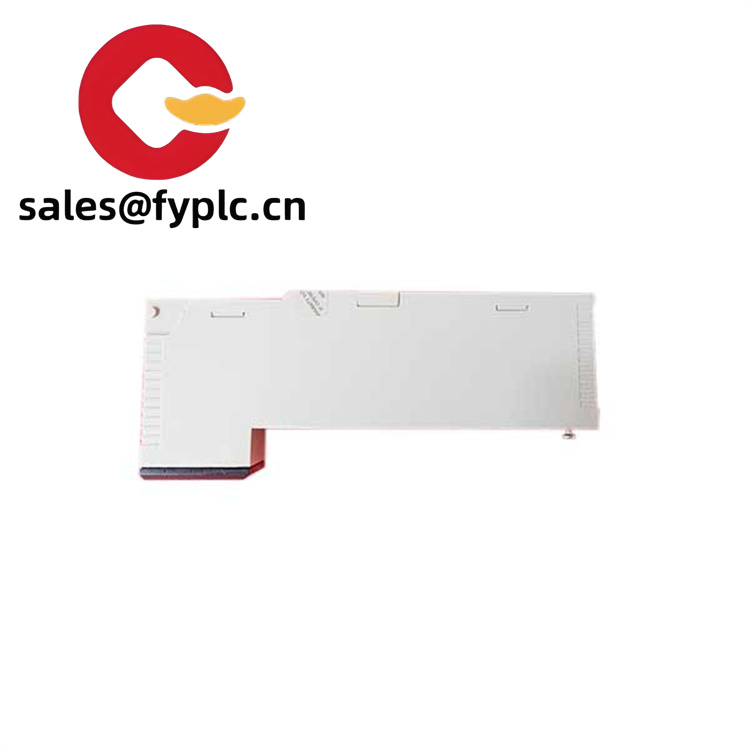

SCHNEIDER 140ACO13000 Analog Input/Output I/O Module

The 140ACO13000 is a high-performance analog output module designed for Schneider Electric’s Modicon Quantum automation platform. Optimized for industrial control systems, this module delivers precise analog signals to actuators, valves, and other process equipment, ensuring seamless integration in manufacturing, energy, and process automation environments.

Label	Specification
Model Number	140ACO13000
Brand	Schneider Electric
Type	Quantum Analog Output Module
Channels	8 isolated analog outputs
Output Signal	– Current: 0–20mA, 4–20mA, 0–25mA – Voltage: 0–10V DC
Resolution	12-bit (1 part in 4096)
Accuracy	±0.2% of full scale (25°C)
Loop Voltage	6–30V DC
Response Time	5ms (update rate)
Isolation	1,780V AC between channels and backplane for 1 minute
Bus Current	550mA
Power Dissipation	5W
Dimensions	128mm (W) x 104mm (H) x 30mm (D)
Weight	0.3 kg (0.66 lbs)
Certifications	CE, UL 508, CSA, cUL, FM Class 1 Div 2, ATEX Zone 2/22
Operating Temp	0°C to 60°C (32°F to 140°F)
LED Indicators	– Green: Channel active – Red: Fault detection for each channel

Functional Strengths & Design Advantages

Multi-Range Signal Flexibility:
Supports both current (0–20mA, 4–20mA, 0–25mA) and voltage (0–10V) outputs, configurable via software without hardware changes. This adaptability makes it suitable for diverse industrial actuators, including proportional valves and variable-frequency drives (VFDs) 18.

High-Density Architecture:
Eight isolated channels in a compact form factor reduce rack space requirements, ideal for applications needing multiple analog outputs (e.g., chemical mixing systems with distributed control loops) 16.

Industrial-Grade Reliability:
Built with IP20-rated construction and EMI/RFI suppression, the module withstands harsh factory conditions. Its hot-swappable design enables maintenance without system downtime, minimizing operational disruptions 89.

Precision Control:
12-bit resolution ensures smooth, granular adjustments for critical processes like temperature regulation in pharmaceutical reactors or flow control in oil refineries. The module’s ±0.2% accuracy guarantees stable performance across varying loads 68.

Diagnostic Visibility:
Channel-specific LEDs indicate output status (green) and faults (red), while an internal relay contact signals power loss to external systems. This simplifies troubleshooting in complex setups
