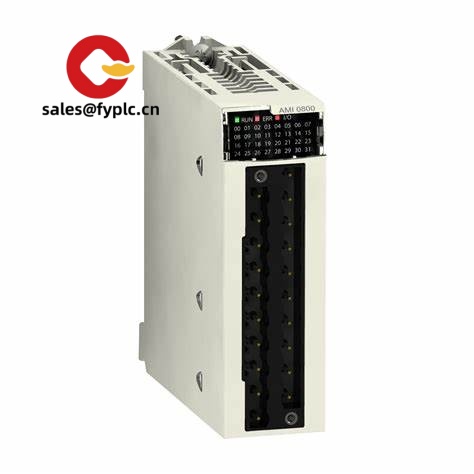

Schneider Electric BMXAMI0800 – 8‑channel analog input module for Modicon X80 (clean current/voltage acquisition)

The Schneider Electric BMXAMI0800 is an X80 series analog input module designed for Modicon M340 and M580 platforms. If you need stable, multi‑channel analog acquisition without fuss, this one typically hits the sweet spot: 8 configurable channels for standard industrial signals (0–10 V, ±10 V, 0/4–20 mA), with straightforward integration on the X80 backplane. From my experience, you get repeatable measurement quality, sensible diagnostics, and an easy terminal block interface that keeps cabinet work predictable.

Our Order Placement Process and Guarantees

• Warranty: 365 days
• Lead time: 1 week when in stock; no more than one month at the latest
• Payment: 50% advance; full payment prior to delivery
• Express options: FedEx, UPS, DHL

Key Features

• 8 analog inputs – Ideal when you need multiple loops on one module without overpopulating the rack.
• Current and voltage ranges – Supports 0–10 V, ±10 V, 0–20 mA, and 4–20 mA; fits most transmitters out of the box.
• X80 ecosystem compatible – Works in Modicon M340 and M580 racks, local or remote I/O, so your architecture stays flexible.
• Front removable terminal block – You might notice that wiring changes are simpler, especially during commissioning and swap‑outs.
• Integrated channel diagnostics – Helps identify open loop or out‑of‑range conditions, which typically reduces troubleshooting time.
• No external power needed – The module is powered from the X80 backplane, fewer supplies to plan for.

Technical Specifications

Application Fields

This module fits well in process and machine‑building projects where clean acquisition of transmitter signals is needed:

• Water & wastewater – multi‑loop 4–20 mA sensors (pressure, flow, level) in compact local racks.
• Food & beverage – temperature and analog valve feedback in hygienic lines where downtime hurts.
• Oil & gas (utility areas) – skid instrumentation where mixed current/voltage channels are typical.
• HVAC & utilities – energy monitoring, chilled water loops, and plant auxiliaries.
• General machinery – analog motion feedback, force/torque, or tension control inputs.

Advantages & Value

• Reliability – Stable readings and sensible diagnostics; fewer nuisance trips in most cases.
• Compatibility – Native fit for Modicon M340/M580 architectures, local or remote I/O, so expansion stays simple.
• Wiring efficiency – Removable terminal block and consistent channel layout save commissioning hours.
• Lifecycle support – X80 family continuity helps with spares strategy and long‑term maintenance planning.
• Total cost of ownership – Eight channels per module is a good density; you typically need fewer modules and less rack space.

A maintenance lead recently mentioned to us that swapping a BMXAMI0800 during a planned stop took “minutes instead of an afternoon” because the terminal block and addressing were already set. That seems to be a common pattern with X80.

Installation & Maintenance

• Panel/Cabinet – Mount in a clean, ventilated enclosure; keep within the specified temperature range and avoid vibration hot spots.
• Grounding & wiring – Use shielded twisted pairs for low‑level signals; ground shields at one end to minimize loops. Keep analog away from noisy motor cables.
• Channel configuration – Set each channel for current or voltage in the PLC configuration. Mixing ranges on the same module is supported.
• Isolation notes – Channel‑to‑channel isolation is typically not provided; plan your grounding to avoid cross‑talk or ground shifts.
• Routine maintenance – Periodically check terminal tightness, clean dust from the front area, and review diagnostics. Firmware updates (if applicable in your system) should follow your M340/M580 change control procedure.

Common Accessories & Compatible Parts

• BMXFTB2010 (screw) or BMXFTB2011 (spring) – front removable terminal blocks for X80 I/O modules.
• BMXXBP series backplanes (M340) or BMEXBP series (M580) – select slot count per your architecture.
• Pre‑wired harnesses (BMXXCA series) – for faster field wiring on repeat builds.

Quality & Certifications

• CE compliant
• cULus listed (industrial control equipment)
• RoHS and REACH compliant
• Manufacturer’s warranty: Schneider Electric typically offers 18 months from shipment; our supply warranty is 365 days as stated above.
