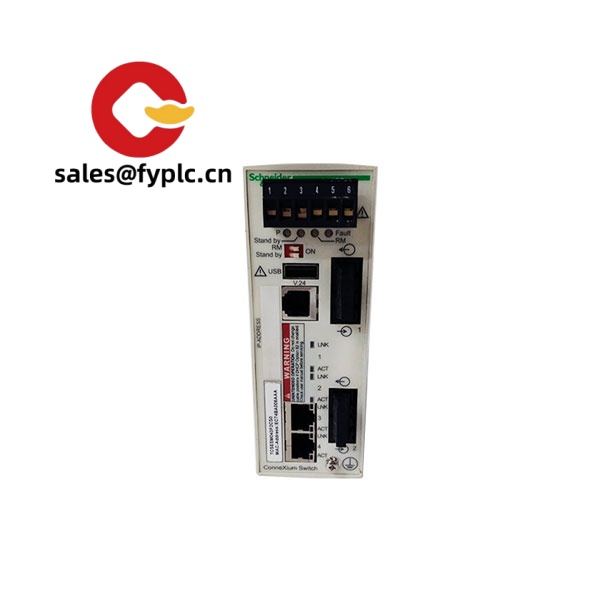

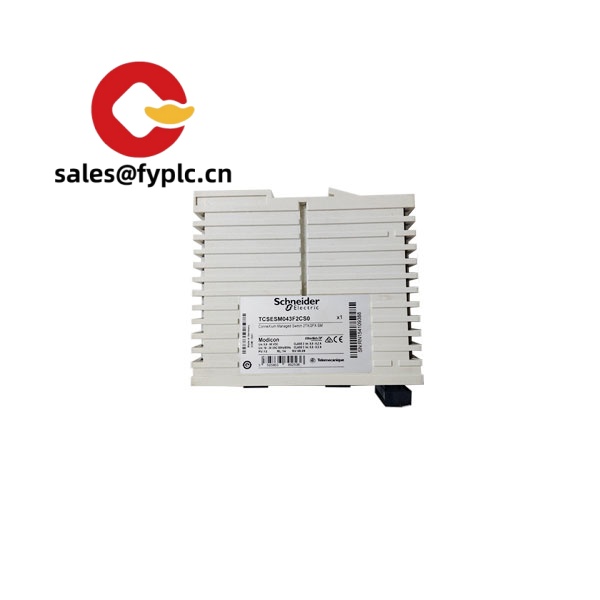

Schneider Electric TCSESM043F2CS0 – ConneXium managed industrial Ethernet switch for reliable plant networks

The TCSESM043F2CS0 sits in Schneider Electric’s ConneXium managed switch family, designed for control cabinets and harsh environments where uptime really matters. From my experience, this model is a compact, DIN‑rail switch with mixed copper and fiber uplinks, conformal coating for added protection, and the standard set of features you’d expect for industrial Ethernet segmentation—VLANs, RSTP/MSTP, IGMP, and redundant 24 VDC power. It typically drops straight into machine cells, water/wastewater skids, or utility substations where you need deterministic traffic and fast recovery after a link failure.

Order placement process and guarantees

• Warranty: 365 days
• Lead time: 1 week if in stock; no more than 1 month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key features

• Industrial managed switching – VLAN, QoS, IGMP Snooping/Query for clean multicast, and ring redundancy via RSTP/MSTP for quick recovery.
• Mixed copper and fiber – You get 10/100Base‑TX RJ45 user ports plus fiber uplink capability (SFP/100Base‑FX, model‑specific) for longer runs and electrical isolation.
• Redundant 24 VDC power – Dual inputs help keep the switch alive during maintenance or supply changeover.
• Conformal coating (“C” variant) – Added resistance to humidity, dust, and corrosive atmospheres; handy in chemical plants and coastal sites.
• Easy management – Web GUI (HTTP/HTTPS), SNMP, and CLI access make configuration and diagnostics straightforward.
• EMC‑hardened for control cabinets – Designed to coexist with drives, contactors, and PLC I/O without dropping packets.
• DIN‑rail installation – Compact layout that fits neatly beside PLCs and power supplies.

Technical specifications

Note: Port mix and exact fiber type depend on the TCSESM043F2CS0 sub‑variant. If you share your port count and fiber preference (MM/SM, FX or SFP), we’ll validate before shipping.

Related or supporting products

• TCSESM063F2CS0 – Similar family with a higher copper port count plus fiber uplinks; good when you need a few extra device drops.
• TCSESM083F23F0 – Managed ConneXium with more mixed copper/fiber ports; typically used as a cell/area switch.
• TCSESP series (unmanaged) – If you prefer plug‑and‑play without VLANs/rings; a cost‑effective alternative for simple nodes.
• SFP transceivers (100Base‑FX / 1000Base‑SX, LX) – Schneider‑qualified SFPs for the fiber uplinks; choose MM/SM and wavelength to match your link budget.
• 24 VDC redundant power supplies – Pair the switch with dual DIN‑rail PSUs to leverage the redundant inputs.

Installation & maintenance

• Cabinet & environment – Mount on a grounded DIN rail inside a ventilated enclosure (IP54 or better in dusty/humid areas). Leave clearance for airflow and fiber bend radius.
• Power & grounding – Supply 24 VDC on both power inputs for redundancy; bond the FE/ground to the panel earth to improve EMC performance.
• Wiring – Use shielded Cat5e/6 for copper runs in VFD‑heavy panels; route away from power cables. For fiber, match SFP to cable type (MM/SM) and keep within the recommended link length.
• Network setup – Define VLANs, enable RSTP/MSTP, and configure IGMP Snooping if PLC/IO uses multicast. You might notice throughput stabilizes once QoS is set for cyclic control traffic.
• Routine care – Periodically back up config, update firmware during maintenance windows, and inspect terminal torque. A light dust clean helps in many cases, especially around vents and connectors.

One thing I appreciate is how quickly these switches recover from a single link failure in a ring—on a packaging line, a plant tech told us they swapped out an office‑grade switch and saw their HMI drops disappear after enabling RSTP and IGMP.

Quality & certifications

• Compliance – CE, RoHS, and UL/cUL for industrial control equipment (typical for ConneXium managed series).
• Industrial standards – Many ConneXium models are tested against IEC 61850‑3 / IEEE 1613 for substation use; we can verify applicability to TCSESM043F2CS0 on request.
• Manufacturer warranty – Schneider Electric’s standard product warranty applies (often around 18 months); we additionally provide a 365‑day guarantee as stated above.
