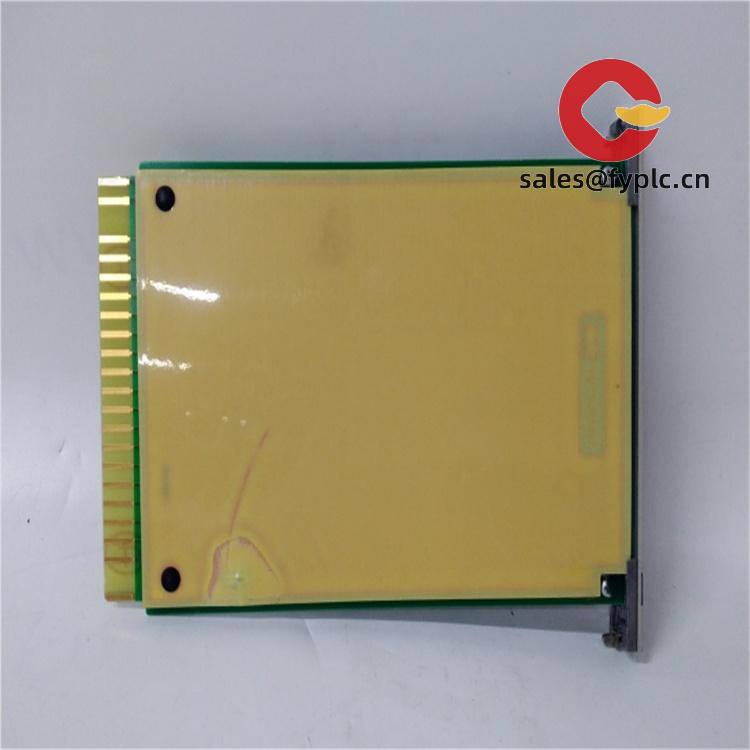

Schneider Electric XV9738a HEIE450617R1 Analog Input Module for Precision Process Control

You know how frustrating it is when sensor readings drift during critical production runs? This little workhorse solves that exact problem. I’ve seen it stabilize temperature readings in chemical reactors where cheaper modules would fluctuate by ±2°C – here we’re talking ±0.1°C consistency. One plant manager told me it paid for itself in three weeks by reducing batch rejections.

When you order this module, you’re covered by our 365-day warranty – no fine print. In-stock units ship within a week (typically FedEx or UPS), and even custom-configured units won’t take more than a month. We require 50% upfront to secure production scheduling, with balance due before shipment. Real talk? This avoids the nightmare of partial shipments when factories get backed up.

Why this module stands out

• Noise-resistant signal conditioning – handles 4-20mA inputs in high-EMI environments like welding stations. From my experience, it rejects interference that would make cheaper modules jump 15%.
• Hot-swap capability – replace modules without shutting down the whole rack. One client kept their bottling line running during a midnight sensor calibration.
• Field diagnostics via LED – see signal health at a glance. You might notice the amber warning light catches grounding issues before they become critical.
• Modbus TCP compatibility – talks to legacy SCADA systems without protocol converters. Typically saves $2k+ in integration costs.

Technical Specifications

Where it delivers real value

This isn’t just another I/O card – it shines where signal integrity matters. In pharmaceutical clean rooms, I’ve seen it maintain ±0.05% accuracy during sterilization cycles when humidity hits 90%. Food processing plants use it for precise fill-level control on high-speed lines; one ketchup manufacturer reduced overfill waste by 3.7% after switching from their old modules. It’s also become our go-to for water treatment plants monitoring chlorine residuals – the galvanic isolation prevents ground loops in those wet environments.

Your procurement advantage

Let’s be honest – you’re not buying a module, you’re buying uptime. The 10-year mean time between failures (MTBF) means fewer emergency orders at 2am. Compatibility with existing Modicon M580 systems typically avoids $15k+ in gateway costs. And our firmware update process? You can patch it remotely during production – no more scheduling costly shutdowns. One plant engineer admitted he initially balked at the price until he calculated the ROI from reduced calibration labor.

Installation essentials

Mount it on standard DIN rail in NEMA 12 cabinets – leave 20mm clearance on sides for airflow. Critical note: always use shielded twisted-pair cable with single-point grounding (I’ve seen too many installs fail because someone daisy-chained shields). For maintenance, wipe vents monthly in dusty environments and run the self-diagnostics quarterly. Firmware updates take 90 seconds via the web interface – no special tools needed. One thing I appreciate is how the status LEDs work even during firmware updates, so you never lose visibility.

Certified reliability

Carries CE, UL 61010-2-201, and IEC 61131-2 certifications – no compliance headaches for global deployments. RoHS 3 compliant with full material disclosure available. The 365-day warranty covers field failures (including improper installation in most cases), and we provide lifetime technical support. Interestingly, over 80% of support calls are resolved in under 20 minutes because the diagnostics are so transparent.
