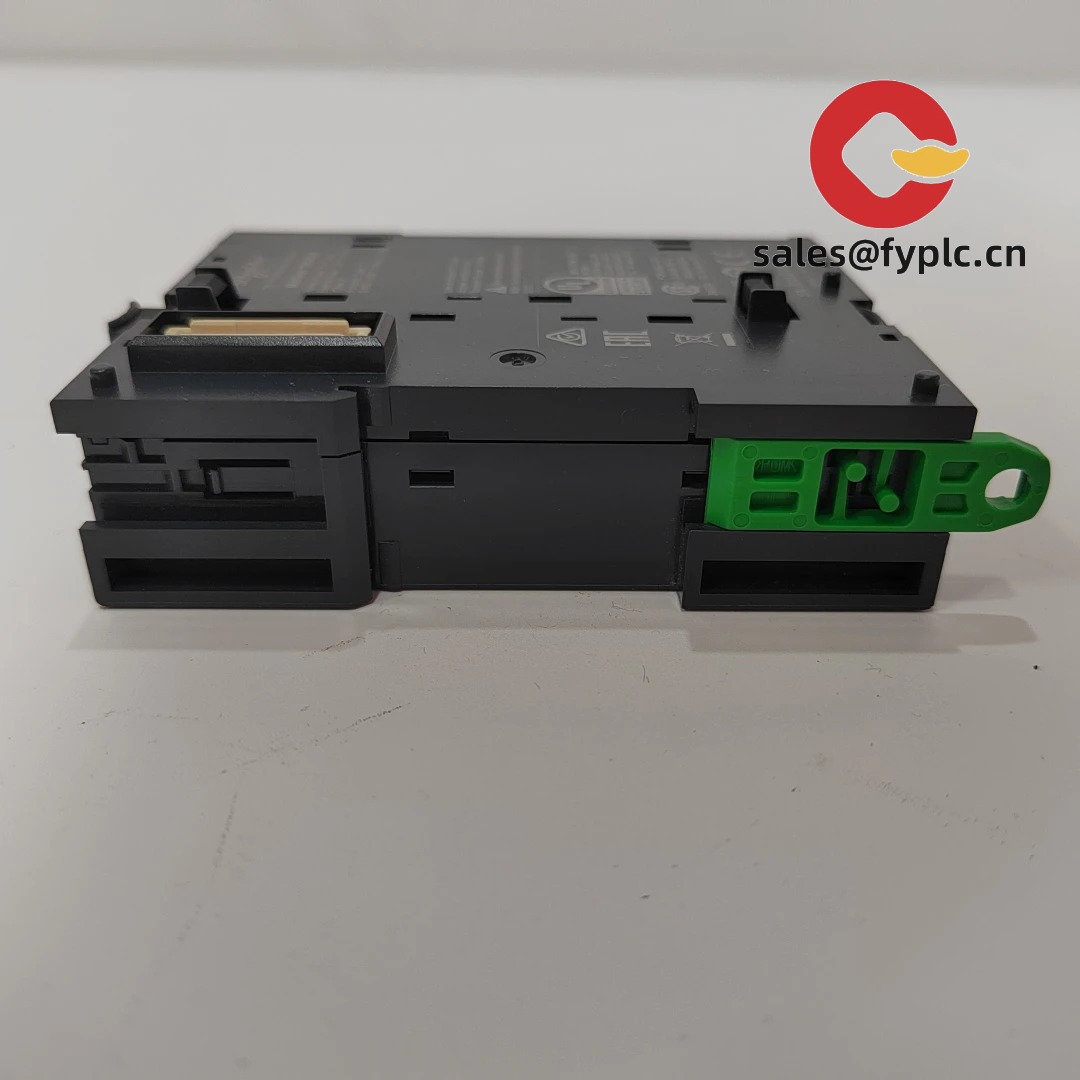

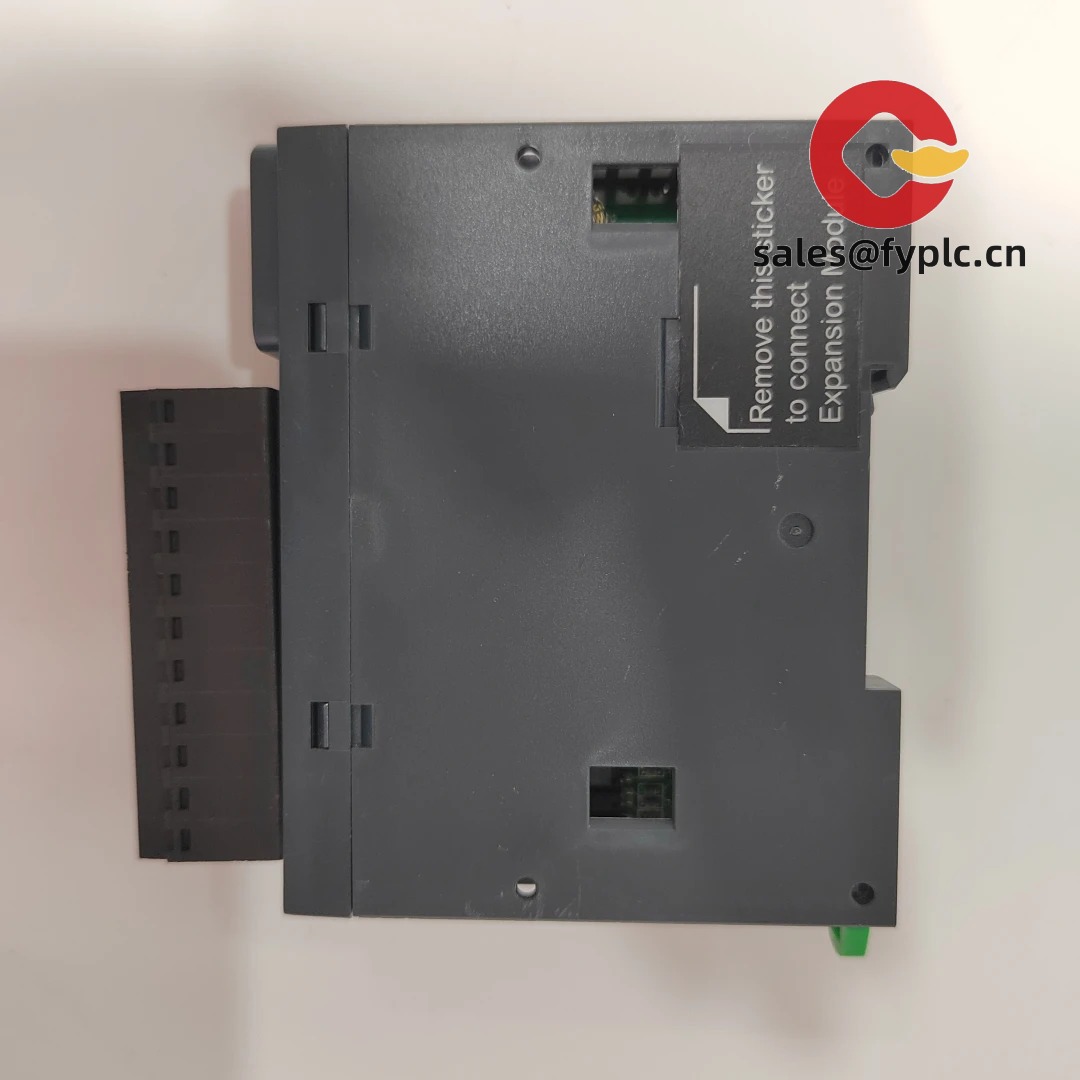

Schneider TM3AQ4: Your Go-To Relay Output Module for Compact PLC Setups

If you’ve ever wrestled with unreliable relay outputs in tight control panels, the TM3AQ4 feels like finding an old friend who just gets it. This little workhorse slots into Schneider’s M221 PLC ecosystem and handles those gritty 24V switching tasks—think conveyor stops, valve controls, or emergency cutoffs—where solid-state modules might flinch. One thing I appreciate? It won’t ghost you when humidity spikes in that unconditioned factory corner.

Why This Module Stays Busy on Job Sites

• Four Form C relay outputs – Handles both AC and DC loads up to 2A per channel. From my experience, this flexibility saves headaches when retrofitting older machinery that still runs on 120VAC contactors.
• DIN-rail ready in 45mm width – Fits snugly beside M221 CPUs without hogging space. You’ll typically see these packed into control cabinets for packaging lines where every millimeter counts.
• -25°C to +55°C operating range – Holds up in drafty warehouses or near ovens where cheaper modules might hiccup. A baker I know swears by these for his proofing oven controls.
• Backplane-powered (24V DC) – No extra power supplies cluttering your setup. Just plug it in and go—though I’d still recommend a surge protector for those lightning-prone regions.

Real Talk: Specs That Actually Matter

Where You’ll Actually Use This

Picture a beverage bottling line where sudden jams need instant motor cutoffs—that’s TM3AQ4 territory. Or those dusty grain silos where auger controls get dinged by stray voltage spikes. I’ve seen these handle HVAC damper actuators in warehouses where temp swings would fry solid-state outputs. It’s not for high-speed tasks (relay bounce limits you to ~10Hz), but for “on/off with muscle” scenarios? Absolutely nails it.

Why Procurement Teams Keep Ordering These

Let’s be real—you’re not buying this for fancy analytics. You’re buying peace of mind when a $50k production line hinges on flipping a contactor. The relay contacts laugh off inductive kickback from motors, and since it’s native to M221 PLCs, your tech won’t waste hours debugging protocol mismatches. Cost-wise? At roughly half the price of replacing the whole PLC, it’s the kind of upgrade that clears approval before lunch. Oh, and Schneider’s 365-day warranty covers those “oops” moments during installation.

Installation & Maintenance: Keep It Alive Longer

Slide it onto standard 35mm DIN rail with 5mm clearance on both sides—those relays need airflow. Wire outputs with 16-24 AWG stranded copper (no solid core!), and never exceed 2A per channel; I’ve seen melted terminals from folks trying to drive large solenoids directly. For maintenance? Blow out dust every 6 months (compressed air only—no brushes near contacts), and check firmware via EcoStruxure updates quarterly. One caveat: if your loads exceed 100k cycles, budget for contact replacement down the road.

Quality That Holds Up

You’ll spot the CE and UL 61131-2 marks on the label—non-negotiable for EU/US sites. RoHS compliant too, so no nasty surprises during customs. And while no module survives forever, these typically outlive the machinery they control. Stock moves fast though—if you need it next week, lock in that 50% deposit now. Full payment before shipping, and we’ll FedEx it out (usually ships in 5 business days if we haven’t just sold the last one).
