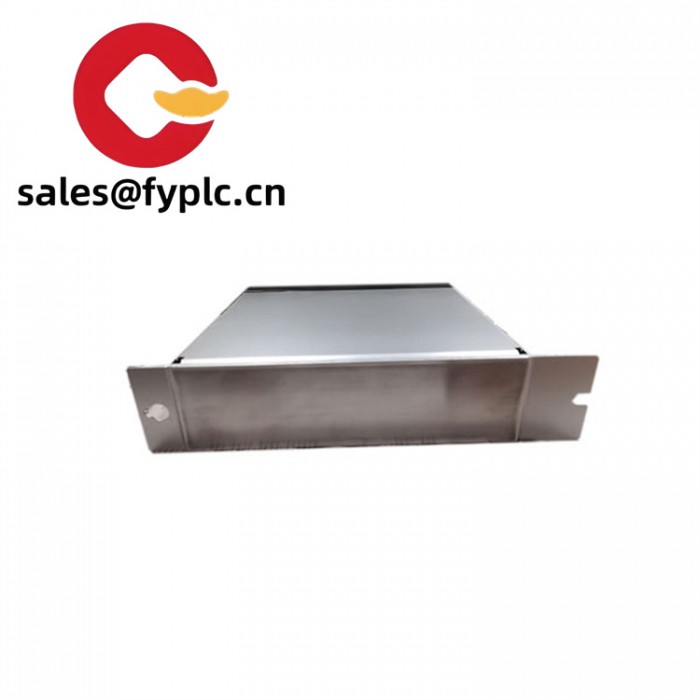

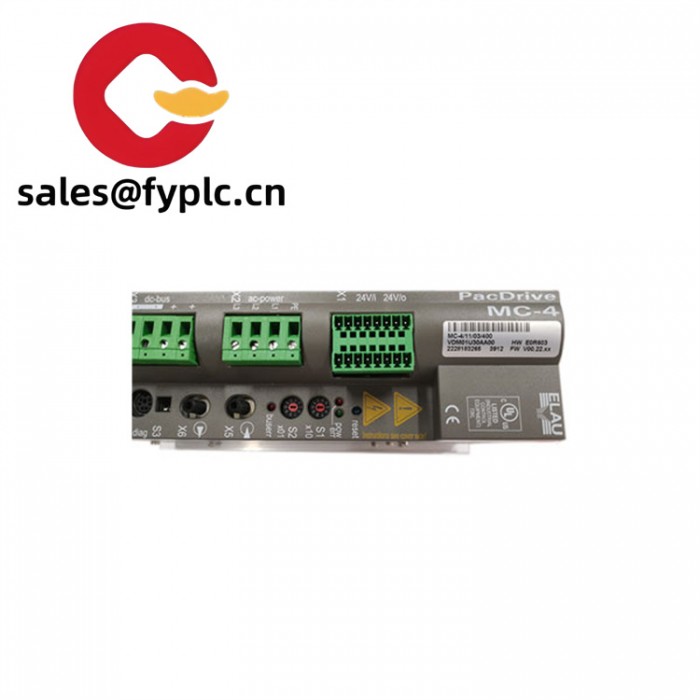

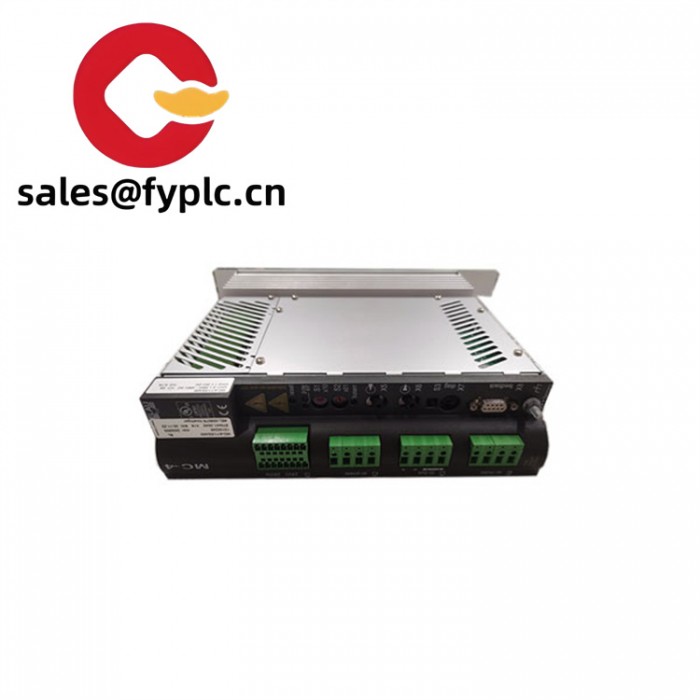

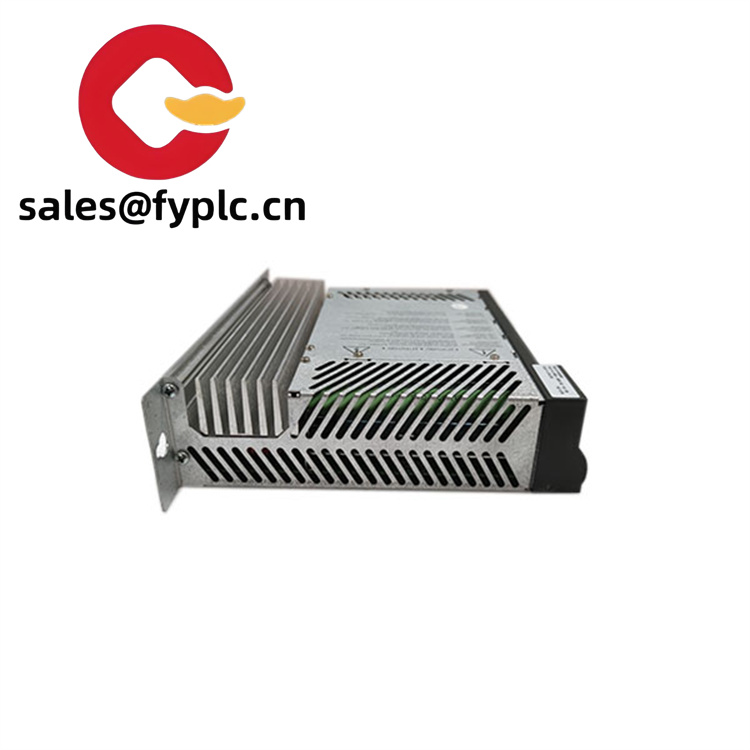

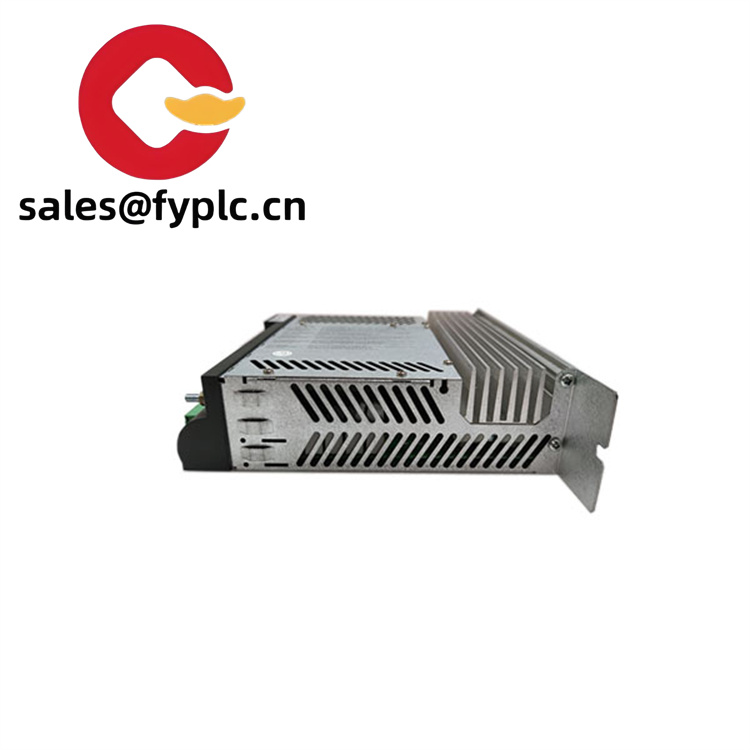

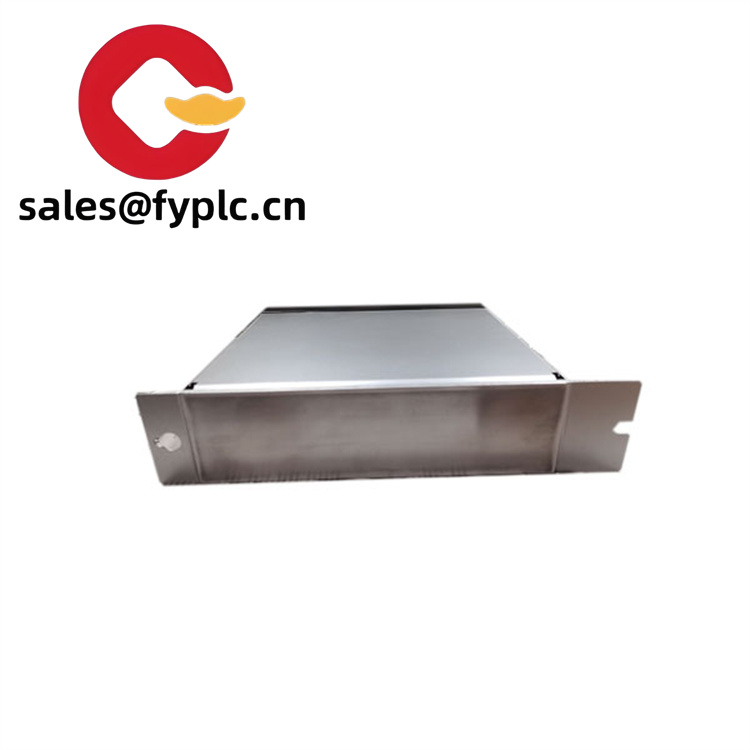

The MC-41103400 (officially labeled MC-4/11/03/400) is a high-performance servo drive from Schneider Electric’s ELAU PacDrive series, designed for advanced motion control in industrial applications. Below is a detailed analysis of its technical specifications, functional advantages, and practical applications, addressing key considerations for system integration and maintenance.

Label	Specification
Model Number	MC-4/11/03/400 (MC-41103400)
Brand	Schneider Electric (ELAU PacDrive series)
Type	Three-phase servo drive with integrated power supply
Input Voltage	3×380–480V AC, 48–62 Hz
Output Power	1.4 kVA (continuous), 3.5 kVA (peak)
Output Current	3 A (continuous), 7.4 A (peak)
Encoder Interface	SERCOS III (supports single/multi-turn absolute feedback)
Communication	PROFINET, EtherCAT, CANopen, Modbus RTU
Safety Features	Safe Torque Off (STO) per EN 61800-5-2 (PL d/SIL 2)
Cooling	Forced-air cooling (internal fan)
Mounting	Din rail or panel-mountable
Weight	3.1 kg
Certifications	CE, UL, cUL

The MC-41103400 supports both synchronous and asynchronous motors, delivering vector control with ±0.1% speed accuracy 3. Its SERCOS III interface enables real-time communication with high-resolution encoders (e.g., HEIDENHAIN Endat 2.2), achieving sub-micron positioning in applications like semiconductor wafer handling. For example, in a solar panel manufacturing line, this drive ensures precise alignment of robotic arms with ±0.02 mm repeatability

CNC Machining & Robotics
