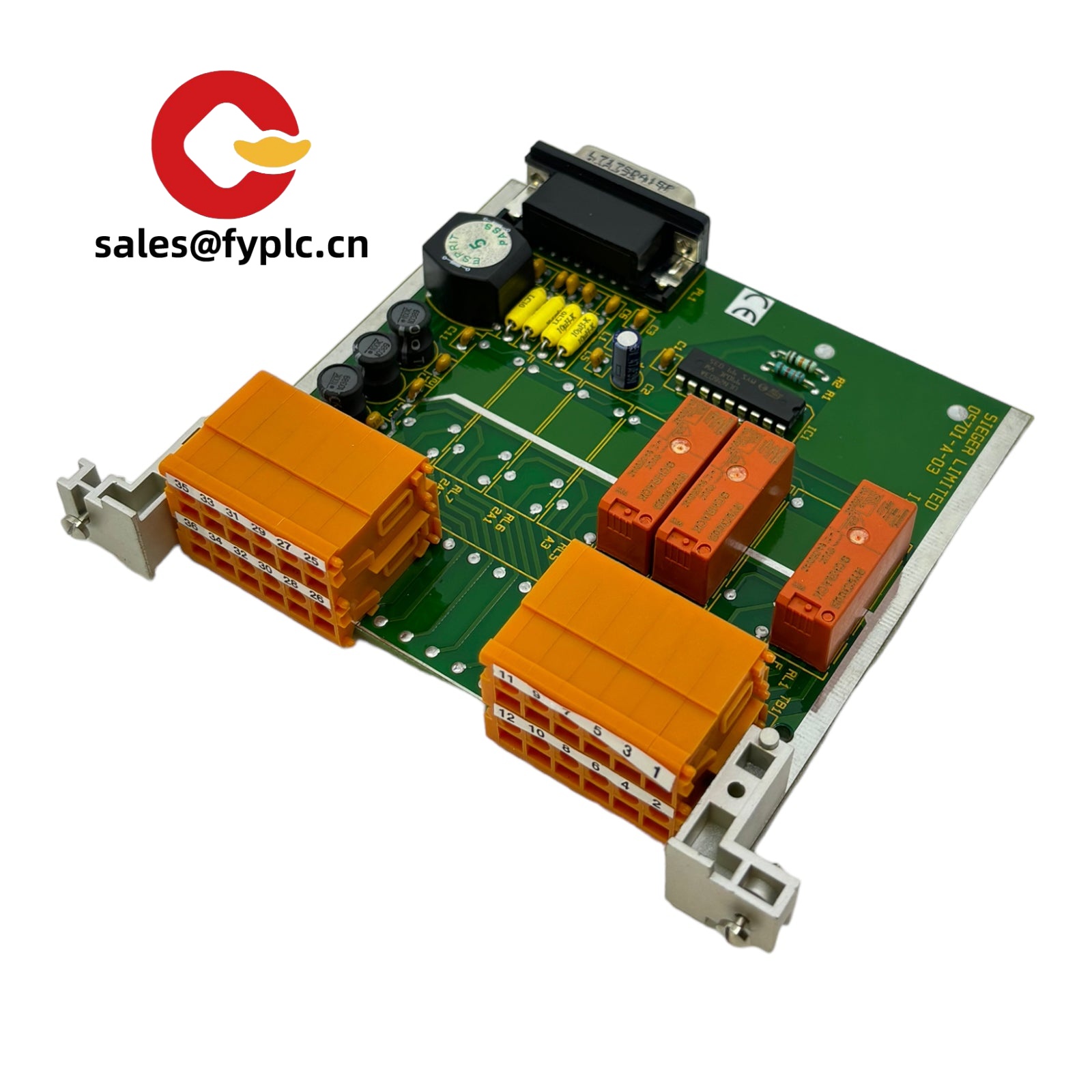

SIEGER 05701-A-0405 – Replacement Gas Detection Module for Industrial Safety Systems

The SIEGER 05701-A-0405 appears to be a board-level spare designed for legacy and current SIEGER fixed gas detection systems. From my experience with SIEGER installations in refineries and process plants, this kind of module is typically used to restore channel functionality, stabilize 4–20 mA signaling, or refresh a controller slot that’s become unreliable. If you’re maintaining a critical alarm loop, a like-for-like module such as 05701-A-0405 can drop downtime dramatically—often turning a multi-hour diagnostic into a straightforward swap and test.

You might notice that SIEGER spare modules keep to a consistent form–fit–function approach. That usually means minimal re-termination, predictable screw hole patterns, and no surprise firmware steps. Field teams appreciate this because it keeps commissioning tight and prevents creeping changes to alarm thresholds across units.

Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week for in‑stock; no more than one month at the latest
• Payment: 50% advance payment, full payment before delivery
• Express options: FedEx, UPS, DHL
• Quality check: Each unit is inspected and function-tested before dispatch

Key Features

• Form–fit–function replacement – Typically designed to slot into compatible SIEGER controllers with no mechanical changes.
• Stable analog signaling – Supports standard 4–20 mA channels used across fixed gas detection, helping maintain linearity and alarm accuracy.
• Rugged industrial build – Conformal-coated PCB and industrial-grade components are commonly used to handle plant environments.
• Service-friendly – Clear terminal labeling and predictable pinout reduce swap time during shutdowns or ad-hoc maintenance.
• System compatibility – Works with corresponding SIEGER panels and field transmitters; ideal for lifecycle extensions of installed bases.
• Traceability – Serial/lot tracking typically available to align with site MRO and compliance procedures.

Technical Specifications

Application Fields

In many cases, the 05701-A-0405 serves as a field-replaceable board inside fixed gas detection systems across:

• Oil & Gas (onshore plants, tank farms, compressor stations)
• Petrochemical and Chemical Processing
• Power Generation and Boiler Rooms
• Marine and Offshore Platforms
• Wastewater Treatment and Biogas Facilities
• Mining and Tunnels with fixed gas monitoring

Feedback from a maintenance lead at a fertilizers plant: “Replacing the board restored a drifting channel to a clean 4–20 mA in under 30 minutes. No rewiring—just reseat, loop check, done.”

Advantages & Value

• Reliability: Known-good spare reduces nuisance alarms and intermittent channel faults.
• Compatibility: Built for SIEGER panels—no retraining or redesign of the loop.
• Cost Control: Extends installed base life; avoids full panel replacement during staged upgrades.
• Support: We can help identify the correct board variant from panel photos or existing BOMs.

Installation & Maintenance

• Environment: Install within a suitable control cabinet (IP-rated, dry, ventilated). Maintain ambient within the controller’s specified range.
• Power isolation: De-energize 24 VDC and lock out before handling; observe ESD precautions.
• Wiring: Match terminal mapping one-to-one; document jumpers and DIP settings (if present) before removal.
• Commissioning: Perform a loop check, verify 4–20 mA span, and confirm alarm relays/outputs on the host panel.
• Routine care: Quarterly inspection for connector oxidation or loose screws; dust removal with dry air; firmware updates only if specified for the host panel.
• Calibration note: Field calibration of gas transmitters remains unchanged; this module does not replace sensor calibration procedures.

Quality & Certifications

• CE conformity for the complete system is typically maintained when using approved SIEGER spares
• RoHS compliance for electronic assemblies (where applicable)
• Hazardous area approvals (e.g., ATEX/IECEx) apply to the assembled detector/panel; using the correct spare preserves the certified configuration
• Manufacturer’s warranty: 12 months

Related/Supporting Components

• SIEGER fixed gas transmitters (4–20 mA), compatible with the host panel using this module
• SIEGER control panel spare kits (alarm relay boards, PSU modules, terminal boards)
• Approved 24 VDC power supplies and surge protection devices for stable operation

If you’d like us to double-check compatibility, share a photo of your panel interior and the existing board label. We typically confirm part matching within a few hours and can reserve stock for urgent maintenance windows.
