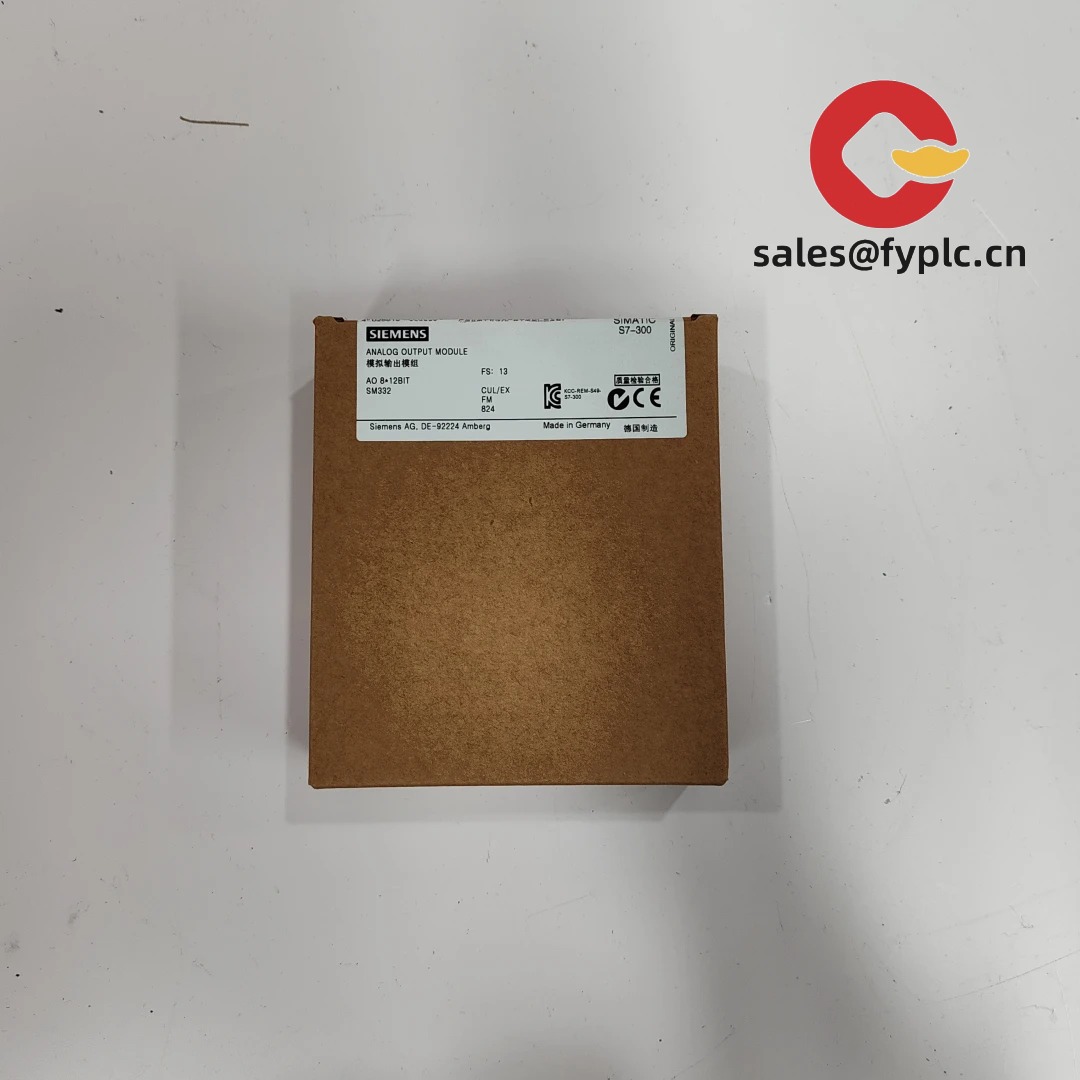

Siemens SIMATIC S7‑300 6ES7332-5HF00-0AB0 – SM 332 Analog Output Module for Precise Setpoint Control
The 6ES7332-5HF00-0AB0 is a SIMATIC S7‑300 SM 332 analog output module, typically used for clean, stable setpoint generation to drives, control valves, and I/P positioners. From my experience, it’s a dependable choice when you need multi‑channel analog outputs with straightforward diagnostics and seamless integration in an S7‑300 rack. One thing I appreciate is how it keeps field terminations on the front connector, so swap‑outs during tight shutdown windows are fast and predictable.
Company’s Order Placement Process and Guarantees
- Warranty period: 365 days
- Delivery time: 1 week for in-stock; no more than one month at the latest
- Payment method: 50% advance payment, full payment for delivery
- Express delivery methods: FedEx, UPS, DHL
- Process: Confirm model and quantity → Proforma Invoice → Advance payment → Functional testing and packing → Final payment → Express shipment with tracking
Key Features
- Reliable S7‑300 analog outputs – Purpose‑built for accurate setpoint control to VFDs, positioners, and analog actuators.
- Common industrial ranges – Supports standard voltage and current ranges (0–10 V, 0/4–20 mA) via channel parameterization in most cases.
- Seamless rack integration – Addressed through the S7‑300 backplane; no separate comms setup.
- Front diagnostics – You might notice clear status indication that speeds up loop checks and commissioning.
- Noise‑resilient design – Stable outputs in panels with drives when grounding and shielding are done properly.
Technical Specifications
| Brand / Model | Siemens SIMATIC S7‑300 – 6ES7332-5HF00-0AB0 (SM 332 AO) |
| HS Code | 853710 (Programmable controller modules) |
| Power Requirements | Supplied via S7‑300 backplane; external 24 VDC may be used for loop power depending on output mode |
| Dimensions & Weight | Approx. 125 × 40 × 120 mm; ~0.25 kg class (standard S7‑300 module size) |
| Operating Temperature | Typically 0…60 °C cabinet ambient for S7‑300 modules |
| Signal Output Types | Analog outputs (voltage/current); common ranges include 0–10 V and 0/4–20 mA |
| Communication Interfaces | SIMATIC S7‑300 backplane bus; no user Ethernet/serial on module |
| Installation Method | DIN‑rail mounting in S7‑300 rack; front connector to field wiring (screw or spring variant) |
Application Fields
Deployed wherever precise analog setpoints are required from an S7‑300:
- VFD and soft‑starter speed references (0–10 V)
- Control valves and I/P converters for pressure/flow regulation (4–20 mA)
- Process skids with multiple analog actuators
- Brownfield S7‑300 maintenance or expansions using like‑for‑like parts
Advantages & Value
- Reliability: Outputs remain stable across typical cabinet temperature swings and electrical noise environments.
- Compatibility: Native to S7‑300—no gateways or extra signal conditioners in many cases.
- Cost efficiency: Multi‑channel AO on a single card helps keep panel footprint and per‑loop costs down.
- Support: We can function‑test channels (range/linearity and LED status) and share a short report before shipment.
“Swapped in 6ES7332‑5HF00‑0AB0 for two valve loops and a VFD reference. Scaling lined up quickly and the outputs were quiet even with nearby drives.” — Controls technician, water treatment skid OEM
Installation & Maintenance
- Cabinet setup: Mount on the S7‑300 rail with adequate ventilation; follow rack slotting guidance.
- Wiring practices: Use shielded twisted‑pair for analog runs; ground shields at one end to avoid loops; separate from motor/VFD cables.
- Loop integrity: For 4–20 mA, verify loop power and polarity; for 0–10 V, ensure a clean reference and consistent grounding.
- Handling & safety: Power down before insertion/removal; ESD precautions during handling.
- Routine care: Periodic dust removal, terminal torque checks, and annual loop calibration if required by QA procedures.
Quality & Certifications
- Certifications: CE; UL/cUL for control panels (typical for SIMATIC S7‑300 modules); RoHS by series.
- Manufacturer quality: Produced under ISO 9001 quality systems.
- Warranty: 365‑day warranty from shipment date.
Supporting Components You Might Also Need
- SIMATIC S7‑300 front connector (screw or push‑in type) matching your wiring scheme
- Shielded twisted‑pair cable for analog signals
- Surge/EMI suppression accessories for cabinets with VFDs
Share your rack layout, required output ranges (V or mA), and how many channels you’re using, and we’ll confirm the 6ES7332-5HF00-0AB0 fit and prepare a quick functional test record before dispatch.
