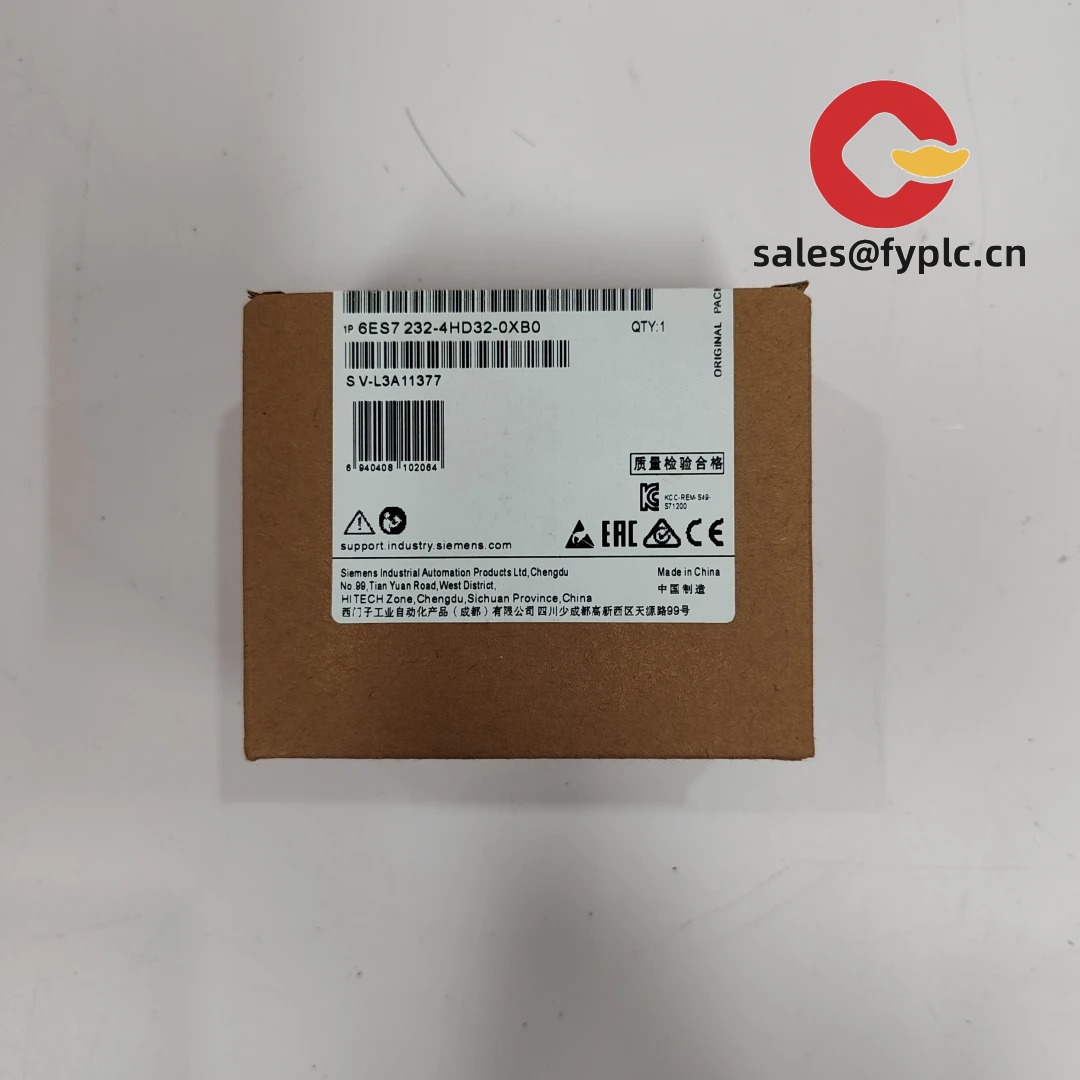

Siemens SIMATIC S7-1200 6ES7232-4HD32-0XB0 – SM 1232 Analog Output Module for Precise Setpoint Control
The Siemens 6ES7232-4HD32-0XB0 is an SM 1232 analog output module for SIMATIC S7‑1200 systems, typically used when you need clean 4–20 mA or 0–10 V setpoints to drives, valve positioners, or control valves. From my experience, this variant is the go‑to for compact panels where four analog outputs on one side module keep wiring tidy and loop behavior predictable. One thing I appreciate is how it snaps onto the S7‑1200 backplane without extra power wiring, so swap‑outs during a short maintenance window are straightforward.
Company’s Order Placement Process and Guarantees
- Warranty period: 365 days
- Delivery time: 1 week for in-stock; no more than one month at the latest
- Payment method: 50% advance payment, full payment for delivery
- Express delivery methods: FedEx, UPS, DHL
- Process: Confirm model and quantity → Proforma Invoice → Advance payment → Functional testing and packing → Final payment → Express shipment with tracking
Key Features
- Multi‑channel AO for S7‑1200 – Provides multiple analog outputs, typically four, for compact setpoint generation.
- Common industrial ranges – Supports 0–10 V and 0/4–20 mA output ranges, selectable per channel in most cases.
- Backplane‑powered – Draws 24 VDC from the S7‑1200 backplane; no separate field supply for the module itself.
- Noise‑resilient design – Stable outputs in cabinets with VFDs and contactors when grounding/shielding is done correctly.
- Easy lifecycle maintenance – You might notice parameter retention and fast module replacement during planned stops.
Technical Specifications
| Brand / Model | Siemens SIMATIC S7‑1200 – 6ES7232-4HD32-0XB0 (SM 1232 AO) |
| HS Code | 853710 (Programmable controllers / modules) |
| Power Requirements | 24 VDC via S7‑1200 backplane (module supply drawn from CPU) |
| Dimensions & Weight | Compact S7‑1200 side module (approx. 45 mm width); weight ~0.2 kg class |
| Operating Temperature | 0…55 °C cabinet ambient (typical for SIMATIC S7‑1200) |
| Signal Output Types | Analog outputs, typically 0–10 V and 0/4–20 mA; channel count commonly 4 AO for this variant |
| Communication Interfaces | SIMATIC S7‑1200 backplane only; no user Ethernet on the module |
| Installation Method | DIN‑rail adjacent to CPU; side‑bus connector; front screw/plug terminals to field |
Application Fields
Typical uses where stable analog setpoints are essential:
- VFD speed commands and soft‑starter references (0–10 V)
- Control valves and I/P positioners (4–20 mA)
- Process skids and OEM machinery needing multiple setpoints
- Brownfield upgrades where S7‑1200 replaces legacy compact PLCs
Advantages & Value
- Reliability: Output stability seems very good across cabinet temperature swings when wiring is done cleanly.
- Compatibility: Native to S7‑1200—no gateways or external isolators in many cases, which simplifies BOMs.
- Cost control: Four outputs on one module help keep per‑loop costs down compared with single‑channel cards.
- Support: We can function‑test channels and share a brief report (range, linearity, and fault LEDs) before shipment.
“Dropped the 6ES7232‑4HD32‑0XB0 into an S7‑1200 panel for two VFDs and two valve positioners. Scaling matched straight away and the loops were quiet even with nearby drives.” — OEM panel builder, water treatment skid
Installation & Maintenance
- Cabinet setup: Mount on DIN rail next to the S7‑1200 CPU; keep ventilation clear; follow the CPU’s derating curve.
- Wiring practices: Use shielded twisted‑pair for analog runs; ground shields at one side; separate from high‑current cables.
- Loop integrity: For 4–20 mA, confirm loop power and polarity; for 0–10 V, verify common reference and avoid ground loops.
- Safety & handling: Power down before adding/removing side modules; ESD protection during handling.
- Routine care: Periodic dust removal, terminal torque check, and annual loop calibration if your QA procedures require it.
Quality & Certifications
- Certifications: CE marking; UL/cUL listed for control panels (typical for SIMATIC S7‑1200 modules); RoHS compliant by series.
- Manufacturer quality: Built under ISO 9001 quality systems.
- Warranty: 365‑day warranty from shipment date.
Share your CPU part number, required output ranges (V or mA), and how many channels are in service, and we’ll confirm the 6ES7232-4HD32-0XB0 is a drop‑in fit and provide a quick functional test record before dispatch.
