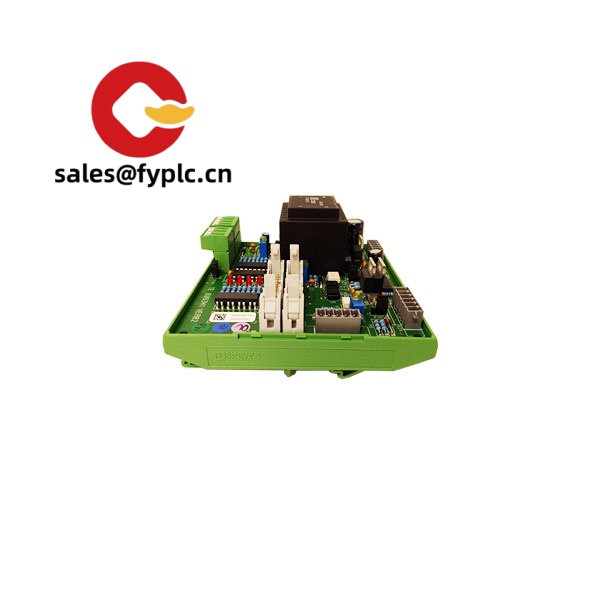

TEAM TE-1605341 – Compact Temperature/Signal Transmitter for Reliable Process Monitoring
From my experience, models in the TEAM “TE” family like the TE-1605341 are designed as compact, rail‑mounted signal transmitters that convert temperature sensor inputs (Pt100/thermocouples) into clean, noise‑resistant process signals such as 4–20 mA or 0–10 V. It’s the kind of module you drop into a control cabinet when you need stable measurement, simple wiring, and minimal fuss. One thing I appreciate is the straightforward installation—typically DIN‑rail with screw terminals—so maintenance teams can swap it quickly during a shutdown.
Order Placement Process & Guarantees
- Warranty: 365 days
- Delivery: 1 week if in stock; no more than one month at the latest
- Payment: 50% advance payment; full payment before delivery
- Express options: FedEx, UPS, DHL
Key Features
- Versatile temperature inputs – Typically supports Pt100 RTD and common thermocouple types (J/K), covering most plant standards.
- Industrial analog outputs – 4–20 mA or 0–10 V for easy tie‑in to PLC/SCADA, reducing engineering time.
- Noise immunity – Designed for cabinet environments with good EMC performance, which in many cases cuts drift and spikes.
- Loop‑powered simplicity – Often powered directly from the 4–20 mA loop, keeping wiring lean.
- DIN‑rail form factor – Compact footprint fits crowded panels; technicians usually finish a swap in minutes.
- Basic isolation – Galvanic isolation on I/O (where applicable) helps protect upstream PLC inputs.
A maintenance lead told us, “We used the TE unit to normalize Pt100 signals over a 60‑meter run—after that, our trend line finally stopped ‘breathing’ with electrical noise.”
Technical Specifications
| Brand / Model | TEAM TE-1605341 |
| HS Code | 9032.89 (typical classification for industrial control/transmitter modules) |
| Power Requirements | Loop‑powered 4–20 mA, typically 10.8–36 VDC available on the loop |
| Signal Input Types | Pt100 RTD; Thermocouple J/K (others may be configurable depending on variant) |
| Signal Output Types | 4–20 mA (preferred) or 0–10 V (selectable on many units) |
| Operating Temperature | -20 to +60 °C (typical for cabinet‑mounted signal modules) |
| Communication Interfaces | None standard; some series variants may support HART (if specified) |
| Installation Method | 35 mm DIN‑rail, screw terminals; panel location with adequate ventilation |
| Dimensions & Weight | Compact rail module; typically ~22.5 mm width (exact model may vary) |
Related or Supporting Products
- Siemens SITRANS TH200 – Head‑mount transmitter for Pt100/TC; use when you need in‑head installation at the sensor.
- Phoenix Contact MINI MCR-SL-PT100 – Slim signal conditioner for Pt100 to 4–20 mA; very compact for dense panels.
- Pepperl+Fuchs KFD2-STC4-Ex1 – Isolated temperature transmitter with Ex options; choose for hazardous area barriers.
- Weidmüller ACT20P series – Multi‑range universal transmitters; helpful when you want broad input flexibility and isolation.
Installation & Maintenance
- Cabinet & ventilation – Mount on 35 mm DIN‑rail inside an IP‑rated enclosure; keep clearance for airflow and cable bend radius.
- Wiring – Use shielded twisted pair for sensor leads; ground one side of the shield to minimize loops. Verify correct polarity on loop‑power.
- Sensor placement – For Pt100/TC, route away from VFDs and contactors; if long runs, consider a junction box and proper cold‑junction handling.
- Safety – De‑energize the loop before servicing. If used in Ex areas, match the transmitter and barrier approvals.
- Routine maintenance – Annual check of zero/span with a simulator is usually enough. Keep terminals clean and torque‑checked. Firmware/config updates if applicable.
Quality & Certifications
- CE and RoHS compliance are typical for this class; UL/CSA marking may be available on specific variants.
- Manufacturer warranty: 12 months (365 days) from shipment.
If you need us to confirm exact input ranges, output scaling, or the presence of isolation/HART on the TE-1605341 you plan to use, share your sensor type and PLC input details—I’ll match the configuration so it drops into your panel with no surprises.
