Description

PDP800 may refer to different products in various contexts, most commonly the related modules from ABB. Here is the specific information:

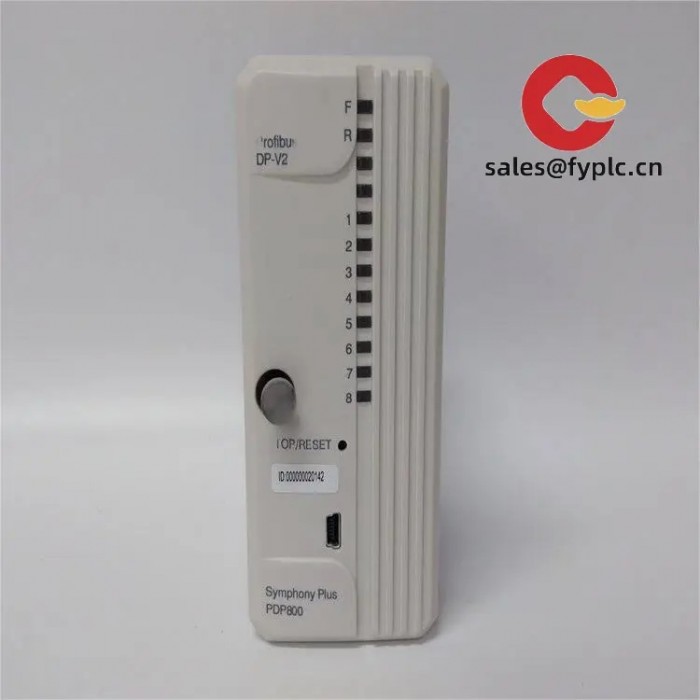

ABB PDP800 PROFIBUS DP Communication Module

1. Series: Part of the ABB Symphony Plus series, it is a next-generation product of the Symphony distributed control system.

2. Functions and Applications: Mainly used to establish connections between Symphony Plus controllers and PROFIBUS DP field devices, supporting the integration of intelligent devices such as smart transmitters, actuators, and intelligent electronic devices.

3. Technical Specifications: Supports PROFIBUS DP V0, V1, V2 protocols, and through DP/PA linking devices, supports PROFIBUS PA devices; the PROFIBUS DP link speed can reach up to 12 Mbps, supporting both electrical and fiber optic media; optical fiber PROFIBUS DP connection can reach up to 15 km, and through redundant HN800 fiber communication, the distance between the PDP800 module and the controller can reach up to 3 km; supports 1 ms device timestamp.

4. Physical Characteristics: Net depth/length is 243.84 mm, net height is 73.66 mm, net width is 170.18 mm.

5. Product Features: Supports full redundancy at all levels, including PDP800 modules, power supply, PROFIBUS DP link, and controller communication bus (HN800); uses S+Engineering graphical design tool Composer to configure and maintain PROFIBUS networks and field devices, reducing system costs.

6. Application Areas: Mainly applied in power generation, hydropower, industrial automation, and other fields requiring high-precision and reliable process control.
