Description

                 Triconex 3009 Enhanced Main Processor (UMP) Module

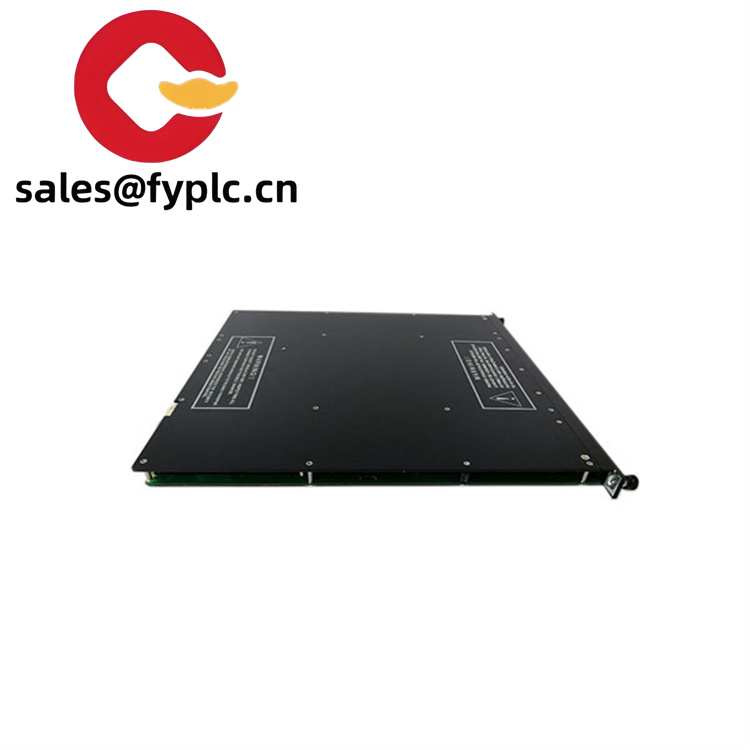

Triconex 3009

The Triconex 3009 is crafted by Triconex, a renowned name in the industrial automation and security systems domain. Engineered with precision, it serves as the central processing unit within SIS setups. Its primary purpose is to execute safety logic flawlessly, ensuring that industrial operations can continue with minimal risk. Whether it’s in a large – scale petrochemical plant, a power generation facility, or a nuclear power station, the Triconex 3009 is relied upon to safeguard operations and prevent potential disasters.

Label	Specification
Model Number	3009
Brand	Triconex
Type	Enhanced Main Processor (UMP) Module
Processor Type	32 – bit RISC
Storage Capacity	512 KB
Communication Interfaces	RS – 232, RS – 485, Ethernet
Operating Temperature	– 40°C to 75°C
Storage Temperature	– 40°C to 85°C
Relative Humidity	5% to 95% (non – coated)
Vibration	5 g to 2,000 Hz, peak – to – peak
Impact	5 g, 22 – millisecond duration
Dimensions	114 mm x 178 mm x 25 mm
Weight	0.4 kg
Mounting	DIN Rail Mounting
Certifications	Meets stringent industry – specific certifications for safety – critical applications

One of the key functional strengths of the Triconex 3009 lies in its triple modular redundancy (TMR) structure. This unique design features three identical sub – circuits, each independently performing control functions. A dedicated hardware/software architecture then “votes” on inputs and outputs. This setup ensures that even if one of the channels experiences a failure, the system can continue to operate without interruption, guaranteeing the highest level of reliability.

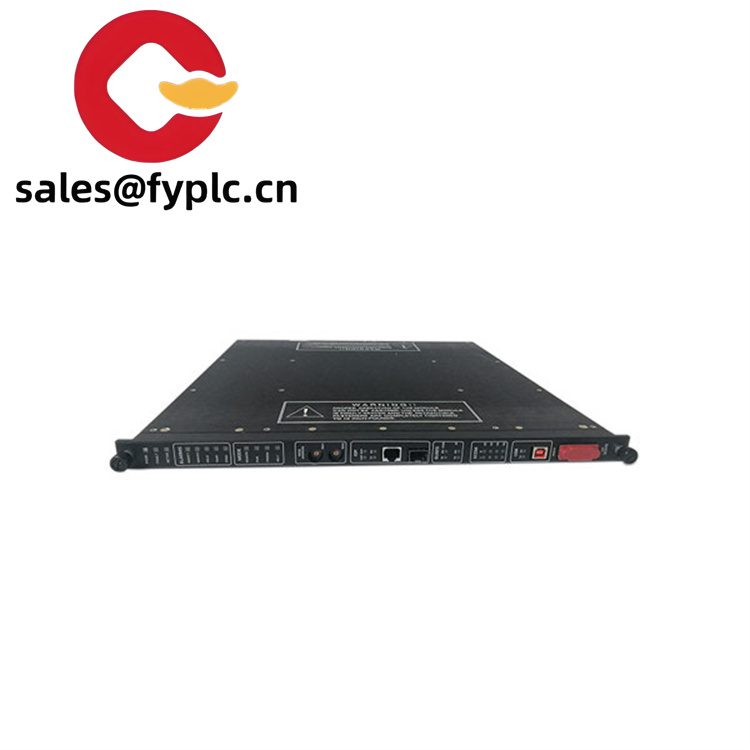

Triconex 3009

​

The build quality of the Triconex 3009 is top – notch. Constructed with high – quality components, it can endure harsh industrial environments, including extreme temperatures, vibrations, and electrical interference. In terms of compatibility, it interfaces smoothly with a wide range of other devices in an industrial control ecosystem. It can support up to 118 I/O modules (both analog and digital) and optional communication modules, allowing for seamless connection to MODBUS hosts, auxiliary hosts, or other distributed control systems like Foxboro and Honeywell DCS.​

The Triconex 3009 finds extensive applications across multiple industries. In the petrochemical industry, it is used to control the safety logic during the production of various chemical products. Given the highly volatile and potentially dangerous nature of petrochemical processes, the reliability of the 3009 is of utmost importance. In power generation, it manages the safety – critical aspects of power systems, ensuring grid stability and preventing power outages due to system failures.

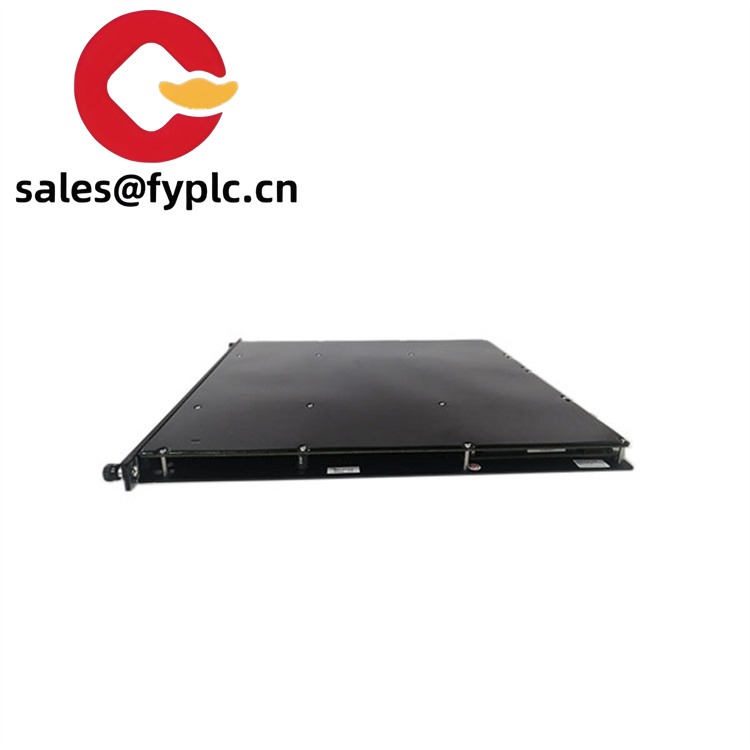

Triconex 3009

​

In the nuclear industry, where safety is non – negotiable, the Triconex 3009 plays a vital role in controlling the complex processes. It monitors and manages safety – related parameters, providing real – time decision – making capabilities to prevent any potential nuclear incidents. By effectively addressing the operational challenges of maintaining safety and reliability in these high – risk industries, the 3009 enhances process reliability and minimizes the risk of accidents.​

There are several related models to the Triconex 3009. The Triconex 3004 Enhanced TRICONZ Main Processor II SOE 1MSRAM offers similar processing capabilities but with a different focus on system event recording. The Triconex 3005 Enhanced TRICONZ Main Processor II SOE 2MSRAM is another related model, perhaps with enhanced memory for specific applications that require more data storage for event logging. The Triconex 3006 CPU may have a different performance profile, making it suitable for less complex but still critical control applications. The Triconex 3007 CPU, which can communicate with Honeywell (UCN), is designed for systems that need to interface with Honeywell’s control infrastructure. And the Triconex 3008 CPU, which can communicate with Foxboro (DCS), is tailored for setups involving Foxboro’s distributed control systems.

​

When it comes to installing the Triconex 3009, it should be securely mounted on a DIN rail. Ensure that the installation area has proper ventilation to prevent overheating, especially since the module may operate in high – temperature environments. During long – term operation, regular inspections are essential. Check for any signs of physical damage, such as cracks on the module casing. Monitor the communication interfaces to ensure that data transfer is seamless. It’s also advisable to periodically review the diagnostic data provided by the module to detect any potential issues early on.
