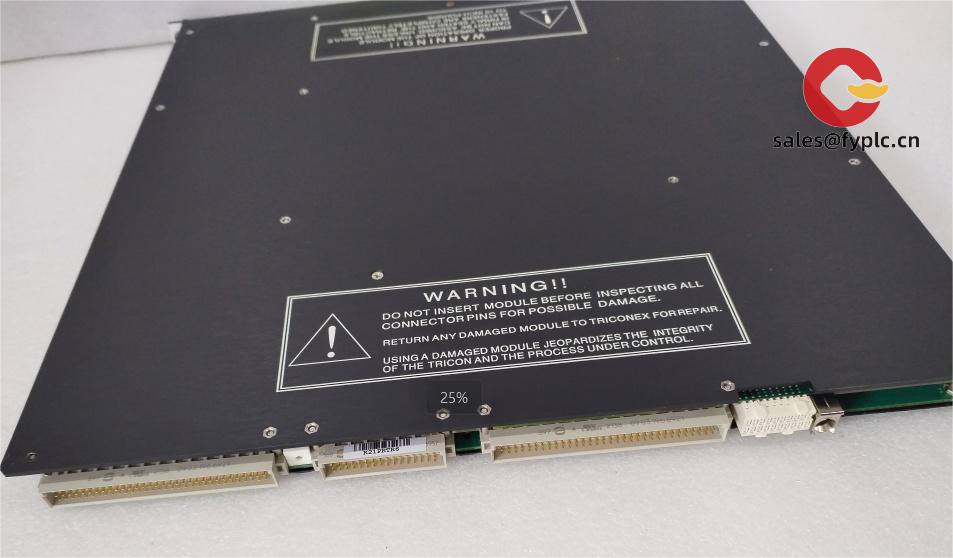

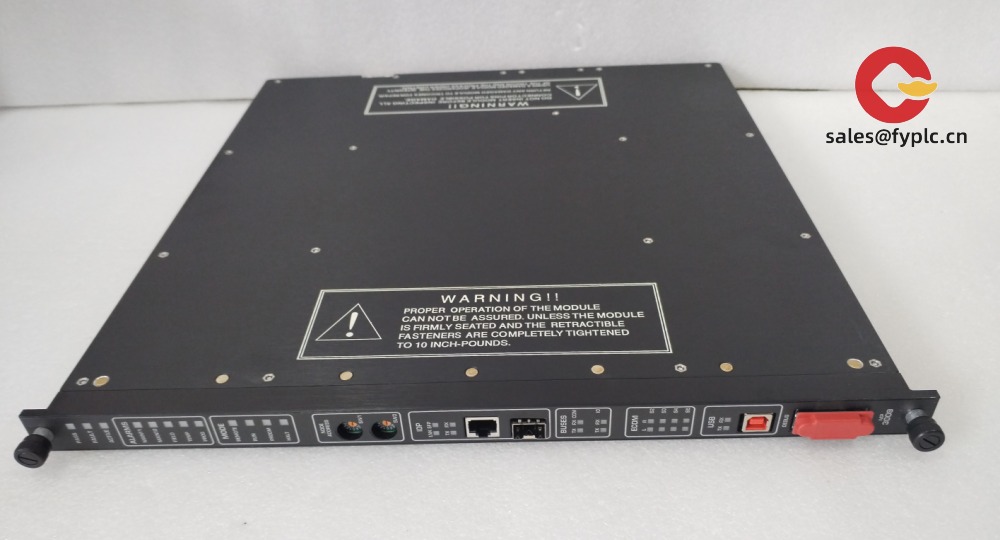

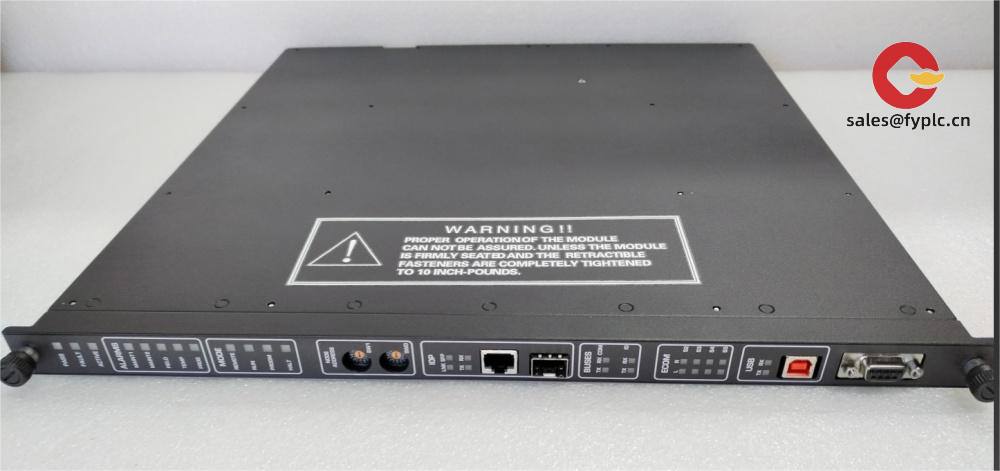

TRICONEX 3009 – High-reliability TMR system module for Tricon safety control

The TRICONEX 3009 is widely used within the Tricon safety PLC platform as a core system module in triple-modular-redundant (TMR) architectures. In many cases it serves as the processing and voting element that keeps critical plants running safely—typically in applications like ESD, BMS, and turbomachinery protection. From my experience, teams choose the 3009 when they need high diagnostic coverage, hot-swap serviceability, and a long lifecycle component that fits seamlessly into existing Tricon main chassis.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment, full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• Triple-Modular Redundancy (TMR): Three parallel channels with voting deliver fault tolerance and continued operation during single faults.
• Hot-swappable design: Modules can typically be replaced online to minimize downtime during maintenance or upgrades.
• Advanced diagnostics: Continuous self-tests and channel comparison help pinpoint faults quickly and reduce MTTR.
• SIL3-capable system platform: Designed for use in IEC 61508/61511 safety instrumented systems when properly engineered.
• Backplane integration: Tight synchronization over the Tricon backplane; user comms handled via dedicated communication modules.
• Lifecycle longevity: Stable platform with proven availability in process industries, which usually simplifies MRO planning.

Technical Specifications

Application Fields

The TRICONEX 3009 is usually deployed in safety instrumented functions across:

• Oil & Gas: ESD, HIPPS, fire & gas integration, compressor and turbine protection
• Refining & Petrochemicals: BMS for heaters/furnaces, reactor safeguards, tank farm safety
• Power Generation: boiler protection, turbine trip systems, balance-of-plant interlocks
• Chemicals & Pharma: reactor protection, solvent handling interlocks, inerting systems
• Marine & LNG: cargo handling safety, process shutdown, utilities protection

One thing I appreciate is how easily it fits into mixed architectures—engineers often use Tricon for the SIS layer while keeping a separate DCS for basic control. The 3009 sits comfortably in that role.

Advantages & Value

• Reliability first: TMR design with continuous diagnostics typically means fewer nuisance trips and clear fault isolation.
• Compatibility: Works within existing Tricon chassis and alongside 37xx-series I/O and platform comm modules, which helps during phased upgrades.
• Maintenance-friendly: Hot-swap module handling and status LEDs reduce intervention time during planned outages.
• Cost control: Keeps plant safety functions standardized; procurement can stock fewer spares while maintaining coverage.
• Supportable: Mature install base; documentation and know-how are widely available in the safety community.

You might notice that many plants retain a pair of spare 3009s on the shelf; in most cases it shortens mean time to repair and keeps proof-test windows tighter. A maintenance manager at a refinery told us swapping the 3009 and re-loading the validated project cut their turnaround by hours compared to mixed-platform systems.

Installation & Maintenance

• Cabinet & environment: Install in a Tricon main chassis within a 19-inch cabinet; allow front/rear clearance for airflow and service. Keep the enclosure clean, dry, and within temperature specs.
• Power & grounding: Use redundant 24 VDC system power supplies feeding the Tricon backplane; maintain a low-impedance ground and segregate safety wiring from noisy power cabling.
• Wiring: Field I/O is terminated on dedicated I/O modules; the 3009 uses the backplane only—no direct field wiring.
• Hot-swap practice: Follow site LOTO and ESD precautions; confirm controller state and redundancy health before module replacement.
• Routine maintenance: Periodic cabinet dust removal (dry air), visual inspection of LEDs/connectors, and verification of firmware/project versions as per site MOC procedures.
• Proof testing: Align with IEC 61511 proof-test intervals; document diagnostics, bypasses, and restores in the SIS log.

Quality & Certifications

• Designed for use in IEC 61508 / IEC 61511 SIL3 safety systems (when applied per vendor guidelines)
• Typical industrial conformity: CE; many installations also align with UL/CSA assessments for control equipment
• RoHS compliance may apply depending on specific build and region
• Warranty: 365 days from delivery
