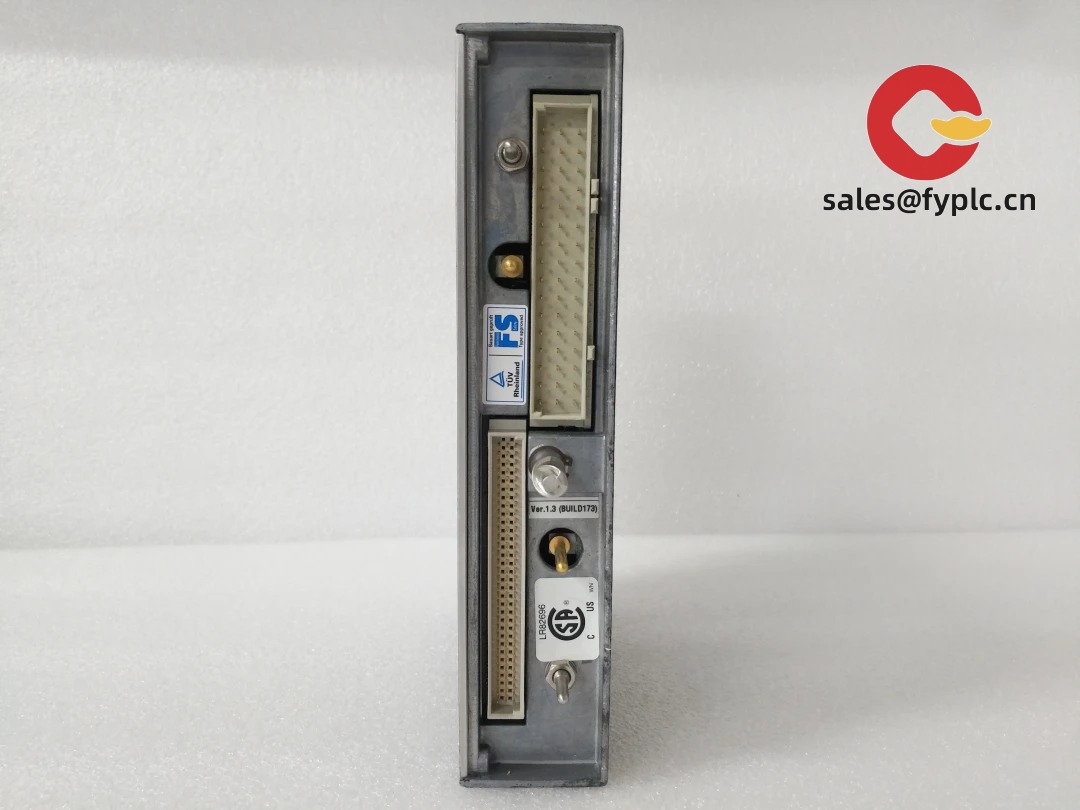

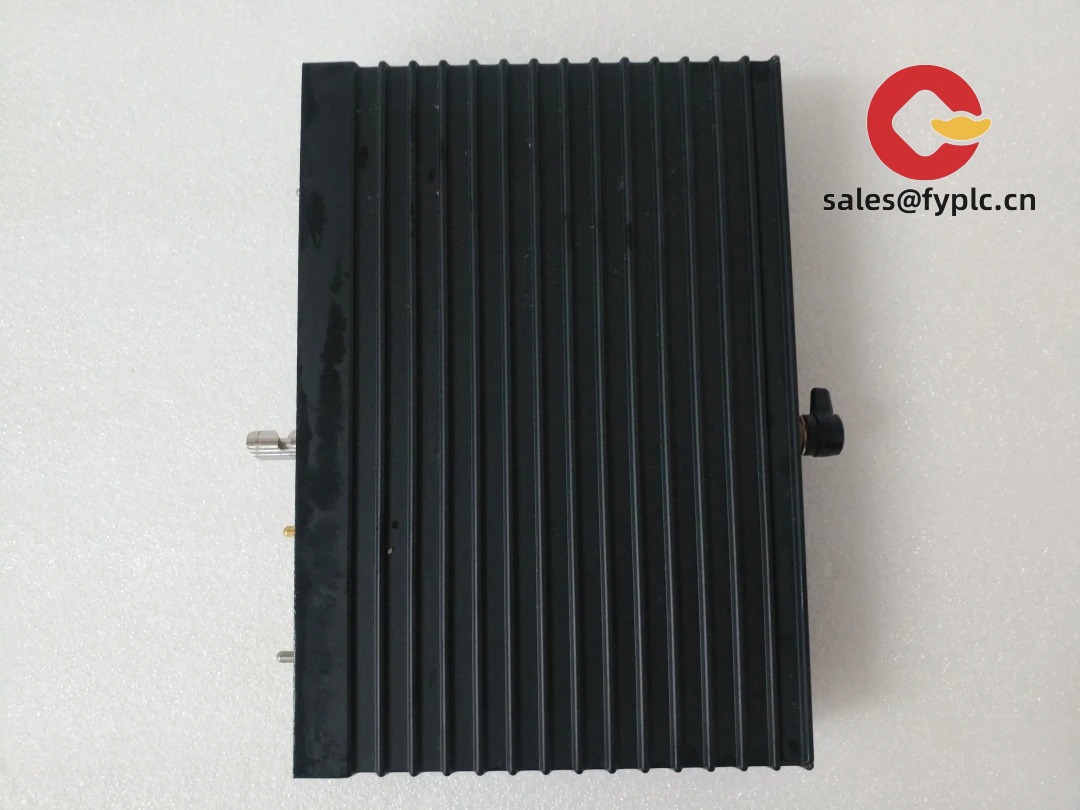

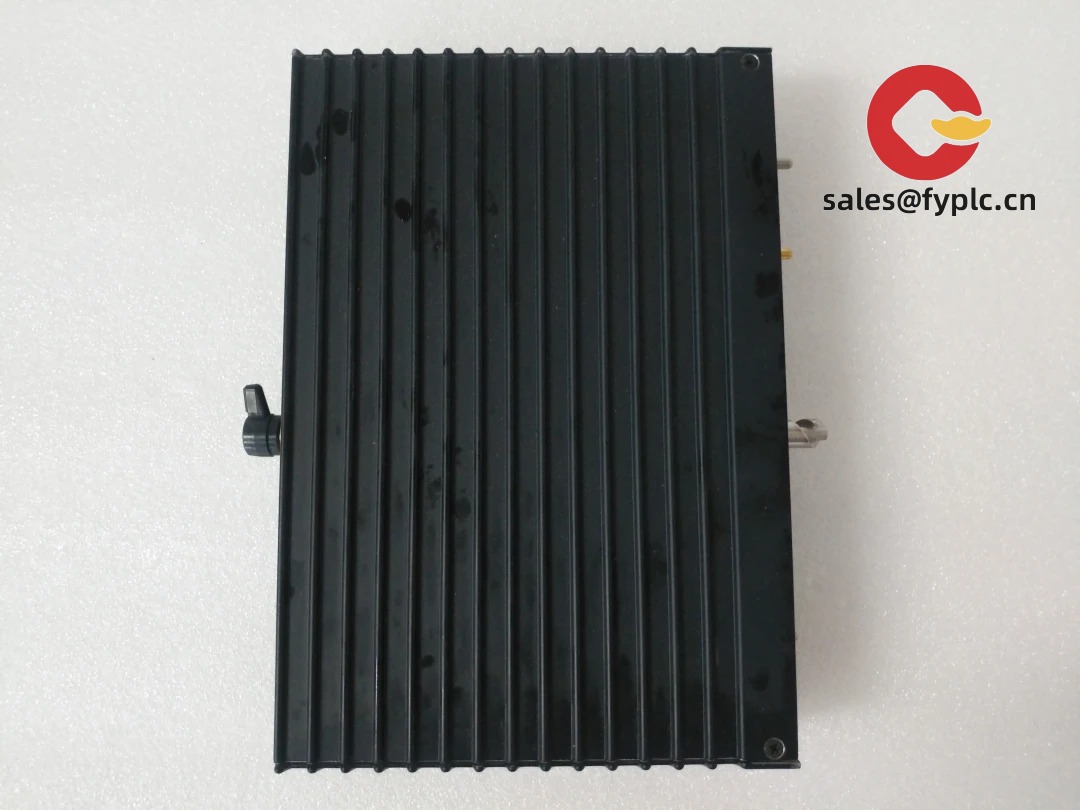

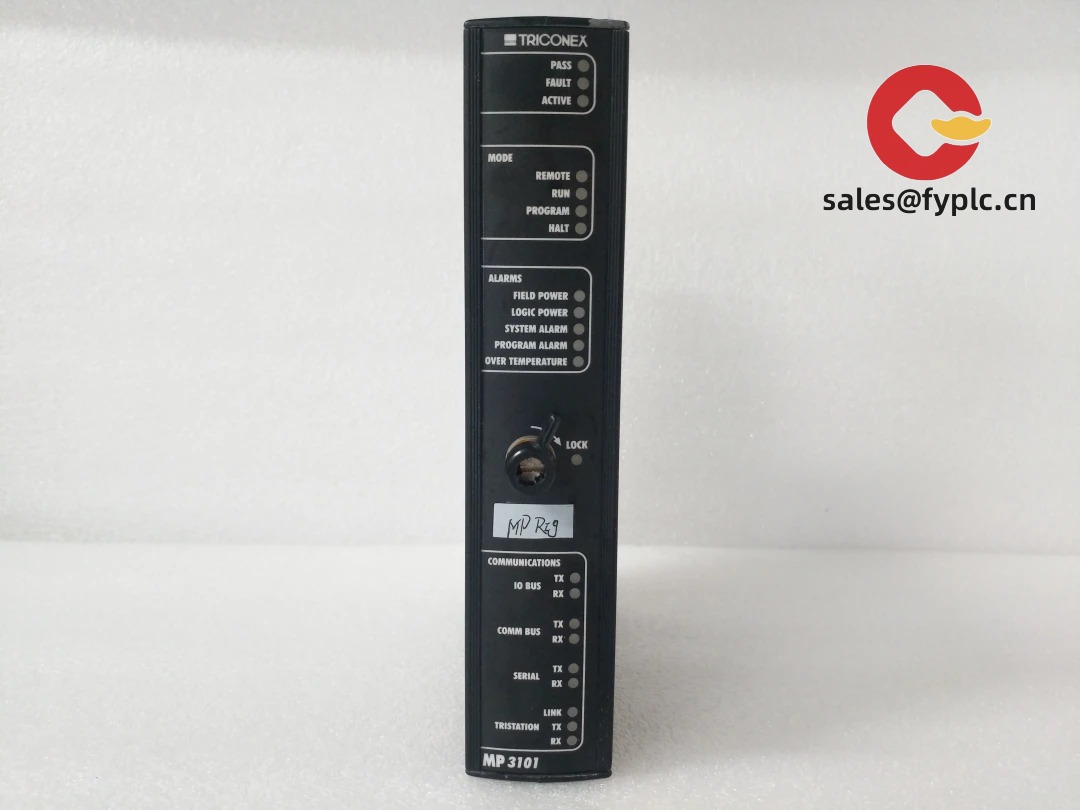

Triconex 3101 — Triple-Modular Redundant (TMR) Input Module for Safety-Critical Process Control

Used across refineries, chemical plants, and power generation facilities since the early 2000s, the Triconex 3101 isn’t just another I/O module—it’s one of the foundational building blocks of the Tricon system’s fault-tolerant architecture. From my experience supporting brownfield upgrades in the Gulf Coast, this module still shows up in active safety instrumented systems (SIS) where legacy Tricon platforms remain operational—often alongside newer Triconex 4100-series controllers via backplane bridging.

Key Features

• TMR Input Processing: Reads up to 32 discrete inputs (24 VDC, sink/source configurable), with voting logic executed across three independent microprocessors—so a single hardware fault doesn’t trigger spurious trips.
• Hot-swappable design: You can replace it under power without disturbing adjacent modules or shutting down the rack—a real time-saver during maintenance windows.
• Diagnostic-rich firmware: Built-in self-tests monitor input status, voltage levels, and cross-channel consistency; diagnostics feed directly into TriStation 1131 for trending and alarm context.
• Backplane-integrated isolation: Galvanic isolation between field wiring and the Tricon backplane helps suppress ground loops—a frequent headache in older plant cabinets with mixed grounding practices.
• Field-wiring flexibility: Supports both dry-contact and powered inputs, and terminal blocks accept 12–22 AWG wire—no need for special ferrules in most cases.

Technical Specifications

Application Fields

This module typically handles critical shutdown signals—like emergency stop buttons, fire detection contacts, turbine overspeed relays, or high-level switch alarms—in SIL 2 and SIL 3 applications. One customer in Rotterdam told us they kept their 3101s running for over 17 years in a hydrogen compressor train SIS, only replacing them after repeated field-wire corrosion caused intermittent faults—not controller failure. It’s also commonly used as a “bridge” input module when integrating third-party PLCs into Tricon-based safety loops, thanks to its robust noise immunity and deterministic scan timing (~20 ms typical).

Advantages & Value

If you’re maintaining an existing Tricon system—or evaluating a cost-conscious upgrade path—the 3101 offers real procurement advantages. Spare units are still available (though lead times are longer than for newer models), and compatibility is guaranteed across all Tricon versions from v5.x onward. In many cases, replacing a failed 3101 costs less than re-engineering the I/O layer to support a 4100-series module—including marshalling, documentation updates, and proof testing. Technical support remains accessible through Schneider Electric’s legacy services team, and we’ve seen customers reuse existing TriStation 1131 logic files with minimal changes.

Installation & Maintenance

Mount only in NEMA 12 or IP54-rated cabinets with adequate airflow—don’t stack tightly next to high-heat modules like power supplies. Grounding must follow Triconex’s single-point star-ground recommendation; shared grounds with motor drives often cause false voting mismatches. Wiring should use twisted-pair, shielded cable for noisy environments, with shields terminated at the module end only. Routine maintenance? Mostly visual: check for discoloration on terminals, verify LED status patterns (green = healthy, amber = warning, off = fault), and run a diagnostic test in TriStation every 6 months. Firmware updates aren’t applicable—the 3101 has fixed microcode, so version control is stable but inflexible.

Quality & Certifications

The 3101 carries TÜV-certified SIL 3 compliance per IEC 61508:2010 (certificates #TÜV-Rheinland-9601010301 and #TÜV-Rheinland-9601010302). It’s also CE-marked, UL listed (UL 508), and RoHS-compliant. While original manufacturing ceased around 2015, remanufactured and tested units meet full functional specs—and come with our standard 365-day warranty. We validate each unit with loop-check, voltage tolerance, and TMR voting tests before shipping.
