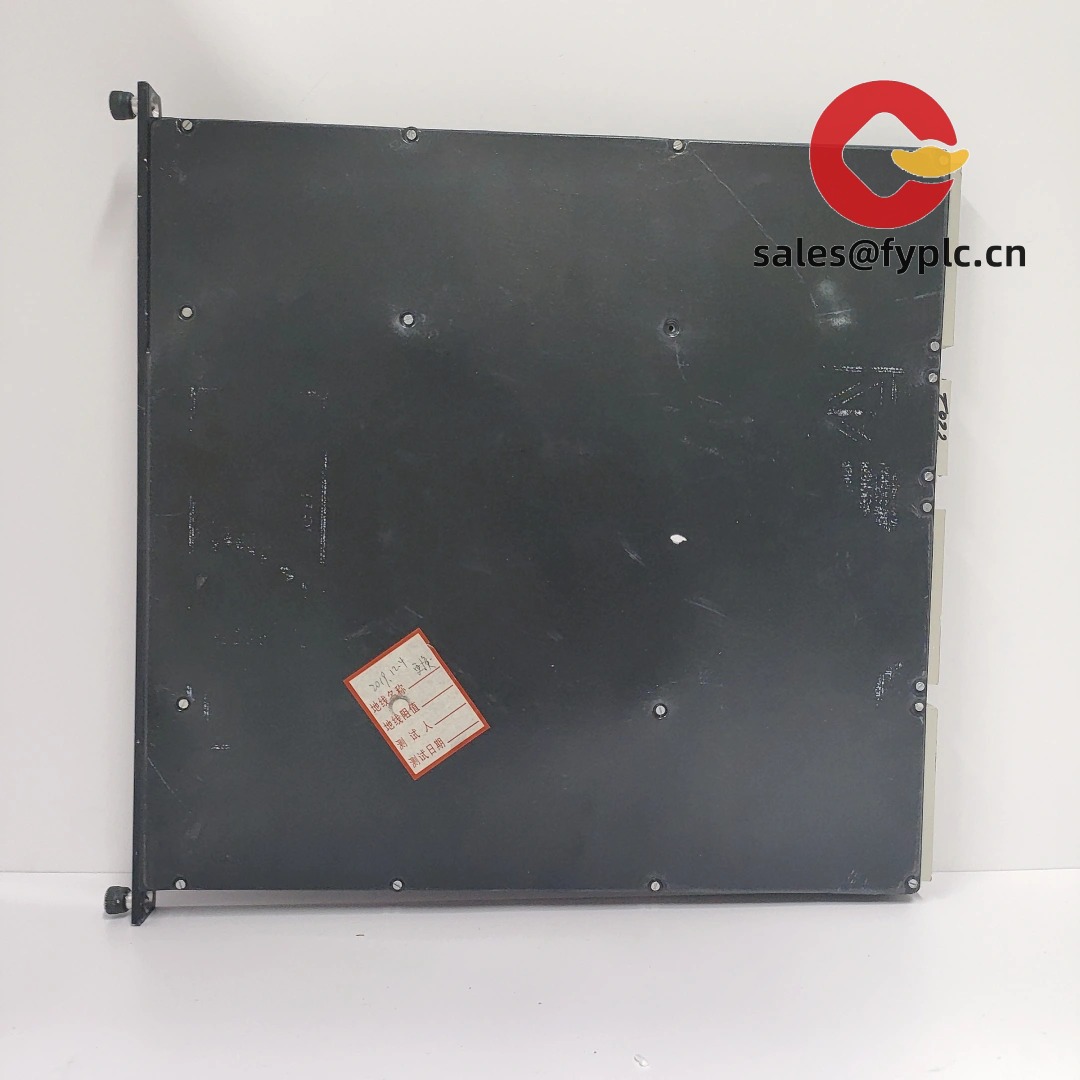

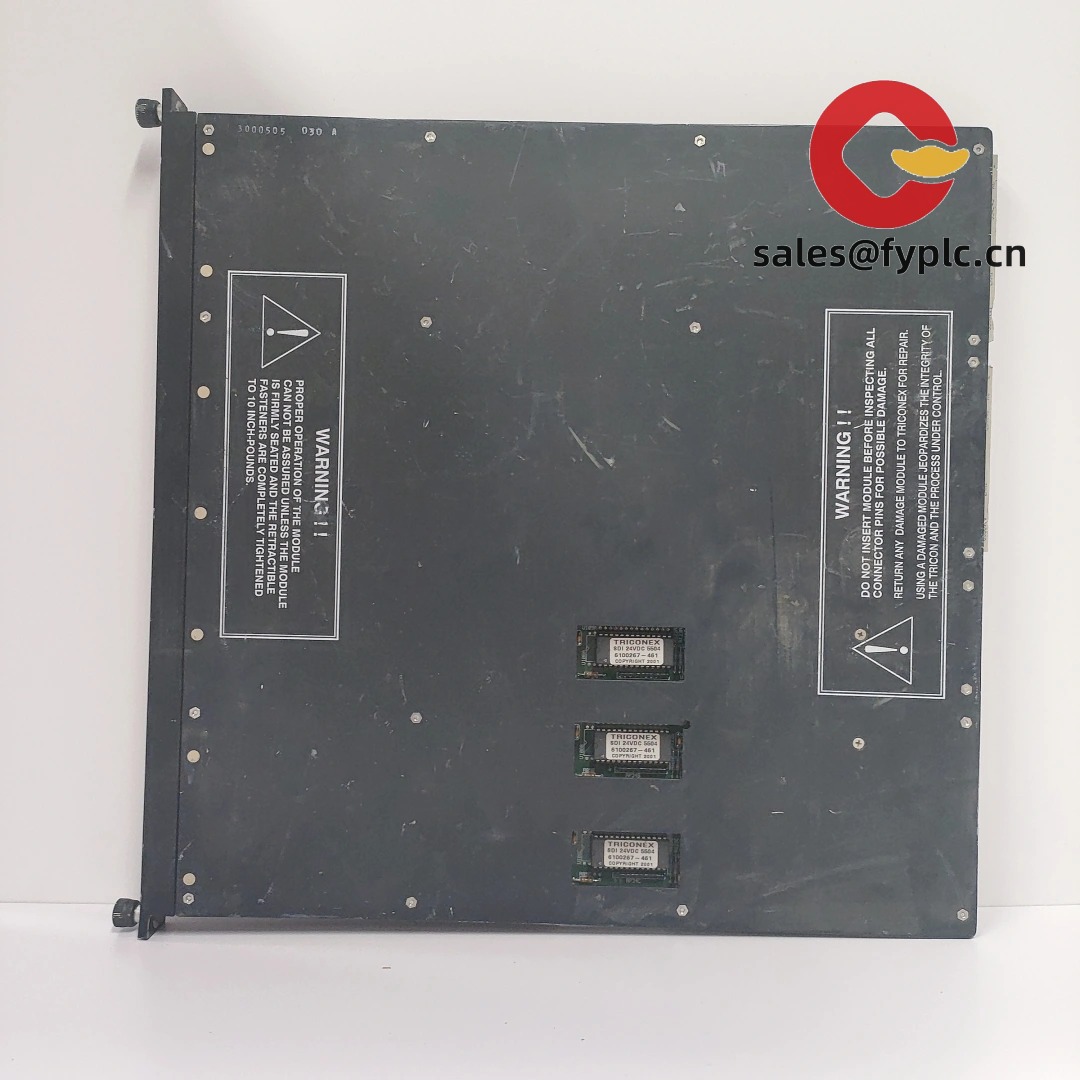

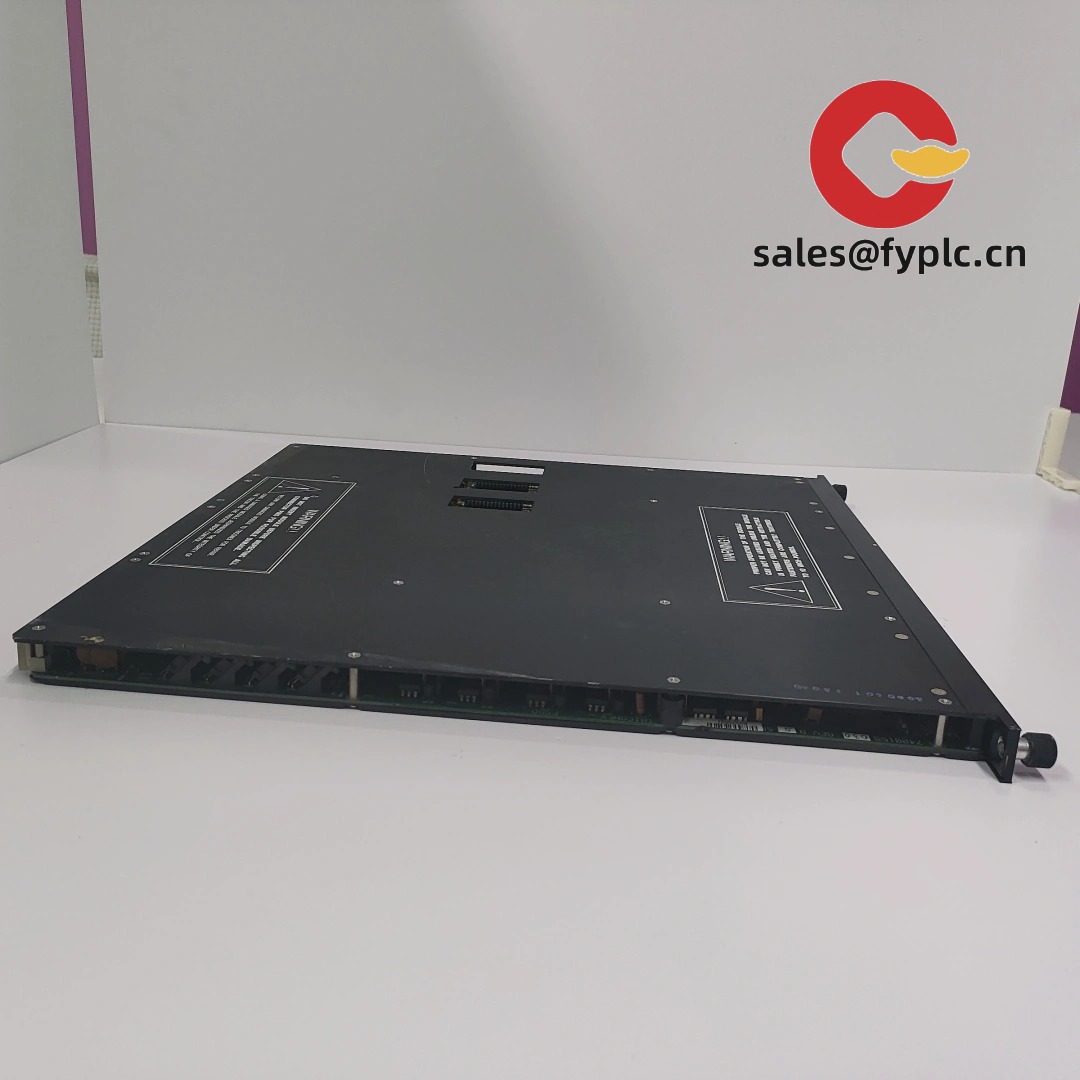

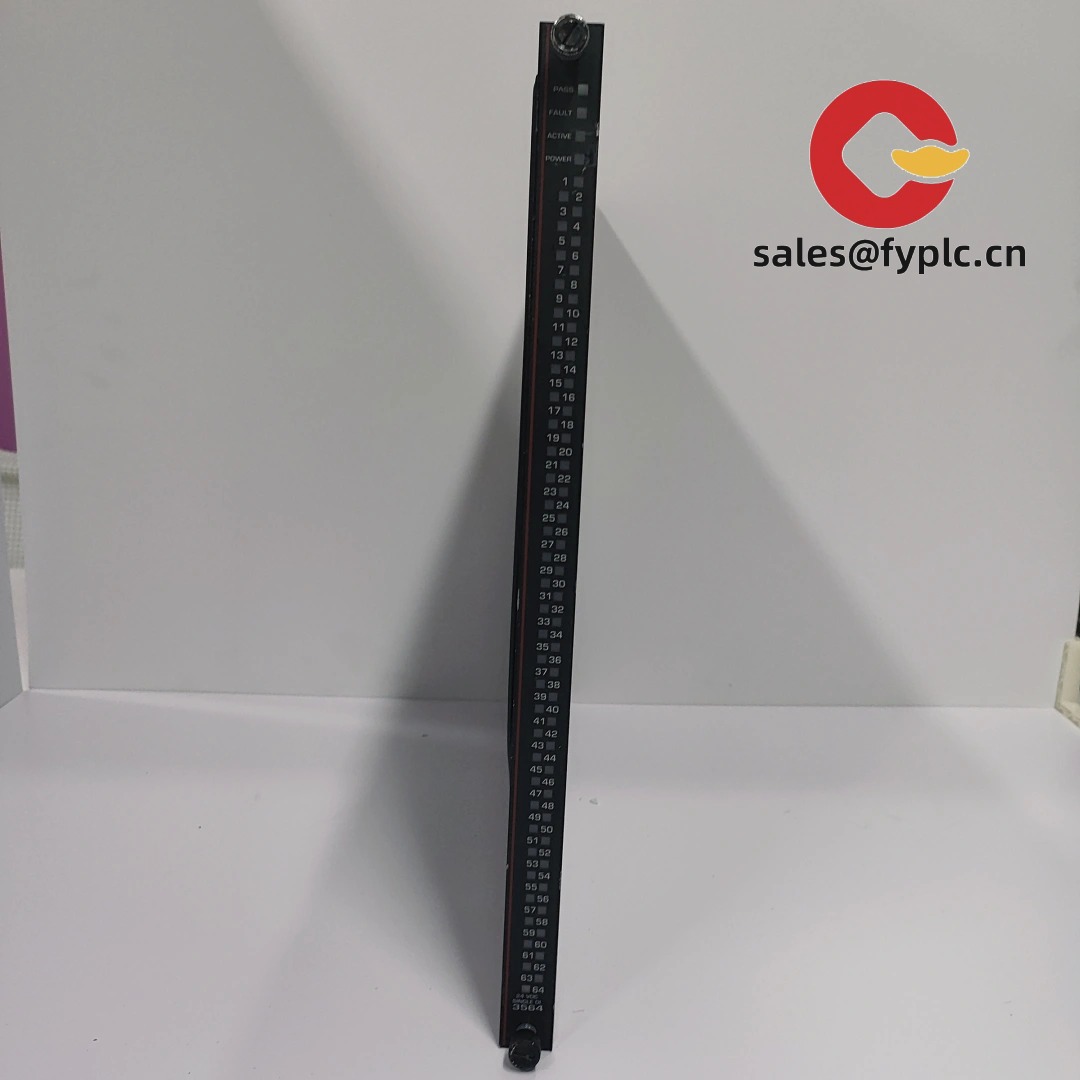

Triconex 3564 Triple Modular Redundant (TMR) Safety Controller

Think of the Triconex 3564 as the quiet authority in high-stakes industrial safety—especially where a single point of failure isn’t just inconvenient, it’s unacceptable. It’s not a general-purpose PLC; it’s engineered for shutdown systems in refineries, chemical plants, and offshore platforms where SIL 3 compliance isn’t optional—it’s mandated by regulation and reinforced by decades of field experience. From my time supporting brownfield retrofits, I’ve seen this controller hold up through 15+ years of continuous operation in sour gas service—no forced upgrades, no unexpected firmware hiccups.

Key Features

• TMR architecture with hot-swappable modules — All three processor channels execute the same logic simultaneously, vote on outputs, and automatically isolate faults. You might notice that even during a module replacement mid-process, the system stays online—no manual bypasses required.
• Integrated diagnostics and self-test routines — Runs over 200 internal health checks every 100 ms. In many cases, it catches latent memory errors or timing drift before they escalate—something conventional dual-redundant systems typically miss.
• Triconex Safety Logic Solver (SLS) software compatibility — Works with TriStation 1131 v5.x and later. One thing I appreciate is how tightly the configuration environment mirrors actual runtime behavior—fewer surprises during FAT/SAT.
• Flexible I/O expansion via TRICONEX-3009 backplanes — Supports up to 128 I/O points per chassis (with appropriate I/O modules), and multiple chassis can be linked via fiber-optic DTM links—handy when marshalling cabinets are physically separated.

Technical Specifications

Application Fields

This controller shows up most often where process integrity directly ties to personnel safety and environmental compliance: hydrocarbon processing units (FCC, hydrotreaters), flare ignition systems, turbine emergency shutdowns, and ammonia synthesis loops. A customer in Rotterdam recently used a pair of 3564s—one for fire & gas, one for ESD—to replace aging Honeywell TDC 3000 SIS hardware. Their main driver? Proven field reliability under cyclic thermal stress and the ability to retain legacy loop documentation without re-engineering logic from scratch.

Advantages & Value

If you’re evaluating controllers for a new SIL 3 system—or auditing an existing one—the 3564 brings concrete procurement advantages. Its long lifecycle (still actively supported by Schneider Electric, though no new development beyond maintenance releases) means spare parts availability isn’t a guessing game. Compatibility with TriStation 1131 lowers engineering training overhead, especially if your team already uses Triconex tooling. And unlike some newer safety platforms, its deterministic scan behavior (fixed 50–200 ms cycles, depending on config) makes timing analysis straightforward for SIS verification reports. In practice, this translates to fewer delays during third-party certification audits—and fewer last-minute logic tweaks.

Installation & Maintenance

Mount it in a climate-controlled cabinet meeting NEMA 12/IP54 specs—ventilation is non-negotiable; we’ve seen premature fan failures when ambient temps creep above 45 °C without adequate forced air. Wiring must follow IEC 61511 segregation rules: safety I/O routed separately from non-safety comms, with shielded twisted-pair for analog signals and proper grounding at the controller end only. For maintenance: annual calibration of analog input modules (if used), quarterly visual inspection of cooling fans and terminal tightness, and firmware updates only during scheduled outages—Triconex recommends validating any patch against your specific SIS architecture first. Note: The 3564 doesn’t support over-the-air updates; downloads require physical connection via serial or Ethernet.

Quality & Certifications

Certified to IEC 61508 SIL 3, IEC 61511, and FM 3600 for hazardous locations (Class I Div 2). Also carries UL 508A listing, CE marking (per Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU), and RoHS 2011/65/EU compliance. ISO 9001-certified manufacturing applies across all Triconex-branded hardware. Warranty is 365 days from shipment date—covers defects in materials and workmanship, but excludes damage from improper installation or environmental exposure outside spec.
