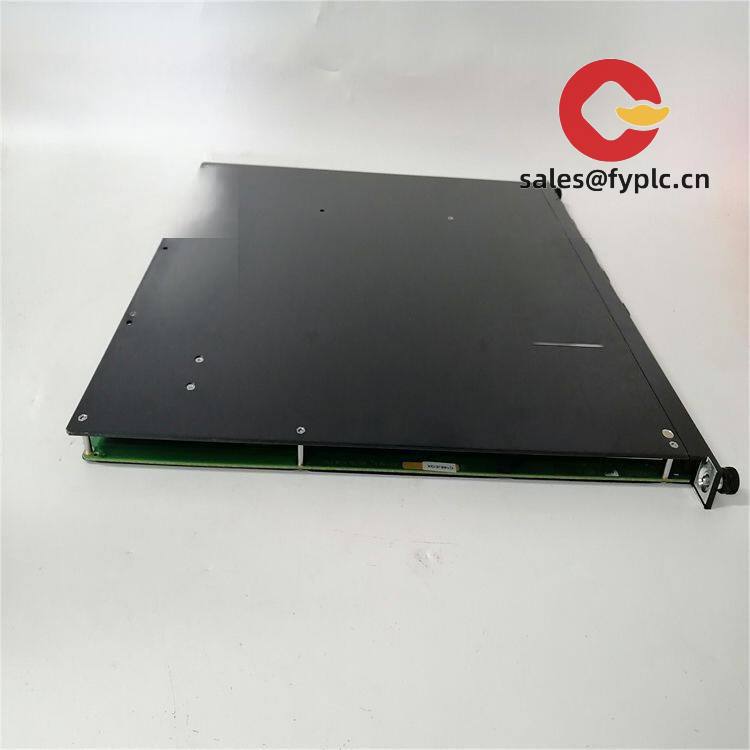

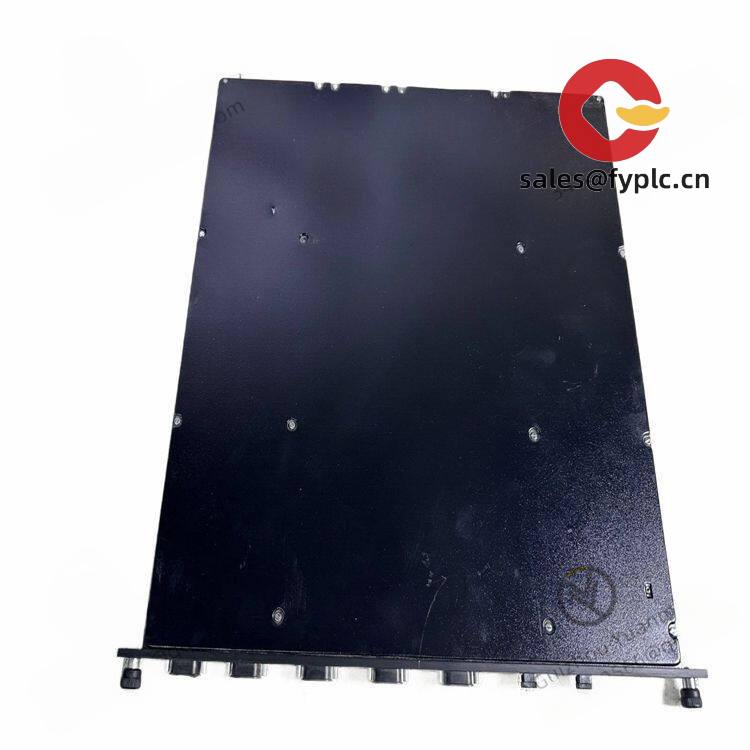

TRICONEX 3601E – Enhanced Main Processor Module for Tricon TMR Safety Systems
The TRICONEX 3601E is the enhanced Main Processor (MP) module used in Tricon triple modular redundant (TMR) safety controllers. From my experience, it’s the piece that orchestrates scan execution, voting, and diagnostics across the triplicated architecture—no direct process I/O on the card itself, yet it’s central to system integrity and uptime. You might notice that the “E” revision typically indicates an updated hardware generation with refined diagnostics and performance for newer Tricon system releases, while remaining compatible with the installed base when firmware is matched within the set.
Company’s Order Placement Process and Guarantees
- Warranty: 365 days.
- Delivery: 1 week if in stock; no more than one month at the latest.
- Payment: 50% advance payment; full payment prior to delivery.
- Express options: FedEx, UPS, DHL.
- Packing & traceability: ESD-safe packaging with full test records, module S/N traceable to shipment.
Key Features
- TMR architecture leadership: Works as one of the triplicated Main Processor modules handling voting and deterministic control.
- Enhanced “E” hardware revision: In many cases offers improved diagnostics and lifecycle support compared with earlier releases.
- Online diagnostics: Continuous self-test and health monitoring for high availability.
- Bumpless replacement concept: Typically supports online maintenance within a TMR set, minimizing process interruptions.
- Backplane coordination: Manages memory, scan timing, and communications over the Tricon backplane; external links are handled by dedicated communication modules.
- Safety lifecycle ready: Part of the Tricon system architecture recognized for IEC 61508 SIL3 applications when deployed correctly.
Technical Specifications
| Brand / Model | TRICONEX 3601E (Main Processor Module) |
| HS Code | 8537.10 – Boards, panels, consoles for electric control (programmable controller equipment) |
| Power Requirements | Powered from the Tricon chassis backplane; no external power input on the module |
| Dimensions & Weight | Standard Tricon plug-in module form factor; fits the designated MP slots in Tricon chassis |
| Operating Temperature | Typically 0 to 60°C (controller ambient), per Tricon system environmental limits |
| Signal I/O Types | No direct process I/O; CPU/system processing and diagnostics. Process I/O handled by dedicated Tricon I/O modules |
| Communication Interfaces | Tricon backplane for intra-system coordination; external networks via separate Tricon communication modules (e.g., Ethernet/serial TCM) |
| Installation Method | Plug-in to Tricon chassis; used in triplicate for TMR operation; secure with front-panel fasteners; observe ESD procedures |
Application Fields
Plants typically deploy the 3601E in high-integrity safety systems where uptime and repeatable behavior matter: emergency shutdown (ESD), fire & gas, burner management, HIPPS, and turbomachinery protection. In many cases it’s chosen to maintain compatibility with established Tricon racks while updating to the enhanced processor hardware.
- Oil & Gas (onshore/offshore ESD, F&G systems)
- Refining & Petrochemicals (SIS interlocks, furnace protection)
- Power Generation (turbine protection, boiler safety)
- Chemicals & Specialty (process safety layers, utility safeguarding)
Advantages & Value
- Reliability: TMR design with continuous diagnostics supports high availability and predictable fail-safe behavior.
- Compatibility: Appears to be aligned with the broader Tricon ecosystem, simplifying spares management and mixed-hardware fleets.
- Lifecycle economics: Online serviceability and long product support windows can reduce shutdown-driven replacement costs.
- Technical support: Documented installation and firmware management help keep validation straightforward during change control.
Installation & Maintenance
- Panel/cabinet: Install in a clean, ventilated cabinet that meets industrial control panel standards; maintain ambient within the Tricon system spec.
- Chassis power: Use the recommended redundant power supplies for the Tricon rack; verify backplane health before module insertion.
- Wiring & ESD: Observe ESD handling; seat the module firmly in the designated MP slots and secure front-panel screws.
- Commissioning: Match firmware revisions across the triplicated MP set; confirm diagnostics show healthy, synchronized operation.
- Routine care: Periodic dust removal, check event logs/diagnostics, and plan firmware updates through approved MOC procedures.
A maintenance supervisor recently noted that swapping a single MP within a running TMR set was straightforward—“no drama, no bump”—as long as firmware and configuration alignment steps were followed to the letter.
Quality & Certifications
- Part of the Tricon system recognized for IEC 61508 SIL3 when properly engineered and validated
- Typical industrial approvals: CE; UL/cUL; RoHS-compliant hardware revisions are commonly available
- Manufacturer’s hardware warranty practices apply; we provide a 365-day warranty on supply
Notes on System Integration
The 3601E works in conjunction with Tricon I/O modules (for process signals) and dedicated communication modules for Ethernet/serial links. If you’re refreshing an existing controller, we typically confirm chassis slotting, power headroom, and firmware compatibility before shipment to make site acceptance smoother.
