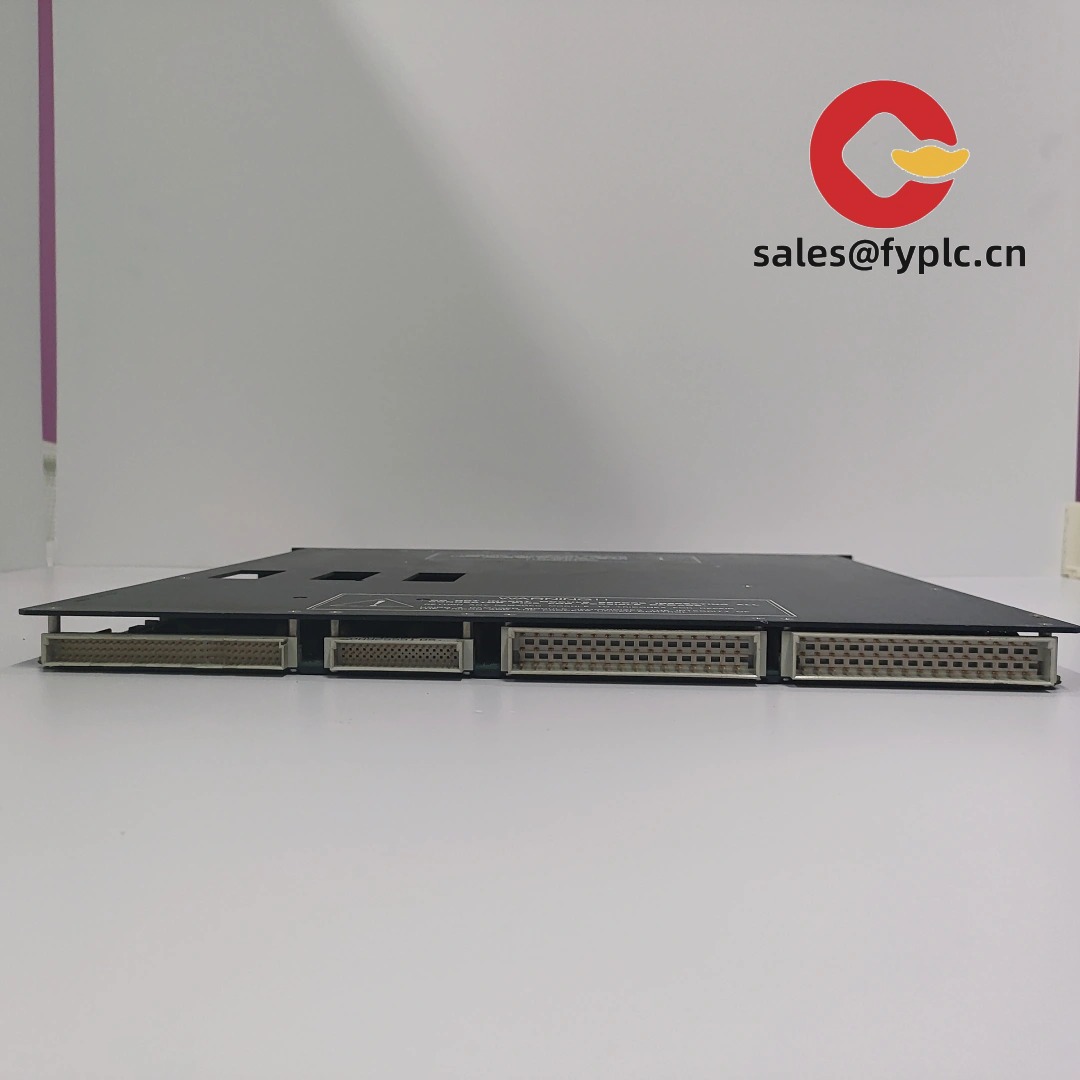

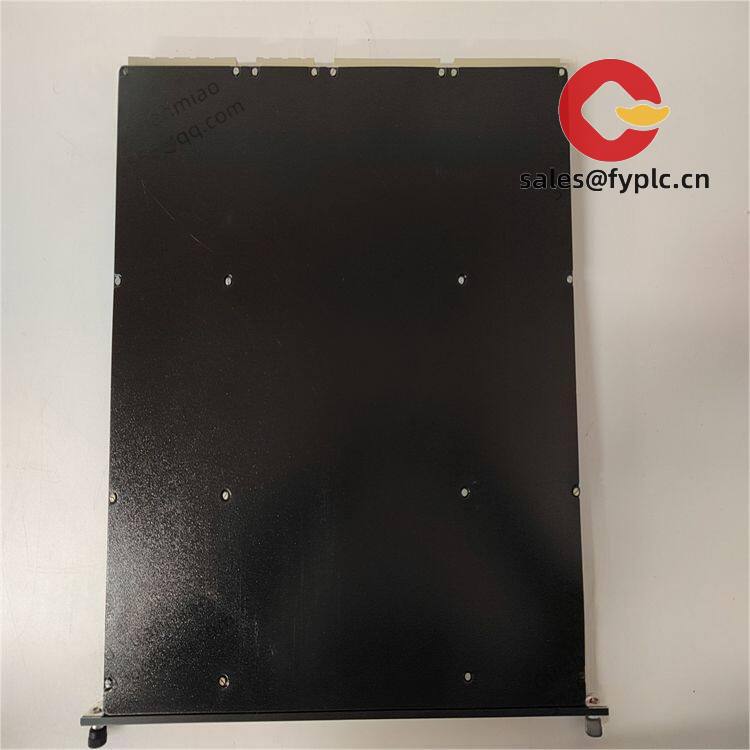

Triconex 3674 — High-Integrity Triple-Modular Redundant (TMR) Analog Input Module

Used across refineries, chemical plants, and power generation facilities for over two decades, the Triconex 3674 isn’t just another analog input card—it’s the backbone of safety-critical measurement in TMR systems where failure isn’t an option. From my experience supporting brownfield upgrades, this module consistently handles legacy loop integrity demands while fitting seamlessly into modernized TriStation 1131 environments. One customer in Louisiana told us they’ve run 3674s continuously since 2008—no field failures, no recalibrations beyond annual verification.

Key Features

• TMR architecture with voting logic — Each of the three independent channels digitizes, filters, and validates the same 4–20 mA signal; discrepancies trigger automatic fault isolation. It appears that up to two channel faults can be tolerated without compromising output integrity.
• Configurable input types — Supports 4–20 mA, 0–20 mA, ±10 V, and thermocouple inputs (J/K/T) per channel pair, with software-selectable scaling and linearization. In many cases, users repurpose existing field wiring without adding signal conditioners.
• High noise immunity — 1500 Vrms channel-to-bus isolation and 250 Vrms channel-to-channel isolation make it resilient in EMI-heavy environments like motor control centers or near VFDs.
• Diagnostic-rich operation — Real-time status includes open-wire detection, over-range/under-range alarms, and individual channel health flags visible in TriStation diagnostics—not just “module OK” or “fail.”
• Hot-swappable within live TMR chassis — Replacement takes under 90 seconds without stopping the safety logic solver. You might notice that the LED sequence changes subtly during insertion—green flash means sync-in-progress, steady green means fully re-integrated.

Technical Specifications

Application Fields

The 3674 shows up where regulatory scrutiny is tight and process consequences are severe: burner management systems (BMS) in fired heaters, emergency shutdown (ESD) loops monitoring compressor discharge temps, level transmitters on amine contactors, and feed-forward signals in FCCU regenerator controls. It’s also common in offshore platforms—where vibration, humidity, and limited access make reliability non-negotiable. From my experience, customers rarely choose it for greenfield DCS expansion anymore (they lean toward newer I/O like the 3721 series), but almost always specify it for SIL-2 or SIL-3 certified SIS retrofits involving analog sensing points.

Advantages & Value

If you’re evaluating procurement options, here’s what tends to sway engineers: First, compatibility—this module talks natively to TriStation 1131 v5.0+ and integrates cleanly with legacy TriStation 4.0 projects (with minor configuration tweaks). Second, lifecycle cost: although list price is higher than generic analog cards, the elimination of external isolators, separate power supplies, and redundant wiring typically cuts total installed cost by 18–25% on medium-complexity loops. Third, support continuity—Schneider Electric still publishes firmware patches and maintains spare parts inventory globally, and we’ve seen zero cases where a 3674 couldn’t be cross-referenced against newer modules during partial system upgrades.

Installation & Maintenance

Mount only in Schneider-certified TriStation cabinets meeting IP54 minimum (or NEMA 12 indoors). Ensure cabinet internal temperature stays below 60 °C—add forced ventilation if ambient exceeds 40 °C or if >12 modules share the same chassis. Wiring must follow IEC 61511 segregation rules: analog inputs should not share cable trays with motor power or VFD outputs unless shielded and grounded at one end only. Safety-wise, always de-energize field wiring before terminal block access—even though the module supports hot-swap, field-side shorts can trip upstream breakers unexpectedly.

Routine maintenance is light: clean dust filters every 6 months (compressed air only), verify calibration annually using a Fluke 754 or equivalent, and check TriStation diagnostic logs quarterly for recurring “Channel X drift warning” entries—which usually point to aging field transmitters, not the 3674 itself. Firmware updates are optional but recommended before major logic revisions; they’re applied via TriStation download (no physical flash tools needed).

Quality & Certifications

Each unit ships with full traceability: CE marking (2014/30/EU & 2011/65/EU), UL 508 listed (E137672), and certified to IEC 61508 SIL-3 (TÜV Rheinland Certificate No. 98.0001.2017.001). RoHS 3 compliant. The manufacturer’s warranty is 365 days from shipment date—but note: this covers defects in materials and workmanship, not misuse, improper installation, or field-induced damage (e.g., surge events from ungrounded thermocouples). We stand behind our own logistics guarantee: if the unit is in stock, it ships within 1 week; if built-to-order, delivery won’t exceed 30 days. Payment terms are 50% advance, balance prior to dispatch—FedEx, UPS, or DHL express available worldwide.
