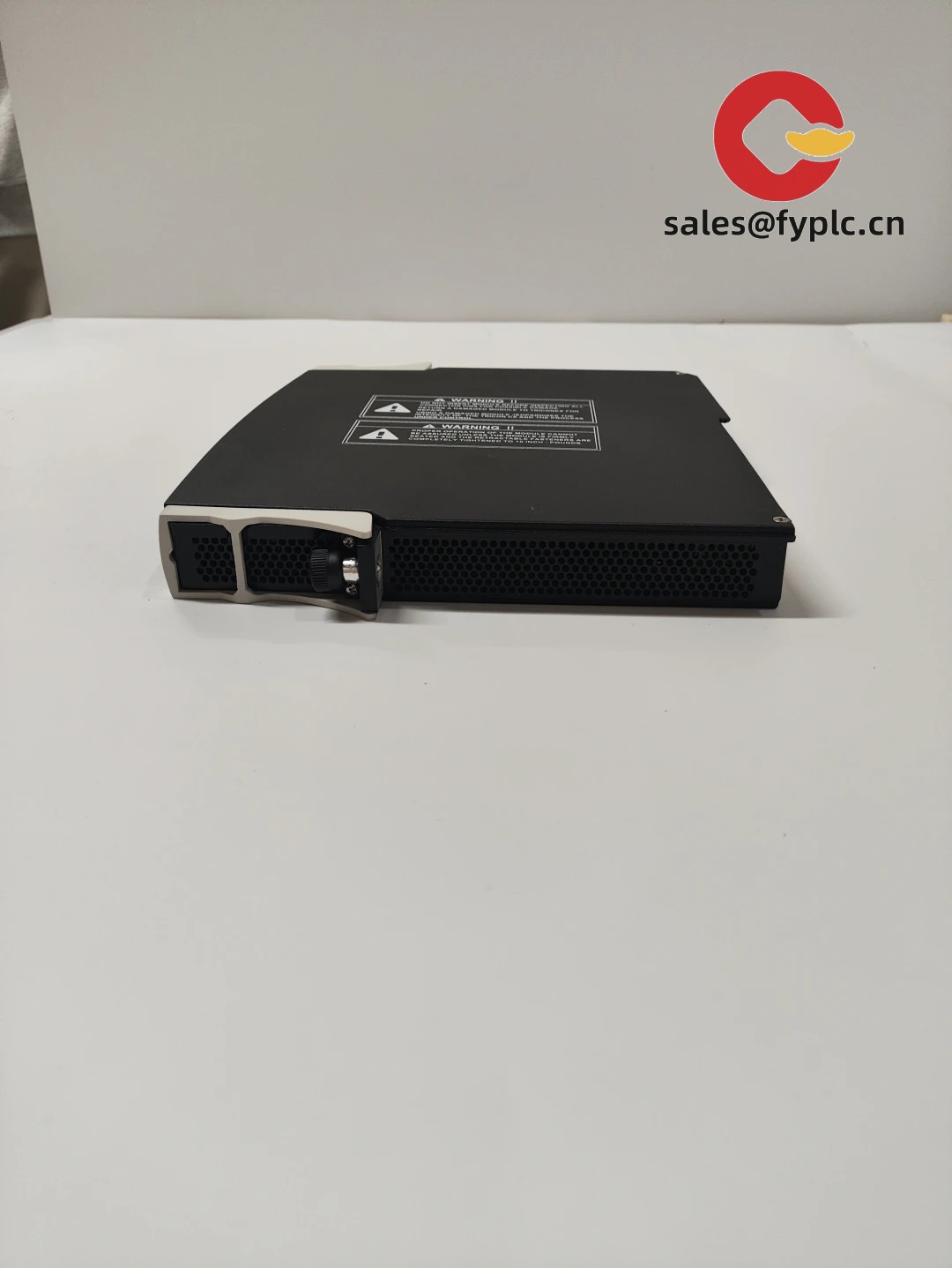

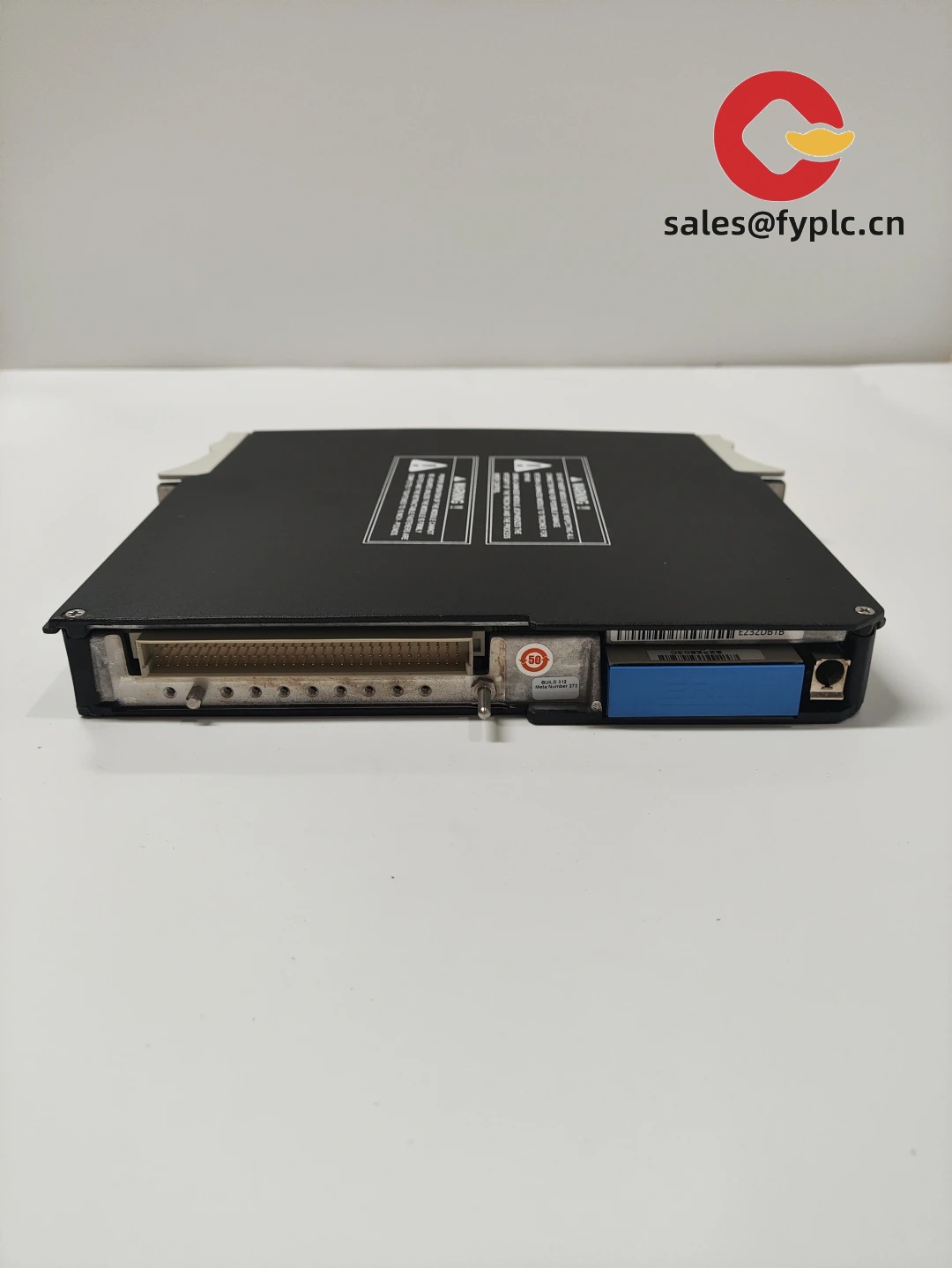

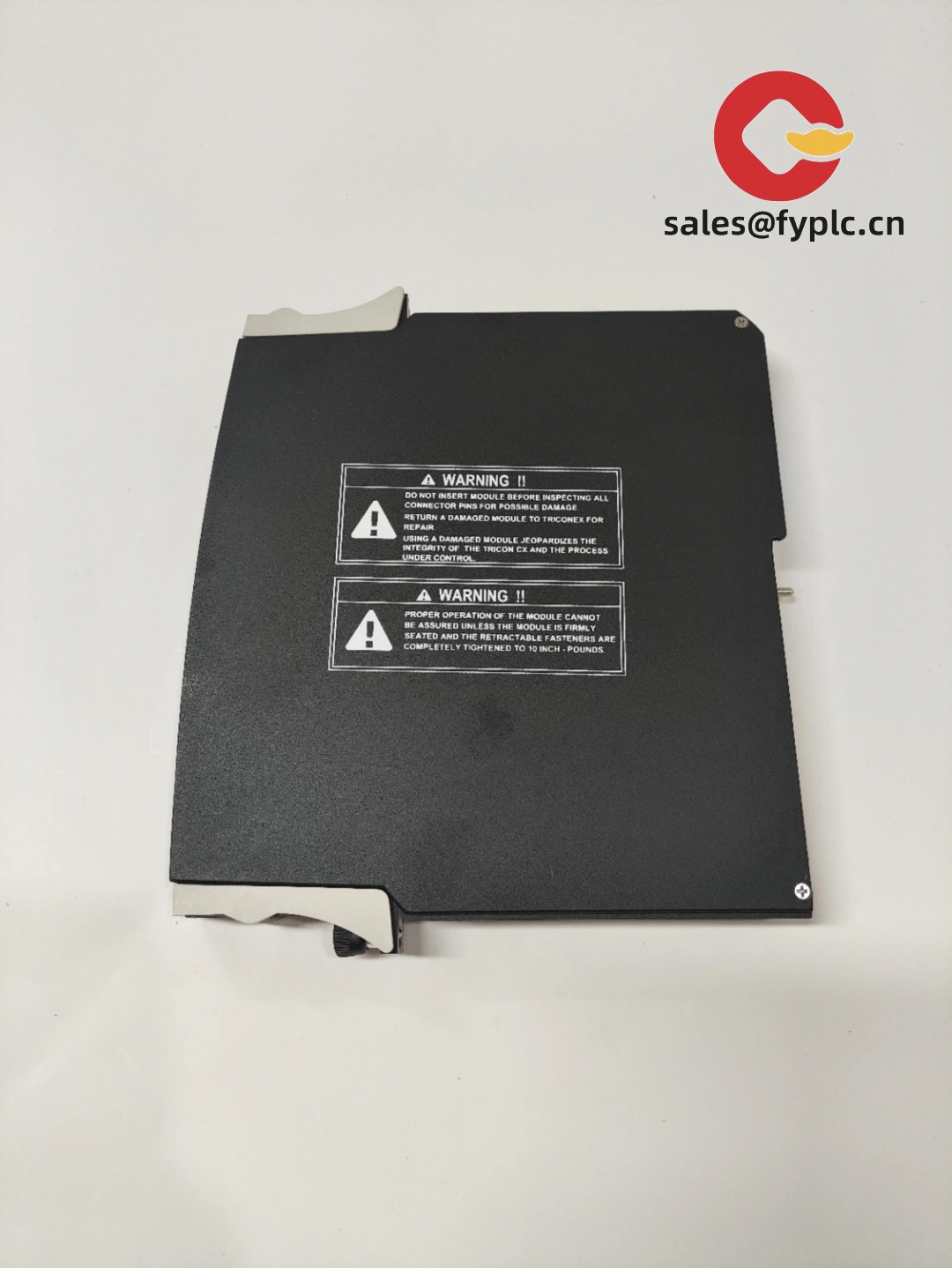

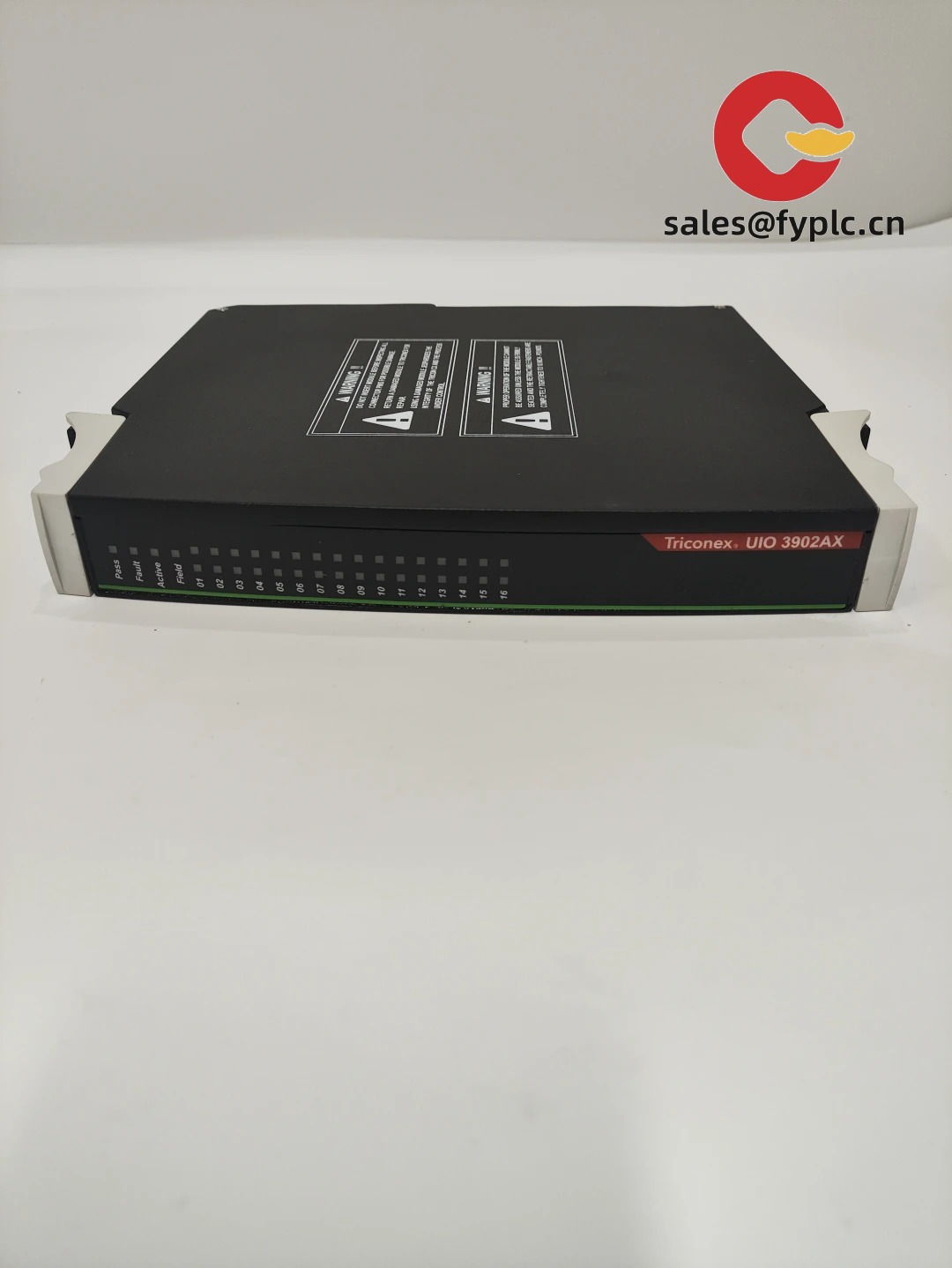

Triconex 3902AX — High-Integrity Dual-Channel Analog Input Module for Safety-Critical Process Control

Used across refineries, chemical plants, and power generation facilities, the Triconex 3902AX is a SIL 3-certified analog input module designed to reliably condition, isolate, and digitize up to 16 channels of 4–20 mA or 0–20 mA field signals — all within a single 3-slot Tricon chassis slot. From my experience supporting control system upgrades over the past decade, this module tends to replace older 3503E or 3603E units where tighter noise immunity and channel-to-channel isolation are non-negotiable — especially when integrating legacy transmitters into modern TMR (Triple Modular Redundancy) safety systems.

Key Features

• Dual-redundant signal conditioning: Each of the 16 inputs includes independent galvanic isolation (2500 V_rms) and filtering — meaning a fault on one channel rarely affects neighbors. One thing I appreciate is how cleanly it handles ground-loop-prone environments, like pump skids with mixed vendor instrumentation.
• SIL 3 compliance per IEC 61508 & IEC 61511: Certified by exida for use in safety instrumented functions (SIFs) up to SIL 3 — not just “SIL-capable” or “SIL-ready”. In many cases, engineers cite this as the main reason they specify it over generic analog modules.
• Configurable input ranges per channel: You might notice that range selection (4–20 mA, 0–20 mA, ±5 V, etc.) is set via software configuration — no DIP switches or jumpers. That means faster commissioning and fewer wiring errors during retrofits.
• Hot-swap capable (within TMR chassis): Can be replaced under power without disrupting the rest of the safety controller — critical for brownfield sites where full shutdowns aren’t feasible. A refinery client in Texas told us they cut average module replacement time from 45 minutes to under 90 seconds using this feature.
• Built-in diagnostics: Continuously monitors open-circuit, short-circuit, out-of-range, and sensor drift conditions — and reports them directly to TriStation 1131. Not just “fail-safe”, but “fail-informative”.

Technical Specifications

Application Fields

This isn’t a general-purpose I/O module — it’s purpose-built for environments where failure has real-world consequences. You’ll typically find it in burner management systems (BMS) for boilers, emergency shutdown (ESD) logic solvers for offshore platforms, turbine overspeed protection, and high-pressure reactor interlocks. It also shows up in pharmaceutical clean utilities monitoring (e.g., pure steam condensate conductivity loops), where regulatory traceability and signal integrity are audited down to the wire. One customer in Singapore used it to consolidate 3 separate analog racks into a single TMR chassis — cutting cabinet space by 65% and eliminating 22 meters of redundant cabling.

Advantages & Value

• Reduced lifecycle risk: Unlike third-party analog modules that may lack full SIL 3 validation evidence, the 3902AX ships with complete FMEDA reports, proof test procedures, and documented safe failure fraction — saving weeks of internal certification effort.
• Backward compatibility, forward flexibility: Works with existing TriStation 1131 v5.x projects, but also supports newer features like channel-level diagnostic alarms in v12.1 — so you’re not locked into obsolete engineering tools.
• No hidden integration costs: No need for external signal conditioners, isolators, or HART multiplexers. A typical deployment saves $1,800–$2,400 per module in ancillary hardware and panel space.
• Supply chain reliability: While lead times for some Triconex modules stretch beyond 12 weeks, the 3902AX remains relatively stable — we’ve had it in stock consistently over the past 18 months, and can ship in ≤1 week if confirmed available.

Installation & Maintenance

Mount only in a Triconex-approved chassis with proper ventilation — minimum 50 mm clearance above/below, and ambient airflow ≥0.2 m/s. Avoid mounting near heat-generating devices like VFDs or power supplies without shielding. Wiring must follow ISA-RP12.6 guidelines for intrinsically safe circuits if used in hazardous areas (Class I Div 1/Zone 0). For maintenance: verify calibration annually using a certified loop calibrator (Fluke 754 recommended); inspect terminal blocks for corrosion every 6 months in high-humidity locations; and apply firmware updates only during scheduled maintenance windows — never mid-SIF execution. Note: HART pass-through functionality requires separate license activation and may impact scan time slightly.

Quality & Certifications

The 3902AX carries full third-party certifications: IEC 61508 SIL 3 (TÜV Rheinland Certificate No. 98.4201.0.00100), IEC 61511 SIL 3 (TÜV Rheinland), UL 61010-1 (Certification E352693), CE (EMC Directive 2014/30/EU & LVD 2014/35/EU), and RoHS 2011/65/EU compliant. It’s covered under Triconex’s standard limited warranty — which, in practice, aligns with our own policy: 365-day warranty from date of shipment, including parts and labor for defects in materials or workmanship. We handle warranty claims directly — no need to route through Schneider Electric unless it’s a factory-level firmware defect.
