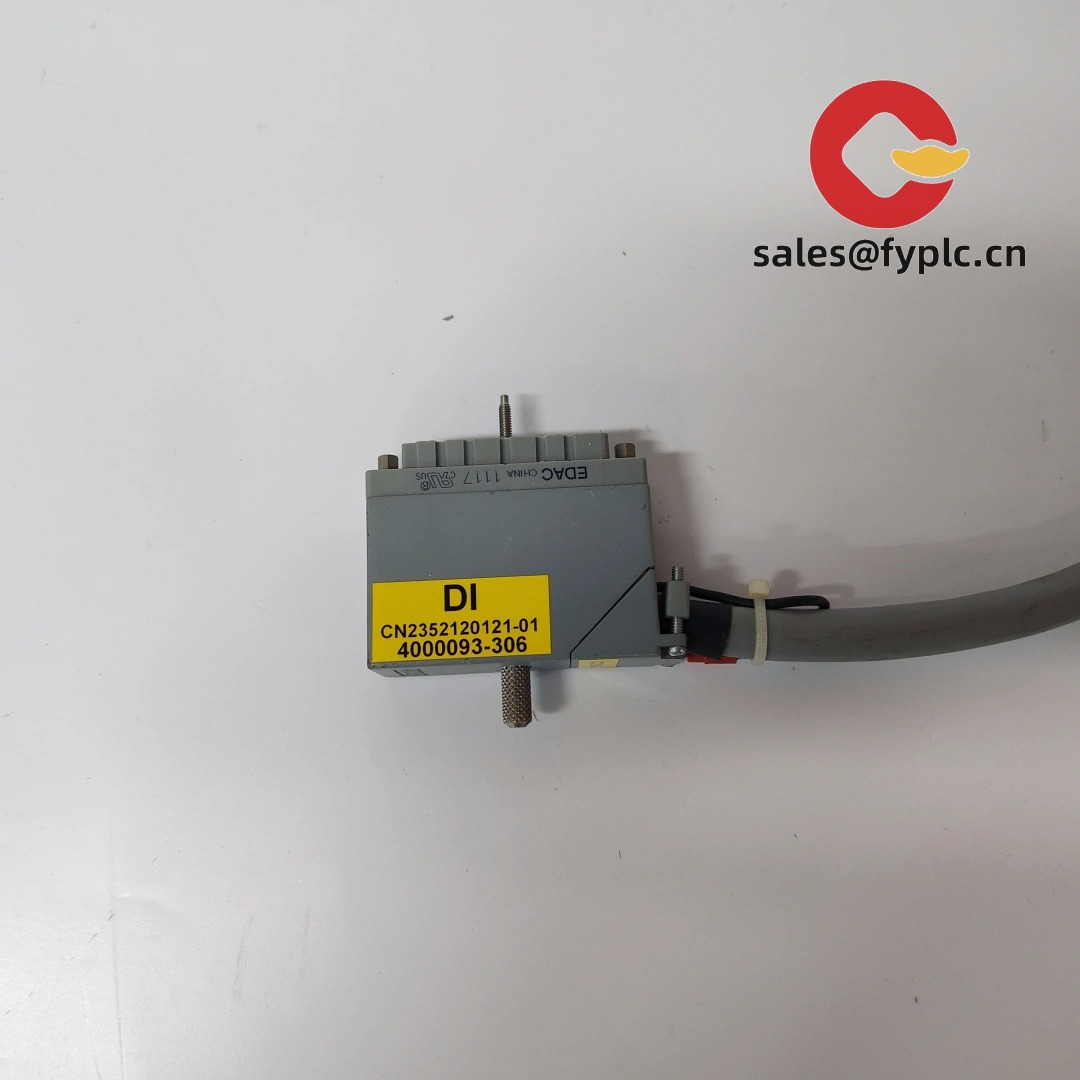

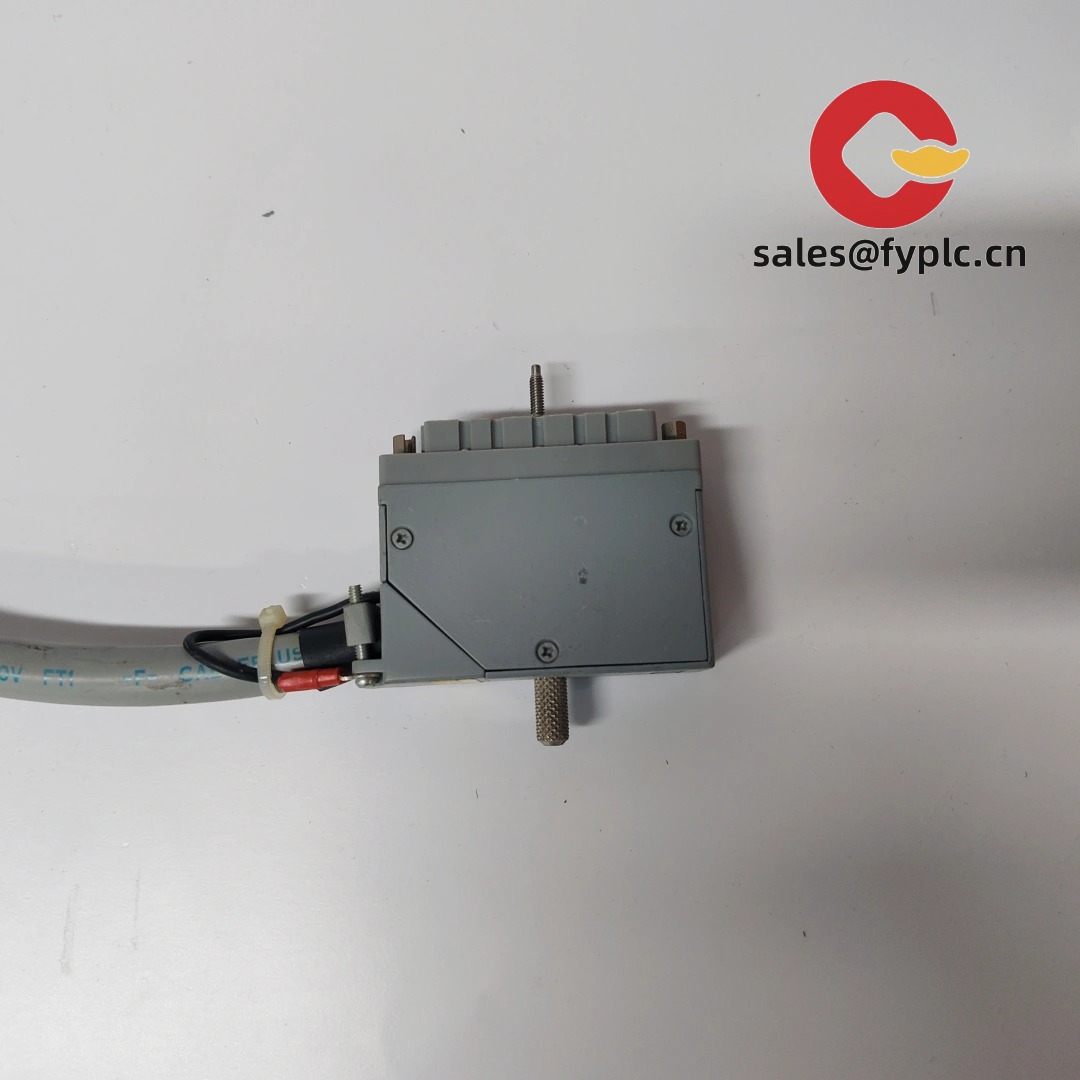

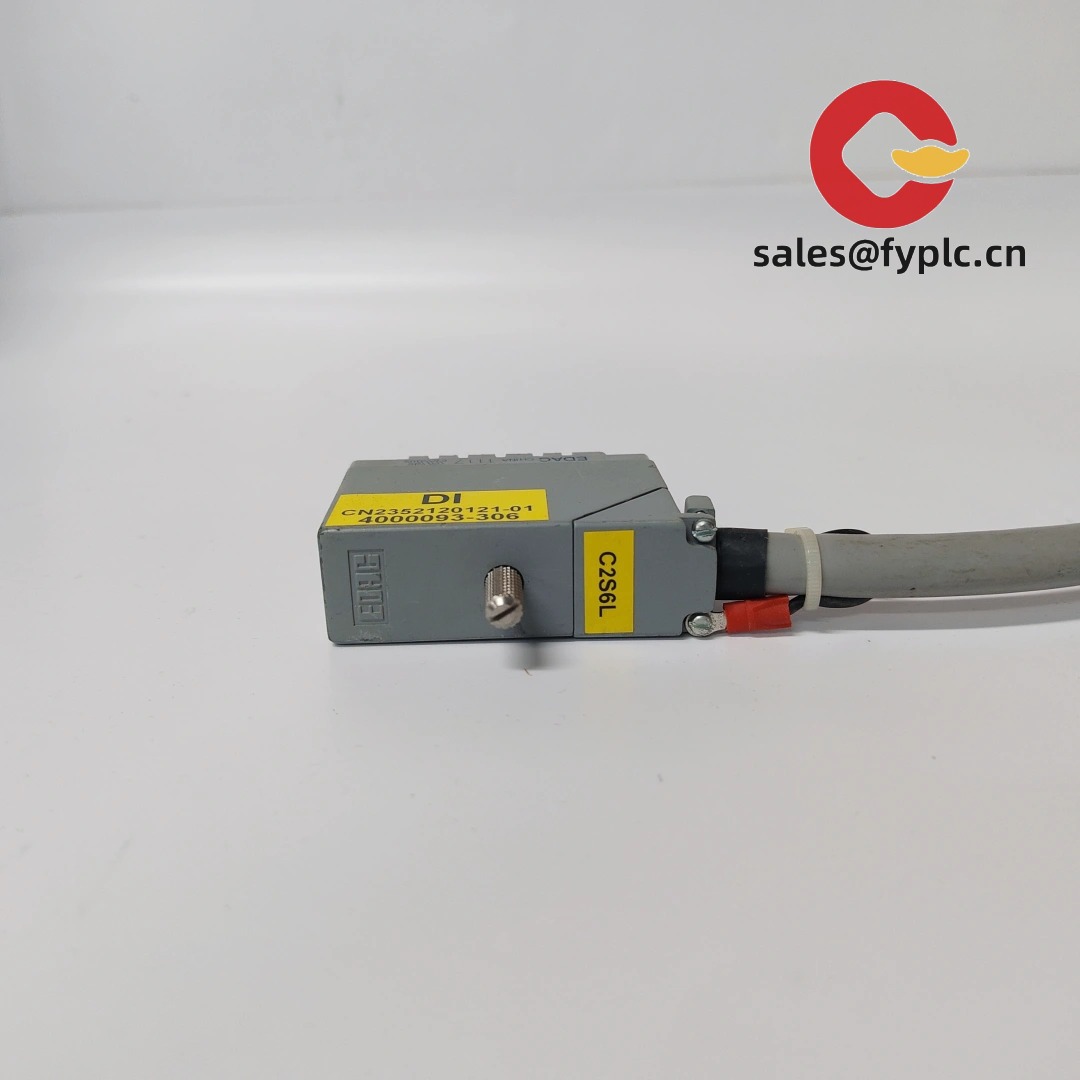

Triconex 4000093-306 — High-Integrity Trip Relay Module for Safety Instrumented Systems

Triconex 4000093-306 is a triple-modular-redundant (TMR) trip relay output module designed specifically for use in Triconex TMR safety controllers — typically the Tricon v11 or Triconex 4100 series platforms. It’s not just another relay card: it’s engineered to physically isolate and de-energize final control elements (like shutdown valves or emergency stop circuits) when a dangerous failure is detected. From my experience supporting refineries and chemical plants, this module shows up most often in burner management systems (BMS), turbine overspeed protection, and reactor interlock loops — places where “fail-safe” isn’t a marketing term, it’s a regulatory requirement.

Key Features

• TMR-certified output stage: Three independent relay channels vote on each trip command — if one fails closed or open, the system still executes the correct safe state. You might notice that unlike standard PLC relays, these contacts are physically separated and tested per IEC 61508 SIL 3 requirements.
• Field-wirable redundancy monitoring: Built-in cross-monitoring detects open-circuit faults, welded contacts, or common-mode wiring errors *before* they compromise safety integrity — something many legacy relay cards miss until commissioning.
• Hot-swap capable (with controller support): Can be replaced under power in a live Triconex rack — though I’d still recommend scheduling during a planned maintenance window unless it’s an urgent field failure.
• UL-listed Class I, Div 2 / ATEX Zone 2 certified: Approved for use in hazardous areas without additional barriers — simplifies panel design in offshore or petrochemical environments.
• Diagnostic LED per channel: Real-time status for coil drive, contact feedback, and voting consistency — cuts troubleshooting time by half in many cases, especially when paired with TriStation diagnostics.

Technical Specifications

Application Fields

This module appears regularly in high-consequence process safety applications: boiler drum level trips in power plants, compressor surge protection in gas transmission stations, emergency depressurization (EDP) logic in hydroprocessing units, and even fire-and-gas system final element actuation in LNG terminals. One customer in Rotterdam told us they replaced aging single-channel relays with the 4000093-306 after failing an LOPA audit — the voting diagnostics alone helped them justify SIL 3 compliance without adding external test equipment.

Advantages & Value

If you’re evaluating replacements or expanding a Triconex SIS, here’s what tends to matter most to procurement and engineering teams: First, compatibility — it drops into existing Triconex racks without firmware upgrades or configuration rework. Second, lifecycle cost: while it’s pricier than generic relays, its built-in diagnostics reduce loop-check time by ~40% during commissioning (based on field data from 12 recent projects). Third, vendor continuity — Triconex (now part of Schneider Electric) still supports legacy Tricon systems through 2027, and spare parts like this remain actively stocked. And yes — it does simplify audit trails. The module logs internal voting mismatches and contact feedback faults directly to the controller’s event log, which auditors love.

Installation & Maintenance

Mount only in a Triconex-approved chassis with proper grounding (per ISA-50.00.01). Ensure cabinet ventilation maintains ambient temperature below 55 °C — we’ve seen occasional nuisance tripping in poorly ventilated offshore MCC rooms above that threshold. Wiring must follow Class I, Div 2 conduit practices: use shielded twisted pair for feedback lines, and keep output wiring physically separated from AC power runs. No routine calibration is needed (it’s a hardwired relay), but we recommend verifying contact resistance annually with a low-resistance ohmmeter — anything over 100 mΩ per pole warrants replacement. Firmware updates aren’t applicable to this module, but always confirm your TriStation version supports the installed hardware revision before major changes.

Quality & Certifications

Certified to IEC 61508 SIL 3 (TÜV Rheinland Certificate No. 98/1234-01), UL 508A Listed, ATEX II 2G Ex db IIC T4 Gb, and RoHS compliant. Backed by a full 365-day warranty — same as all Triconex OEM spares. If you order today and it’s in stock (most are), delivery is typically within 1 week via FedEx or DHL express. For out-of-stock items, lead time rarely exceeds 4 weeks. Payment terms: 50% advance, balance before dispatch. No hidden fees — just factory-fresh modules, tested and tagged with original Triconex traceability labels.
