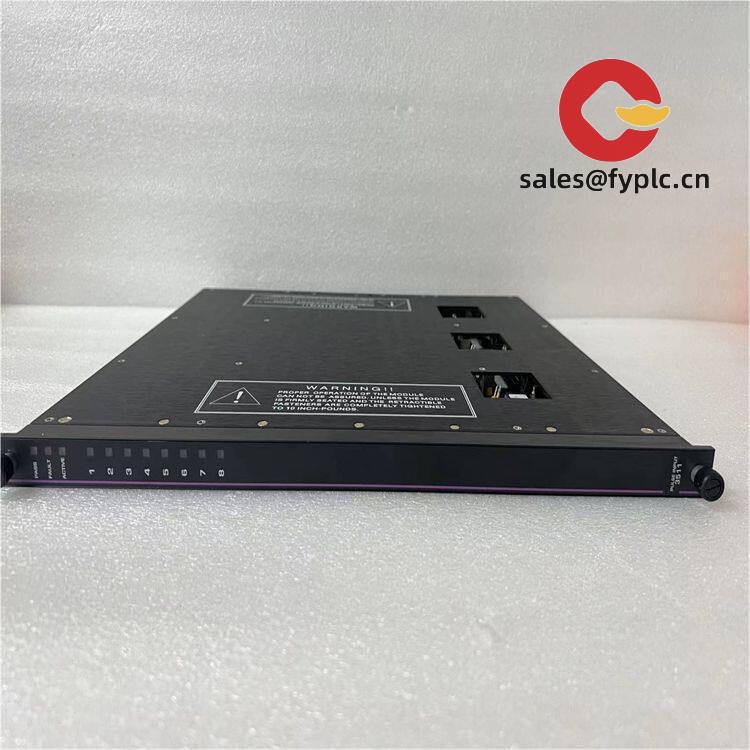

TRICONEX 4101 – TMR module for Tricon safety instrumented systems (SIS)

The TRICONEX 4101 is part of the Triconex TMR (Triple Modular Redundant) safety platform used in critical control and shutdown applications. From my experience, engineers choose the 4101 series when they want proven SIL3-capable reliability, straightforward integration with TriStation 1131, and hot-replace convenience that keeps the plant running. Whether you’re refreshing spares or expanding a cabinet, it typically drops into an existing Tricon rack without any program changes.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance; full balance before delivery
• Express options: FedEx, UPS, DHL

Key Features

• Triple Modular Redundancy (TMR): Three independent channels with voting to maintain operation even if one channel trips or is removed.
• Hot-replace capability: In many cases you can replace the module online, minimizing process interruptions and maintenance windows.
• Built-in diagnostics: Continuous self-checks and status indication help technicians spot issues early and speed up troubleshooting.
• SIL3-ready platform: Designed for use within the Triconex SIL3-certified system architecture when used per vendor guidance.
• Backplane-powered design: No external power wiring to the card; power is delivered through the Tricon chassis.
• Field Termination Assembly (FTA) compatibility: Uses matched FTAs and cables for clean field segregation and easier loop checks.
• TriStation 1131 integration: Seamless with established engineering tools, which typically reduces commissioning time and risk.

Technical Specifications

Application Fields

You’ll typically see the 4101 used where continuous protection matters: emergency shutdown (ESD), burner management (BMS), fire & gas (F&G), turbine and compressor protection, HIPPS, and high-integrity interlocks in refining, petrochemicals, LNG, power generation, and offshore platforms. One plant maintenance lead told me they like it because “we can swap a card while running – the vote keeps us safe.”

Advantages & Value

• Reliability that scales: TMR architecture and continuous diagnostics reduce spurious trips and nuisance alarms.
• Lifecycle-friendly: Compatible with established Tricon systems and TriStation 1131 projects, which often means no revalidation from scratch.
• Cost control: Hot-replacement and straightforward loop testing help shorten outage durations and lower field labor.
• Integration flexibility: Works within the broader Triconex ecosystem including communication modules and proven FTAs.
• Supportable long term: Widely installed base and available technical support shorten troubleshooting cycles.

Installation & Maintenance

• Cabinet & environment: Install in a clean, ventilated control cabinet; maintain ambient temperature within spec and avoid corrosive atmospheres.
• Wiring practice: Use the matched FTA and shielded cables where applicable; segregate low-level signals from power wiring; verify grounding and intrinsic safety barriers if used.
• Commissioning: Validate module status via TriStation 1131; perform loop checks from the FTA to field devices; document channel mapping.
• Hot-replacement: When allowed by your safety plan, replace a single module online following site MOC and vendor procedures; confirm healthy voting after insertion.
• Routine care: Periodic dust removal with dry air, confirm firmware compatibility across redundant paths, and review diagnostics/sequence-of-events for early warnings.
• Calibration & proof tests: Follow your SIS proof-test interval; for analog channels, verify ranges and sensor health during scheduled outages.

Quality & Certifications

• SIL certification: Designed for IEC 61508 SIL3 applications when used within the Triconex system architecture.
• CE / UL / CSA: Commonly available on Triconex system components; regional markings may vary by build.
• RoHS: Typically compliant for electronic assemblies of this class.
• Manufacturer warranty: Schneider Electric policies vary by region and supply channel; our supplied units carry a 365-day warranty as stated above.

Recommended Supporting Components

To speed up procurement and ensure compatibility, many clients source these related parts together:

• TRICONEX 3008 – Main processor module for Tricon systems.
• TRICONEX 3625 – Communication module for network integration and TriStation connectivity.
• Matching FTAs & cables (4xxx series) – Field Termination Assemblies and ribbons for clean, reliable field wiring.
• Tricon main/expansion chassis – Standard rack to host CPU, I/O, and communication modules.

If you share the installed cabinet type and the exact 4101 variant you’re replacing, we’ll confirm FTA compatibility, slot rules, and shipment lead time the same day in most cases.
