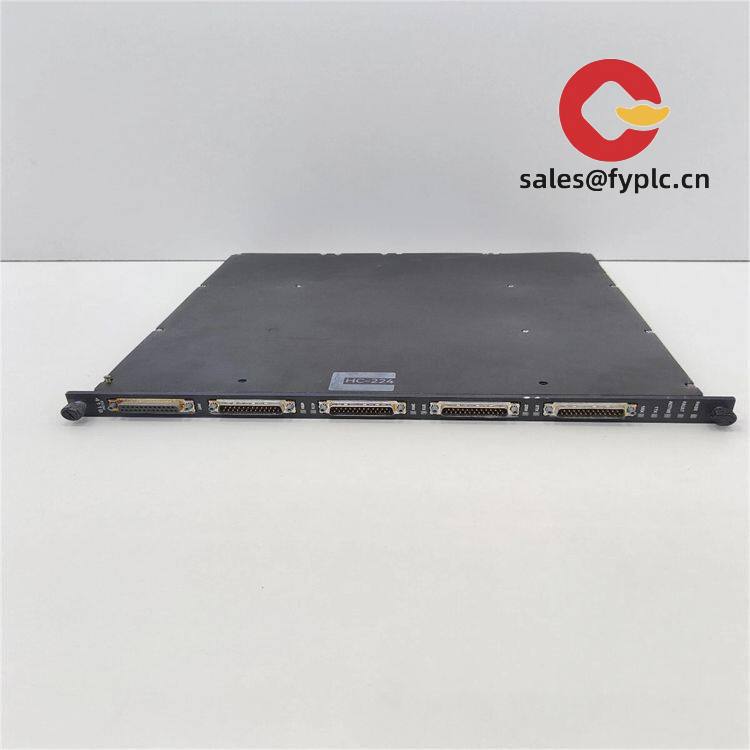

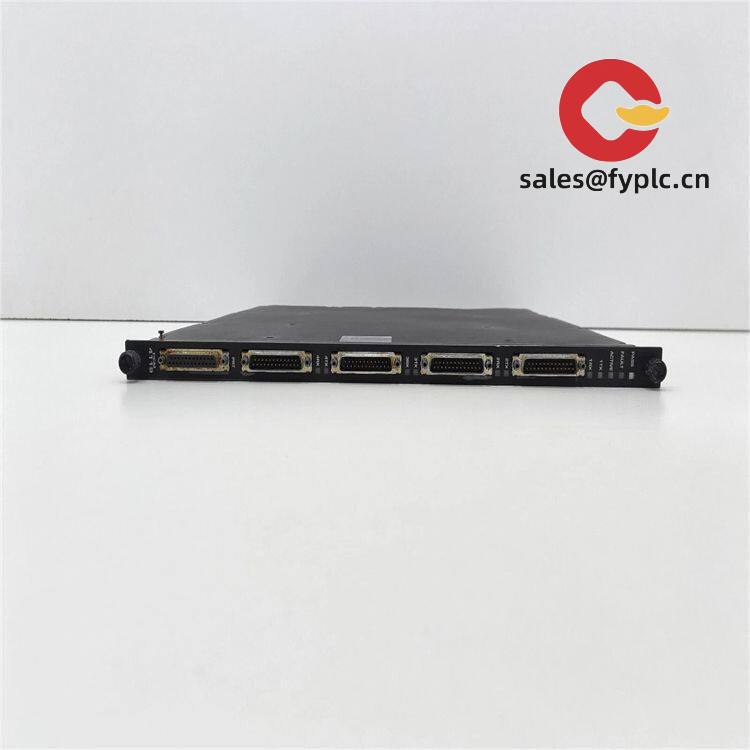

TRICONEX 4118 – High-integrity analog input module for Triconex TMR safety systems

The TRICONEX 4118 is a plug-in I/O module designed for the Triconex triple-modular-redundant (TMR) safety platform. From my experience, it’s typically deployed where reliable acquisition of process analog signals (most commonly 4–20 mA loops) is required in ESD, BMS, and Fire & Gas applications. You might notice that it prioritizes fault tolerance and diagnostics over flashy specs—exactly what most safety teams want in a SIL-rated environment.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express options: FedEx, UPS, DHL

Key Features

• TMR architecture, end to end: The 4118 works within the Triconex TMR backplane to deliver high availability and fault masking for analog sensing.
• Robust analog acquisition: Commonly used for 4–20 mA process inputs with per‑channel diagnostics to catch wiring issues and out‑of‑range conditions.
• Channel isolation and protection: Typically provides isolation at the channel or group level, helping reduce ground loop and noise issues in harsh plants.
• Hot‑spare strategy: Supports module sparing within the TMR system to keep loops live during maintenance in most cases.
• Seamless integration: Communicates over the Triconex backplane; no external comm configuration needed, which keeps project risk low.
• Lifecycle stability: Appears to be supported across multiple Triconex system revisions, easing migrations and spares strategies.

Technical Specifications

Application Fields

The 4118 is widely used where safe, reliable analog measurement matters:

• Oil & Gas ESD and HIPPS loops monitoring pressure, level, and flow transmitters
• Fire & Gas systems reading gas detectors and flame/heat transmitters
• Burner Management Systems handling furnace draft, fuel, and air ratio signals
• Chemicals and refining process safeguarding with redundant transmitter voting
• Power generation balance-of-plant protections and turbine auxiliary measurements

Advantages & Value

• Reliability first: TMR data path and proven diagnostics reduce spurious trips and nuisance alarms.
• Compatibility with installed base: Fits standard Triconex chassis and engineering tools, which typically means minimal rework.
• Lifecycle and spares: Stable supply chain for safety I/O helps maintenance teams keep a lean but effective spare strategy.
• Cost control: Higher availability often translates into fewer unplanned shutdowns—procurement teams tend to favor that ROI.
• Technical support: Easy for integrators familiar with Triconex to commission; straightforward for site electricians to wire via FTAs.

Installation & Maintenance

• Cabinet environment: Install in a clean, ventilated cabinet. Typical practice is 19″ rack with adequate airflow and ambient 0–60 °C.
• Grounding & shielding: Use shielded twisted pairs for analog loops; terminate shields at one end to avoid ground loops.
• Wiring via TA/FTA: Land field cables on the designated termination assembly. Keep loop polarity consistent and separate low‑level analog from high‑energy cables.
• Safety practice: De‑energize loops or apply proper LOTO before handling field terminations. Verify with a loop calibrator.
• Routine maintenance: Periodic loop calibration (6–12 months is common), clean dust from cards and connectors, and document any firmware updates approved for your SIS.
• Spares management: Maintain at least one spare 4118 per cabinet or per 32–64 loops, depending on site criticality.

Quality & Certifications

• Designed for use in IEC 61508/61511 SIL3 Triconex systems (TÜV certified at the system level)
• CE conformity for industrial environments
• Manufacturer quality system typically aligned with ISO 9001
• RoHS applicability depends on system revision and region—verify per project
• Warranty: 12 months (365 days)

One thing I appreciate is how predictable commissioning tends to be. If you’re replacing legacy analog modules, the 4118 usually slots in with minimal logic edits—most of the work is careful loop tidying and good documentation.
