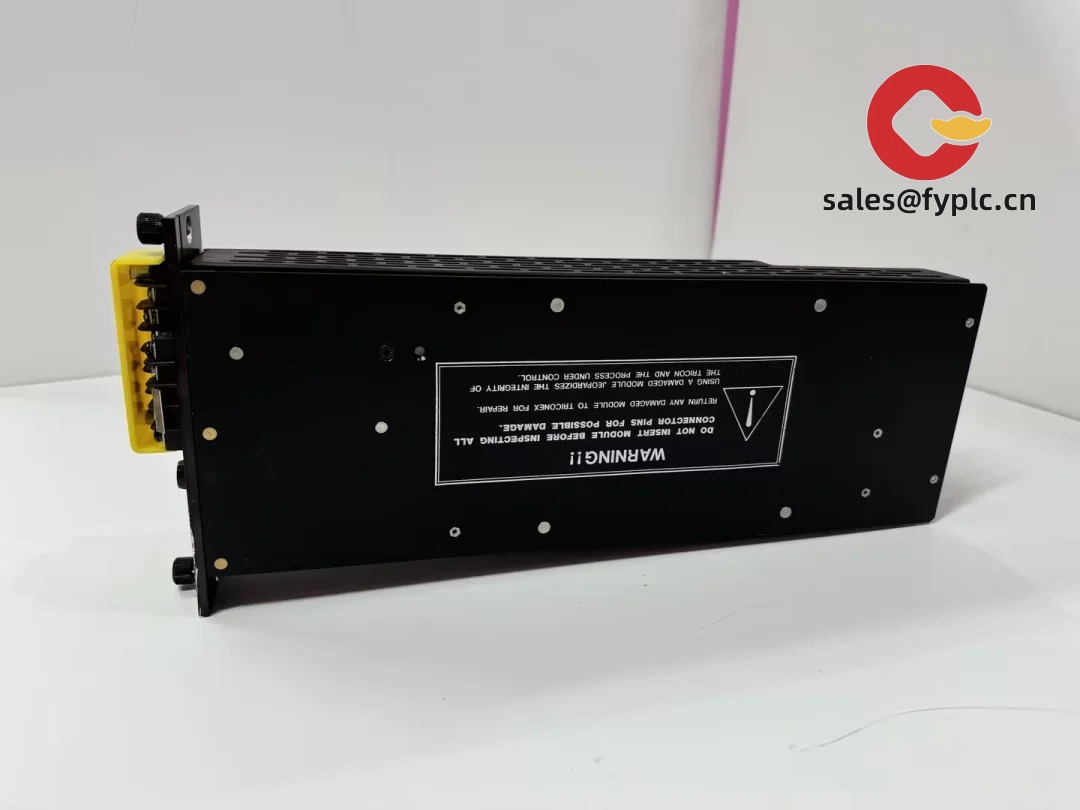

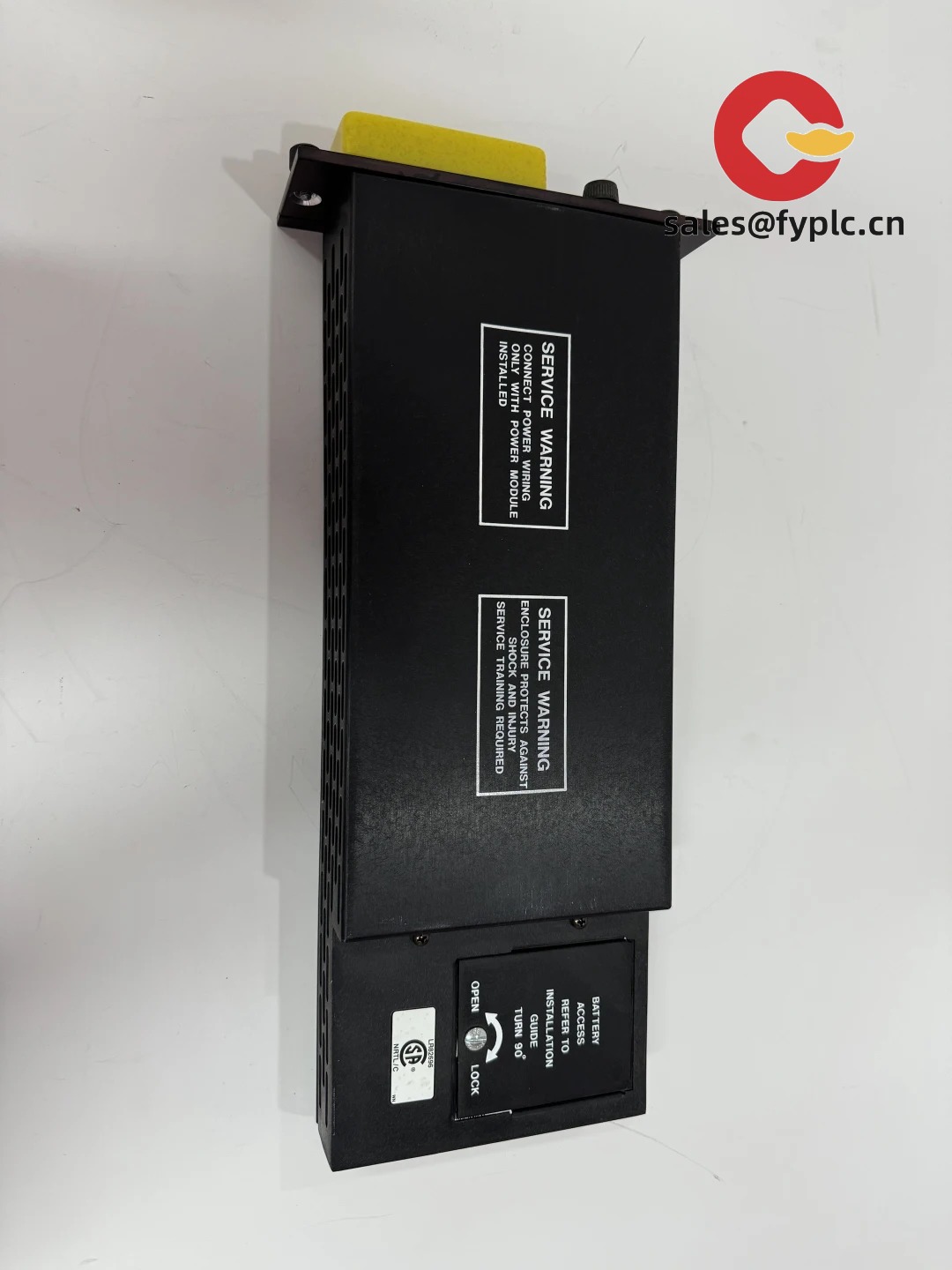

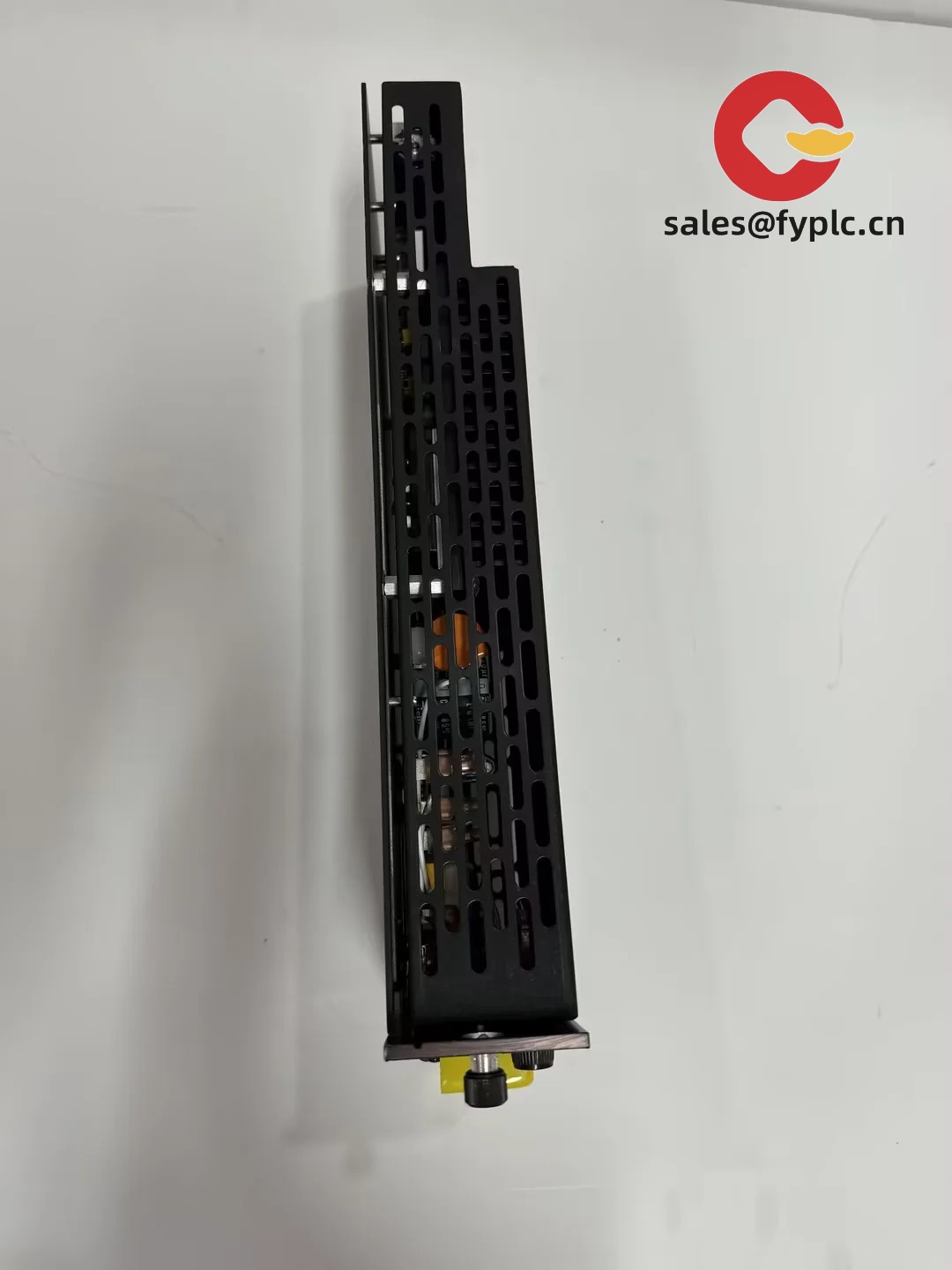

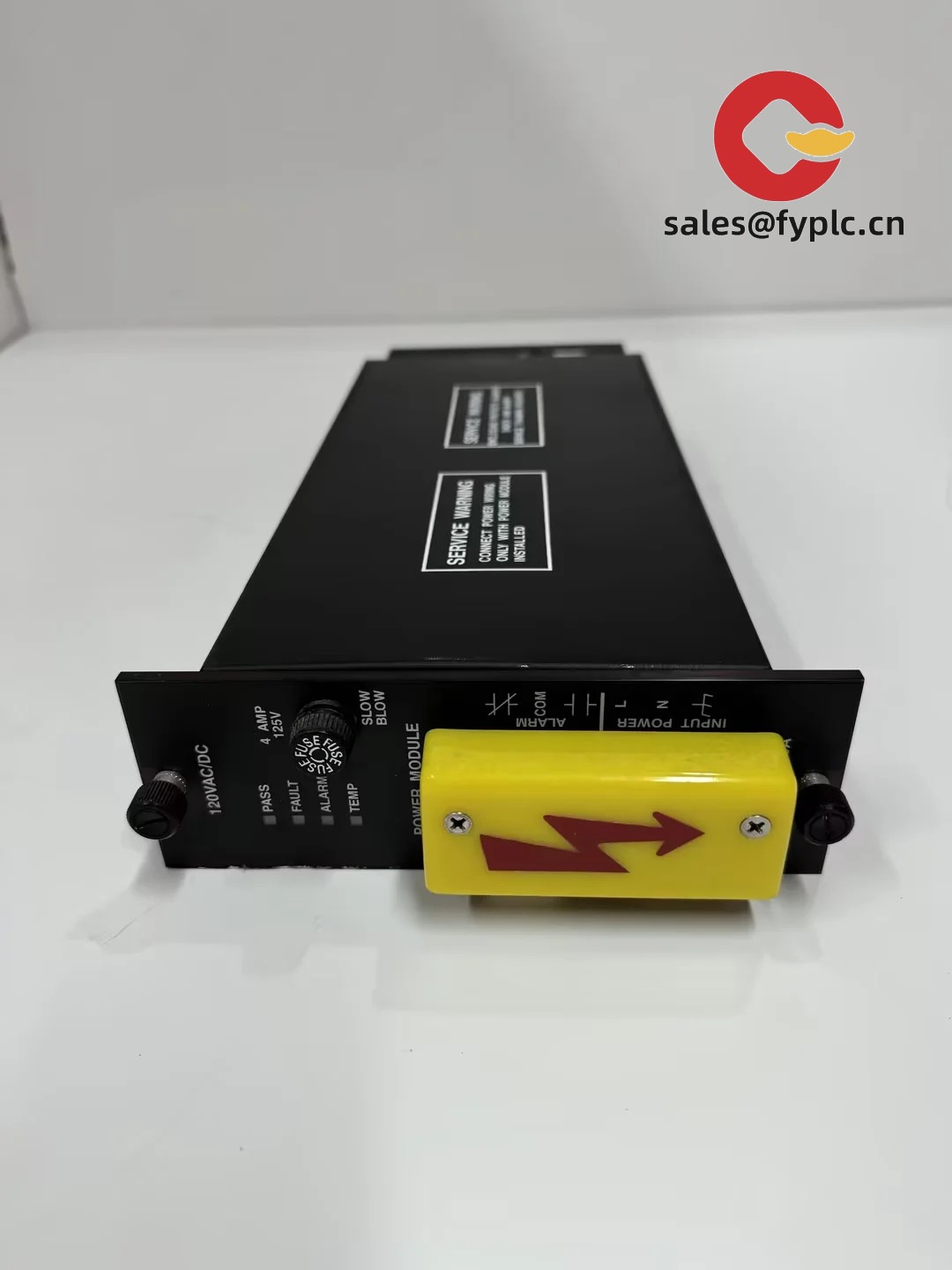

Triconex 8305A Triple Modular Redundant (TMR) Input/Output Module

The Triconex 8305A is a high-integrity I/O module designed for use in Triconex TMR safety systems—typically deployed where failure isn’t an option: offshore platforms, chemical batch processes, and turbine control applications. It’s not just another I/O card; it’s one of the few modules that actively participates in the triple-channel voting architecture at the hardware level, meaning signal validation happens *before* data even reaches the logic solver. From my experience supporting refineries in Texas and LNG terminals in Norway, this module consistently handles harsh EMI environments and long-term thermal cycling better than many newer-generation alternatives—largely because its analog circuitry and voting logic are physically isolated across three independent tracks.

Key Features

• True TMR analog input processing: Each of the three channels digitizes and validates the same field signal independently—no software-only redundancy here. You might notice that field wiring faults (like open thermocouples or broken 4–20 mA loops) get flagged *per channel*, letting diagnostics distinguish between sensor failure and module degradation.
• Configurable 16-channel analog input: Supports voltage (±10 V), current (4–20 mA, with HART capability on select channels), and RTD/thermocouple inputs—all configurable via TriStation 1131 without swapping hardware. In many cases, users repurpose the same 8305A across different loop types just by changing configuration tags.
• Integrated diagnostic LEDs per channel: Not just “OK/FAIL” — each LED shows status like “Calibration Drift,” “Open Circuit,” or “Out-of-Range.” A customer in Alberta told us they cut troubleshooting time by ~40% during winter startup because they could isolate a frozen pressure transmitter before walking to the field.
• Hot-swappable with state retention: Replace it mid-operation without disturbing other modules or tripping the controller. That said, firmware version alignment matters—older 8305A units (pre-v4.2 firmware) won’t retain calibration settings during hot-swap unless the backplane supports extended memory handshake.
• EMC-hardened design: Meets IEC 61000-6-2 (industrial immunity) and has been verified to operate continuously near VFDs and radar transmitters—something we’ve validated in multiple pulp & paper mill installations.

Technical Specifications

Application Fields

This module sees heavy use where SIL 2 or SIL 3 integrity is mandated—and where legacy system continuity matters. Think compressor anti-surge loops in gas transmission stations, emergency shutdown (ESD) inputs on FPSOs, or burner management systems in refinery heaters. It’s also common in brownfield upgrades: one petrochemical site in Rotterdam replaced aging 8302 modules with 8305As while keeping their existing TriStation 1131 v3.6 engineering environment—no requalification needed, since the functional safety behavior is identical per IEC 61511 Annex F.

Advantages & Value

• No forced obsolescence trap: Unlike some newer “smart” I/O, the 8305A doesn’t rely on cloud-connected firmware updates or proprietary toolchains. Your TriStation license works today, and will still work five years from now.
• Lower lifecycle cost: Calibration intervals are typically 24 months (vs. 12 for non-TMR analog cards), and spare part cross-compatibility with 8302/8304 means you can often reuse existing calibration fixtures and documentation.
• Proven integration: Works out-of-the-box with Emerson DeltaV DCS via TriStation OPC DA drivers—no custom gateway licensing required. One pharma client told us their validation effort dropped by half compared to a competing safety I/O solution.
• Supply chain resilience: While no longer in active production, we maintain a vetted pool of tested, refurbished 8305As with full traceability—including original calibration certificates and board-level repair logs.

Installation & Maintenance

Install only in Triconex-certified cabinets meeting NEMA 12/IP54 standards, with minimum 100 mm clearance above/below for convection cooling. Avoid mounting directly beside heat-generating VFDs or transformers—thermal imaging shows localized hot spots can push ambient temps beyond spec if airflow is restricted. Wiring must use shielded twisted pair (STP) with single-point shield grounding at the module end only. For maintenance: verify zero-drift calibration annually using a Fluke 754 or equivalent; clean dust filters every 6 months (especially in cement or mining sites); and check firmware revision against Triconex Field Bulletin FB-2022-08 before any major update—it addresses a rare timing edge case in thermocouple cold-junction compensation.

Quality & Certifications

Certified to IEC 61508 SIL 3 (hardware and software), UL 1459 (telecom safety), CSA C22.2 No. 107.1, and ATEX II 2G Ex ia IIC T4 Ga. RoHS 3 compliant. All units undergo 100% functional burn-in and TMR channel synchronization testing. Warranty is 365 days from shipment date—covers parts and labor for defects in materials or workmanship. Note: warranty does not extend to damage caused by incorrect wiring, lightning surges, or operation outside published environmental specs.

Our Order Placement Process and Guarantees

• Delivery: 1 week for in-stock units (we keep ~12–18 verified 8305As ready to ship); maximum lead time is 4 weeks—even for units requiring full recalibration and certificate reissue.
• Payment: 50% advance payment required to initiate preparation; balance due before dispatch. Wire transfer preferred; POs accepted from registered industrial entities.
• Shipping: Fedex, UPS, or DHL Express—fully insured, with real-time tracking. Customs documentation pre-filled (including HS code 8537.10.90 and ECCN 3A001.a.1).
